- Load per castor136kg per castor *
- Wheel diameter260mm
- Overall height318mm
- WheelPneumatic on Pressed Steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Reinforced Fixed Top Plate Castor
- Wheel Diameter
- 260mm
- Wheel Material
- Pneumatic on Pressed Steel
- Tread Width
- 85mm
- Bearing Type
- Roller Bearing
- Load Capacity
- 136kg per castor *
- Max Load of 4 Castors
- 408kg
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 115 x 105mm
- Hole Centres
- 92/76 x 76/67mm
- Hole Diameter
- 10mm
- Total Castor Height
- 318mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Pneumatic tyre
- Rides over gravel, grass and rough ground
- Maximum cushioning for fragile loads
- Can puncture; check tyre pressure
- Lower load rating than a solid wheel of the same size
Details & FAQs

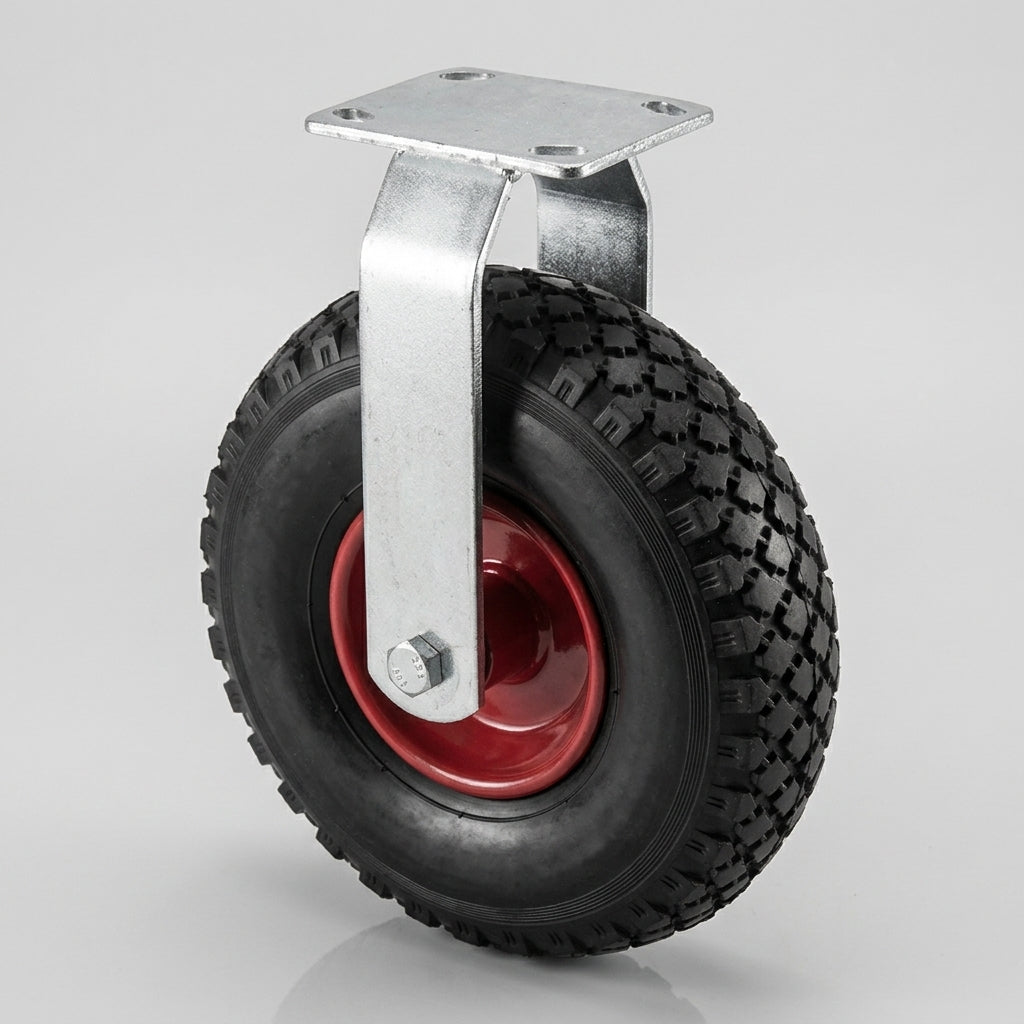

Pneumatic Fixed Castors
This 260mm reinforced fixed castor runs on a black air-filled pneumatic tyre on a pressed steel centre, giving smooth, cushioned movement over uneven surfaces. It carries 136kg per castor, or up to 408kg on a set of four, and suits handling equipment, industrial trolleys and warehouse carts.
The fixed fork keeps the wheel running straight for steady tracking, and the roller bearing keeps it turning smoothly. It bolts on with a 115 x 105mm top plate and stands 318mm tall. Check the plate size and hole centres match your existing setup before ordering.
Why Choose This Castor
- ✓ Pneumatic tyre for a cushioned ride over uneven ground.
- ✓ Reinforced fixed fork that keeps the wheel tracking straight.
- ✓ Roller bearing for smooth rotation.
- ✓ 136kg per castor, up to 408kg on a set of four.
- ✓ 260mm wheel with 85mm tread for rolling over varied flooring.
- ✓ 115 x 105mm top plate with 10mm bolt holes.
* Load capacity is per castor with the tyre correctly inflated. Check that the plate size and hole centres match your existing setup before fitting.
Where It Works Best
- ✓ Handling equipment: smooth movement over uneven surfaces.
- ✓ Industrial trolleys: cushioned transport for heavy loads.
- ✓ Warehouse carts: easy manoeuvring across varied flooring.
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed castor, so the wheel always runs straight. Pair it with swivel castors to steer your trolley.
What is a pneumatic wheel?
It has an air-filled tyre on a pressed steel centre. The air cushions the load and helps the wheel roll smoothly over uneven ground.
How much weight can it carry?
Each castor is rated at 136kg, and a set of four can carry up to 408kg.
How is it fitted?
It has a 115 x 105mm top plate with 10mm holes on 92/76 x 76/67mm centres, bolted flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 318mm.
