- Load per castor350kg per castor *
- Wheel diameter260mm
- Overall height306mm
- WheelPuncture Proof
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 260mm
- Wheel Material
- Puncture Proof
- Wheel Colour
- Black
- Tread Width
- 85mm
- Tread Hardness
- 82 Shore A
- Bearing Type
- Ball Bearing
- Fixing
- Top Plate, 4 Bolt Holes
- Plate Size
- 200 x 160mm
- Plate Hole Centres
- 160 x 120mm
- Plate Hole Diameter
- 14mm
- Total Castor Height
- 306mm
- Temperature Range
- -20°C to +60°C
- Load Capacity
- 350kg per castor *
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Details & FAQs

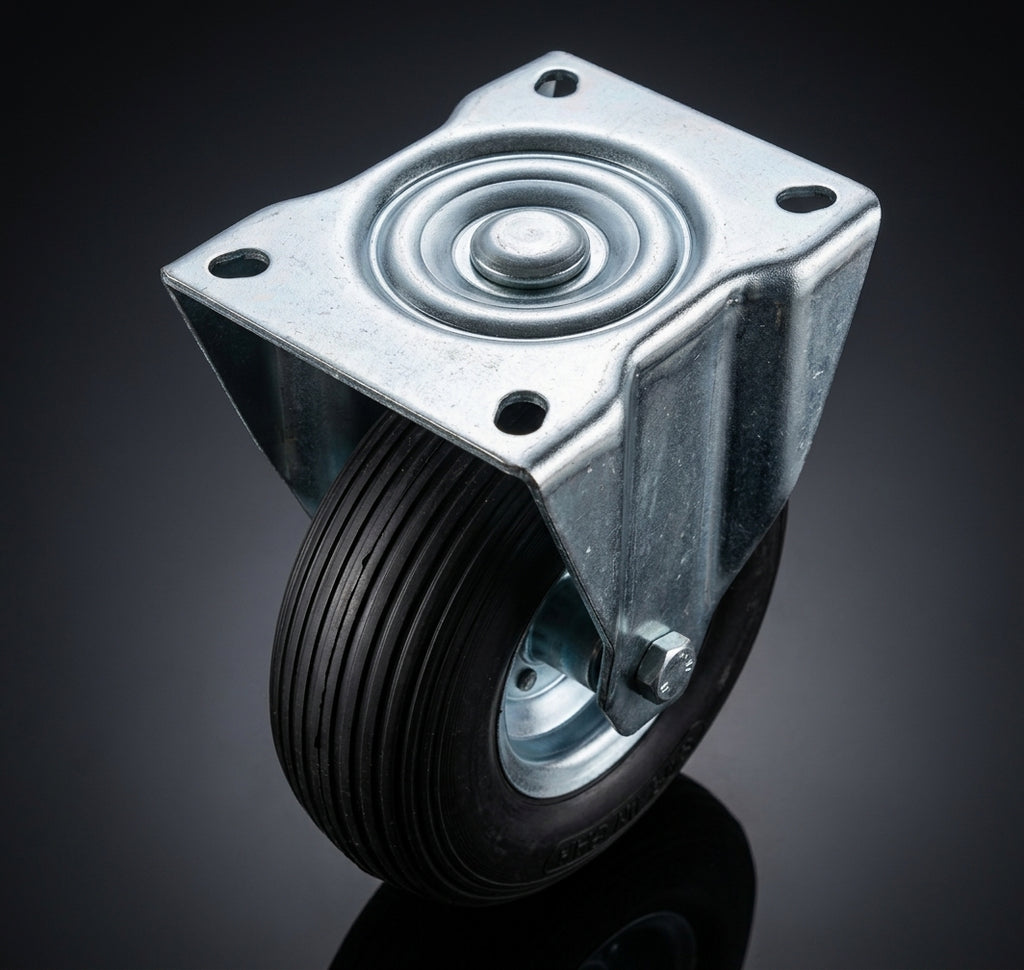

Heavy Duty Puncture-Proof Castor
This 260mm heavy duty fixed castor has a large black puncture-proof tyre that never goes flat, rated at 350kg per castor. It gives the big-wheel comfort of a pneumatic tyre without the air, so heavy trolleys, site carts and industrial equipment keep rolling over rough floors, gravel and debris with no risk of punctures.

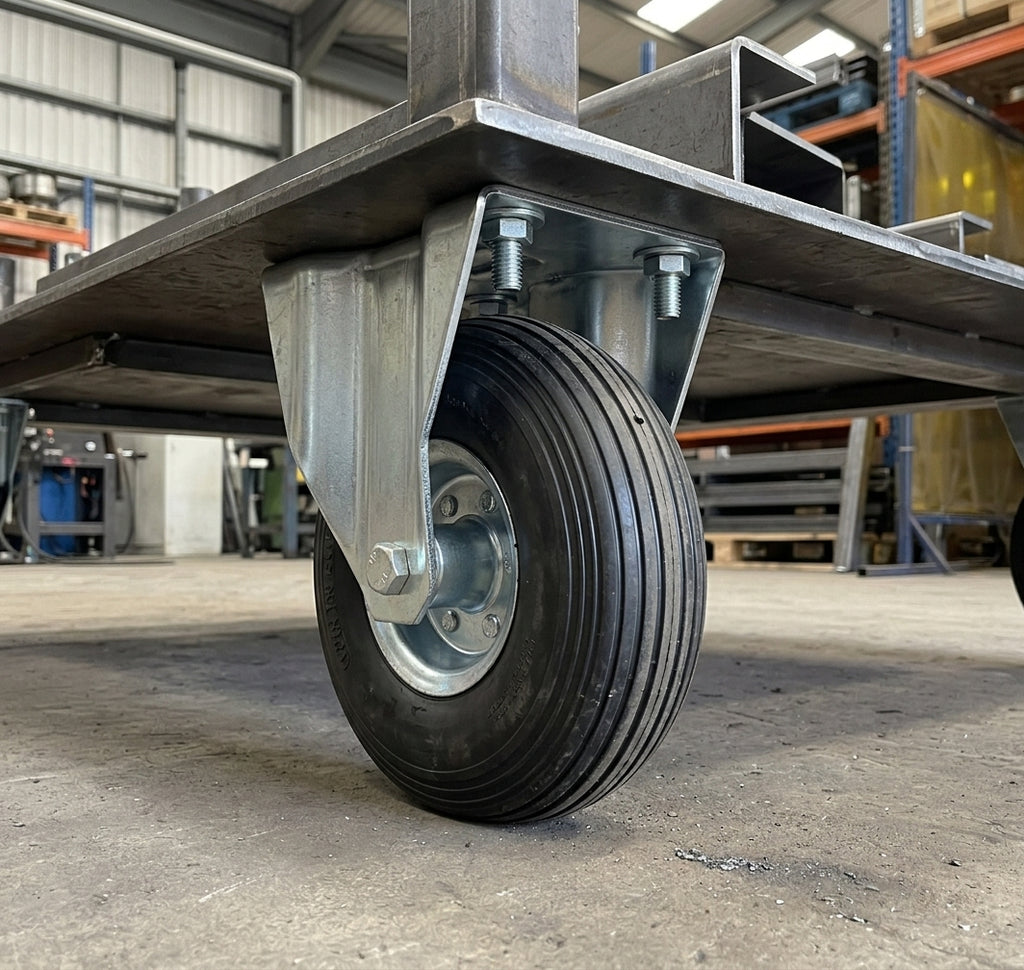

The fixed bracket keeps the wheel running straight for stable tracking, and a ball bearing keeps it turning smoothly under load. It bolts on with a large 200 x 160mm top plate and works from -20°C to +60°C. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Puncture-proof tyre that cannot go flat
- ✓ 350kg load capacity per castor
- ✓ Large 260mm wheel with wide 85mm tread for rough ground
- ✓ 82 Shore A tread for a good balance of grip and wear
- ✓ Fixed bracket for straight, stable tracking
- ✓ 200 x 160mm top plate with four 14mm holes
* Dynamic load capacity per castor. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Industrial equipment: heavy machinery that needs reliable mobility.
- ✓ Warehousing: trolleys and carts used in storage and distribution.
- ✓ Logistics: transport equipment that crosses yards and loading areas.
- ✓ Outdoor and site use: rough ground where pneumatic tyres would puncture.
Frequently Asked Questions
What is a puncture-proof tyre?
It is a tyre that cannot go flat, so it keeps working over nails, screws and sharp debris. There is no air to check or top up.
How much weight can it carry?
Each castor is rated at 350kg dynamic load.
Does this castor swivel?
No. It is a fixed castor that rolls in a straight line. Use it with matching swivel castors for steering.
How is it fitted?
The 200 x 160mm top plate has four 14mm holes on 160 x 120mm centres and bolts flat to the underside of your equipment.
How tall is the castor?
The total castor height is 306mm.
What temperatures can it work in?
It suits use from -20°C to +60°C.
