- Load per castor12kg per castor (36kg for a set of 4) *
- Wheel diameter25mm
- Overall height42mm
- WheelSoft Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 25mm
- Wheel Material
- Soft Rubber on Polypropylene
- Colour
- Black wheel and bracket
- Tread Width
- 12mm
- Bearing Type
- Plain
- Plate Size
- 38 x 28mm
- Plate Hole Centres
- 30 x 20mm
- Plate Hole Diameter
- 4mm
- Total Castor Height
- 42mm
- Load Capacity
- 12kg per castor (36kg for a set of 4) *
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

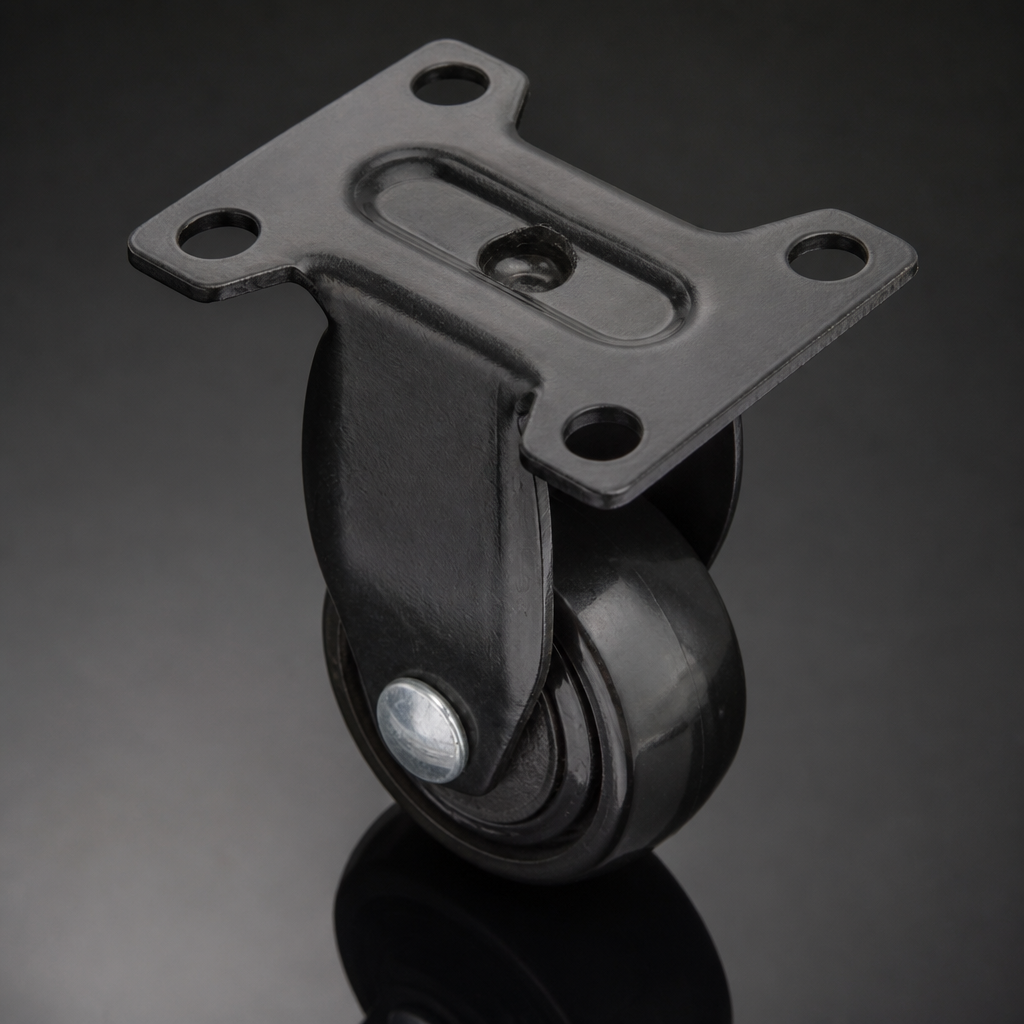

Soft Running Furniture Castor

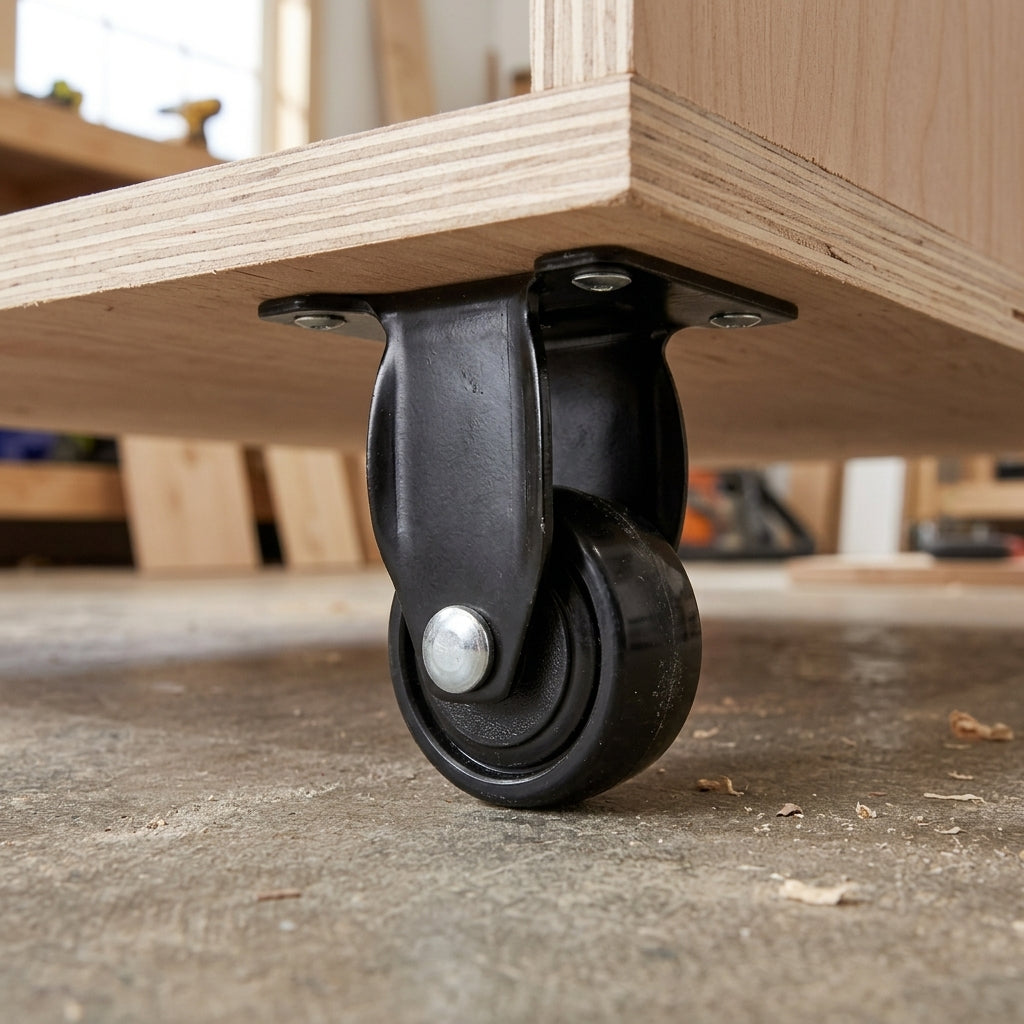

This tiny 25mm fixed castor has a soft black rubber wheel and a matching black bracket, rated at 12kg per castor. At just 42mm tall it suits small, light pieces such as drawer inserts, low display stands, shoe racks and small boxes that need to roll in a straight line.
The soft rubber tread rolls quietly and is kind to wood, laminate and vinyl floors. As a fixed castor it keeps furniture tracking straight, and it can be paired with matching swivel castors for easy steering. It fixes with a compact 38 x 28mm top plate with four 4mm holes.
Why Choose This Castor
- ✓ Very compact 42mm height for small, low pieces
- ✓ Soft black rubber wheel that runs quietly
- ✓ All-black finish that blends with dark furniture
- ✓ Fixed bracket keeps furniture tracking straight
- ✓ Small 38 x 28mm top plate with four 4mm holes
- ✓ 12kg load capacity per castor
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Small storage: shoe racks, toy boxes and under-shelf baskets.
- ✓ Display stands: small plinths and retail risers.
- ✓ Drawer inserts and pull-outs: light rolling trays and boxes.
- ✓ Floors: wood, laminate, vinyl and tile.
Frequently Asked Questions
How do I fit this castor?
Screw the 38 x 28mm top plate to a flat base through the four 4mm holes, set at 30 x 20mm centres.
What is a fixed castor?
A fixed castor rolls forwards and backwards only and does not swivel. Use two fixed and two swivel castors for straight running with easy steering.
How much weight can it carry?
Each castor is rated at 12kg, and a set of four up to 36kg, so it is for small, light items.
Will it mark my floor?
The soft rubber tread is quiet and designed to be kind to hard floors.
Is there a swivel version?
Yes. The same 25mm soft wheel castor is also available as a swivel castor.
How tall is the castor?
The total castor height is 42mm, with a 25mm wheel.
