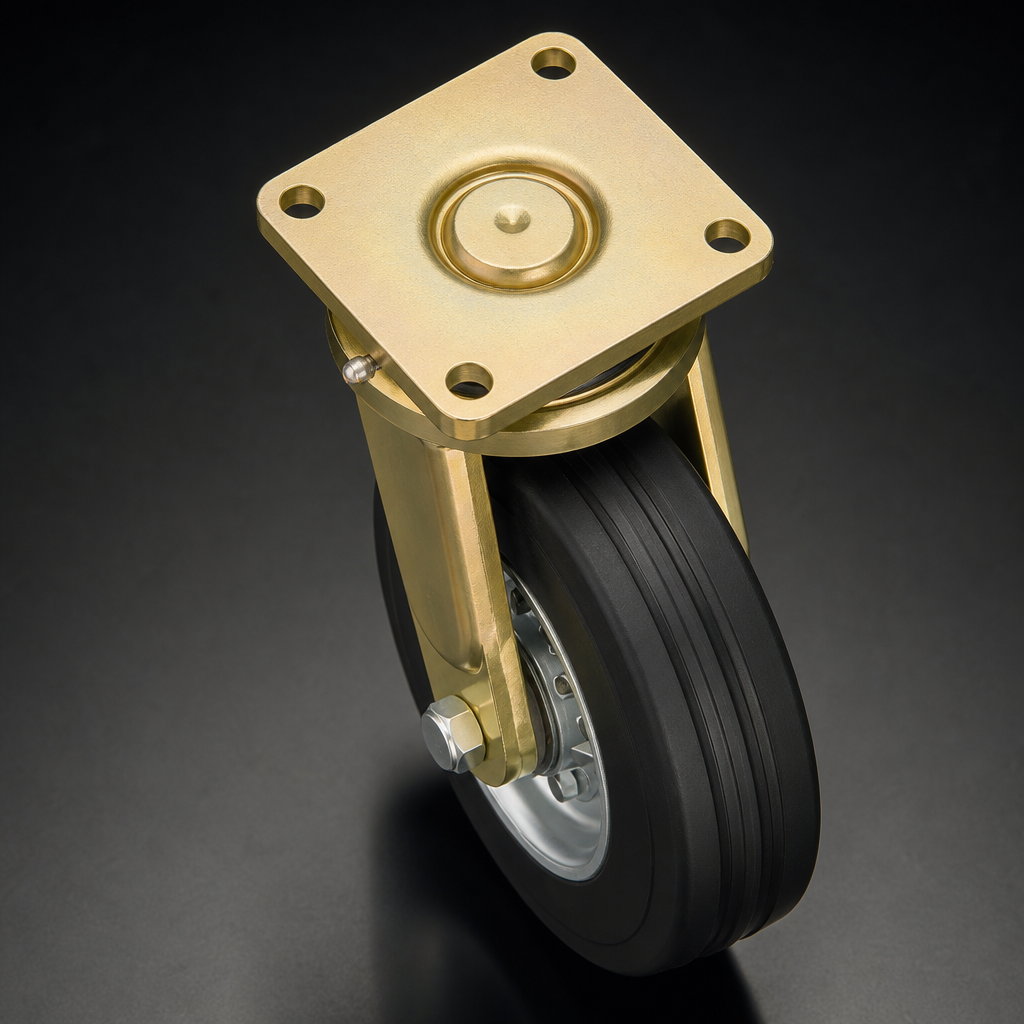

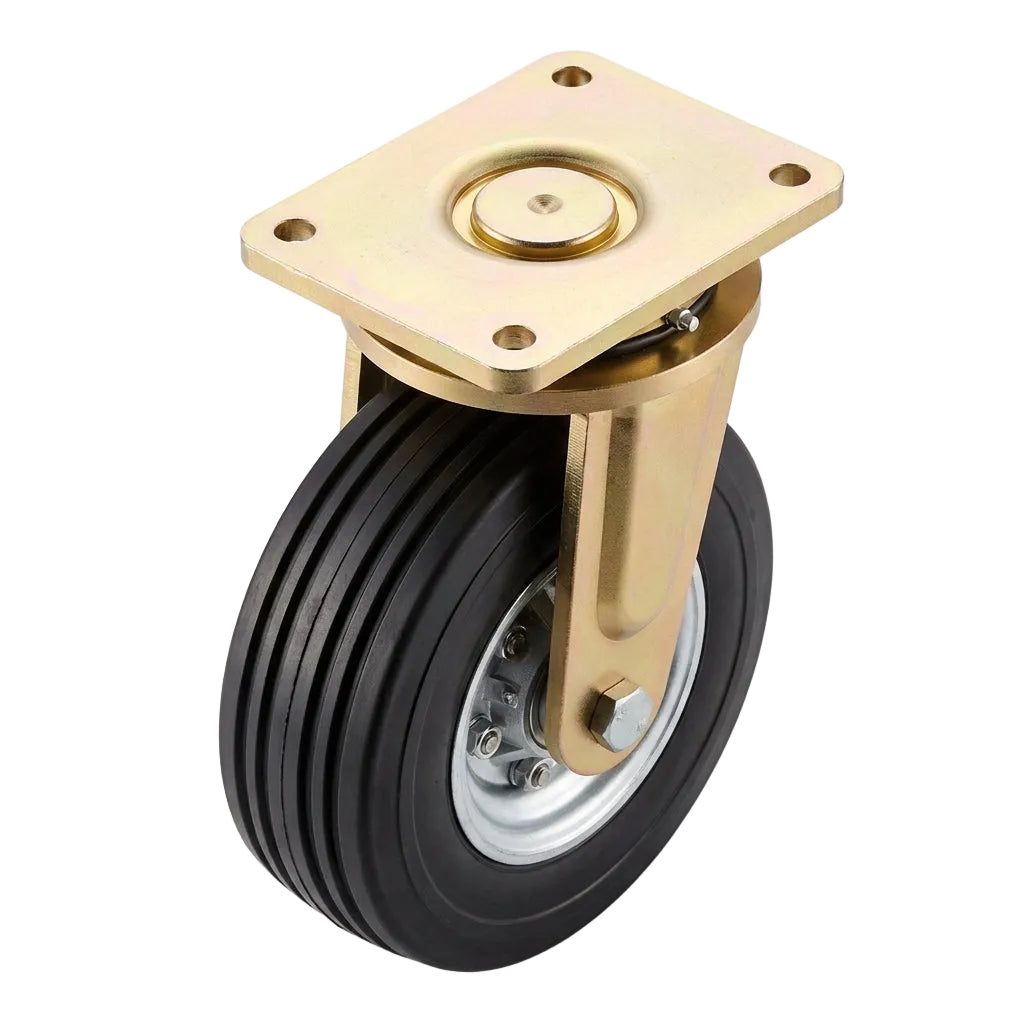

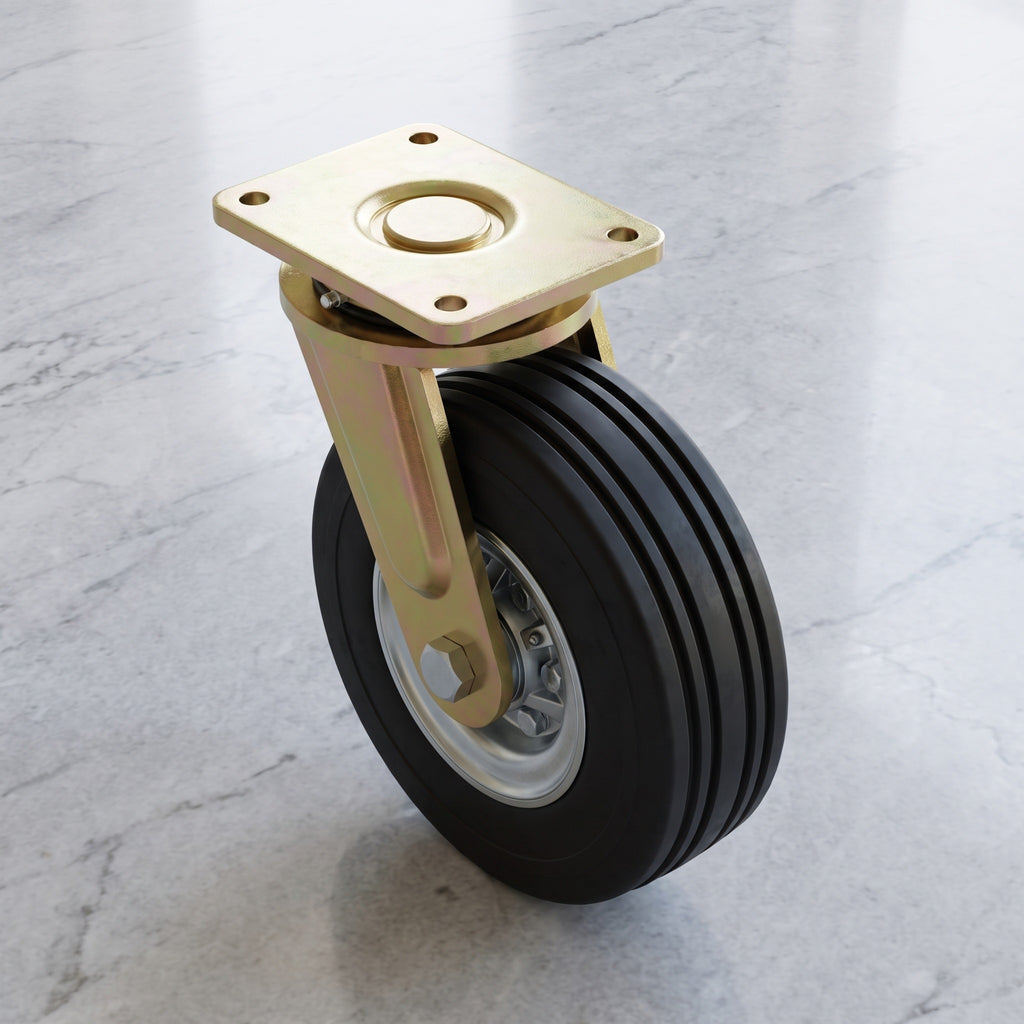

250mm Swivel Castor - 600kg Load Capacity

This 250mm swivel castor is designed for heavy-duty applications.

Featuring an elastic rubber wheel with a ribbed tread, this castor ensures reliable movement and stability. With a load capacity of up to 600kg, it is perfect for a variety of industrial applications where durability is essential.

Key Features

• Wheel Diameter: 250mm – check against the existing wheel size.
• Tread Width: 85mm – matches the required contact surface.
• Load Capacity: 600kg – maximum load rating per wheel.
• Bearing Type: Ball Bearing – for smooth rotation.
• Plate Length: 175mm – overall length of the mounting plate.
• Plate Width: 140mm – overall width of the mounting plate.
• Plate Hole Centres Length: 140mm – distance between bolt holes along the length.
• Plate Hole Centres Width: 105mm – distance between bolt holes across the width.

Applications

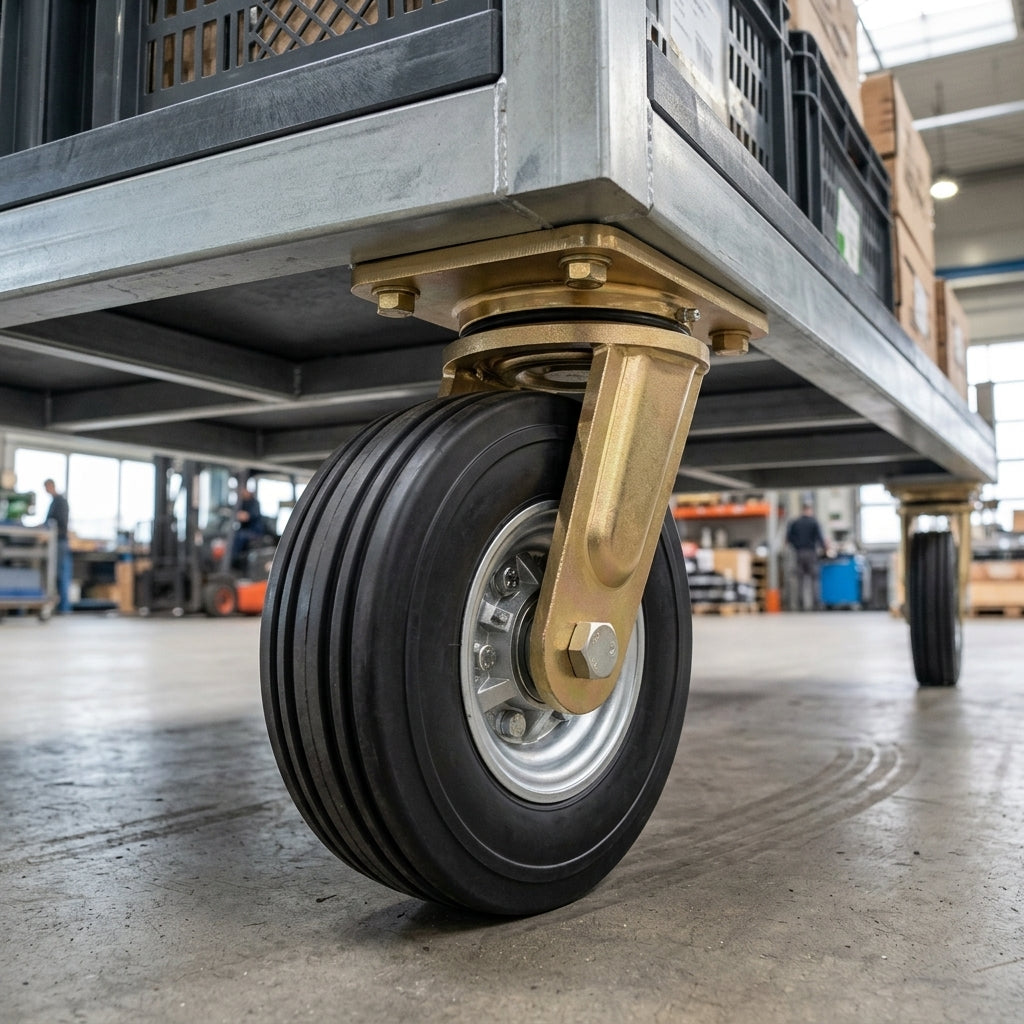

• Industrial trolleys: Used for transporting heavy loads within facilities.

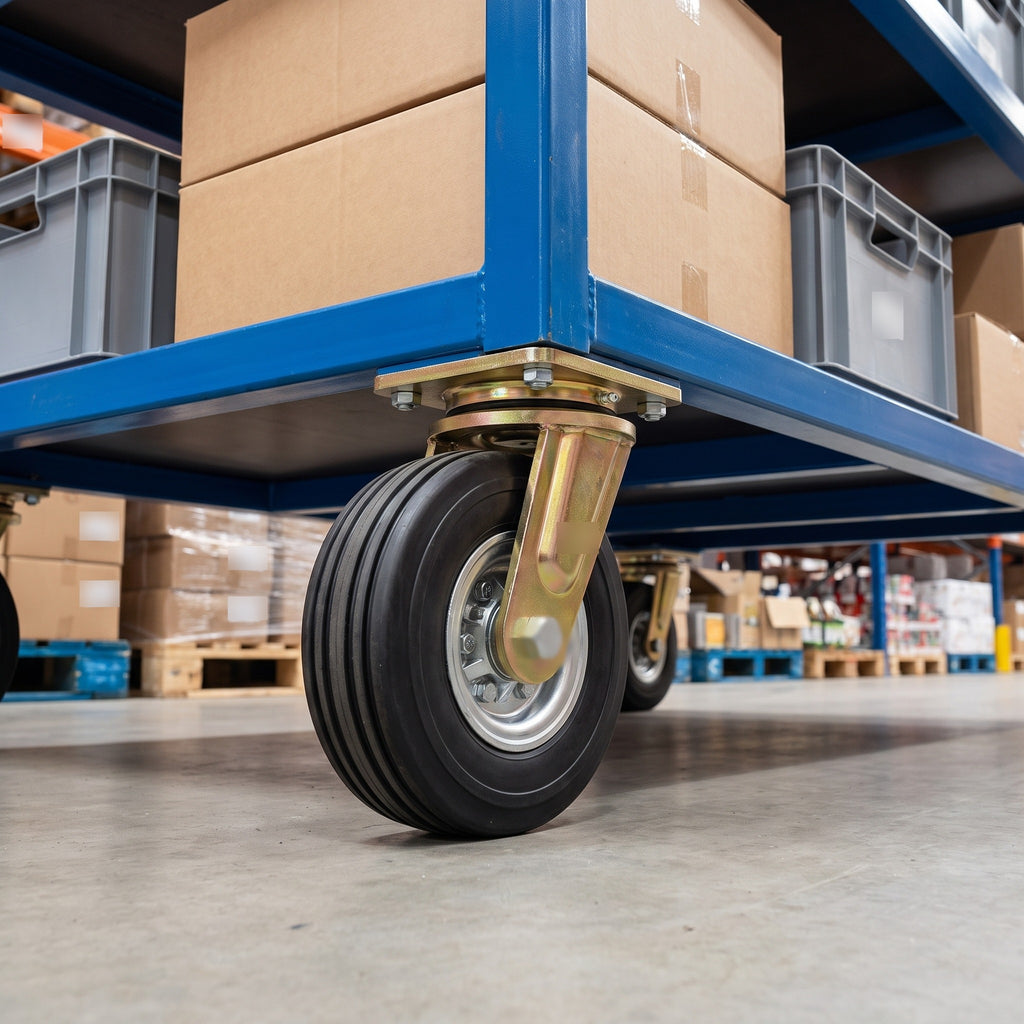

• Warehouse carts: Fitted to move goods efficiently in storage areas.
• Workbenches: Ideal for mobile workstations requiring easy manoeuvrability.

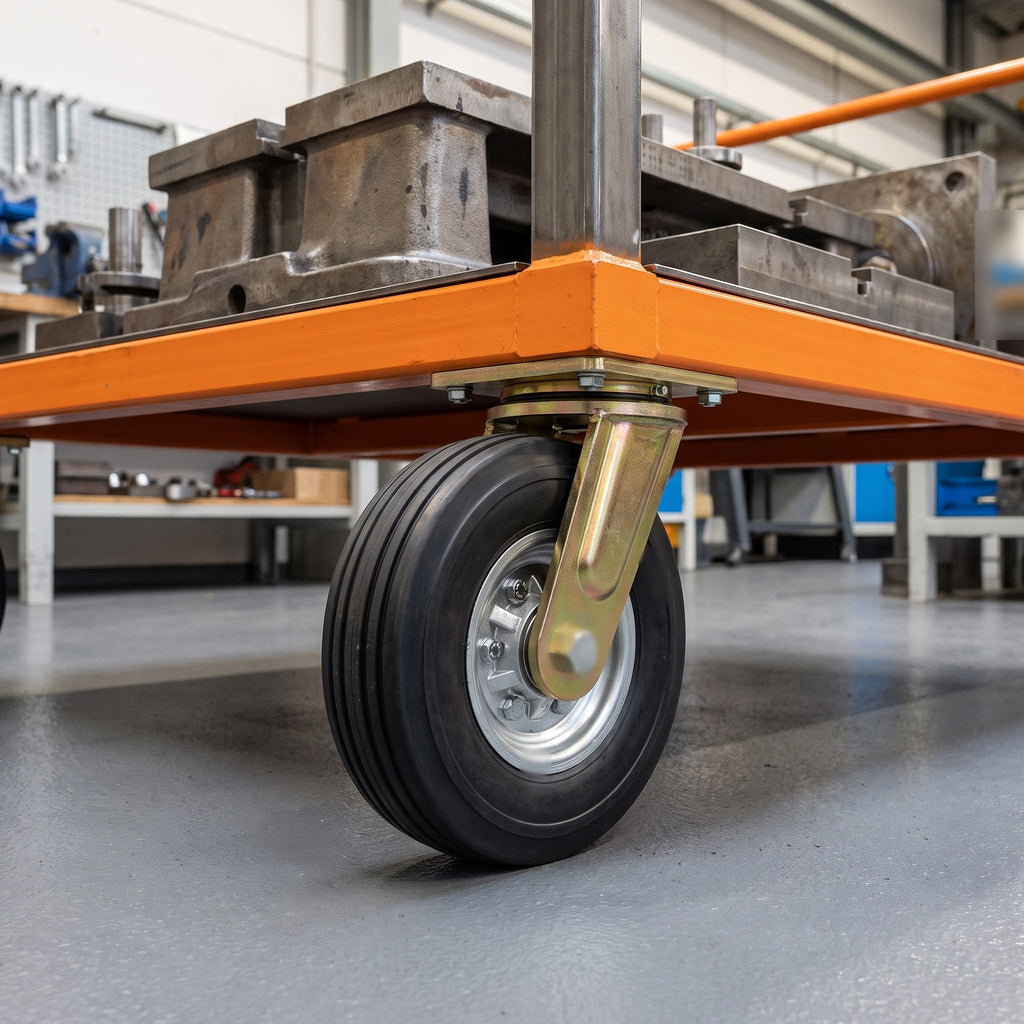

• Equipment stands: Provides stability and ease of movement for heavy equipment.
