- Load per castor1800kg per castor
- Wheel diameter250mm
- Overall height245mm
- WheelPolyurethane on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Fixed Top Plate Castor
- Wheel Diameter
- 250mm
- Wheel Material
- Polyurethane on cast iron centre
- Wheel Colour
- Yellow
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 175 x 140mm
- Hole Centres
- 140 x 105mm
- Hole Diameter
- 13mm
- Total Castor Height
- 245mm
- Load Capacity
- 1800kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

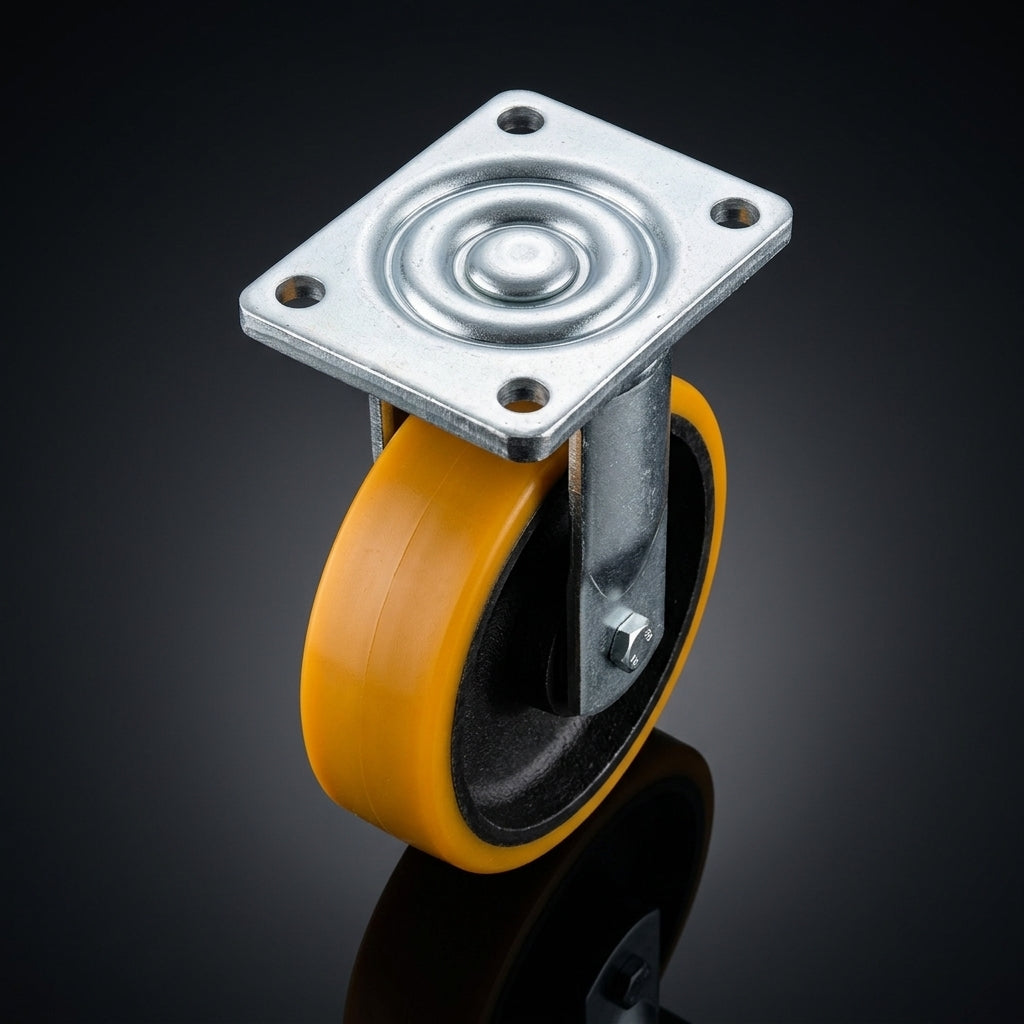

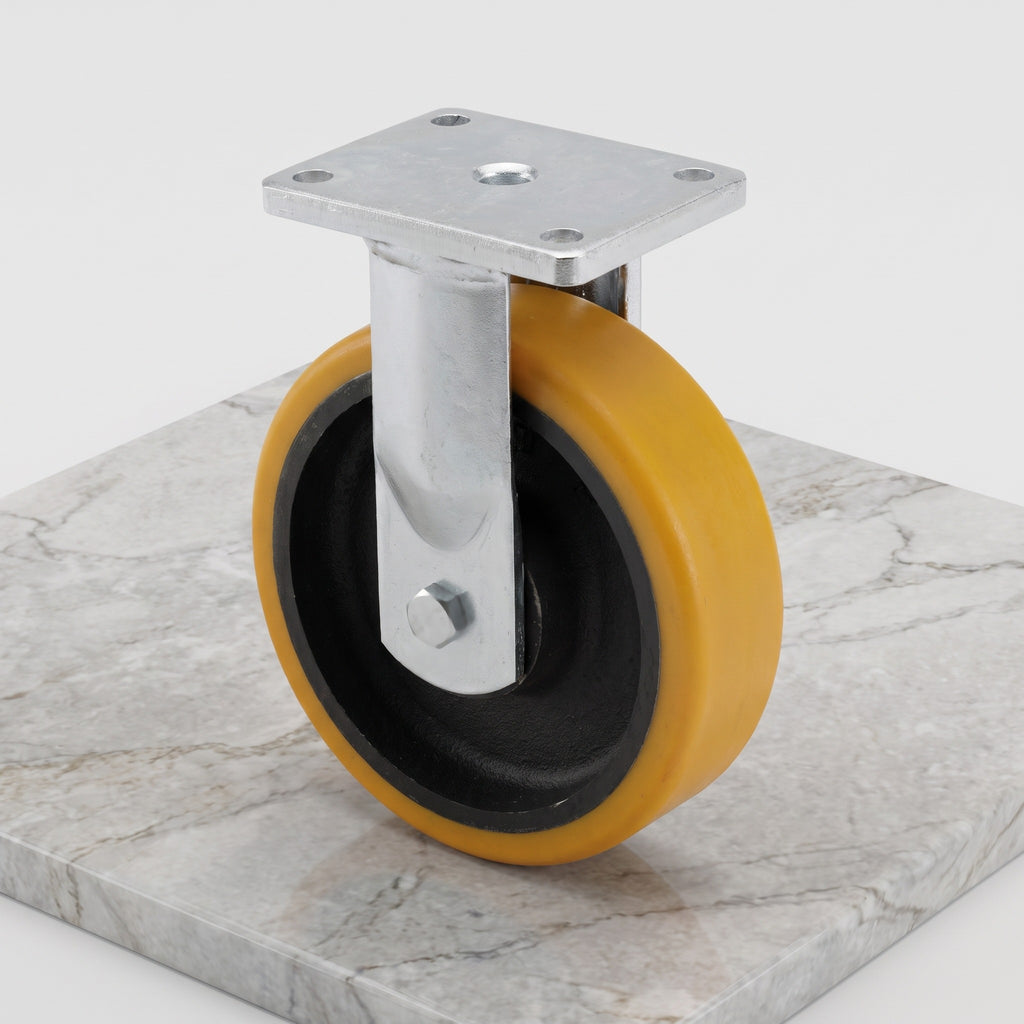

Heavy Duty Fabricated Castors
This 250mm heavy duty fabricated fixed castor gives robust support and durability for heavy industrial work. A yellow polyurethane tread on a cast iron centre combines strength with long wear life, and the ball journal bearing gives smooth, reliable movement across a range of surfaces when transporting heavy equipment and machinery. A large 175 x 140mm top plate spreads the load for a secure fixing. Rated for 1800kg per castor.
It rolls in a straight line, stands 245mm tall and works from -40°C to +60°C.
Why Choose This Castor
- ✓ 1800kg load capacity per castor for heavy loads.
- ✓ Polyurethane on cast iron wheel 250mm diameter with a 50mm tread and 92 Shore A hardness, ideal for smooth, hard surfaces.
- ✓ Ball journal bearing for efficient rotation with less effort.
- ✓ Heavy duty fabricated construction for industrial use.
- ✓ Fixed (rigid) fork keeps equipment tracking in a straight line.
- ✓ 175 x 140mm top plate with four 13mm holes for a secure attachment.
- ✓ Temperature range from -40°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This heavy duty fabricated fixed castor suits:

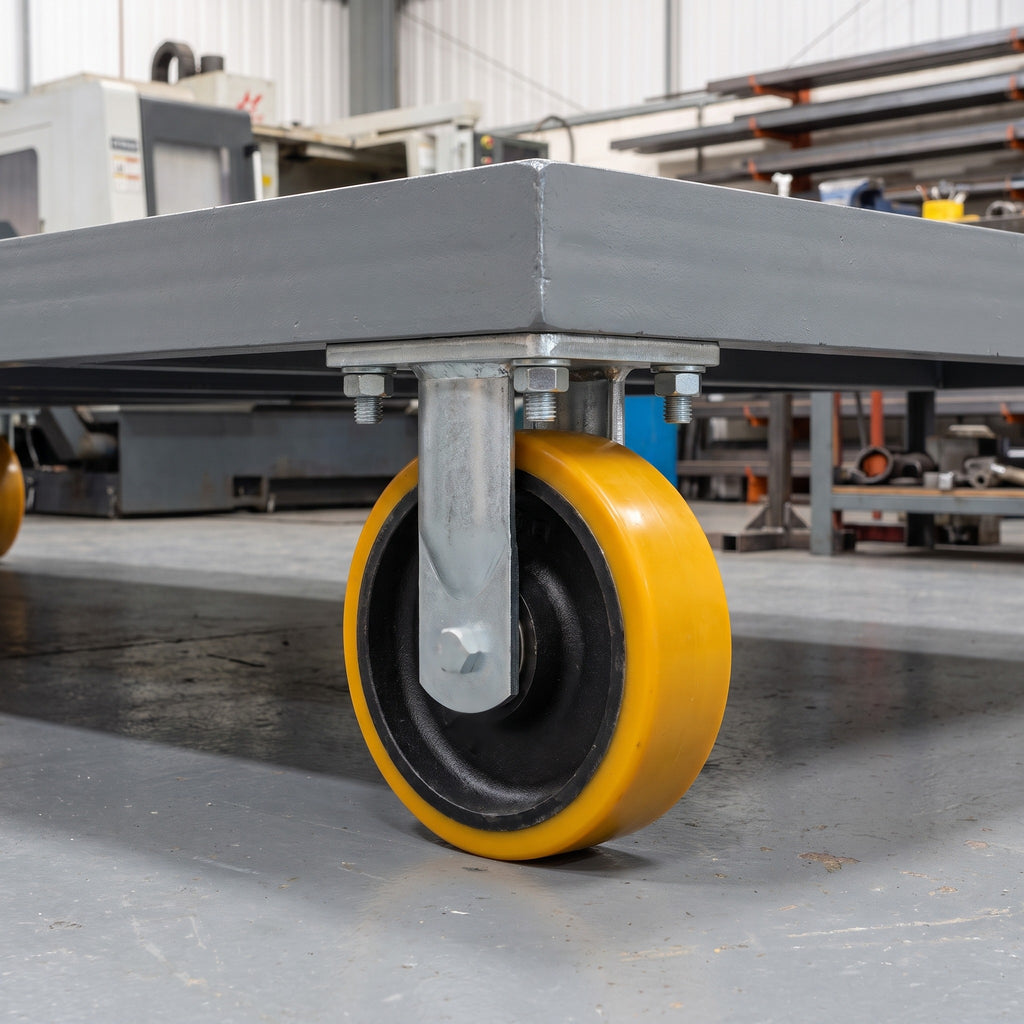

- ✓ Industrial manufacturing: moving heavy machinery and equipment.

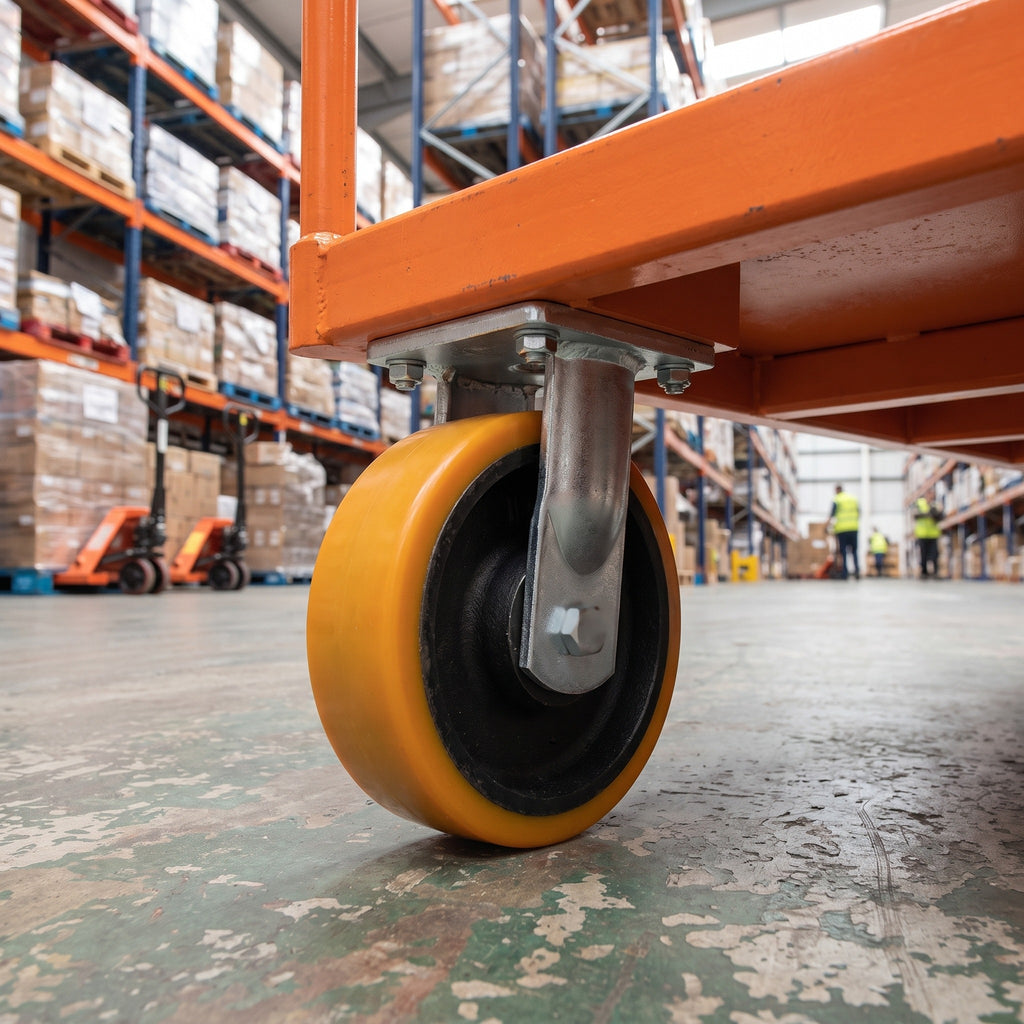

- ✓ Warehousing: transporting large goods and pallets.
- ✓ Construction sites: moving building materials and equipment.
- ✓ Logistics: heavy loads in distribution centres.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 1800kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 250mm yellow polyurethane tread on a cast iron centre, 50mm wide with 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 175 x 140mm top plate with four 13mm holes on 140 x 105mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
No. This is a fixed (rigid) castor that runs in a straight line. Pair it with swivel castors on the same equipment for easy steering. The total castor height is 245mm.
What temperatures can it work in?
The castor is suitable for use from -40°C to +60°C.
