- Load per castor3500kg per castor
- Wheel diameter250mm (twin)
- Overall height356mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Fixed Gantry Castor
- Wheel Diameter
- 250mm (twin)
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Orange
- Tread Width
- 80mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 3500kg per castor
- Top Plate Size
- 255 x 245mm
- Bolt Hole Centres
- 210 x 160mm
- Bolt Hole Diameter
- 16mm
- Overall Height
- 356mm
- Housing
- Fabricated Welded Steel
Will it fit?
- Bolt hole210 x 160mm
- Overall height356mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

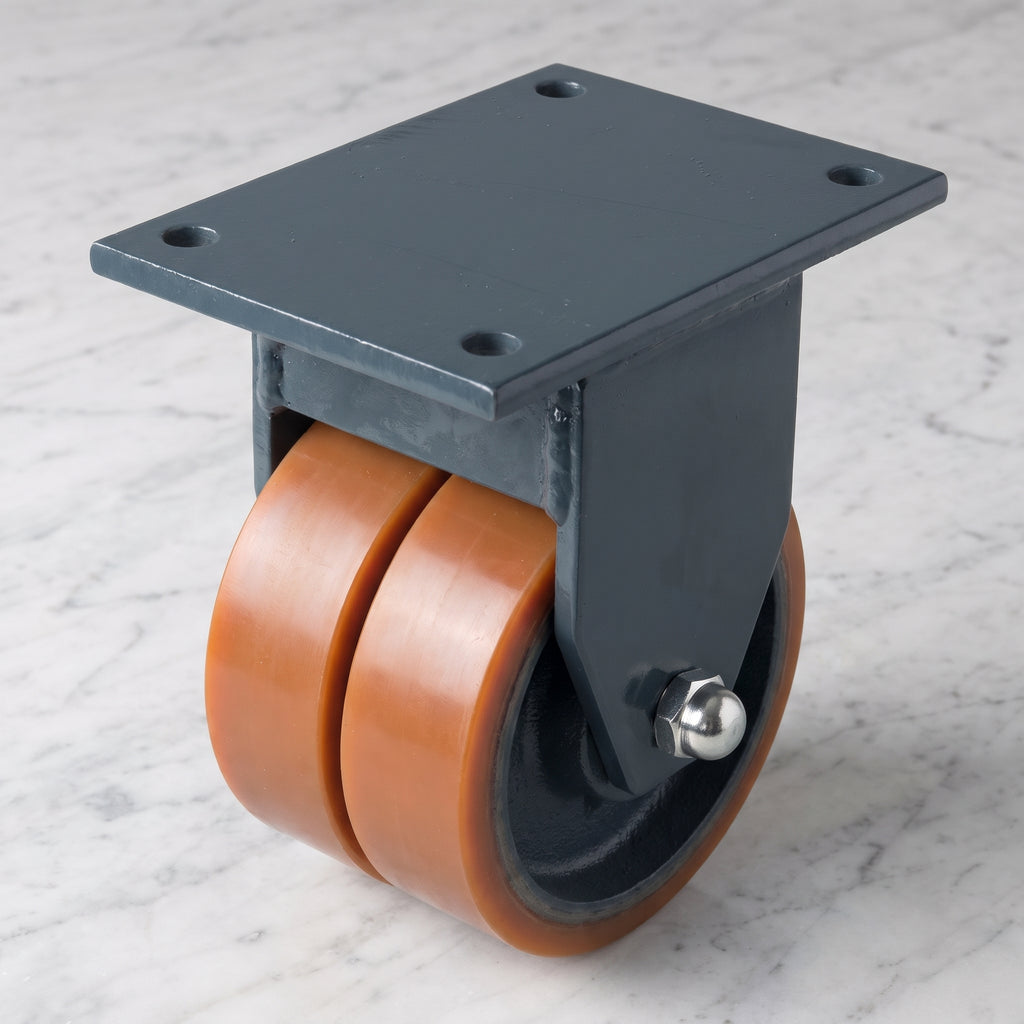

Extra Heavy Duty Twin Wheel Fixed Gantry Castor
This 250mm twin wheel fixed gantry castor carries up to 3500kg per castor on two large orange polyurethane on cast iron wheels side by side. A heavy fabricated, welded steel housing keeps the wheels running straight, making it the partner for matching 250mm swivel gantry castors on the heaviest gantries and transport platforms.
Fixed castors give straight line tracking and help steer very heavy loads in a controlled way. The large twin wheels with an 80mm tread spread the load and roll over joints easily, and a strong 255 x 245mm top plate with four 16mm holes bolts flat under the frame. The overall height is 356mm.
Why Choose This Castor
- ✓ 3500kg load capacity per castor
- ✓ Fixed housing for straight, controlled tracking
- ✓ Large 250mm twin wheels for easy rolling under very heavy loads
- ✓ Polyurethane on cast iron wheels: tough and quiet
- ✓ Heavy fabricated, welded steel housing
- ✓ Strong 255 x 245mm top plate with 16mm holes
Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

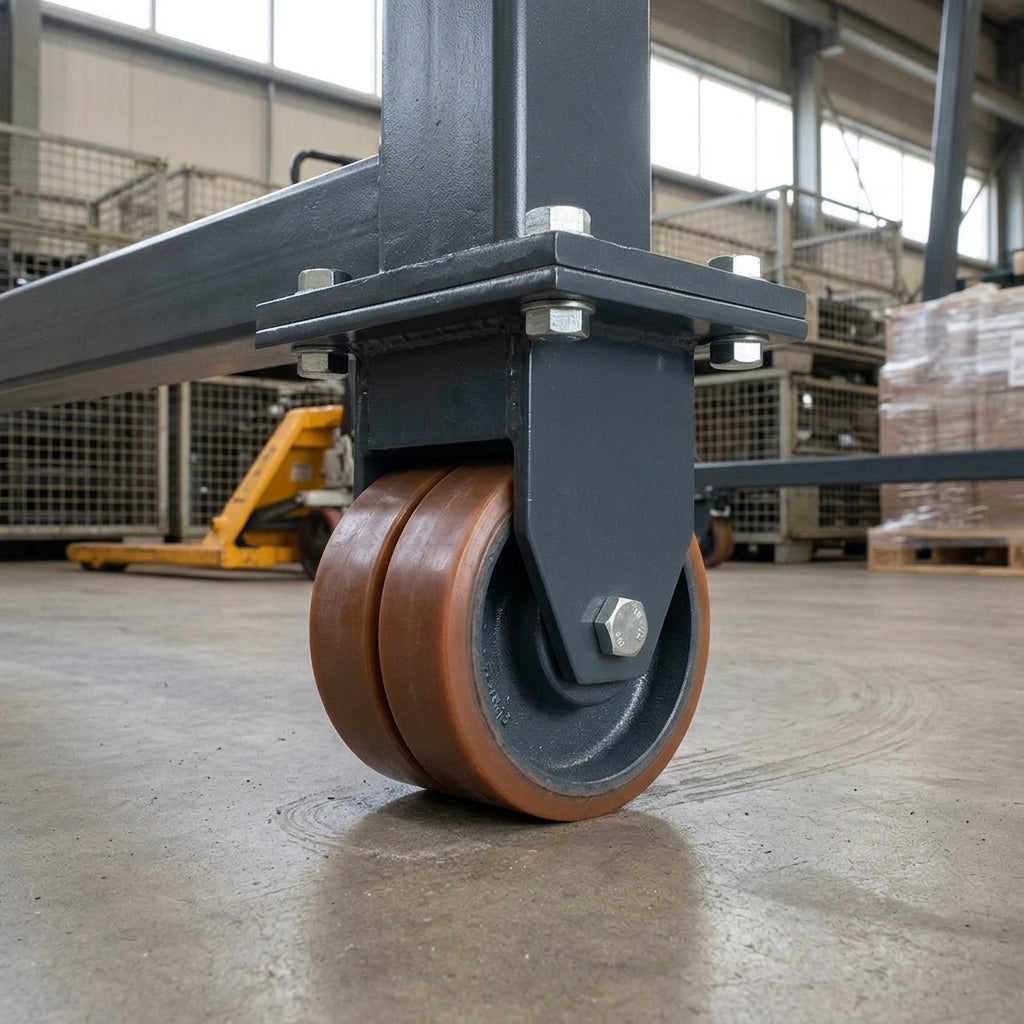

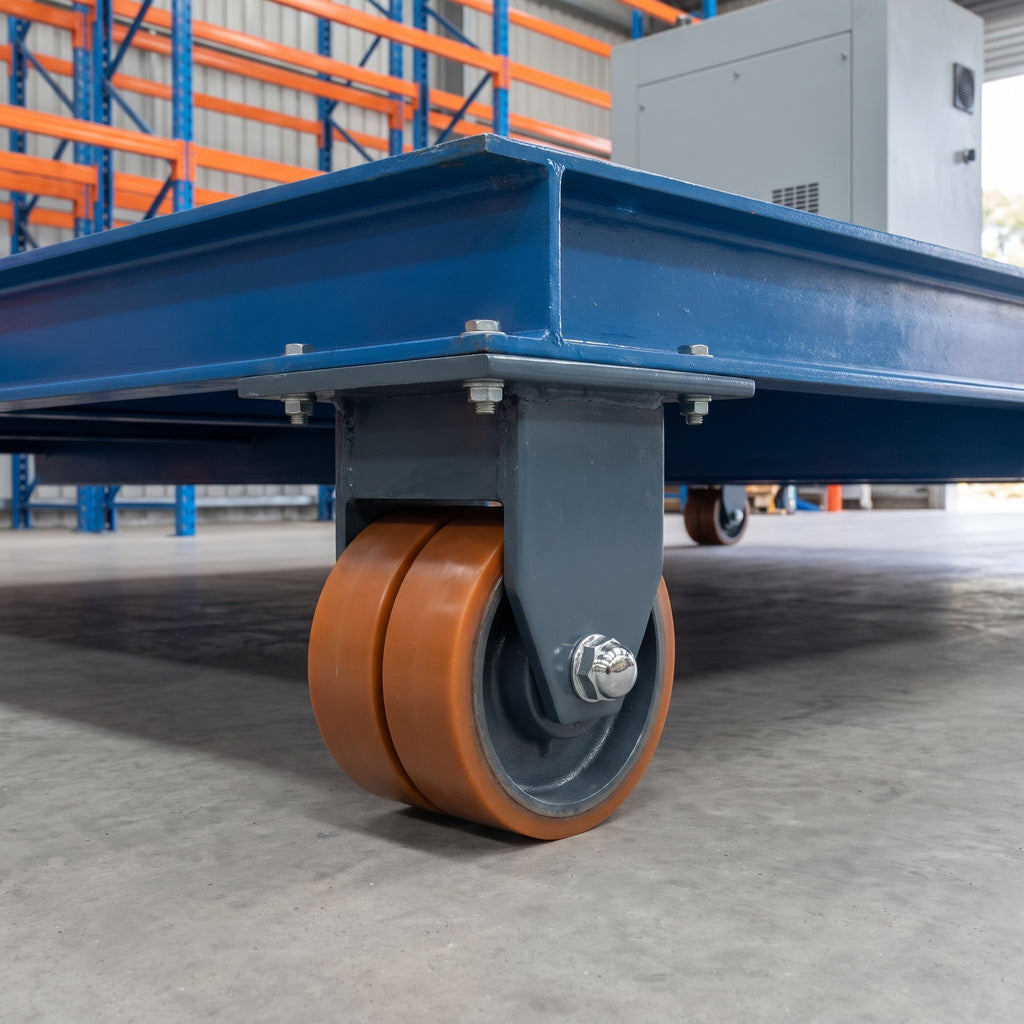

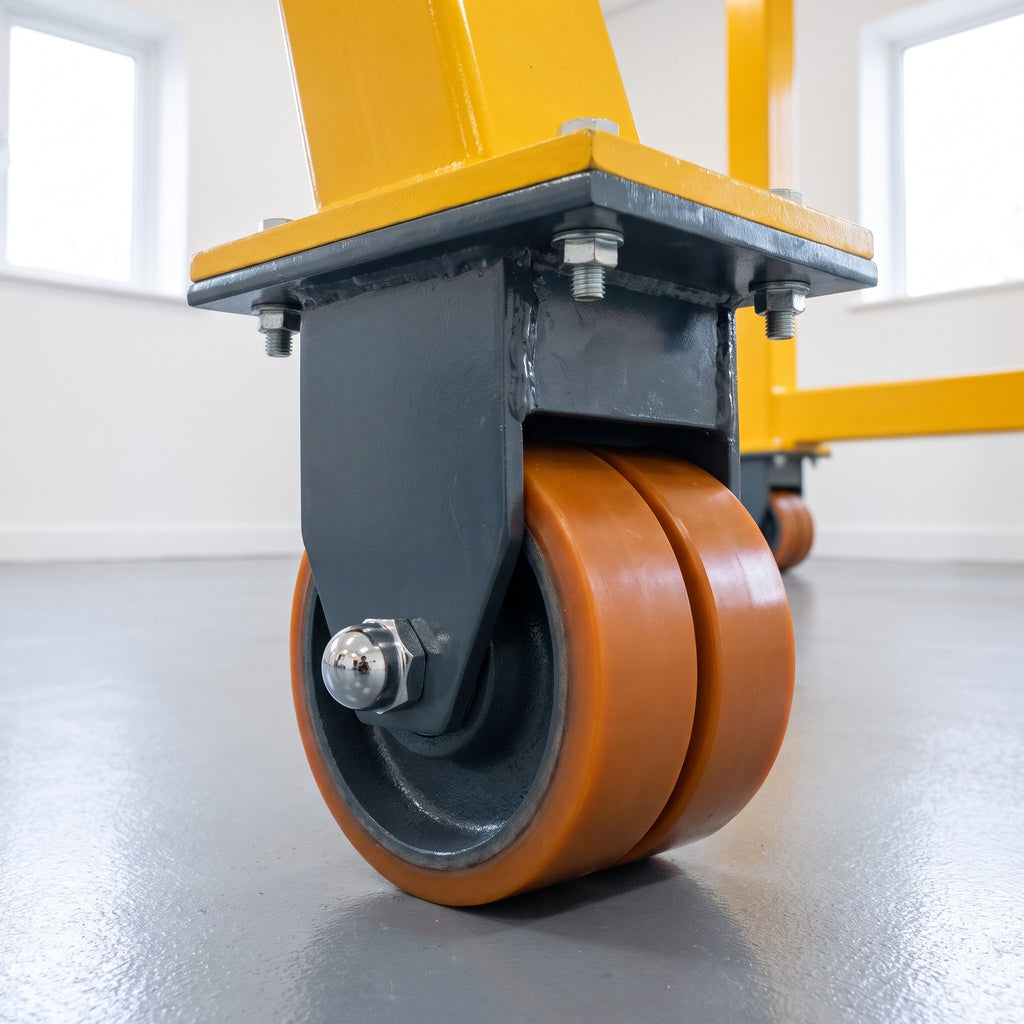

Large mobile gantry cranes, heavy machine moving platforms, transformer and engine stands, steel coil and die trolleys, fitted together with matching 250mm swivel gantry castors. Best on smooth hard floors such as sealed concrete and epoxy.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 3500kg. A set of four is best used for loads up to around 10500kg, allowing for uneven floors.
Why use fixed and swivel castors together?
Two fixed and two swivel castors of the same size and height give straight line tracking with easy steering, which makes very heavy loads much easier to control.
What size bolts do I need?
The 255 x 245mm top plate has four 16mm holes on 210 x 160mm centres, so M14 or M16 bolts with nuts and washers are the right fit.
Will it mark my floor?
The orange polyurethane treads are non-marking on most smooth floors and much quieter than steel or nylon wheels.
How tall is the castor once fitted?
The overall height from floor to top plate is 356mm.
