- Load per castor600kg per castor
- Wheel diameter250mm
- Overall height305mm
- WheelBlack super elastic rubber tyre on pressed steel centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed (Rigid) Top Plate Castor
- Wheel Diameter
- 250mm
- Wheel Material
- Black super elastic rubber tyre on pressed steel centre
- Tread
- Ribbed
- Tread Width
- 85mm
- Bearing Type
- Ball bearing
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 175 x 140mm
- Hole Centres
- 140 x 105mm
- Hole Diameter
- 14mm
- Total Castor Height
- 305mm
- Load Capacity
- 600kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs
Super Elastic Rubber Castors

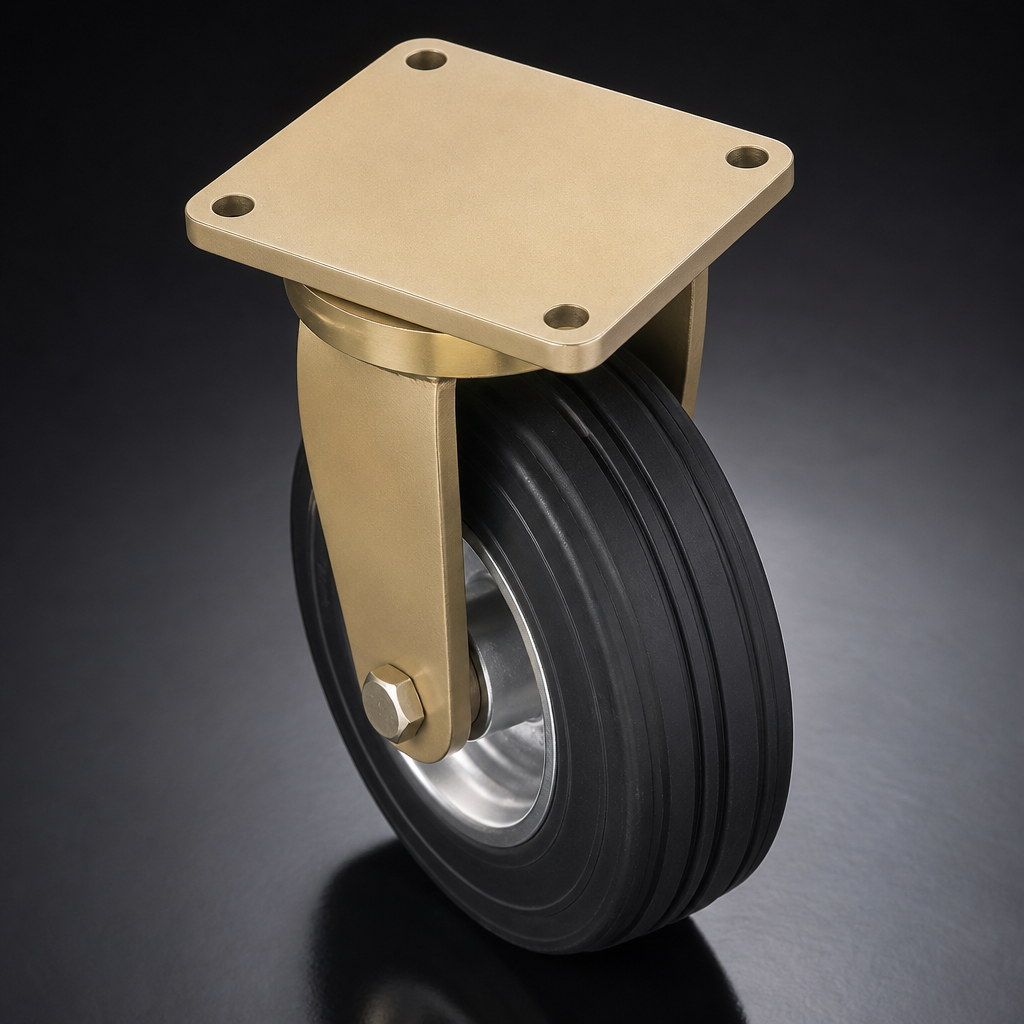

Built for big, heavy trolleys that need a soft, smooth ride, this heavy duty fixed castor has a large 250mm black super elastic rubber tyre with a ribbed tread on a pressed steel centre. The rigid fork keeps the wheel running straight for steady, controlled pushing. The thick elastic rubber cushions bumps and rolls over uneven floors and outdoor surfaces with ease, while the ball bearing keeps rotation smooth. Each castor is rated for 600kg.
It fixes to your equipment with a 175 x 140mm top plate and stands 305mm tall. Check that the plate size and hole centres match your existing setup before ordering.
Why Choose This Castor
- ✓ 600kg load capacity per castor for heavy loads.
- ✓ Super elastic rubber tyre 250mm black tyre with a ribbed 85mm tread, cushioning shocks and running quietly.
- ✓ Large wheel rolls easily over cracks, thresholds and rough ground.
- ✓ Ball bearing for efficient rotation with less effort.
- ✓ Fixed fork runs straight and true, ideal alongside swivel castors for steady straight-line pushing.
- ✓ 175 x 140mm top plate with four 14mm holes on 140 x 105mm centres.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and wheel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty elastic rubber fixed castor suits:

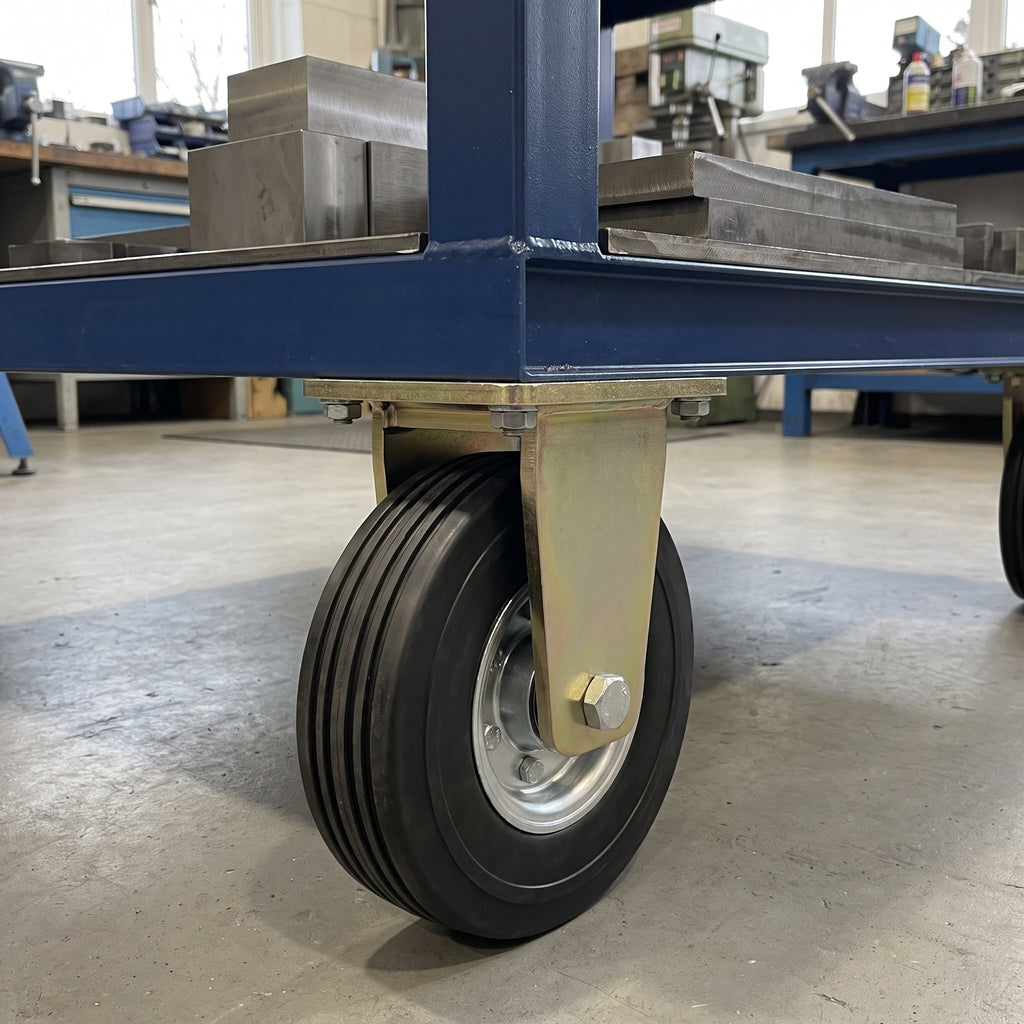

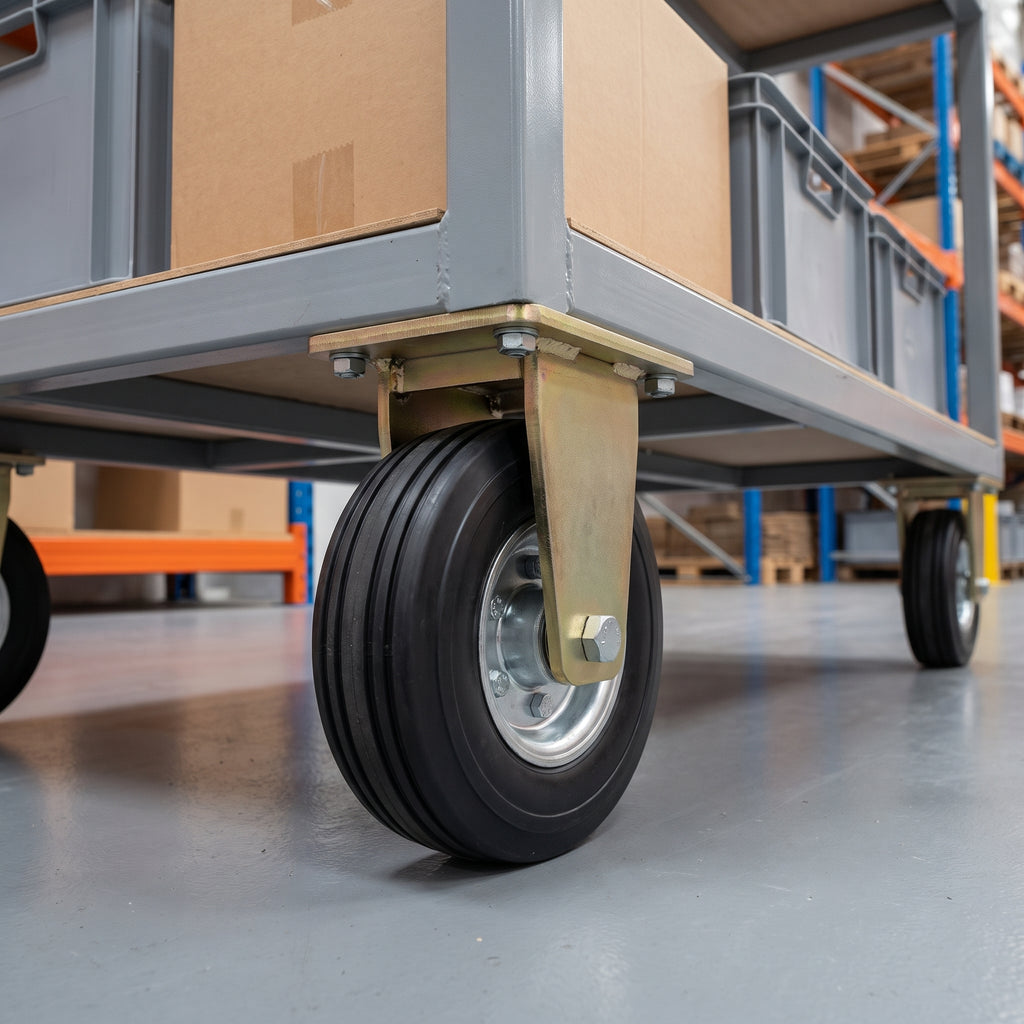

- ✓ Industrial trolleys: transporting heavy loads in warehouses.
- ✓ Machinery bases: stable support for stationary equipment.
- ✓ Heavy-duty carts: carts that need a high load capacity.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 600kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 250mm black super elastic rubber tyre with a ribbed tread, fitted on a pressed steel centre and running on a ball bearing.
How is the castor fitted?
It has a 175 x 140mm top plate with four 14mm holes on 140 x 105mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Can it be used outdoors?
Yes. The large elastic rubber tyre handles uneven ground, ramps and outdoor surfaces well and cushions the load as it rolls.
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with swivel castors so your equipment can steer. The total castor height is 305mm.
