Description

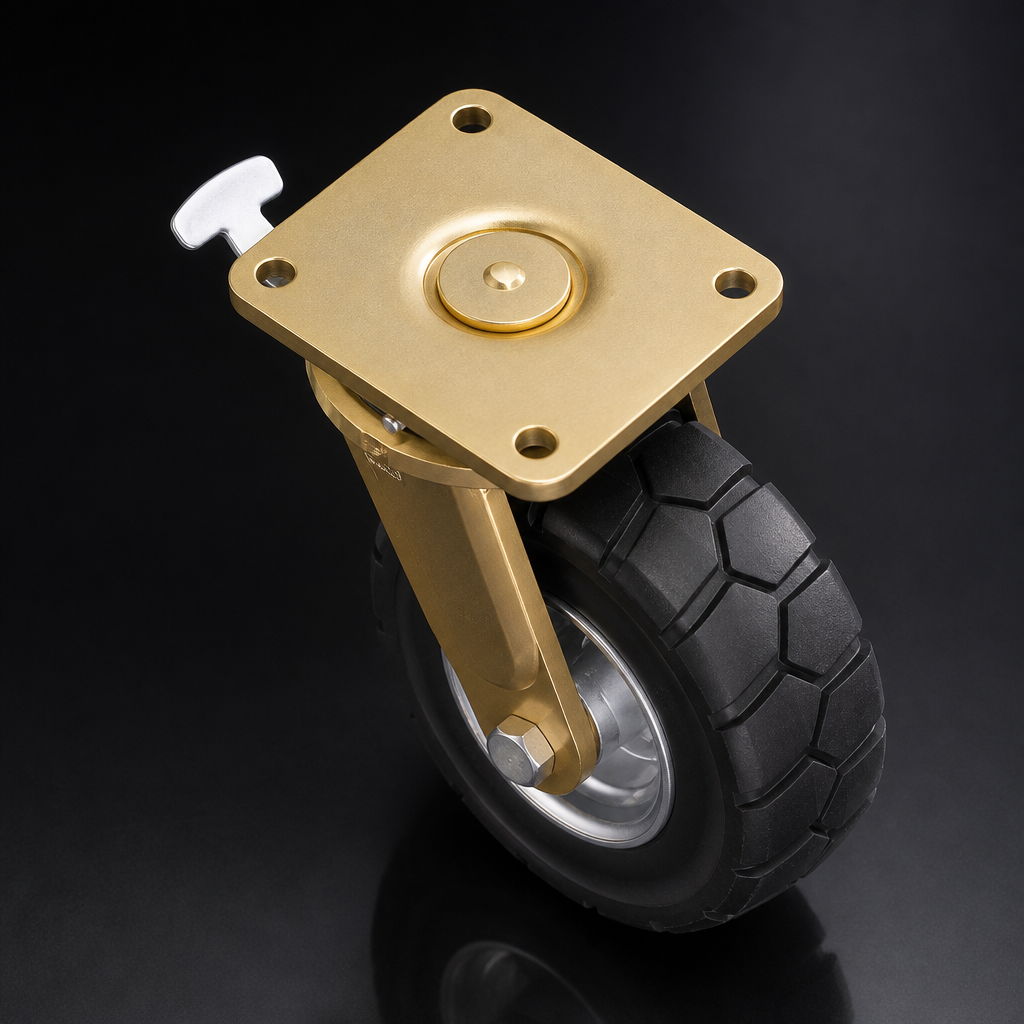

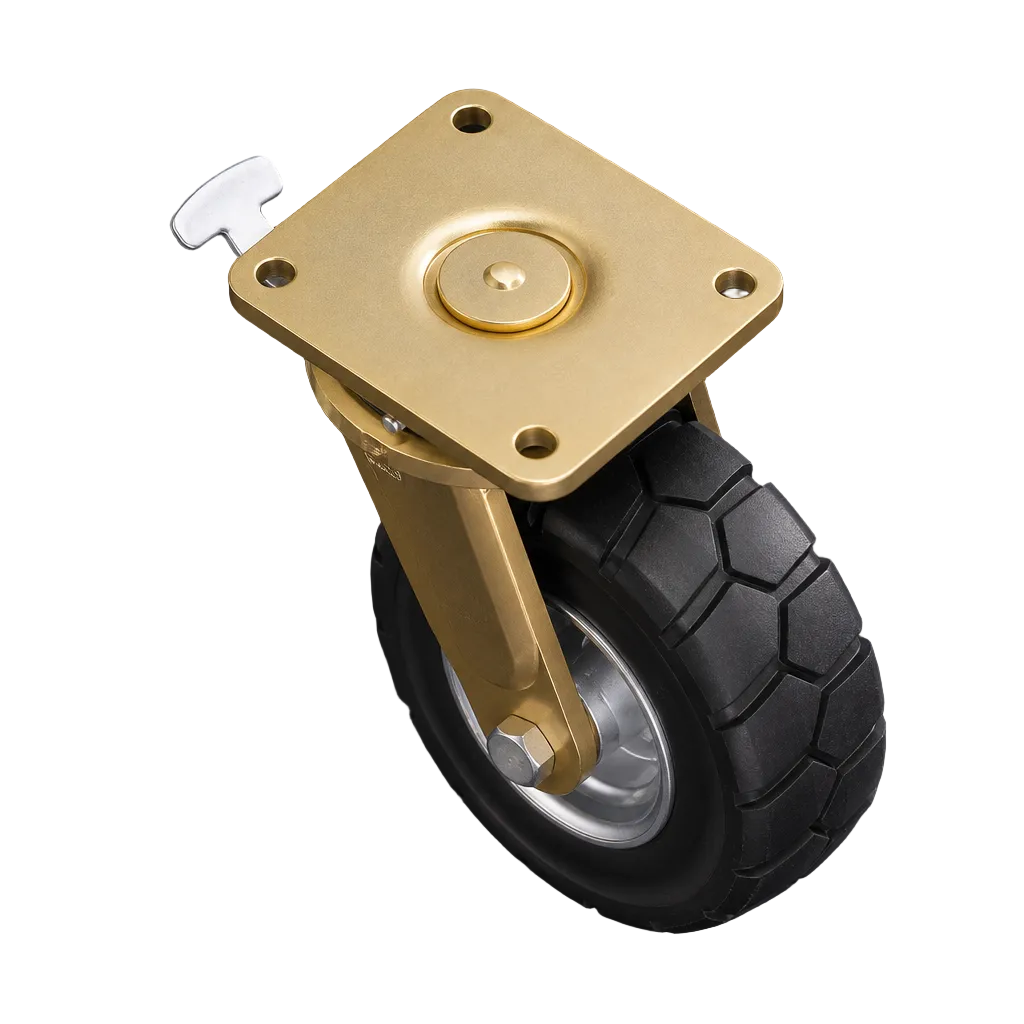

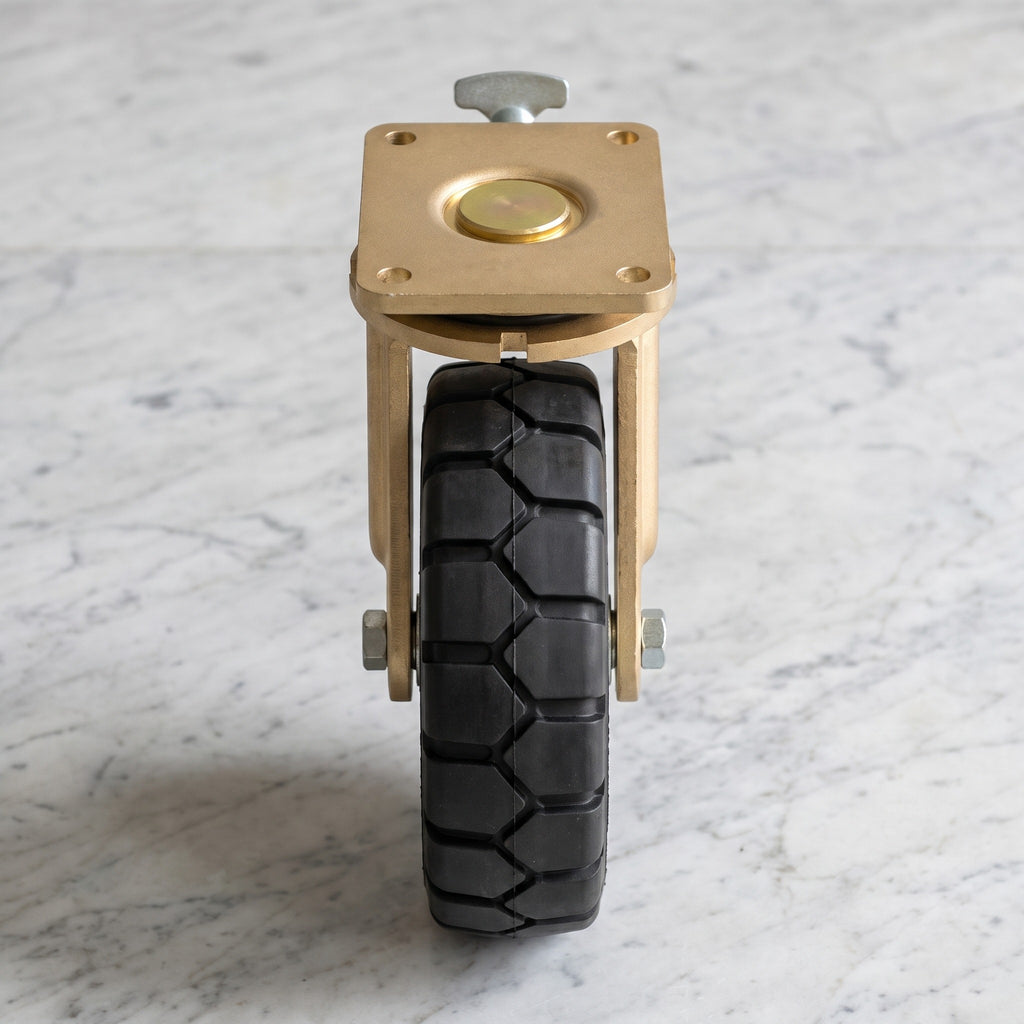

High-performance directional lock castor for heavy loads.
This directional lock castor features a 250mm elastic rubber wheel with a wide-block tread, designed for smooth and controlled movement. It supports a load capacity of 600kg, making it suitable for heavy-duty applications. Ensure compatibility by checking the bolt hole size and plate dimensions against your existing setup.
Key Features
- Wheel Diameter: 250mm – check against the existing wheel size.
- Tread Width: 85mm – matches the required tread width for stability.
- Load Capacity: 600kg – maximum load rating per wheel.
- Bearing Type: Ball Bearing – facilitates smooth rotation.
- Bolt Hole Size: 14mm – must match the bolt size.
- Plate Length: 175mm – overall length of the mounting plate.
- Plate Width: 140mm – overall width of the mounting plate.
- Plate Hole Centres Length: 140mm – distance between the lengthwise hole centres.
- Plate Hole Centres Width: 105mm – distance between the widthwise hole centres.
- Total Castor Height: 305mm – overall height from the base to the top.

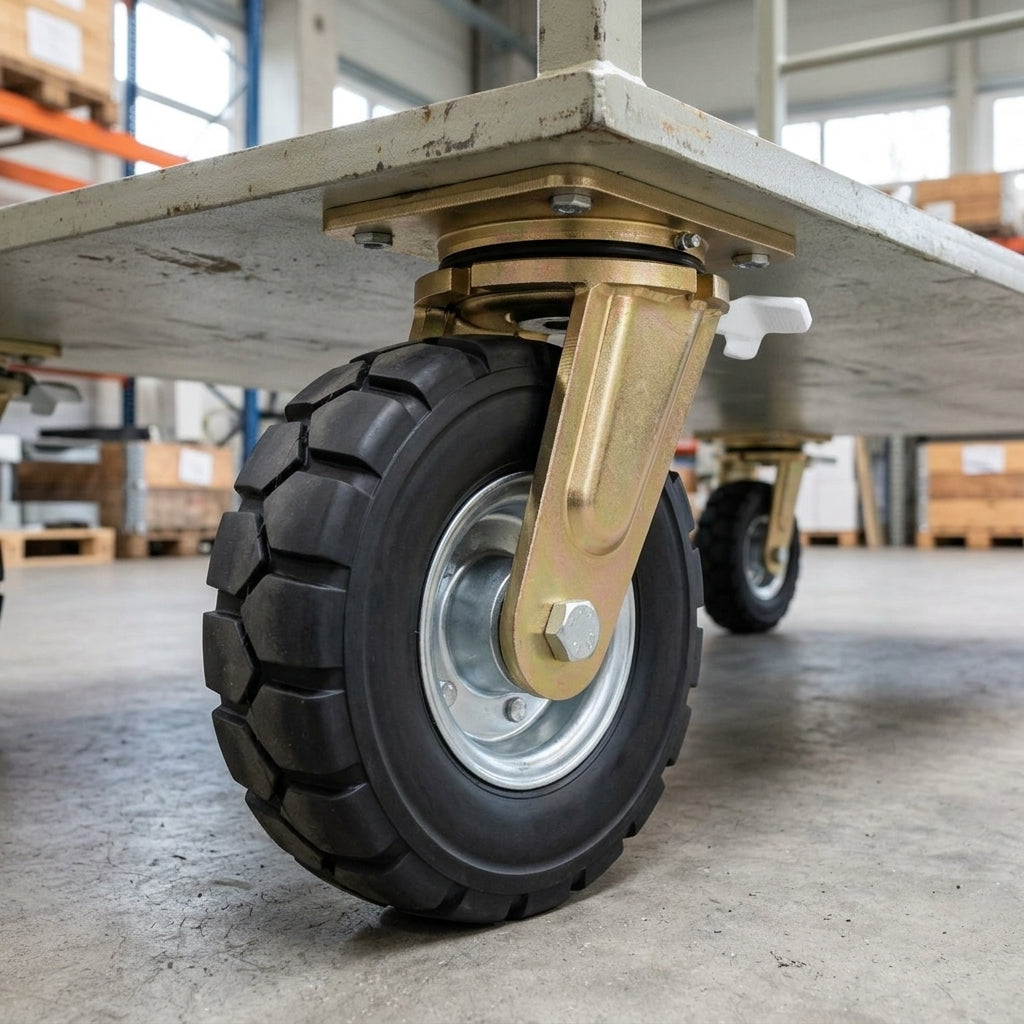

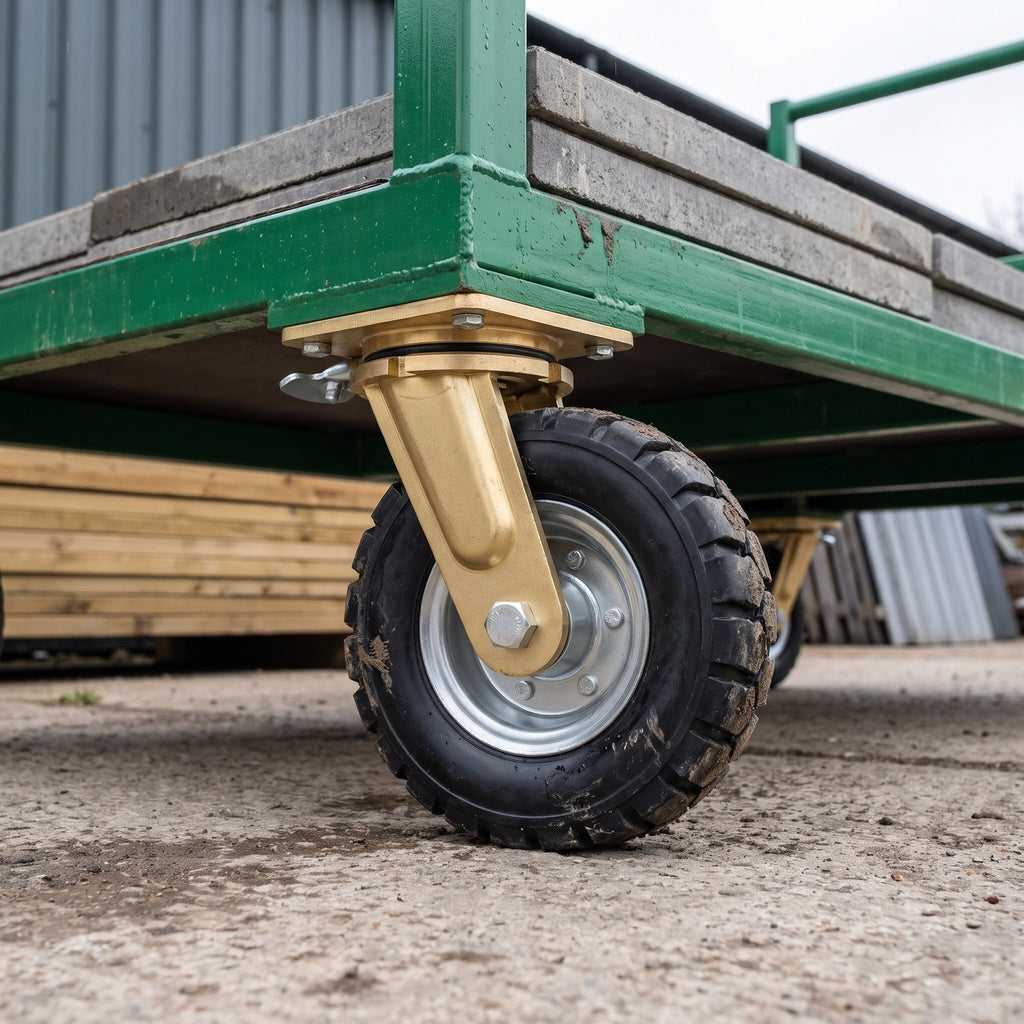

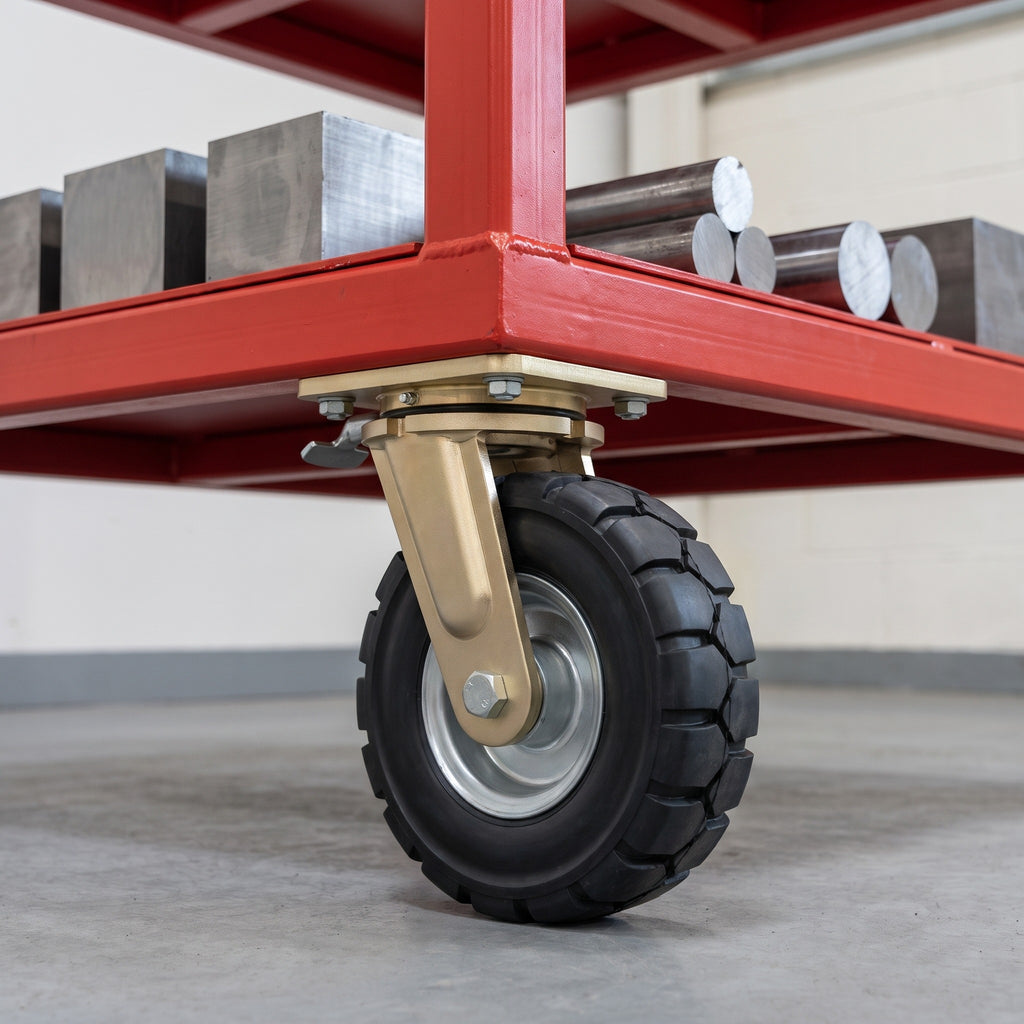

Applications
- Industrial carts and trolleys
- Heavy-duty equipment
- Warehouse and logistics operations
- Furniture and display units
- Material handling systems
