250mm Directional Lock Castor - 600kg Load Capacity

High-performance directional lock castor for heavy-duty use.

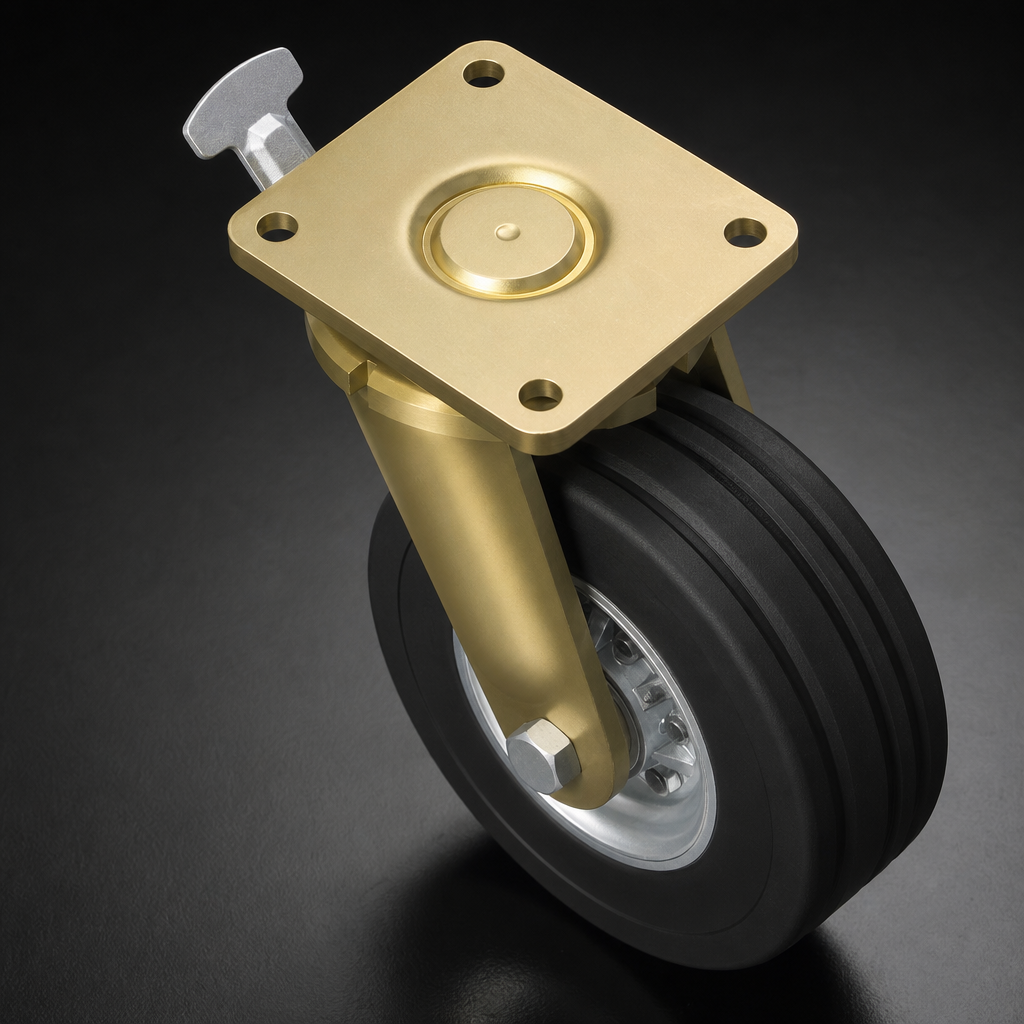

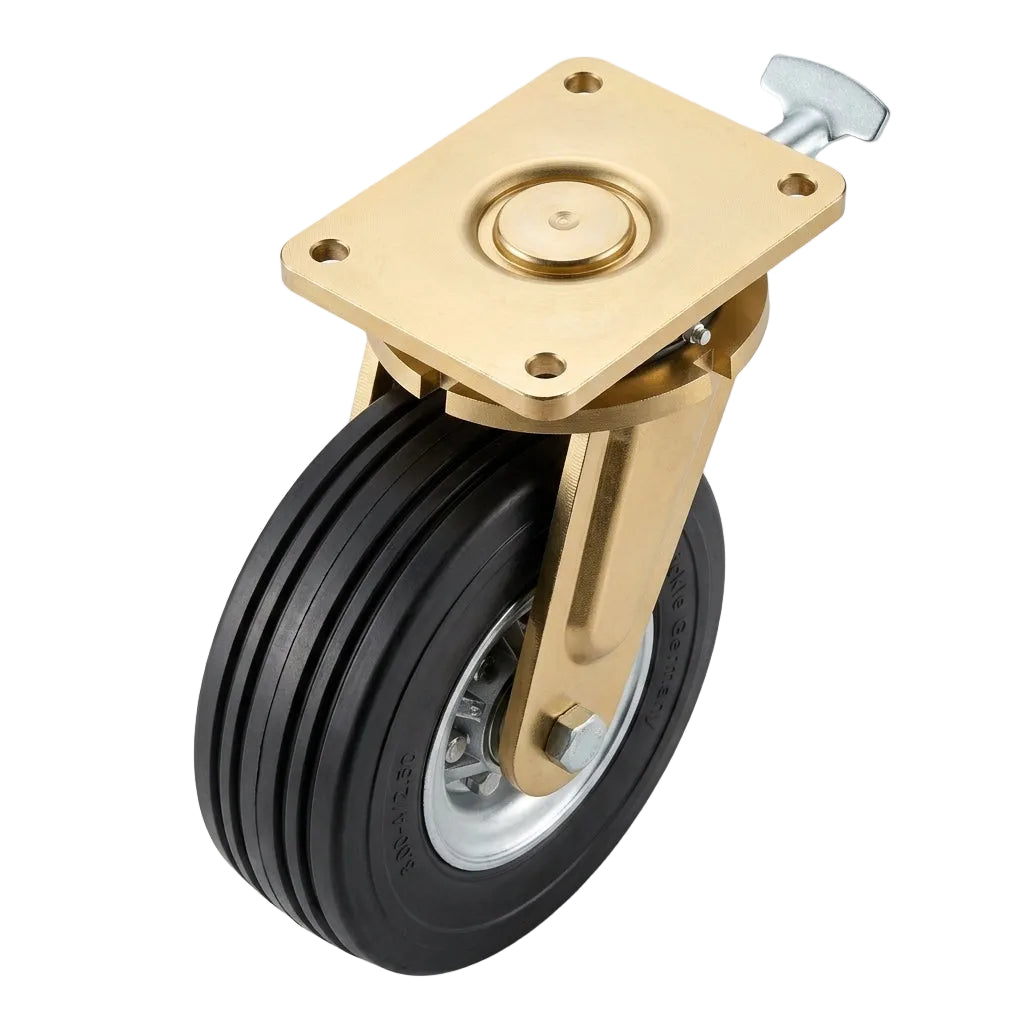

This 250mm directional lock castor features an elastic rubber wheel with a ribbed tread for superior traction and control. Designed for heavy-duty applications, it supports a load capacity of 600kg and ensures smooth operation thanks to its ball bearing construction. Always verify the bolt hole size and plate dimensions before purchasing to ensure compatibility.

Key Features

• Wheel Diameter: 250mm – check against the existing wheel size.
• Tread Width: 85mm – matches the contact surface width.
• Load Capacity: 600kg – maximum load rating per wheel.
• Height: 305mm – total castor height from base to top.
• Bearing Type: Ball Bearing – for smooth and efficient rotation.
• Plate Length: 175mm – overall length of the mounting plate.
• Plate Width: 140mm – overall width of the mounting plate.
• Bolt Hole Size: 14mm – must match the bolt size.

Applications

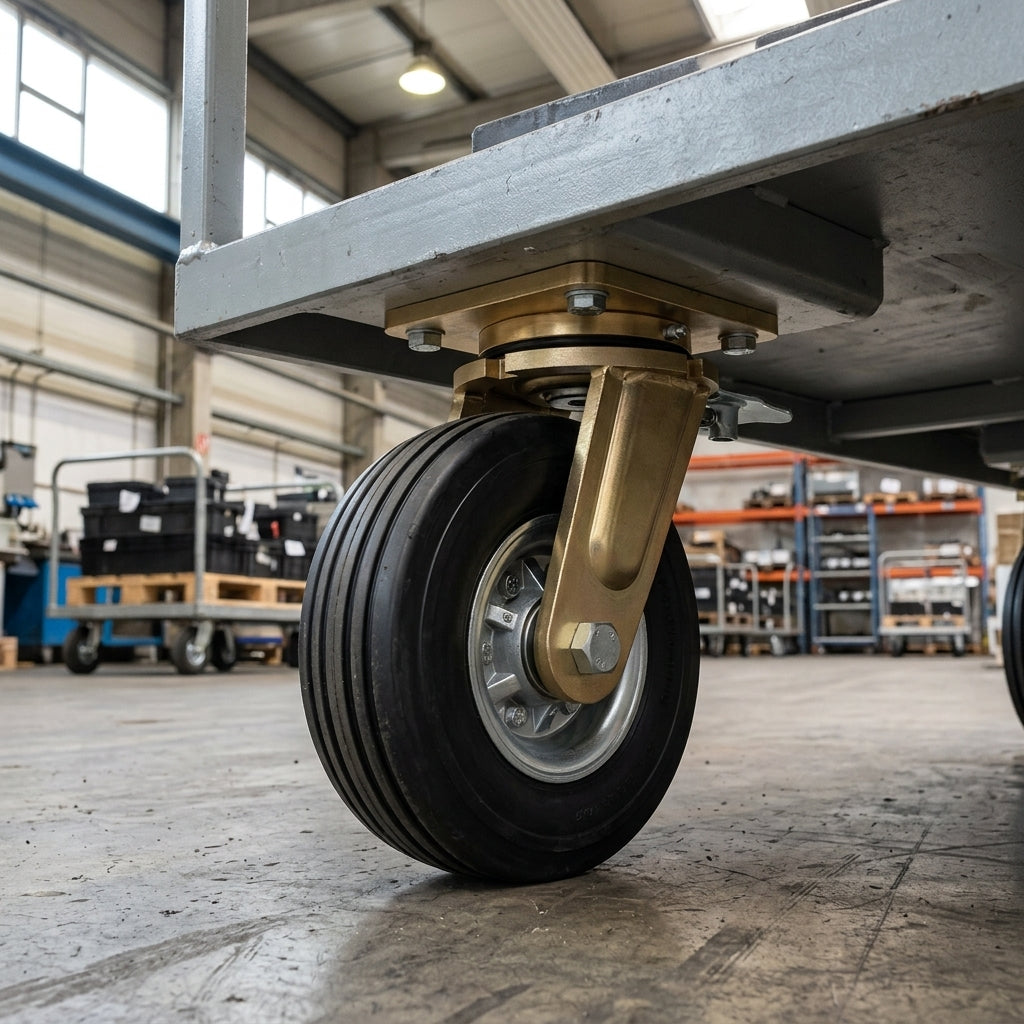

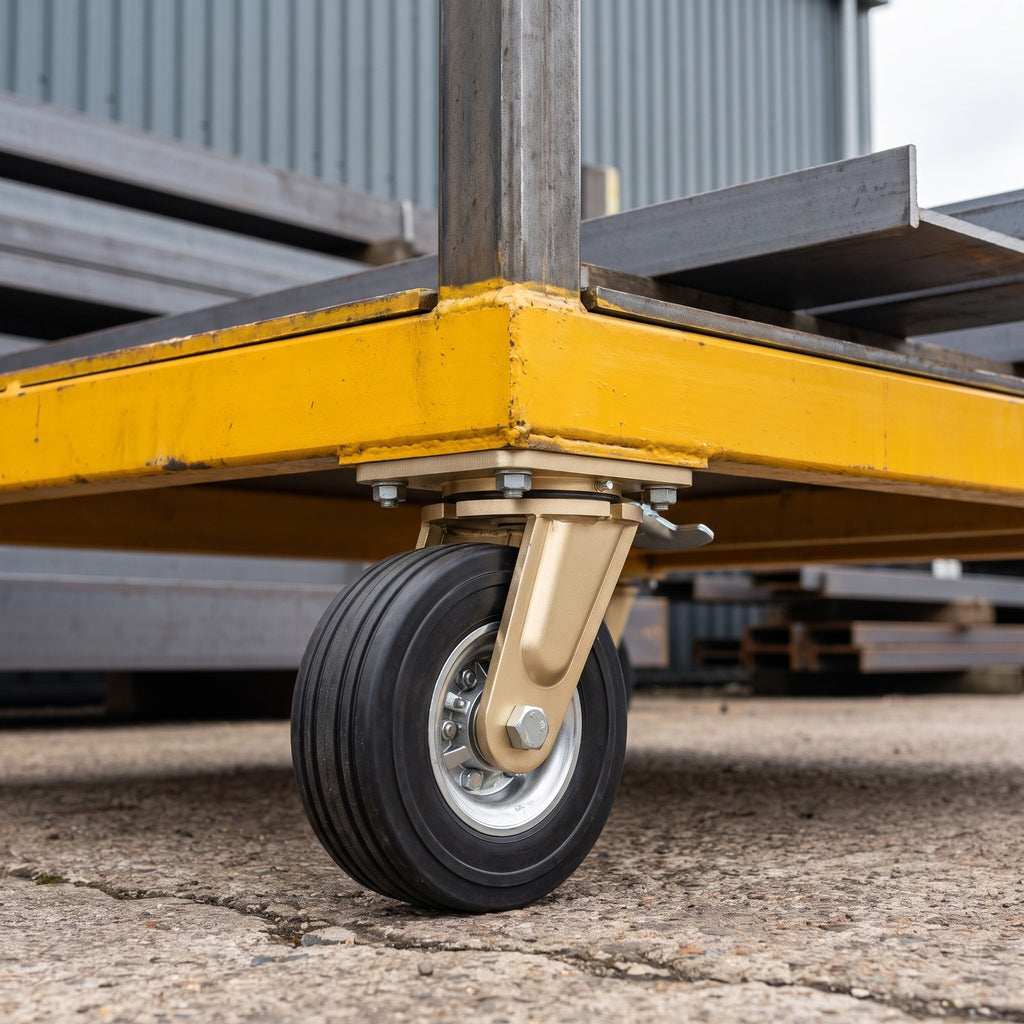

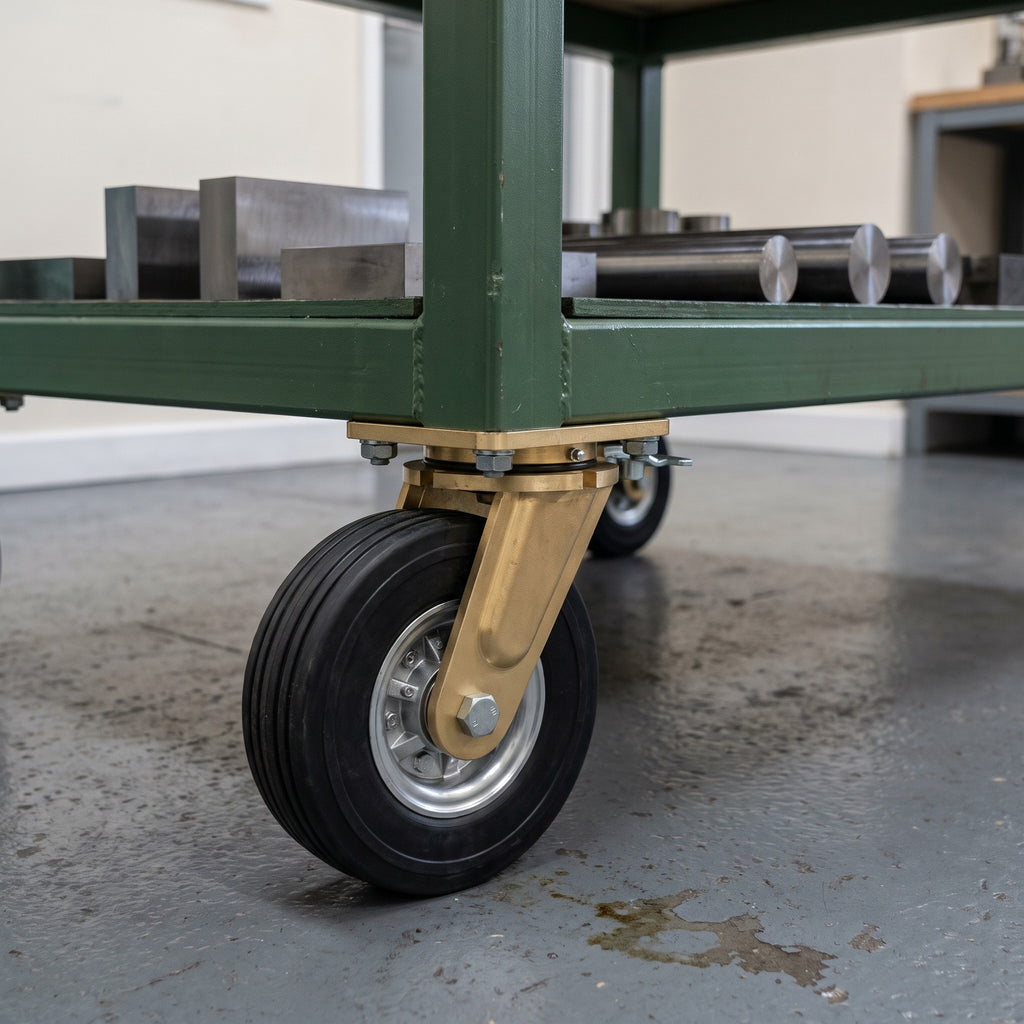

• Industrial Trolleys: Provides directional control for heavy loads.
• Warehouse Equipment: Used in equipment requiring mobility and stability.
• Material Handling: Ideal for moving large items in various settings.
• Manufacturing Plants: Supports heavy machinery and equipment transport.
