- Load per castor544 kg
- Wheel diameter203 mm
- Overall height241 mm
- WheelErgonomic Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 544 kg
- Tread Width
- 50 mm
- Temperature Range
- -20°C to +80°C
- Hardness of Tread
- 87A
- Max Load Capacity of 4 Castors
- 1632 kg
- Plate Length
- 114 mm
- Plate Width
- 102 mm
- Plate Hole Centres Length
- 92/75 mm
- Plate Hole Centres Width
- 75/67 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 184 mm
- Total Castor Height
- 241 mm
- Wheel Colour
- Orange
- Wheel Diameter
- 203 mm
- Wheel Material
- Ergonomic Polyurethane
Will it fit?
- Top plate114 mm × 102 mm
- Hole centres92/75 mm × 75/67 mm
- Fixing holeØ 10 mm
- Overall height241 mm
- Swivel radius184 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

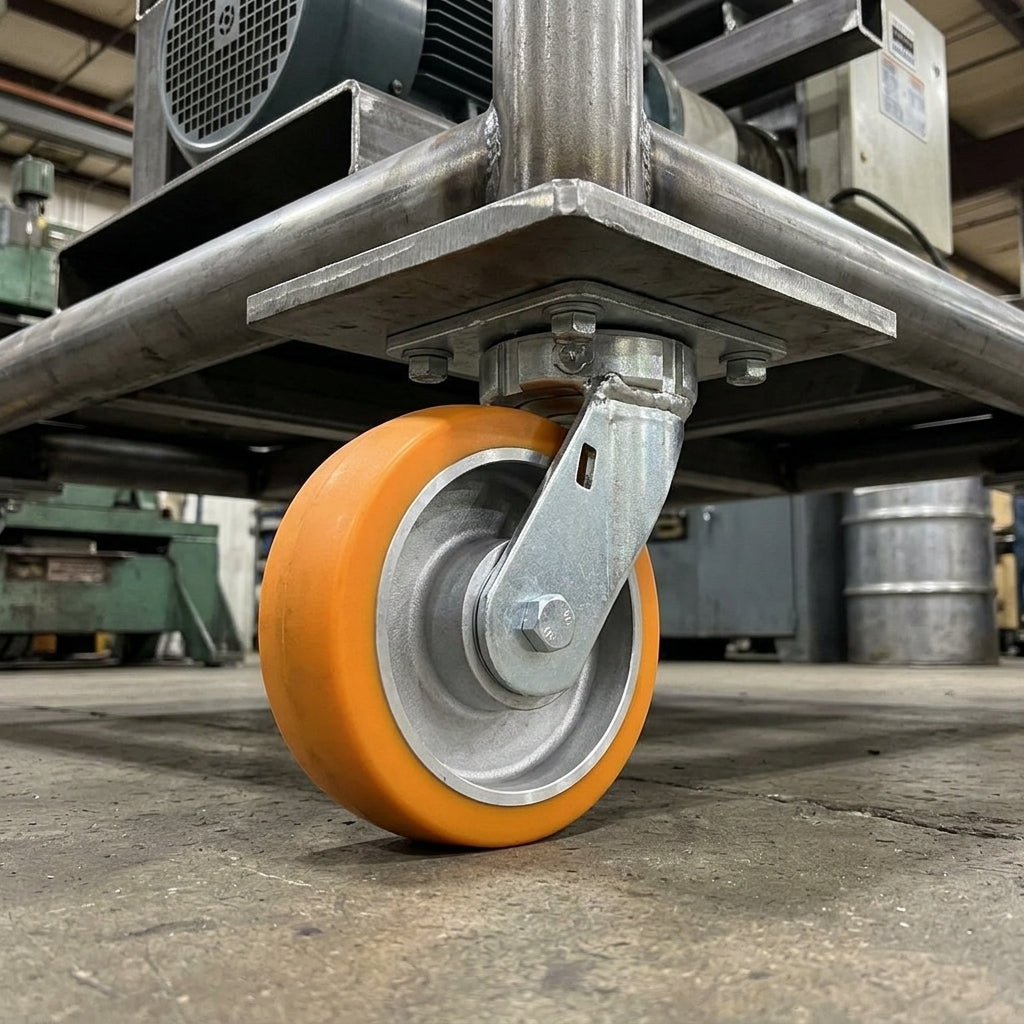

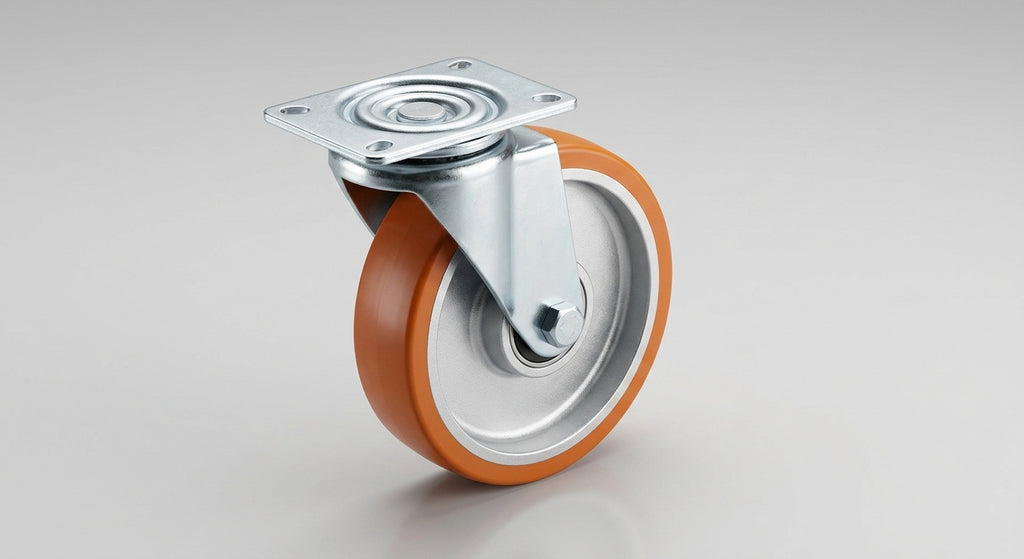

The 203mm Kingpinless Top Plate Castor is engineered for optimal mobility, making it an ideal choice for applications requiring smooth and controlled movement. This ergonomic polyurethane wheel is designed to support a substantial load capacity of 544kg, ensuring versatility for various indoor uses.
Applications
- Furniture Mobility: Ideal for moving furniture pieces with ease.
- Display and Storage Units: Enhances the mobility of display setups.
- General Indoor Use: Perfect for various indoor mobility needs.
FAQs
- What is the load capacity of this castor? The castor supports a load capacity of 544 kg.
- Is this castor suitable for outdoor use? This castor is designed primarily for indoor use, with a temperature range of -20°C to +80°C.
- What type of bearing does this castor use? It features a ball bearing type for smooth swivel action.
- Can this castor be used on uneven surfaces? Yes, the ergonomic design allows for easy rolling over various surfaces.
- What is the diameter of the wheel? The wheel diameter is 203 mm.
- How many castors are needed for maximum load capacity? Four castors are required to support a maximum load capacity of 1632 kg.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
