Our Clients
- Load per castor75kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelPneumatic tyre on pressed steel centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Pneumatic tyre on pressed steel centre
- Wheel Colour
- Black
- Tread Width
- 48mm
- Bearing Type
- Roller bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 137 x 105mm
- Hole Centres
- 105 x 80mm
- Hole Diameter
- 10mm
- Swivel Radius
- 165mm
- Total Castor Height
- 240mm
- Load Capacity
- 75kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Pneumatic tyre
- Rides over gravel, grass and rough ground
- Maximum cushioning for fragile loads
- Can puncture; check tyre pressure
- Lower load rating than a solid wheel of the same size
Details & FAQs
Pneumatic Swivel Castors

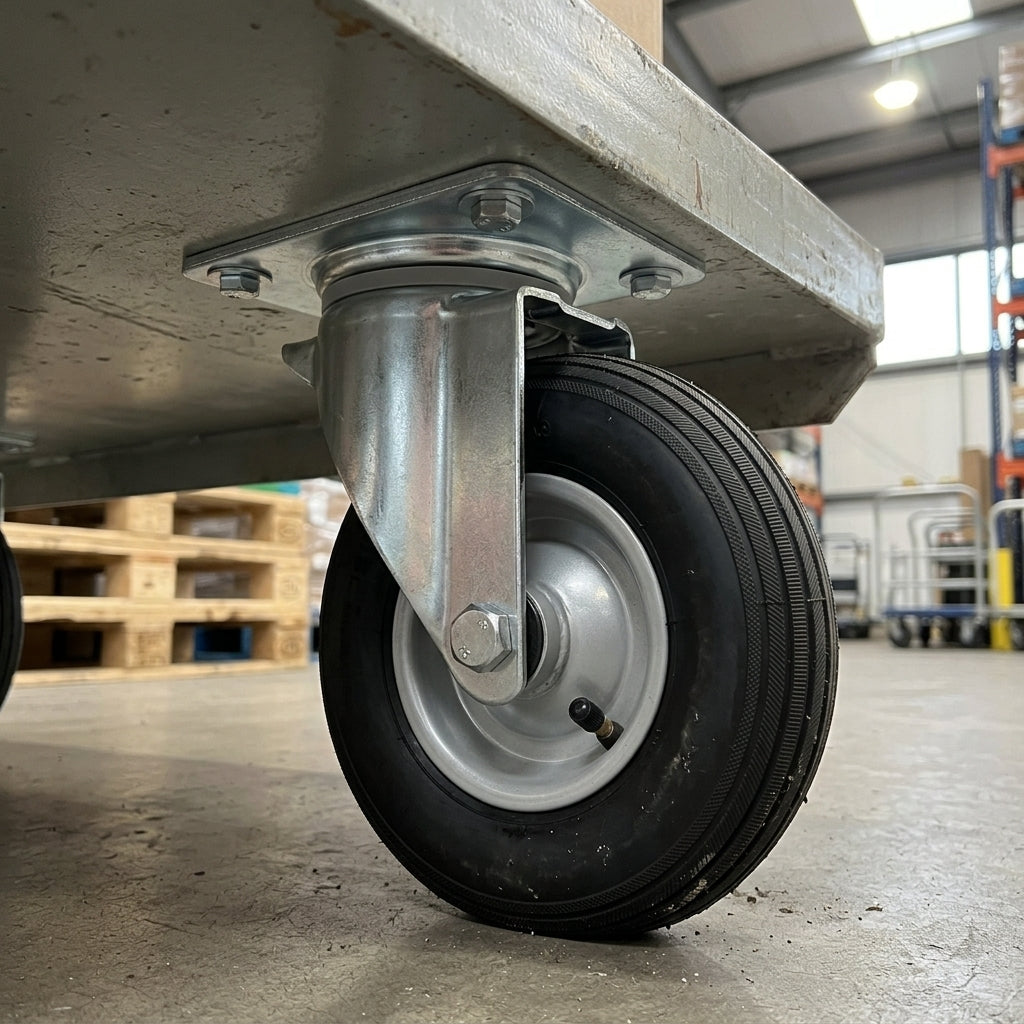

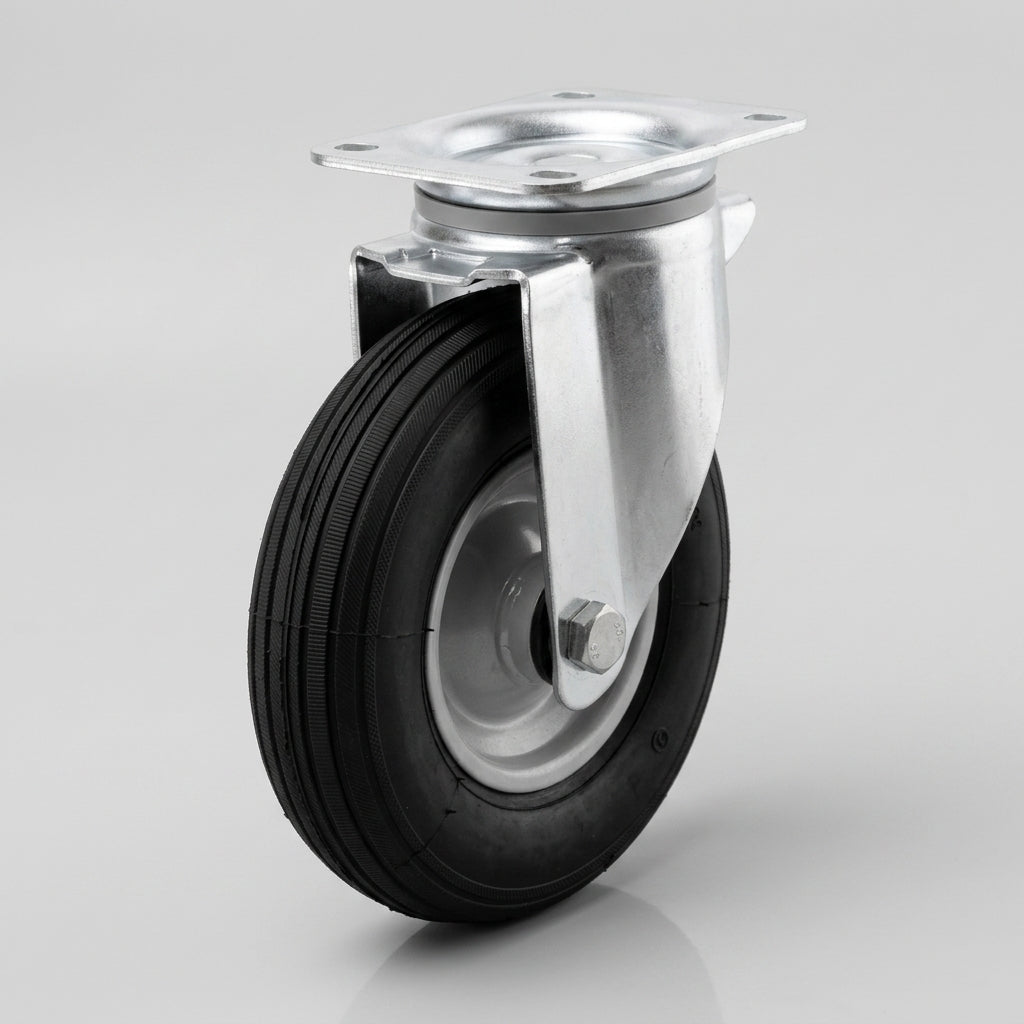

This 200mm swivel castor has a black air-filled pneumatic tyre on a pressed steel centre. The cushioned ride absorbs minor surface irregularities, and the roller bearing keeps it turning smoothly. It carries 75kg per castor and suits industrial carts and equipment that need to move easily.
It fixes with a 137 x 105mm top plate, has a 165mm swivel radius and stands 240mm tall. The wheel arrives deflated and must be inflated to the correct pressure before use.
Why Choose This Castor
- ✓ Pneumatic tyre for a cushioned ride over uneven ground.
- ✓ Pressed steel centre supporting the air-filled tyre.
- ✓ Roller bearing for easy rotation.
- ✓ Swivel head for easy turning in tight spaces.
- ✓ 75kg load capacity per castor.
- ✓ 200mm wheel with 48mm tread for rolling over uneven ground.
- ✓ 137 x 105mm top plate with four 10mm holes.
* Load capacity is per castor with the tyre correctly inflated. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This pneumatic swivel castor suits:
- ✓ Carts and trolleys: smooth movement and easy manoeuvrability.
- ✓ Industrial equipment: mobile machinery that needs frequent repositioning.
- ✓ Warehouse dollies: moving goods across flat surfaces.
Frequently Asked Questions
What is a pneumatic wheel?
It has an air-filled tyre on a pressed steel centre. The air cushions the load and absorbs minor surface irregularities, so the castor rolls more smoothly over uneven floors.
Does the tyre need inflating?
Yes. The wheel arrives deflated and must be inflated to the appropriate pressure before use.
How much weight can this castor carry?
Each castor is rated for 75kg.
How is the castor fitted?
It has a 137 x 105mm top plate with four 10mm holes on 105 x 80mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 165mm and the total castor height is 240mm.
