- Load per castor2000kg per castor *
- Wheel diameter200mm (twin)
- Overall height270mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Gantry Castor, Top Plate
- Wheel Diameter
- 200mm (twin)
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Orange
- Tread Width
- 50mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 2000kg per castor *
- Top Plate Size
- 255 x 205mm
- Bolt Hole Centres
- 210 x 160mm
- Bolt Hole Diameter
- 16mm
- Overall Height
- 270mm
Will it fit?
- Bolt hole210 x 160mm
- Overall height270mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Twin Wheel Gantry Castor

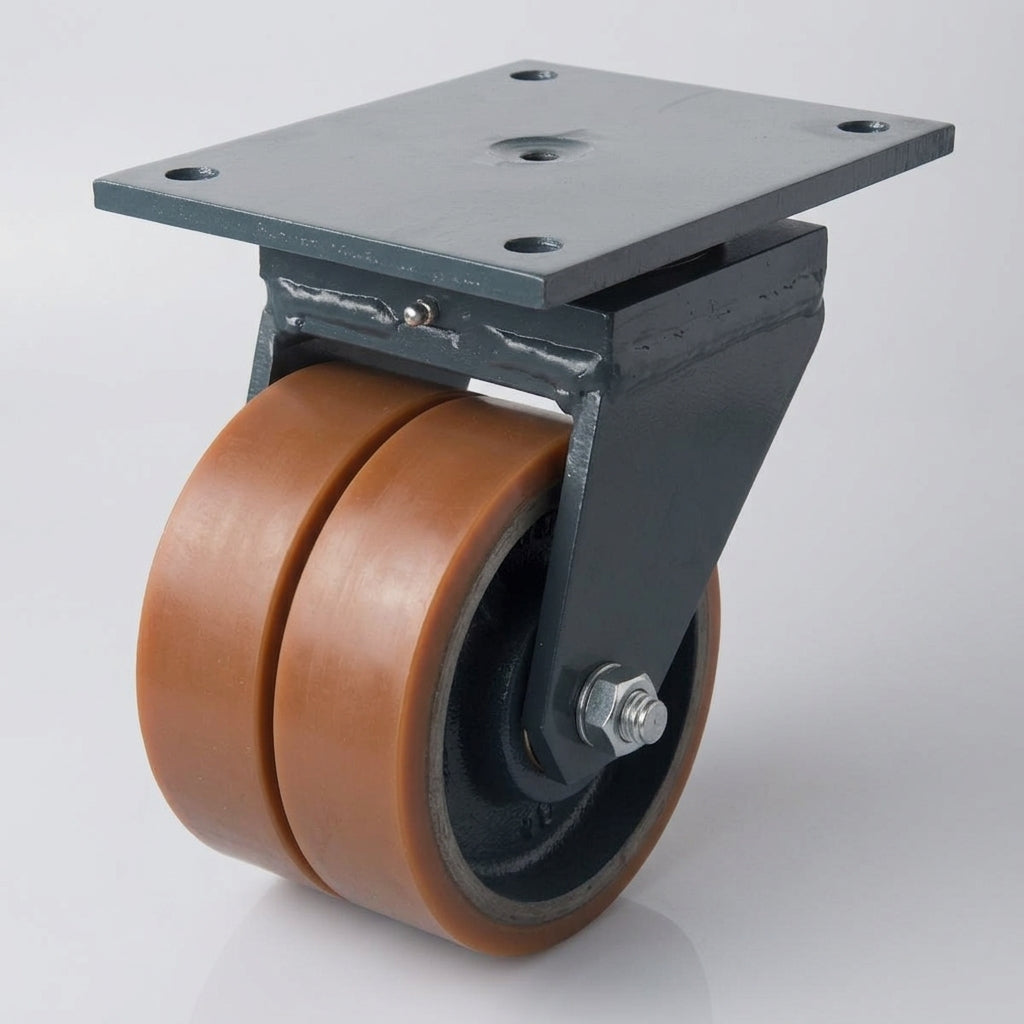

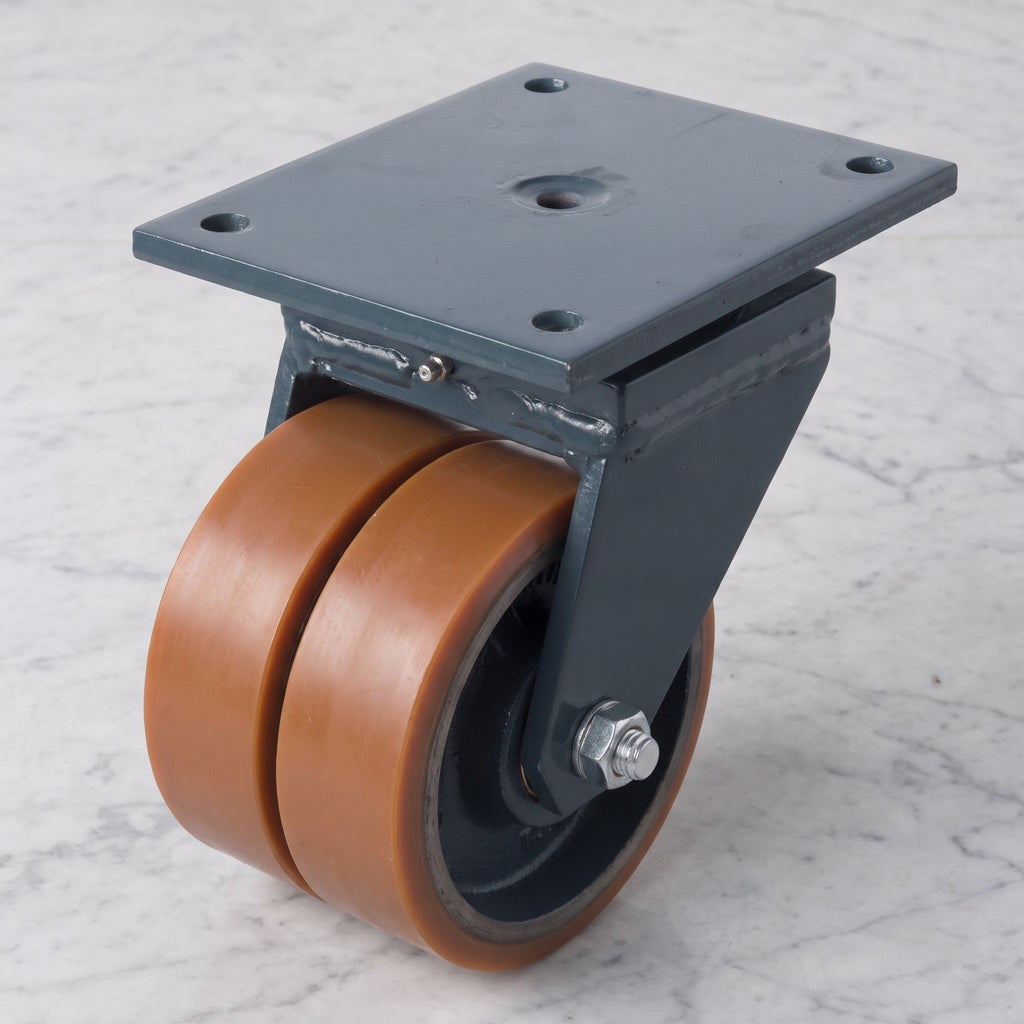

This 200mm twin wheel swivel gantry castor carries up to 2000kg per castor on two orange polyurethane wheels with cast iron centres. A heavy fabricated, welded steel housing and a ball bearing swivel head let it turn smoothly under heavy loads on gantries, heavy machinery and industrial trolleys.
The polyurethane tread gives a hard, smooth-rolling surface that suits smooth floors, while the cast iron centres give a sturdy core. A large 255 x 205mm top plate with four 16mm holes bolts flat under the frame, and the overall height is 270mm.
Why Choose This Castor
- ✓ 2000kg load capacity per castor
- ✓ Twin wheels for easier steering and better load spread
- ✓ Orange polyurethane on cast iron wheels for smooth floors
- ✓ Heavy fabricated, welded steel housing
- ✓ Ball bearing swivel head for smooth turning
- ✓ Large 255 x 205mm top plate with 16mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

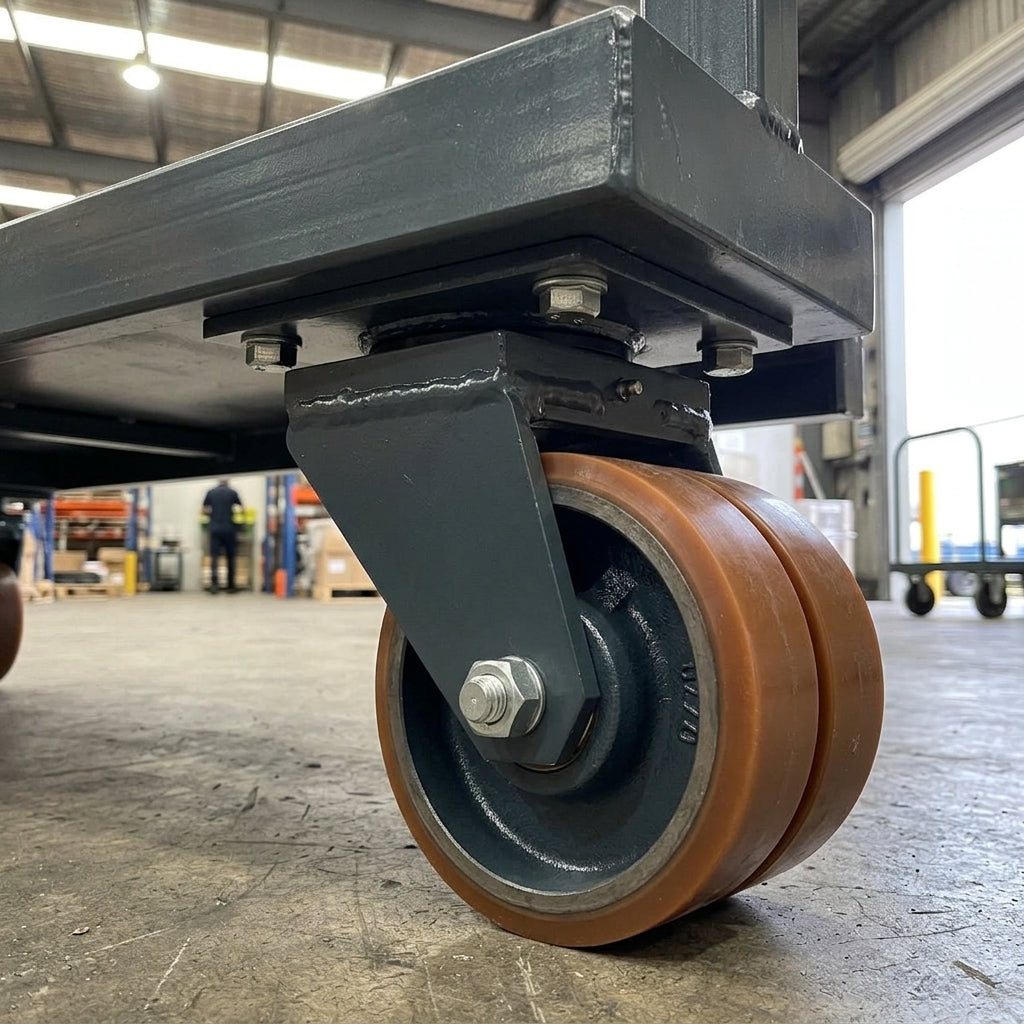

- ✓ Industrial trolleys moving heavy materials in warehouses and factories
- ✓ Gantry systems and support structures that need mobility and high load capacity
- ✓ Heavy machinery that needs repositioning in industrial settings
Looking for other sizes? See our gantry castor range.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 2000kg. A set of four is best used for loads up to around 6000kg, allowing for uneven floors.
Why choose twin wheels?
Two wheels share the load, spread it over a wider footprint and turn more easily under heavy weight than a single wide wheel.
How is it fitted?
The 255 x 205mm top plate has four 16mm holes on 210 x 160mm centres. Bolt it flat to the underside of your trolley, cart or platform with bolts, nuts and washers that suit 16mm holes.
What floors does it suit?
The hard polyurethane tread is made for smooth floors such as sealed concrete and epoxy.
How tall is the castor once fitted?
The overall height from floor to top plate is 270mm.
