- Load per castor800kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Top Plate Castor
- Brake
- None
- Wheel Diameter
- 200mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 50mm
- Hardness of Tread
- D75
- Bearing Type
- Ball bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 155mm
- Total Castor Height
- 240mm
- Load Capacity
- 800kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Top Plate Castors

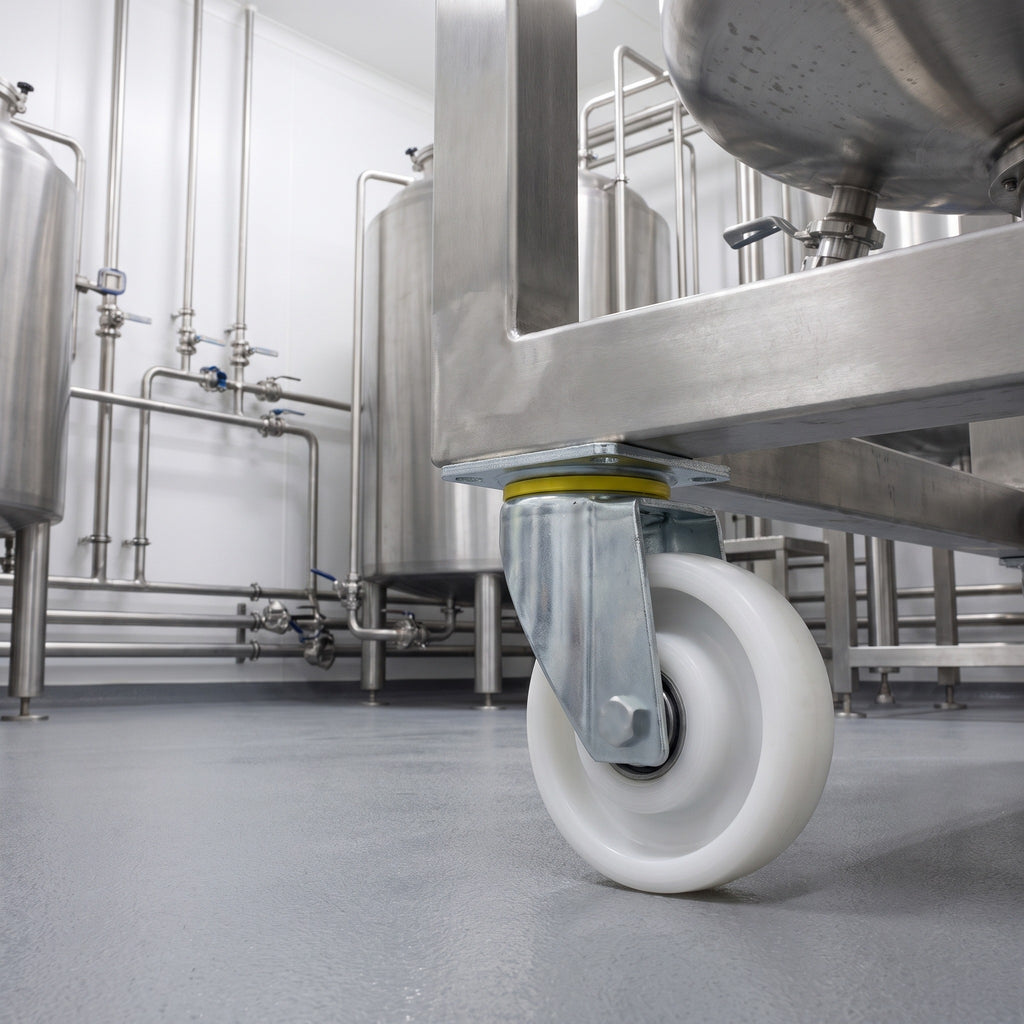

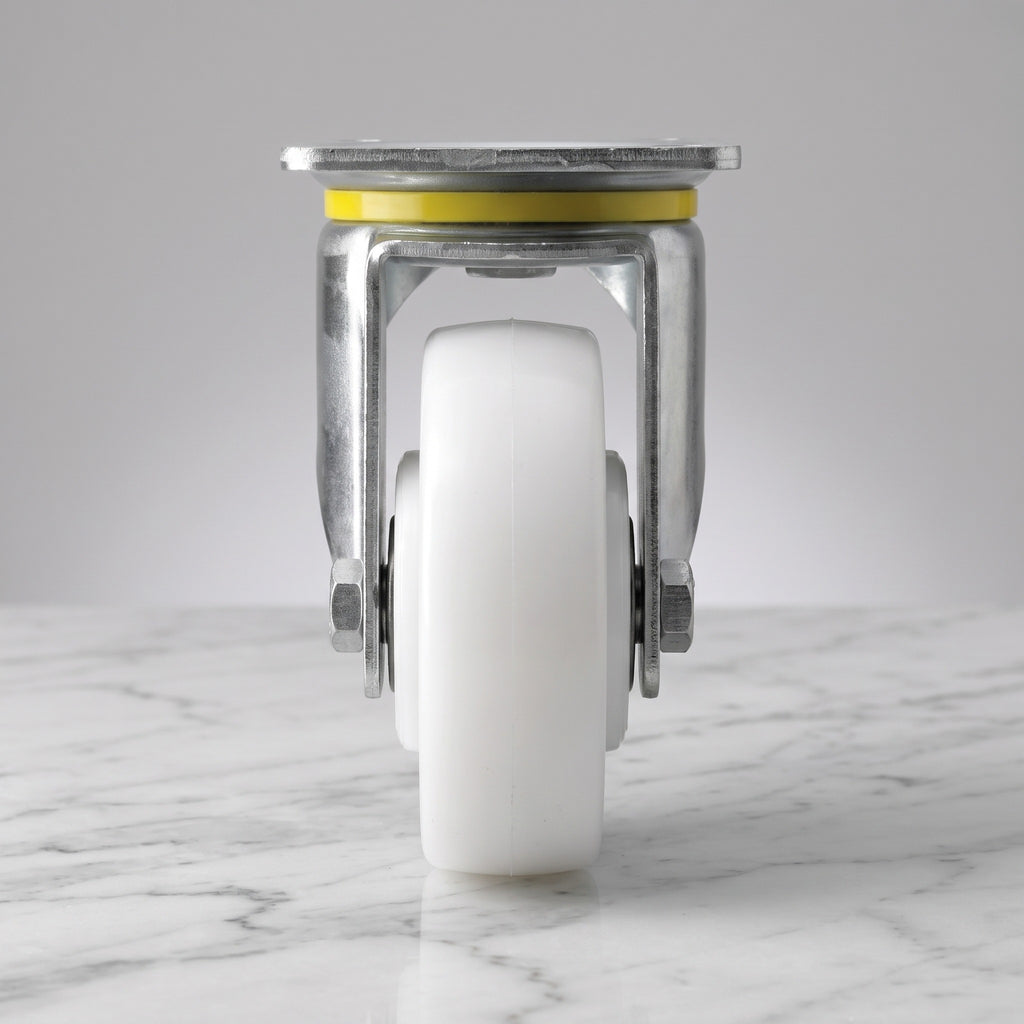

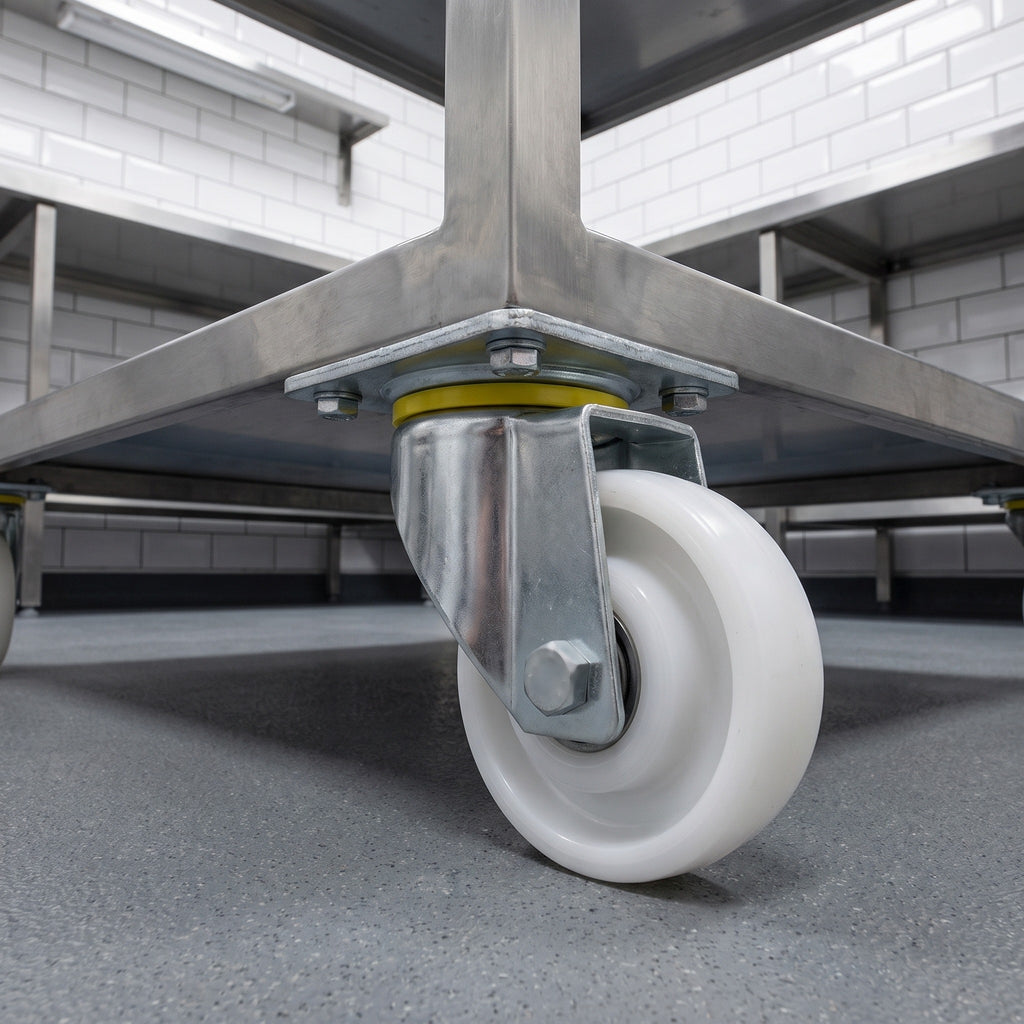

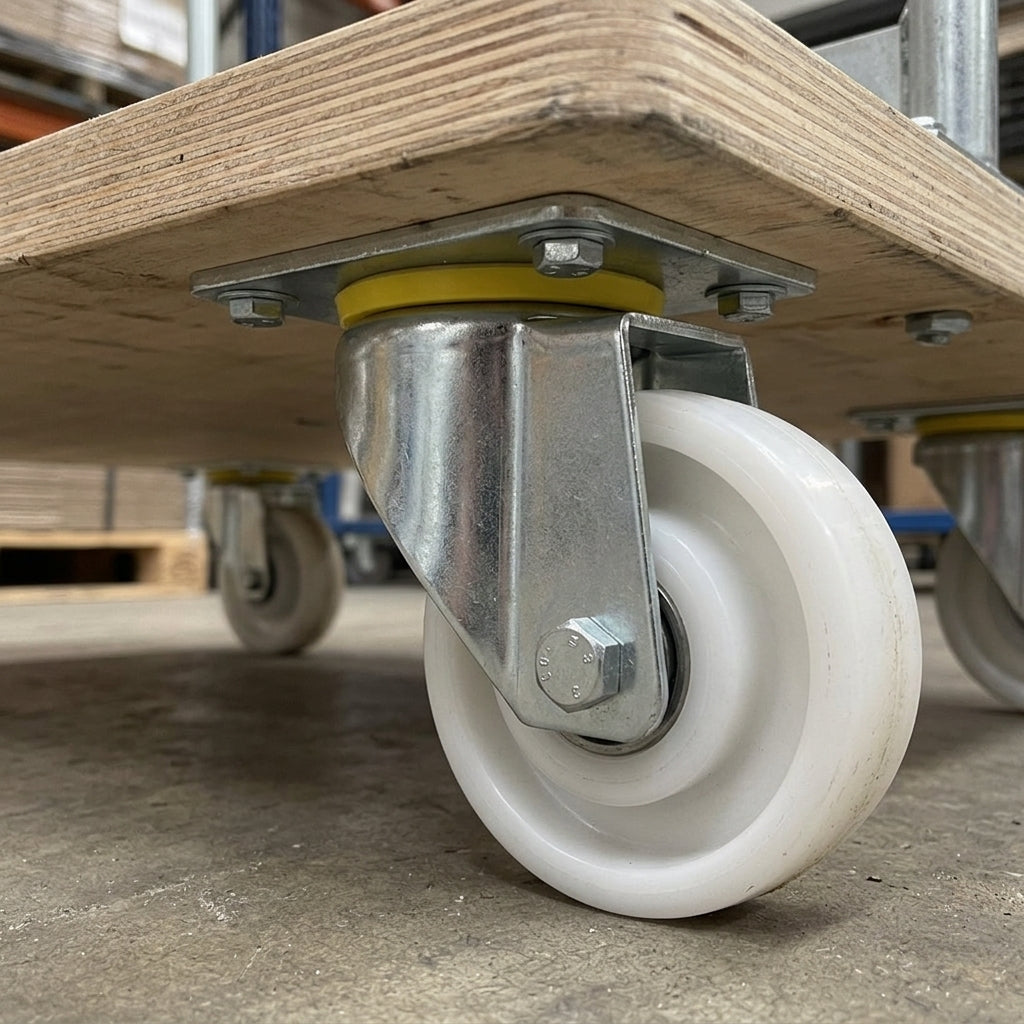

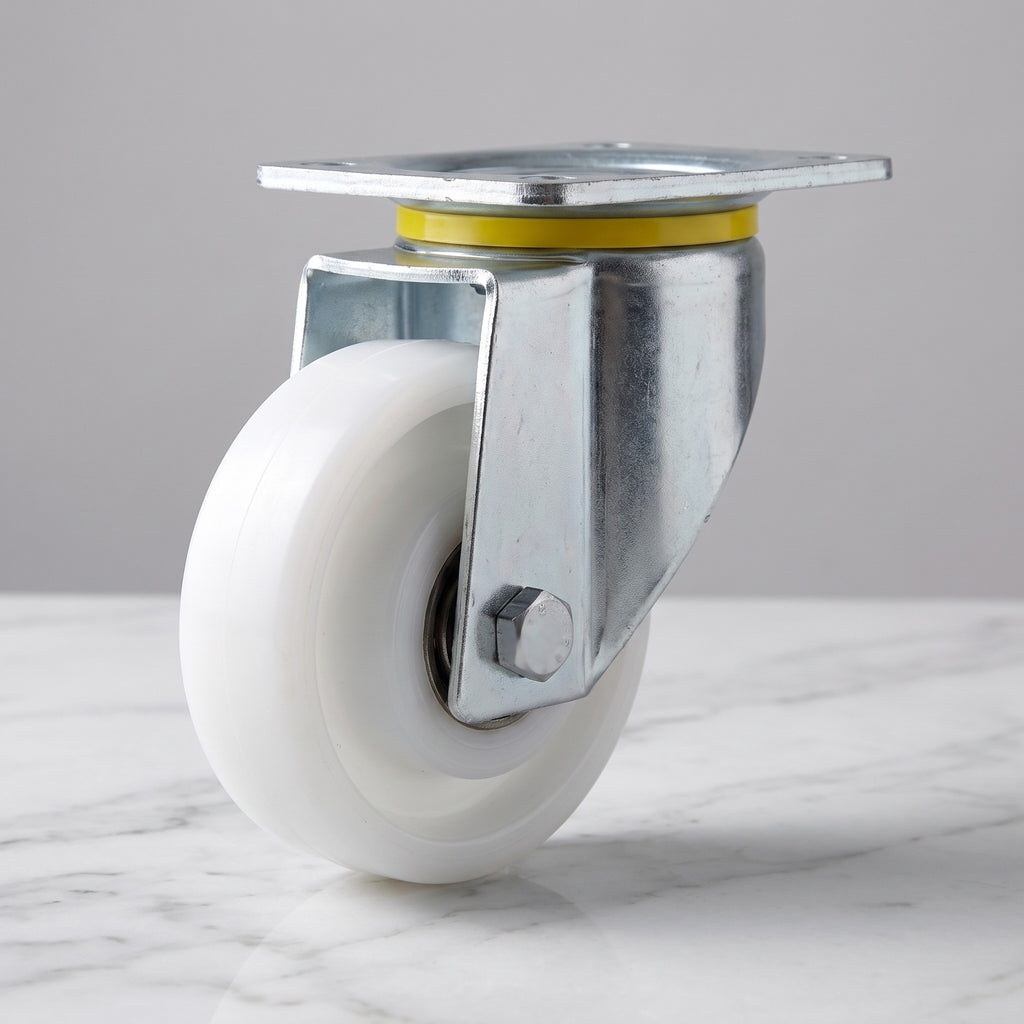

This 200mm heavy duty swivel castor has a white nylon wheel, made for industrial use and rated for 800kg per castor. The D75 nylon tread is built for demanding industrial use, and the ball bearing gives smooth rotation with less friction.
It fixes securely to flat surfaces with a 140 x 110mm top plate, has a 155mm swivel radius, stands 240mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ 800kg load capacity per castor for heavy industrial loads.
- ✓ White nylon wheel with a 50mm tread and D75 hardness.
- ✓ Ball bearing for smooth rotation and reduced friction.
- ✓ Swivel head for easy manoeuvring, with a 155mm swivel radius.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty swivel top plate castor suits:
- ✓ Industrial trolleys: transporting heavy loads with ease.
- ✓ Warehouse equipment: carts and dollies for efficient movement of goods.
- ✓ Manufacturing machinery: machinery mobility within production facilities.
- ✓ Heavy duty racks: mobility for storage racks in industrial settings.
Frequently Asked Questions
Does this castor have a brake?
No. This is a free-swivelling castor without a brake, made for easy turning and repositioning.
How much weight can this castor carry?
Each castor is rated for 800kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How much space does it need to swivel?
The swivel radius is 155mm and the total castor height is 240mm.
What is the wheel made of?
A 200mm white nylon wheel, 50mm wide with D75 hardness, running on a ball bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
