- Load per castor600kg per castor *
- Wheel diameter200mm
- Overall height248mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 200mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Blue
- Tread Width
- 50mm
- Tread Hardness
- 87 Shore A
- Bearing Type
- Ball Bearing
- Load Capacity
- 600kg per castor *
- Top Plate Size
- 135 x 110mm
- Bolt Hole Centres
- 105 x 80mm
- Bolt Hole Diameter
- 12mm
- Swivel Radius
- 170mm
- Total Castor Height
- 248mm
- Temperature Range
- -30°C to +80°C
Will it fit?
- Bolt hole105 x 80mm
- Overall height248mm
- Swivel radius170mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -30°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

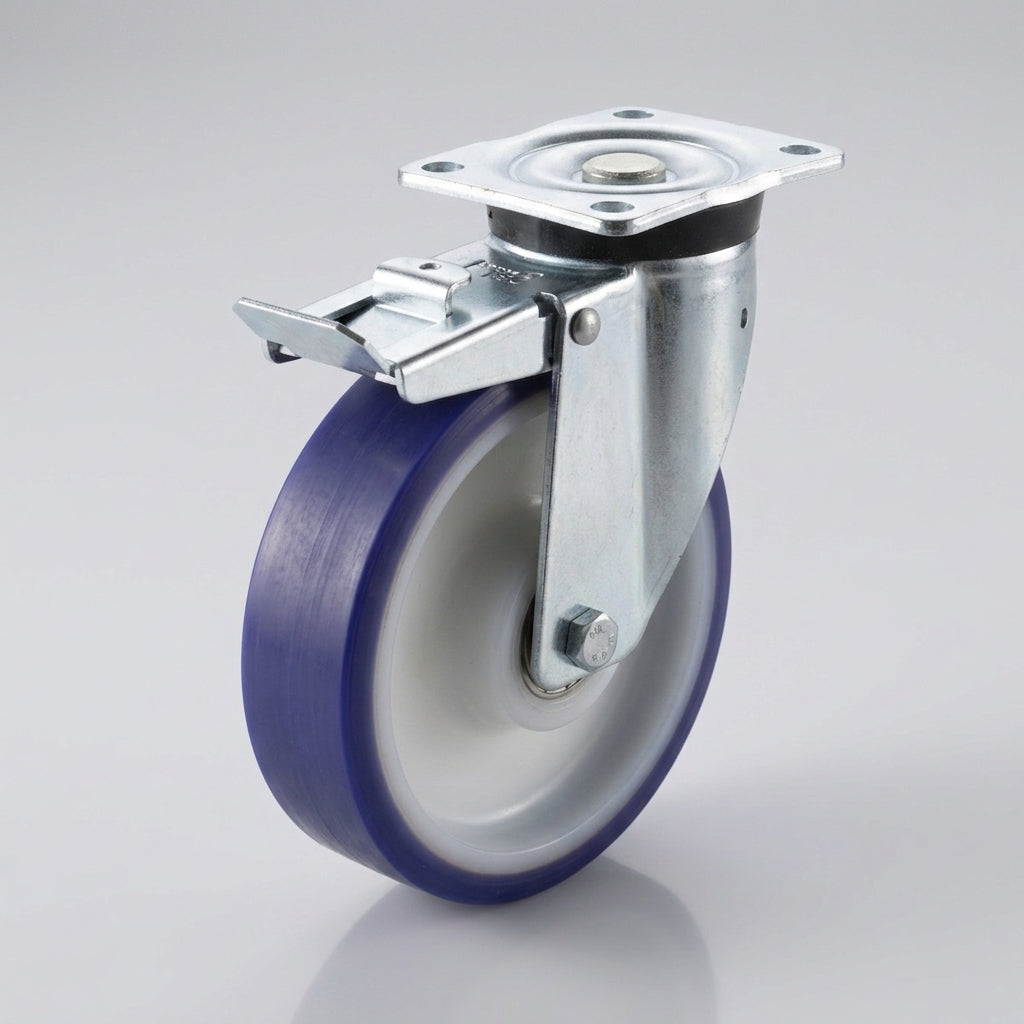

Stainless Steel Braked Castor
This 200mm stainless steel braked swivel castor runs on a blue polyurethane wheel, carrying up to 600kg per castor. Its corrosion-resistant stainless construction suits food-processing, medical, pharmaceutical and wash-down applications.
The large wheel rolls smoothly under heavy loads, with a polyurethane tread on a nylon centre, 50mm wide and 87 Shore A hard. A ball bearing keeps movement easy, and the 135 x 110mm top plate has four 12mm holes. It works from -30°C to +80°C.
Why Choose This Castor
- ✓ Brake to hold equipment in position
- ✓ Corrosion-resistant stainless steel housing for hygienic and wet environments
- ✓ 600kg load rating per castor
- ✓ 200mm blue polyurethane wheel for smooth rolling and easy handling under load
- ✓ Wide 50mm tread
- ✓ Smooth swivel action for precise manoeuvrability
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food-processing and catering equipment
- ✓ Pharmaceutical and cleanroom trolleys and machinery
- ✓ Heavy-duty industrial trolleys and platform trucks
- ✓ Mobile machinery bases and large equipment frames
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
How much weight can it carry?
Each castor is rated at 600kg.
How is it fitted?
The 135 x 110mm top plate has four 12mm holes on 105 x 80mm centres. Bolt it flat to the underside of your trolley or equipment.
Can it be used in wash-down areas?
Yes. The stainless steel housing is corrosion resistant, which suits hygienic, wet and wash-down applications.
What temperatures can it handle?
It is rated from -30°C to +80°C.
How tall is the castor?
The total castor height is 248mm and it needs 170mm of clearance to swivel freely.
