- Load per castor544kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelErgonomic polyurethane on aluminium centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Braked Swivel Top Plate Castor
- Brake
- Yes, foot brake
- Wheel Diameter
- 200mm
- Wheel Material
- Ergonomic polyurethane on aluminium centre
- Wheel Colour
- Orange
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 160mm
- Total Castor Height
- 240mm
- Load Capacity
- 544kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Top Plate Castors

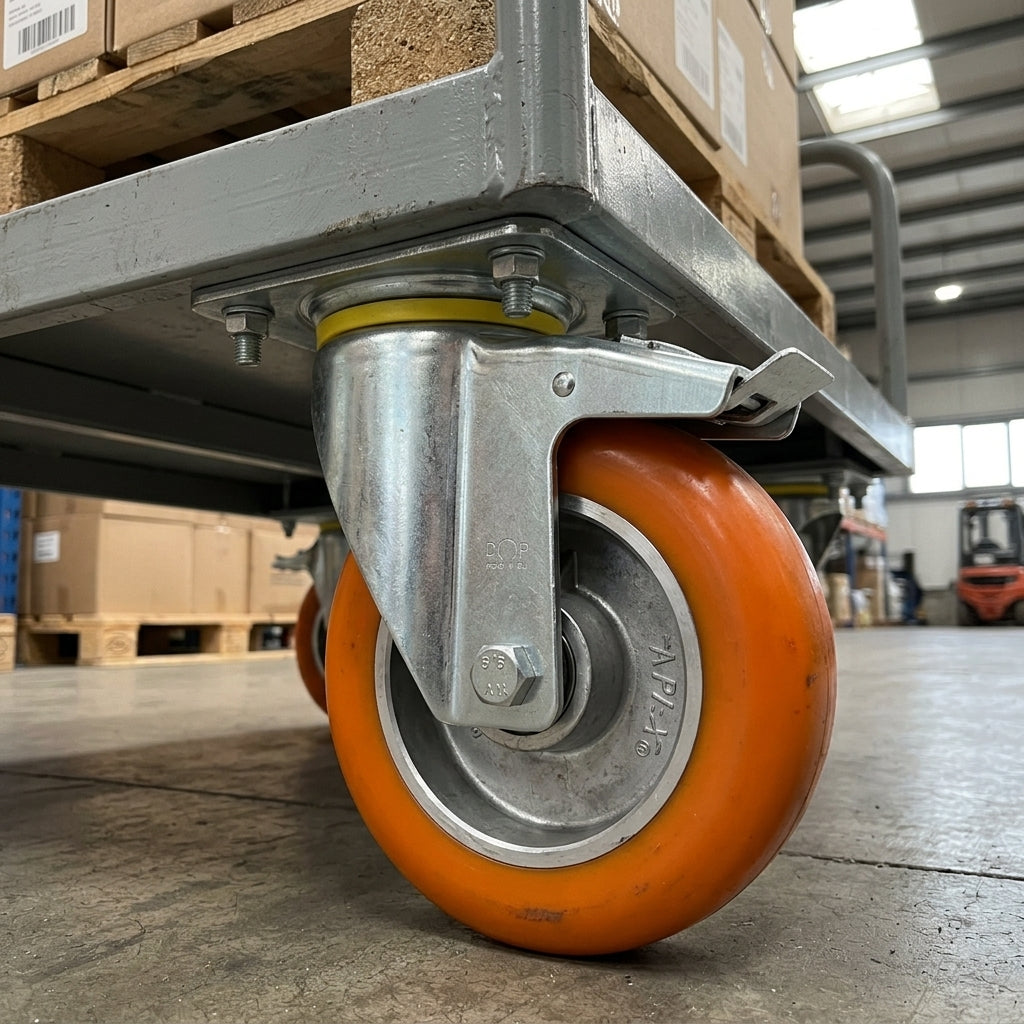

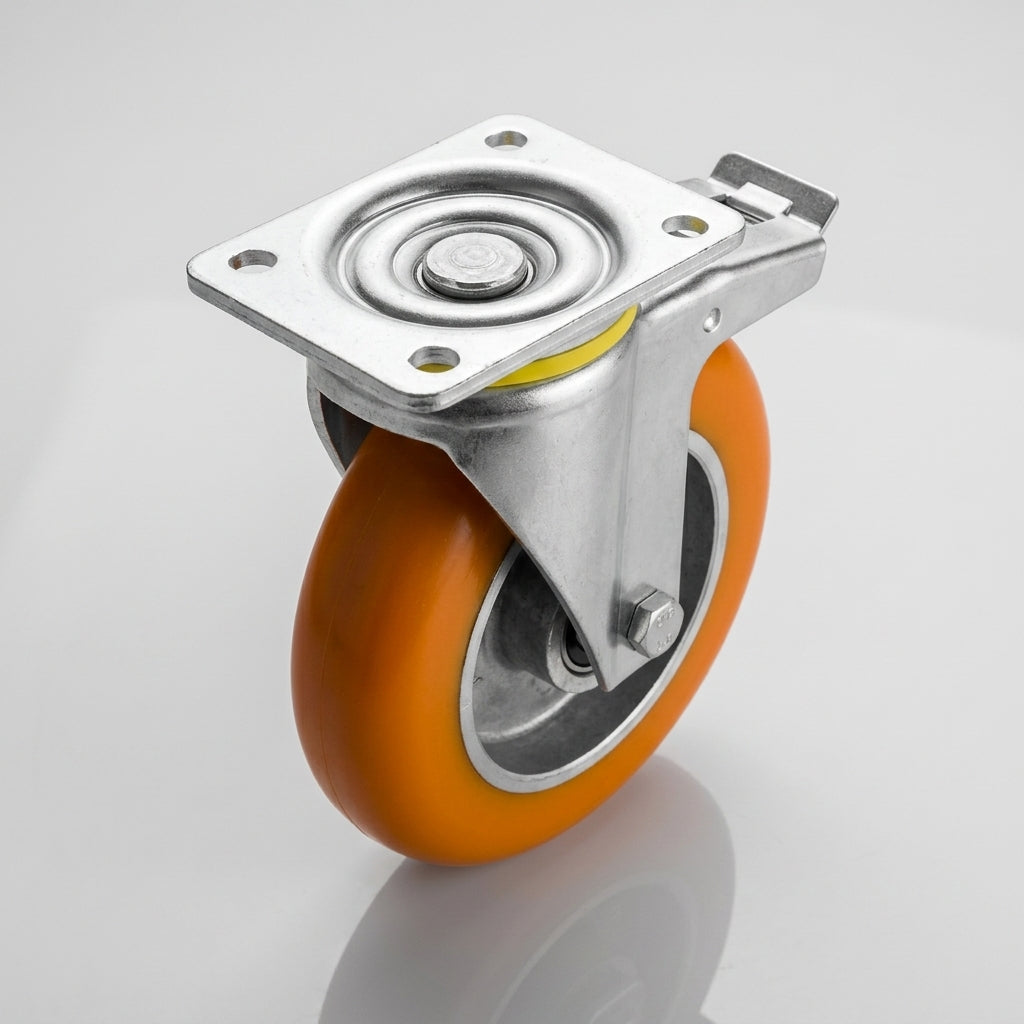

This 200mm Apex heavy duty braked swivel castor has an orange ergonomic polyurethane wheel with a 92 Shore A (A92) tread, giving a balance between load-bearing capacity and smooth operation. The aluminium centre and ball journal bearing give easy manoeuvring, and the foot brake holds equipment securely in position. Rated for 544kg per castor.
It fixes securely to flat surfaces with a 140 x 110mm top plate, has a 160mm swivel radius, stands 240mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ 544kg load capacity per castor for demanding tasks.
- ✓ Ergonomic polyurethane wheel with a 50mm tread and 92 Shore A hardness.
- ✓ Aluminium centre for strength with reduced weight.
- ✓ Ball journal bearing for smooth rotation.
- ✓ Foot brake for secure positioning when parked.
- ✓ Swivel head for easy manoeuvring, with a 160mm swivel radius.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty braked swivel top plate castor suits:
- ✓ Industrial trolleys: reliable mobility for heavy duty transport.
- ✓ Warehouse carts: better manoeuvrability and load handling.
- ✓ Manufacturing equipment: moving heavy machinery.
- ✓ Material handling units: efficient transport of goods.
Frequently Asked Questions
What does the brake lock?
The foot-operated brake stops the wheel from rolling, so your trolley or equipment stays securely in position. Release the brake to move it again.
How much weight can this castor carry?
Each castor is rated for 544kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How much space does it need to swivel?
The swivel radius is 160mm and the total castor height is 240mm.
What is the wheel made of?
A 200mm orange ergonomic polyurethane tread on an aluminium centre, 50mm wide with 92 Shore A hardness, running on a ball journal bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
