- Load per castor600kg per castor
- Wheel diameter200mm
- Overall height240mm + 200mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Jacking Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Yellow
- Tread Width
- 50mm
- Bearing Type
- Roller
- Load Capacity
- 600kg per castor
- Swivel Radius
- 154mm
- Jacking Lift
- Up to 200mm
- Operating Method
- Handle
- Fixing
- 4 bolt hole mounting plate
- Plate Length
- 150mm
- Plate Width
- 100mm
- Plate Hole Centres
- 110 x 60mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 240mm + 200mm
- Total Height to Plate Lower Bolt Hole
- 311mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Unit Extension Height (Max 200mm)
- 850mm
Will it fit?
- Top plate150mm × 100mm
- Fixing holeØ 11mm
- Overall height240mm + 200mm
- Swivel radius154mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Polyurethane Wheel Jacking Castors

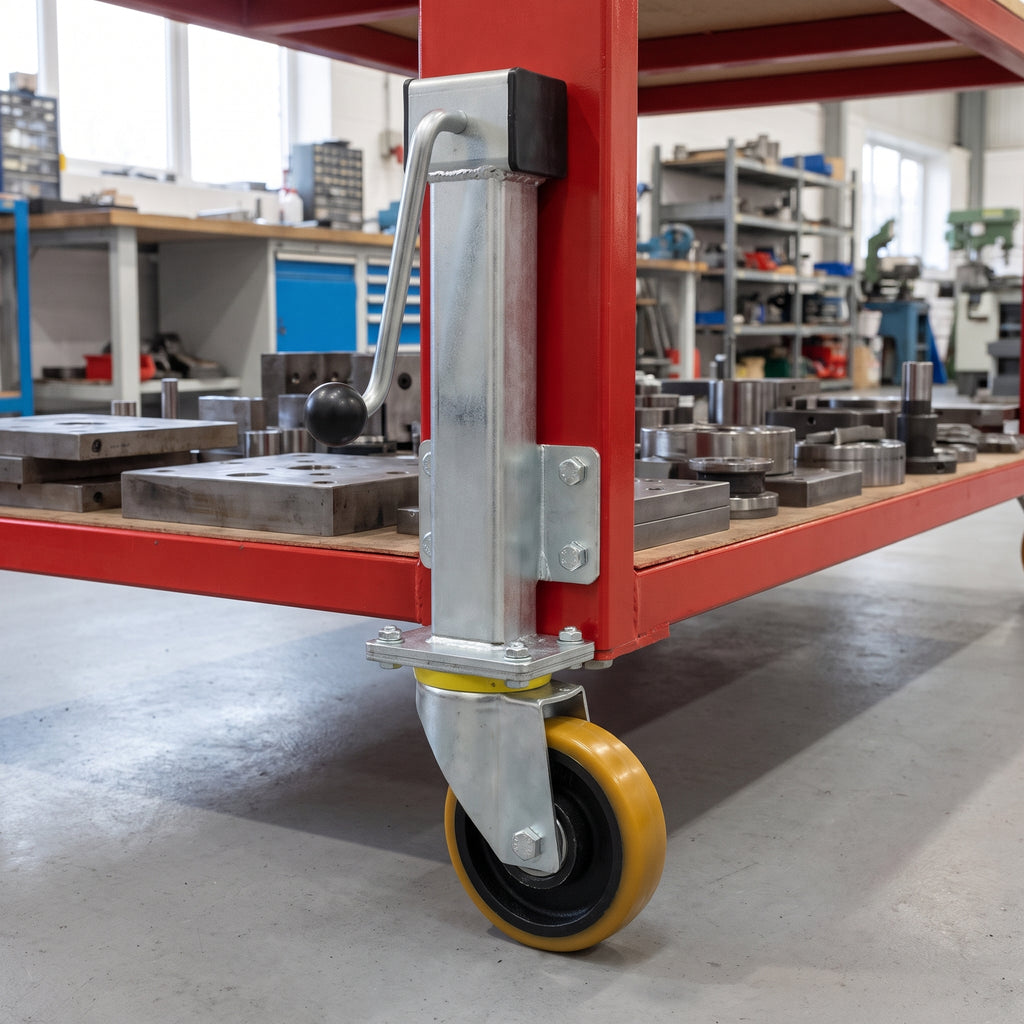

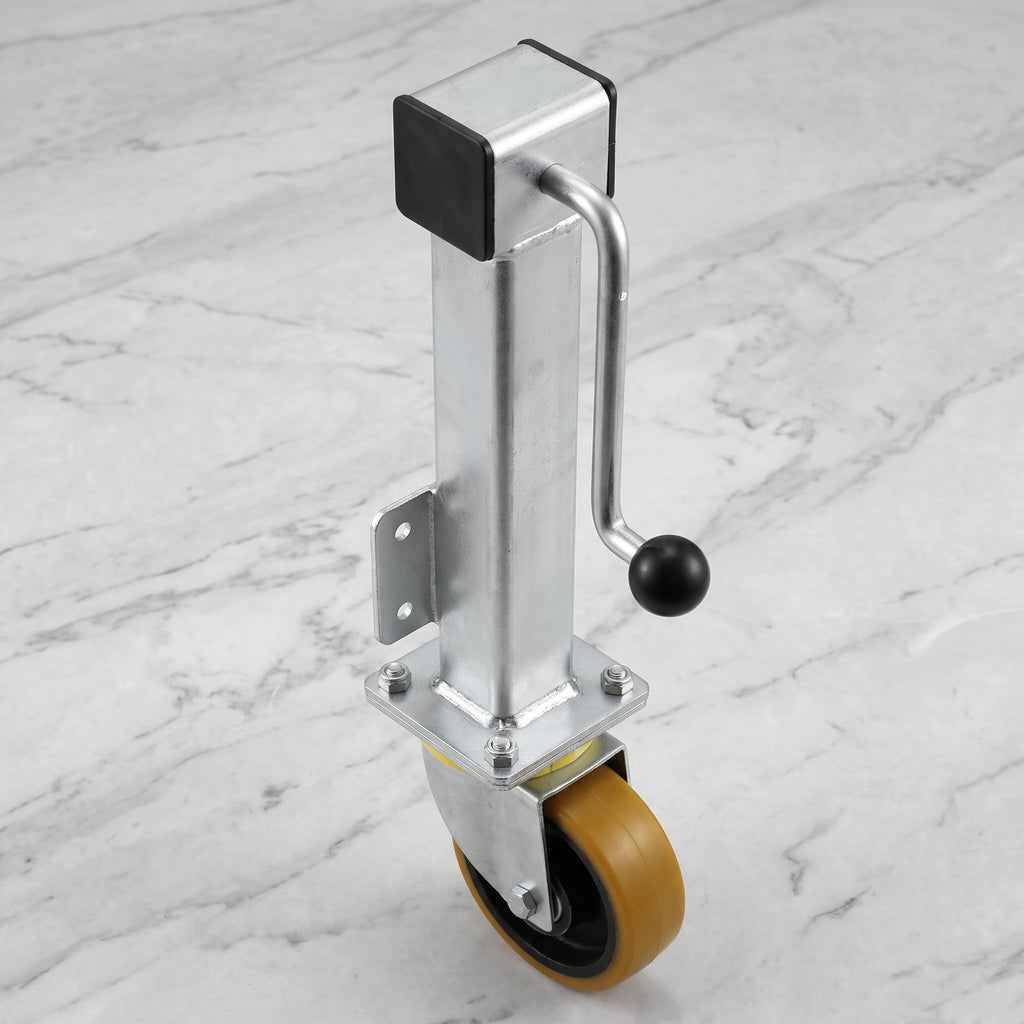

Lift heavy loads onto their wheels by hand, move them where you need them, then wind them back down onto their own feet. This heavy duty swivel jacking castor pairs a 200mm yellow polyurethane on cast iron wheel with a handle-operated jacking unit that gives up to 200mm of lift. Turn the handle to lower the wheel and raise your machine, frame or equipment for moving, then wind it back up so it stands firm and stable. The swivel makes direction changes easy, the roller bearing keeps the wheel turning smoothly, and each castor is rated for 600kg.
The polyurethane tread on a strong cast iron centre combines high load capacity with a smooth, quieter ride and protects workshop and warehouse floors. The castor fixes to your equipment with a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres, and the jacking unit reaches 850mm at its maximum 200mm extension. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 200mm jacking lift raises and lowers heavy equipment so it can roll or stand firm.
- ✓ Handle operation easy height adjustment by hand, with no tools needed.
- ✓ Yellow polyurethane wheel 200mm polyurethane on cast iron wheel with a 50mm tread for strength and a smooth ride.
- ✓ Swivel castor 154mm swivel radius for easy manoeuvring in tight spaces.
- ✓ Roller bearing smooth, reliable rolling under heavy loads.
- ✓ 600kg load capacity per castor for heavy duty industrial loads.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This heavy duty swivel jacking castor suits:
- ✓ Warehouse operations: moving heavy pallets and equipment across the floor.
- ✓ Manufacturing facilities: moving machinery and tools within production lines.
- ✓ Automotive workshops: lifting and moving heavy parts and equipment during repairs.
- ✓ Logistics and distribution: efficient handling of goods and materials in storage areas.
Frequently Asked Questions
How does the jacking castor work?
Turn the handle to wind the wheel down by up to 200mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
Do I need a tool to operate it?
No. The jacking unit is operated by its own handle, so height adjustment is done by hand.
How much weight can this castor carry?
Each castor is rated for 600kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres, bolted to your equipment frame.
What is the wheel made of?
A 200mm yellow polyurethane tyre on a cast iron centre with a 50mm tread, running on a roller bearing.
Does this castor swivel?
Yes. It has a 154mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
