- Load per castor205kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Directional Lock
- Wheel Diameter
- 200mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 33mm
- Tyre Hardness
- A80
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 137 x 105mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 155mm
- Total Castor Height
- 240mm
- Load Capacity
- 205kg per castor
- Temperature Range
- -20°C to +80°C
- Lock
- Directional lock
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

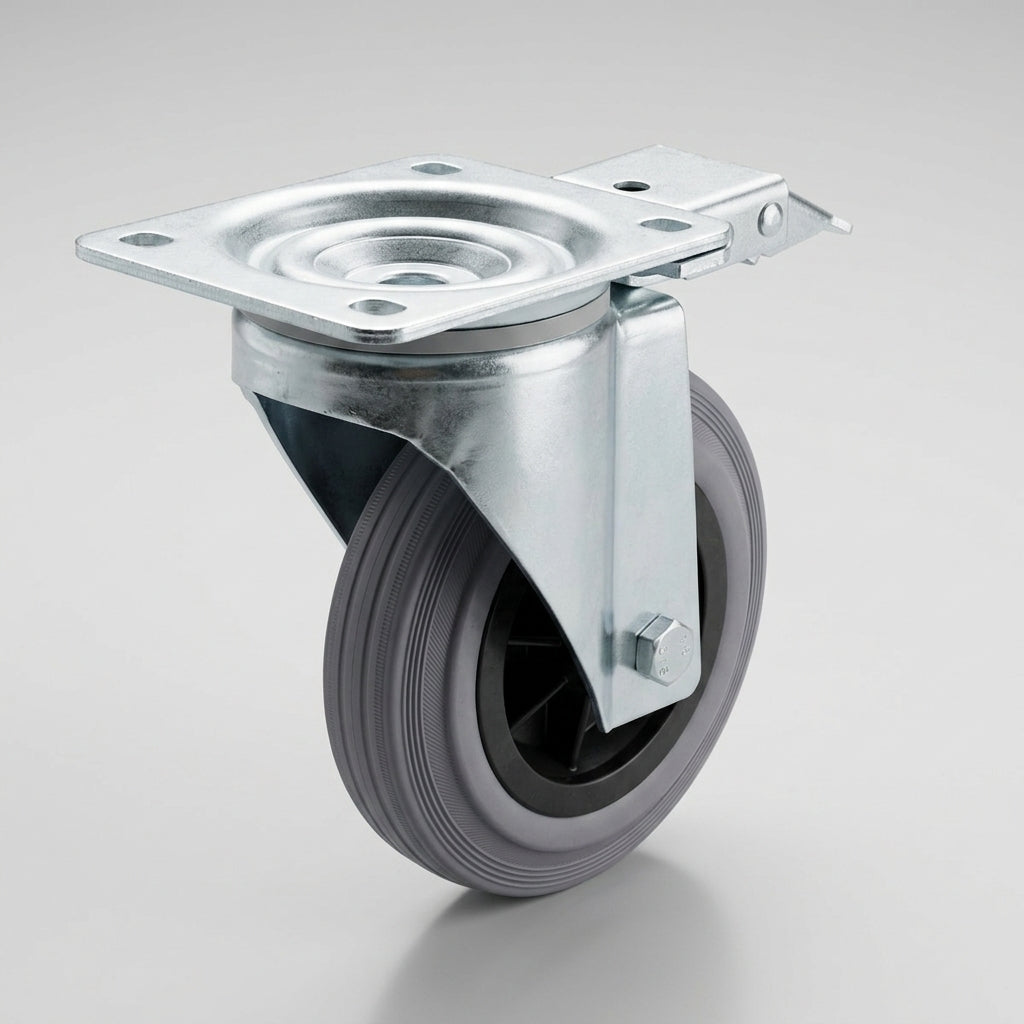

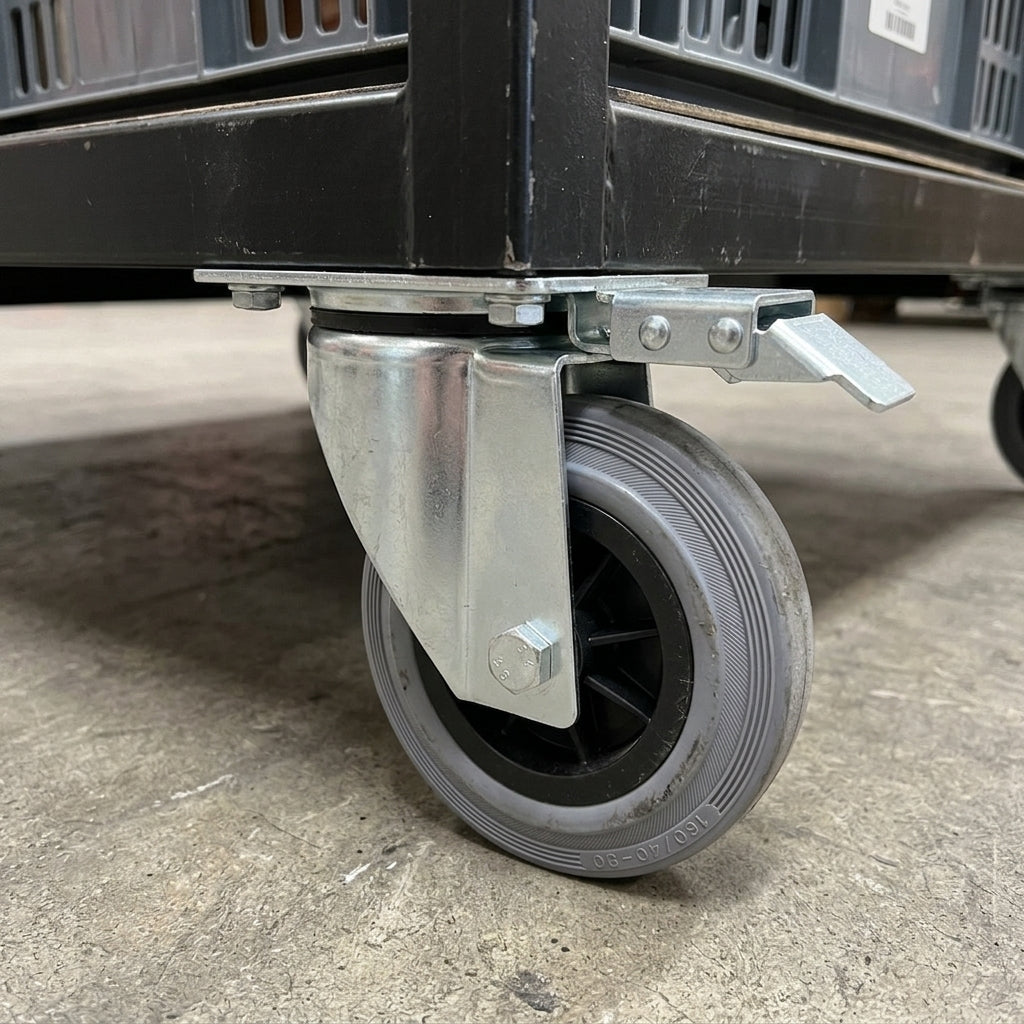

Grey Rubber Top Plate Castors
Fitted with a directional lock, this 200mm swivel castor stabilises movement in a single direction, giving better control during transport. It has a grey rubber wheel on a lightweight polypropylene centre and a 137 x 105mm top plate for secure attachment to warehouse trolleys, industrial carts, hospital equipment, retail displays and workshop benches.
The roller bearing gives smooth rotation with up to 205kg per castor on a 33mm wide, A80 tread. With a 240mm total height and a 155mm swivel radius, this directional lock top plate castor works from -20°C to +80°C, making it a versatile choice for trolleys and equipment in many environments.
Why Choose This Castor
- ✓ Directional lock fixes the wheel direction for stable movement and better control during transport.
- ✓ Grey rubber wheel with Shore A80 hardness for a balance between grip and load-bearing capacity.
- ✓ 205kg load capacity per castor for warehouse and industrial handling.
- ✓ Lightweight polypropylene centre for a durable yet manageable wheel.
- ✓ Roller bearing for smooth rotation.
- ✓ 137 x 105mm top plate with four 10mm holes for secure attachment to flat surfaces.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel radius match your mounting area before fitting.
Where It Works Best
This directional lock castor suits equipment that needs to steer freely and also run straight:
- ✓ Warehouse trolleys: controlled movement for transporting goods.
- ✓ Industrial carts: better manoeuvrability in production settings.
- ✓ Hospital equipment: stable transport of medical apparatus.
- ✓ Retail displays: easy repositioning of display units.
- ✓ Workshop benches: smooth relocation of workstations.
Frequently Asked Questions
What does the directional lock do?
It holds the swivel head in a straight line when needed, so the trolley keeps a straight path. Release it and the castor swivels freely again.
How much weight can this castor carry?
Each castor is rated for 205kg.
How is the castor fitted?
It has a 137 x 105mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 240mm and the swivel radius is 155mm.
What is the wheel made of?
A grey rubber tread with A80 hardness on a polypropylene centre, 200mm in diameter with a 33mm tread width, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
