- Load per castor300kg per castor *
- Wheel diameter200mm
- Overall height236mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 200mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 40mm
- Tread Hardness
- D85
- Bearing Type
- Plain
- Load Capacity
- 300kg per castor *
- Top Plate Size
- 140 x 110mm
- Bolt Hole Centres
- 105 x 80/75mm
- Bolt Hole Diameter
- 10mm
- Total Castor Height
- 236mm
- Temperature Range
- -40°C to +180°C
Will it fit?
- Bolt hole105 x 80/75mm
- Overall height236mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +180°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs
Stainless Steel High Temperature Castor

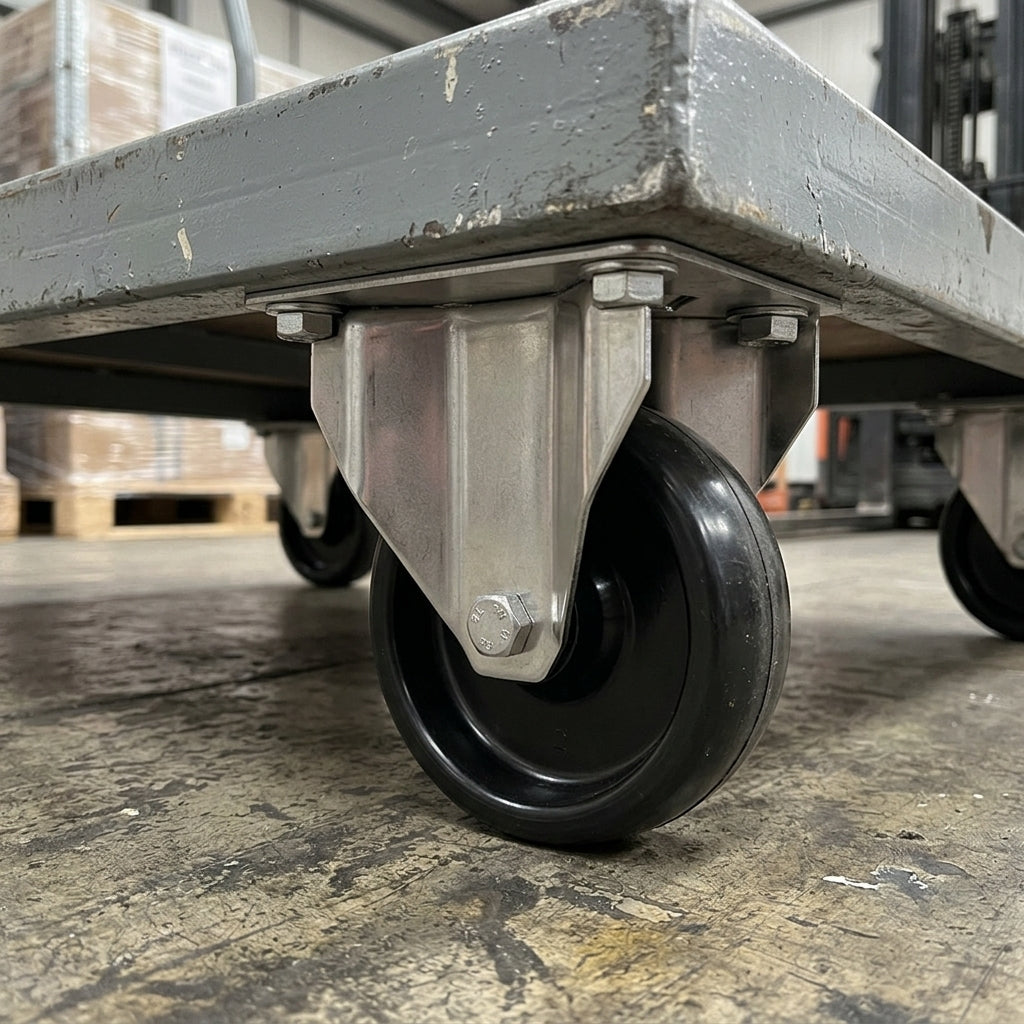

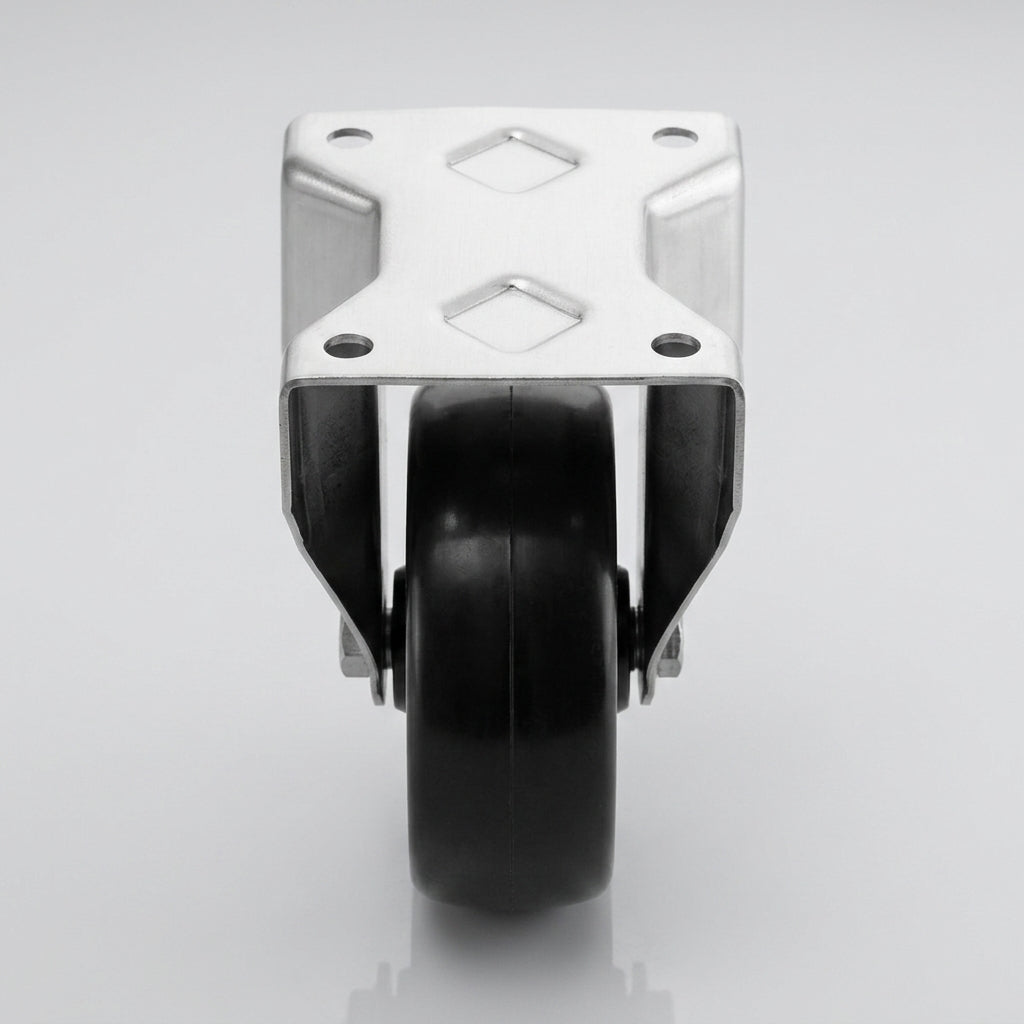

This large 200mm stainless steel fixed castor runs on a black high temperature phenolic wheel that works from -40°C to +180°C, carrying up to 300kg per castor. It is made for heavy food manufacturing equipment, bakery trolleys and racks and industrial ovens, where ordinary wheel materials can fail in the heat.
The rigid stainless steel bracket keeps heavy equipment running in a straight line and stands up to cleaning and damp conditions, while the plain bearing keeps operation simple with low maintenance. A 140 x 110mm top plate with four 10mm holes bolts securely to your equipment, and the large wheel with its hard D85 tread rolls easily over floor joints and drains.
Why Choose This Castor
- ✓ Works from -40°C to +180°C for ovens, bakeries and hot areas
- ✓ Stainless steel bracket for food production and washdown areas
- ✓ 300kg load capacity per castor
- ✓ Large 200mm black phenolic wheel with a 40mm tread
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ 140 x 110mm top plate with dual hole centres
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment exposed to high temperatures
- ✓ Bakery trolleys and racks in baking environments
- ✓ Equipment fitted to industrial ovens within the temperature range
Need a different size? See our high temperature castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your rack or trolley can steer.
What temperatures can this castor handle?
The phenolic wheel works from -40°C up to +180°C, so it suits bakery racks, oven trolleys and hot work areas.
How much weight can it carry?
Each castor is rated at 300kg. A set of four is best used for loads up to around 900kg, allowing for uneven floors.
How is it fitted?
The 140 x 110mm top plate has four 10mm holes on 105 x 80/75mm centres. Bolt it flat to the underside of your rack or trolley.
How tall is the castor?
The total castor height is 236mm.
