- Load per castor800kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelCast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed Top Plate Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Cast iron
- Wheel Colour
- Black
- Tread Width
- 45mm
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 240mm
- Load Capacity
- 800kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel · working temperature -20°C to +60°C
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs

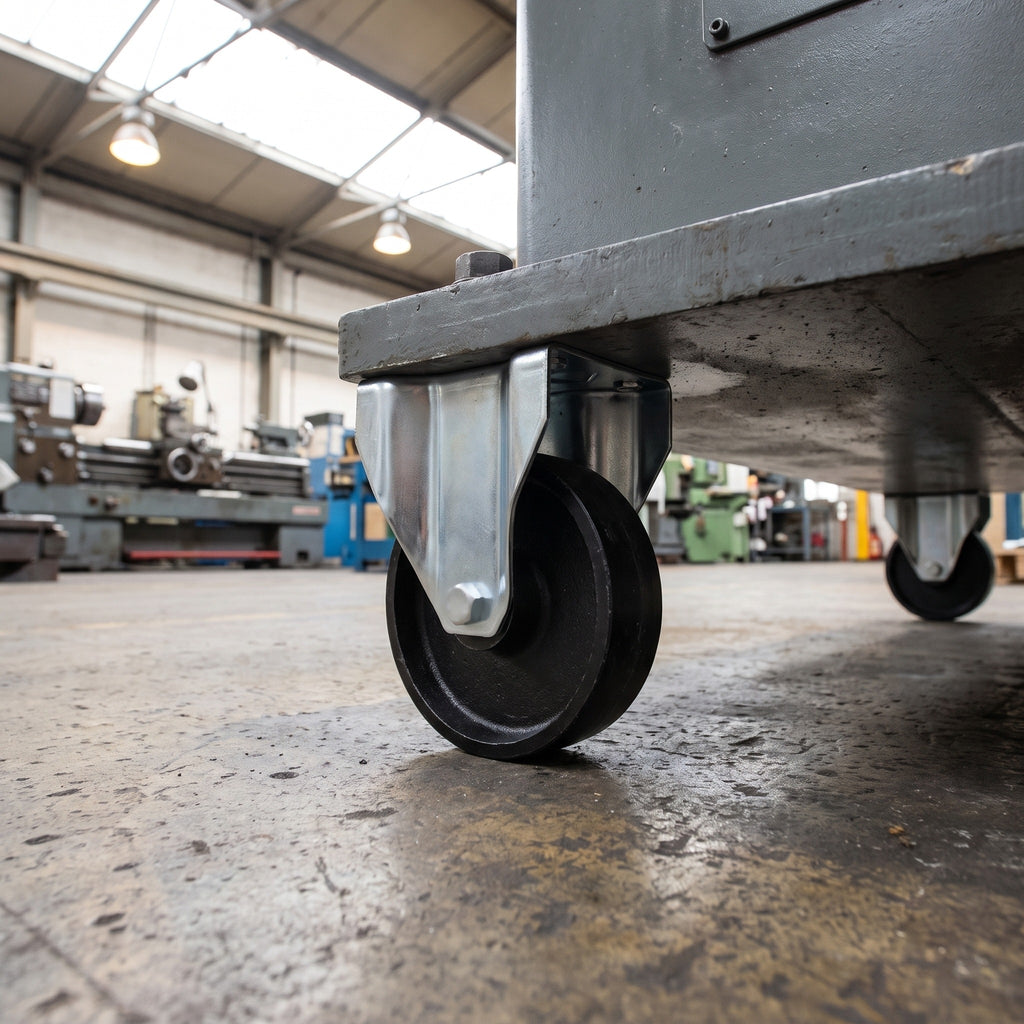

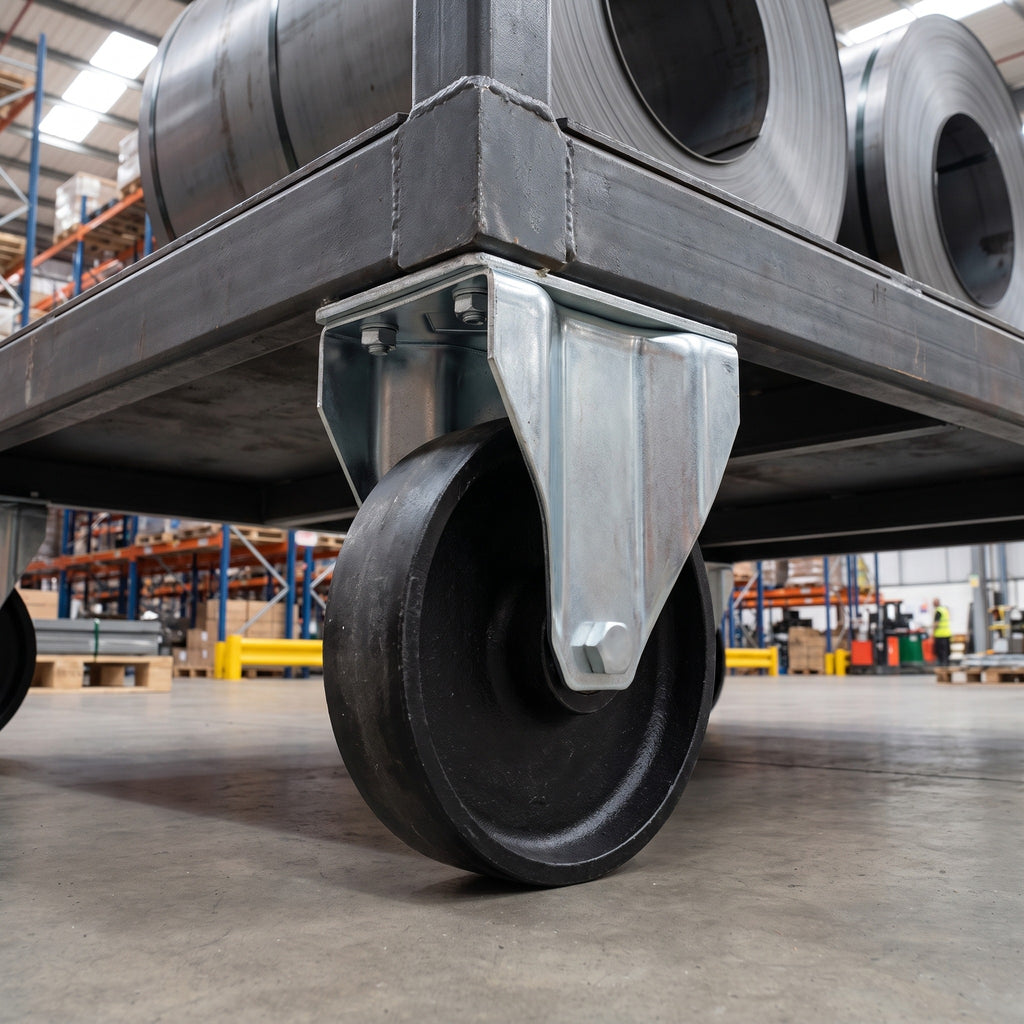

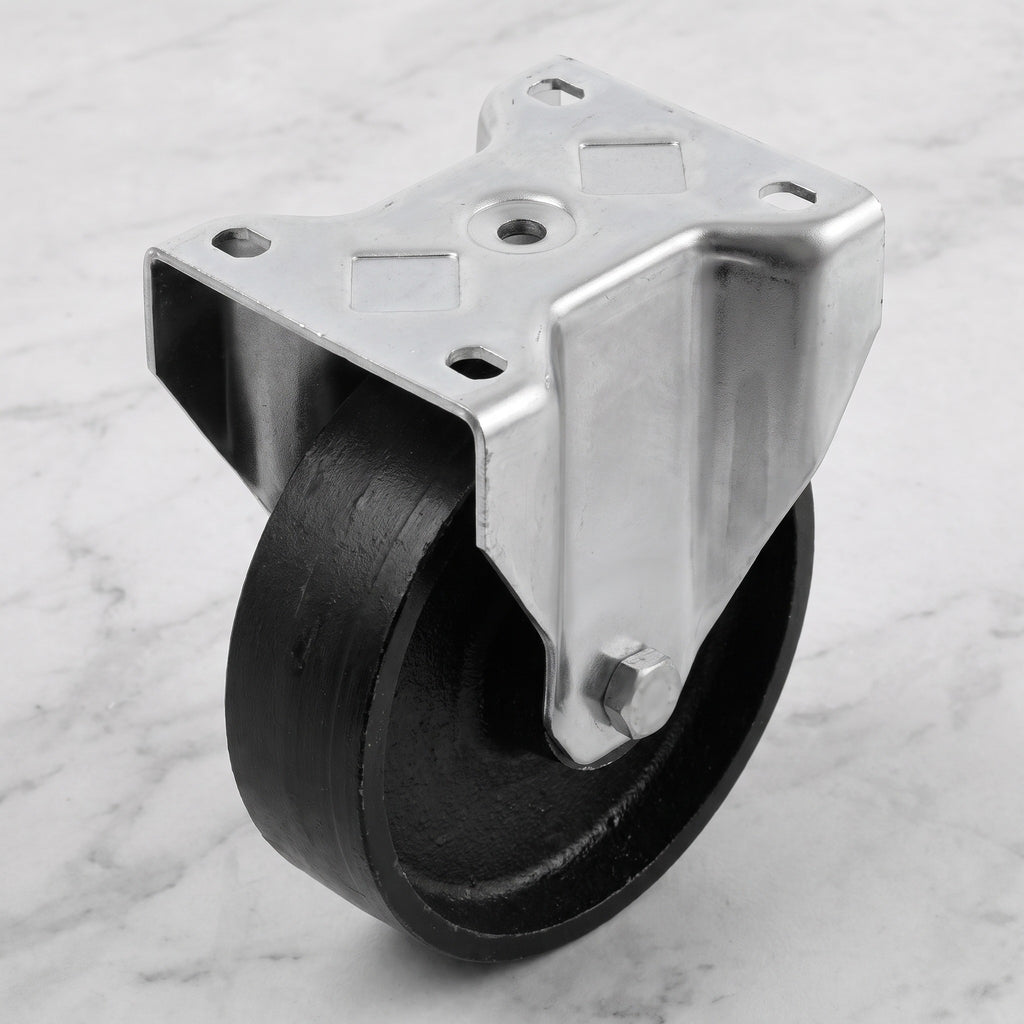

Heavy Duty Cast Iron Castors
This 200mm heavy duty fixed castor is built for industrial settings where high load capacity is essential, with a solid cast iron wheel on roller bearings that give smooth movement and reduce friction and wear over time. The fixed design keeps a consistent direction of travel, ideal for linear movement. Rated for 800kg per castor.
It fixes securely to flat surfaces with a 140 x 110mm top plate, stands 240mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ 800kg load capacity per castor for substantial weight bearing tasks.
- ✓ Cast iron wheel 200mm diameter with a 45mm tread for heavy industrial work.
- ✓ Roller bearing for smooth movement with reduced friction and wear.
- ✓ Fixed design keeps a consistent direction of travel for linear movement.
- ✓ 140 x 110mm top plate with four 10mm holes for a stable, secure attachment.
- ✓ Temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and castor height suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed cast iron castor suits:
- ✓ Warehouse trolleys: transporting heavy loads in industrial environments.
- ✓ Manufacturing equipment: machinery that needs stable, fixed direction movement.
- ✓ Heavy duty carts: substantial weight in logistics and distribution settings.
- ✓ Assembly lines: consistent linear travel alongside conveyor systems.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that rolls in a straight line only. Pair it with swivel castors on the same trolley for easy steering.
How much weight can this castor carry?
Each castor is rated for 800kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 200mm solid cast iron wheel with a 45mm tread, running on a roller bearing.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 240mm from the floor to the top of the plate.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
