- Load per castor75kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelPneumatic tyre on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Pneumatic tyre on polypropylene centre
- Wheel Colour
- Grey, non-marking
- Tread Width
- 50mm
- Bearing Type
- Roller bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 240mm
- Load Capacity
- 75kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Pneumatic tyre
- Rides over gravel, grass and rough ground
- Maximum cushioning for fragile loads
- Can puncture; check tyre pressure
- Lower load rating than a solid wheel of the same size
Details & FAQs

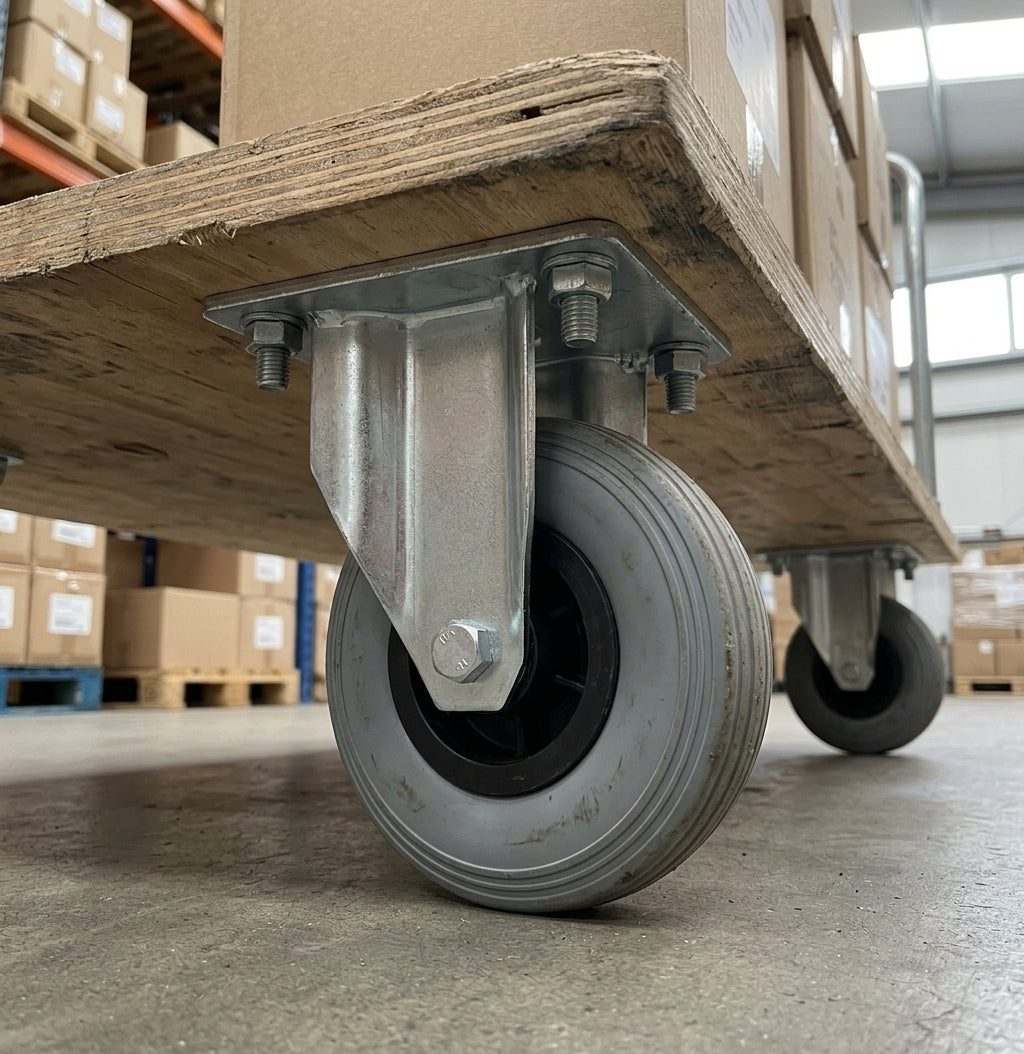

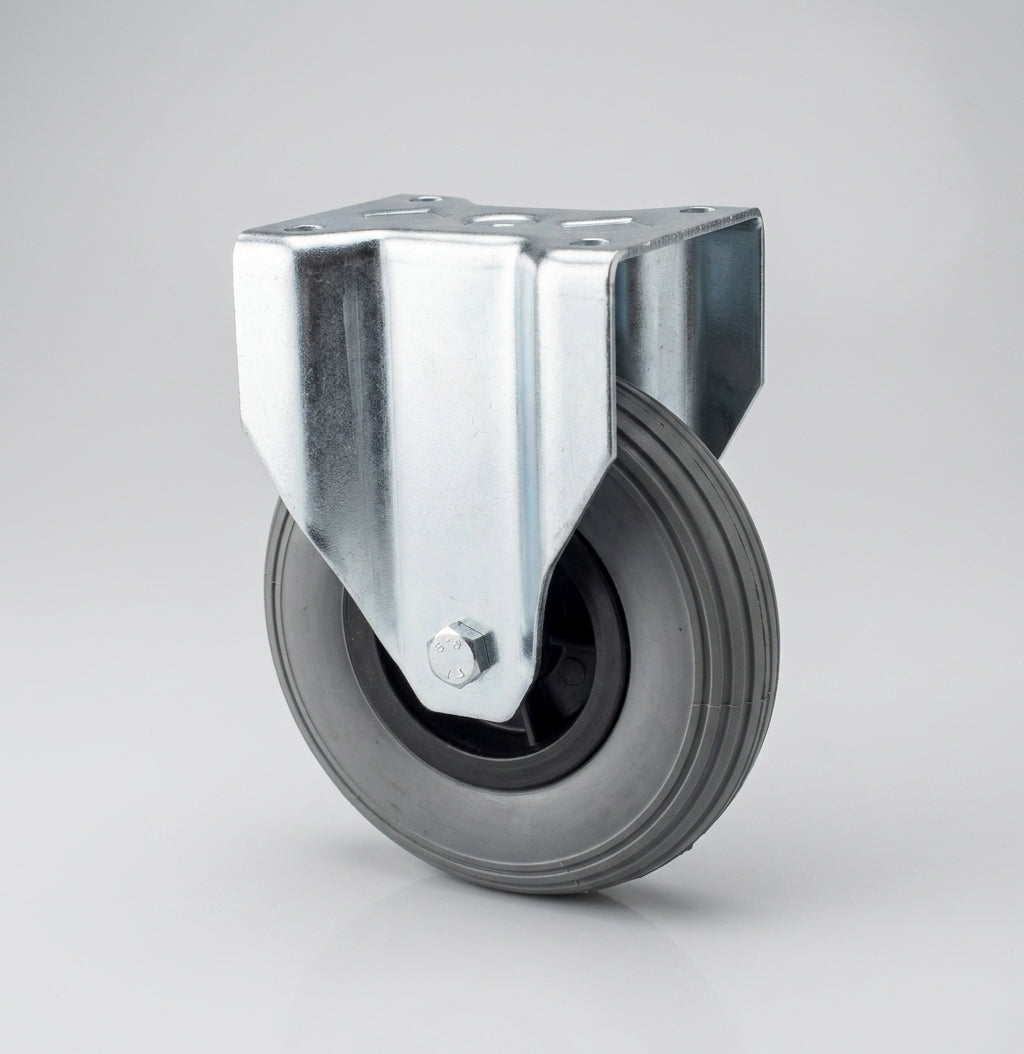

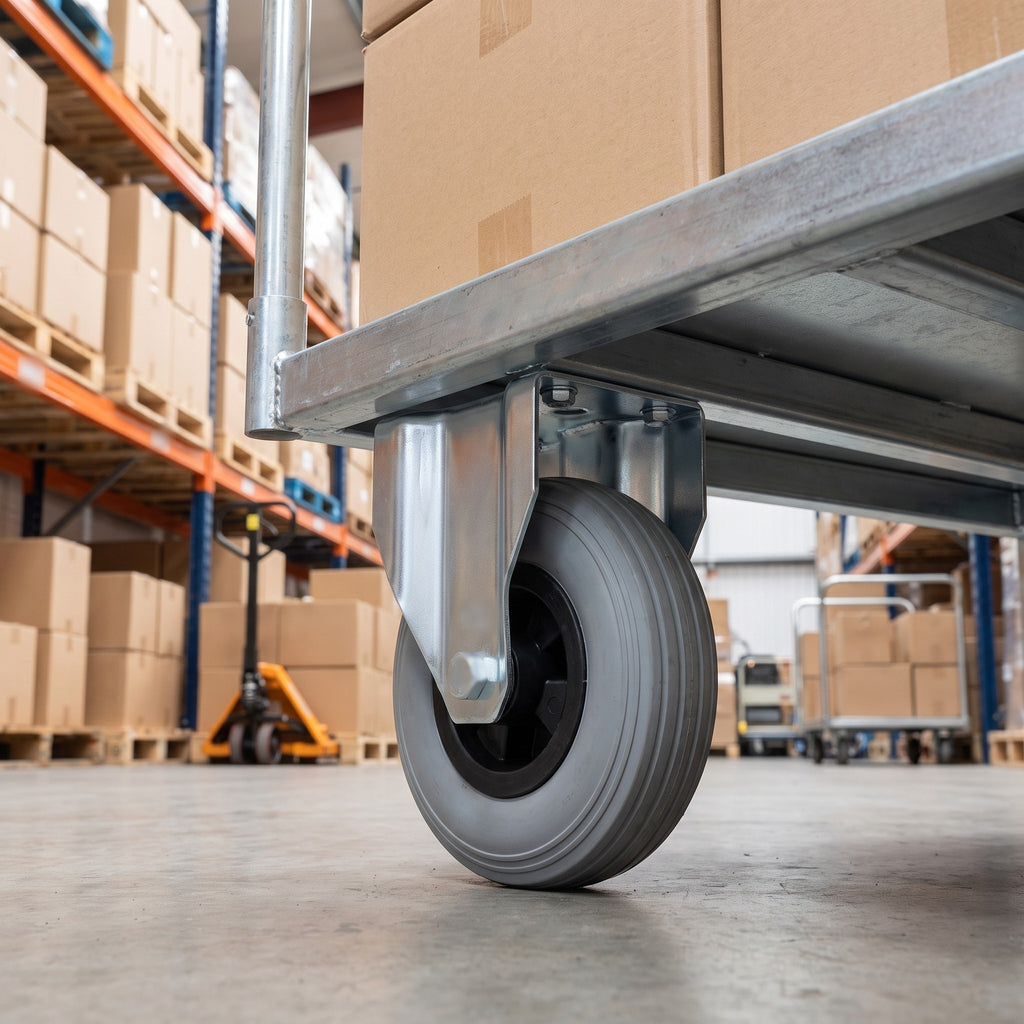

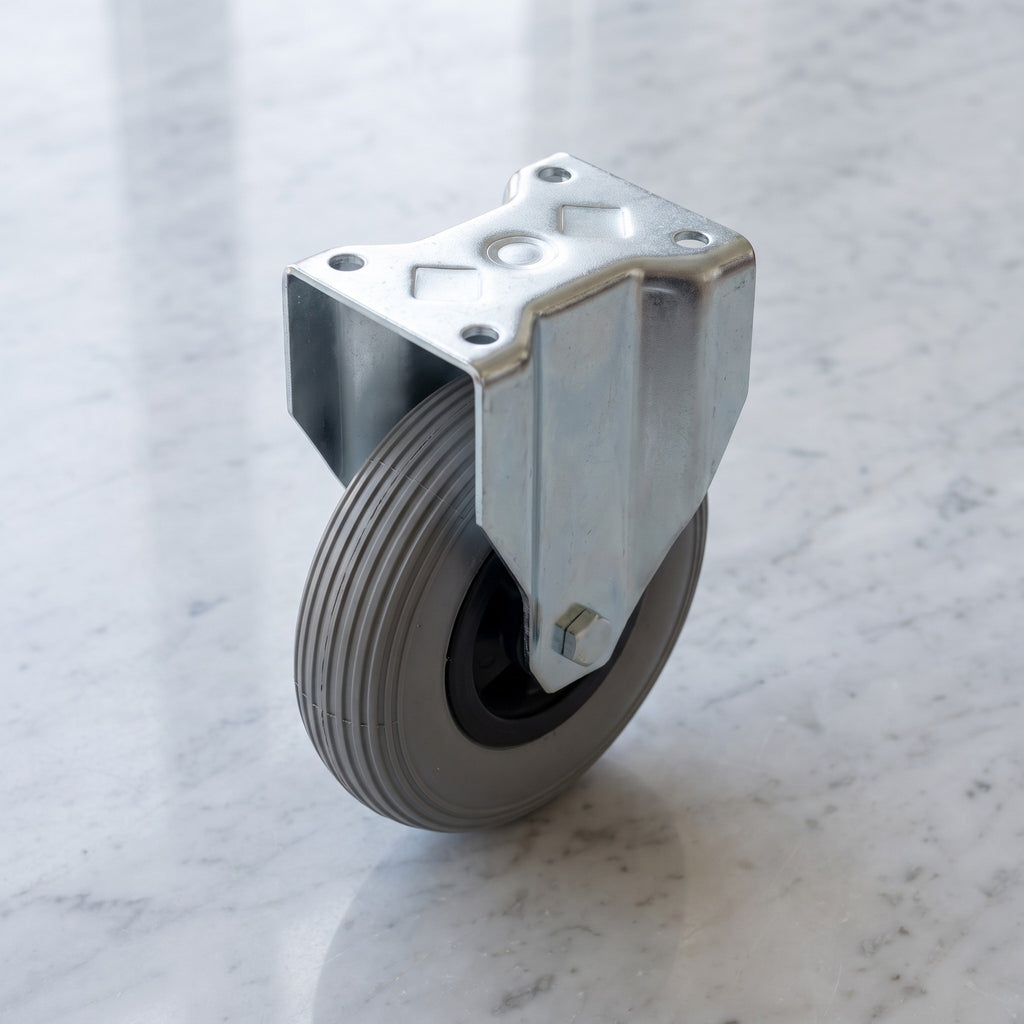

Pneumatic Fixed Castors
This 200mm fixed castor has a non-marking grey pneumatic wheel with an air-filled tyre on a polypropylene centre. The cushioned ride suits equipment that needs stable, straight-line movement, and the roller bearing keeps the wheel turning efficiently. It carries 75kg per castor.
It fixes with a 140 x 110mm top plate and stands 240mm tall. The wheel arrives deflated and must be inflated before use.
Why Choose This Castor
- ✓ Pneumatic tyre for a cushioned, quiet ride.
- ✓ Non-marking grey tread that protects floors.
- ✓ Roller bearing for efficient rotation.
- ✓ Fixed design for straight, stable travel.
- ✓ 75kg load capacity per castor.
- ✓ 200mm wheel with 50mm tread for rolling over uneven ground.
- ✓ 140 x 110mm top plate with four 10mm holes.
* Load capacity is per castor with the tyre correctly inflated. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This pneumatic fixed castor suits:
- ✓ Trolleys: stable movement for transporting goods.
- ✓ Carts: efficient handling in warehouses and workshops.
- ✓ Industrial equipment: machinery that needs directional stability.
- ✓ Mobility aids: devices that need smooth, non-marking wheels.
- ✓ Garden equipment: tools that need easy manoeuvrability.
Frequently Asked Questions
What is a pneumatic wheel?
It has an air-filled tyre on a polypropylene centre. The air cushions the load, reducing vibration and noise, and helps the castor roll over uneven floors.
Does the tyre need inflating?
Yes. The wheel arrives deflated and must be inflated before use.
Will the tyre mark my floor?
No. The grey tyre is non-marking.
How much weight can this castor carry?
Each castor is rated for 75kg.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
Does this castor swivel?
No. This is a fixed castor, so the wheel only rolls forwards and backwards. Use it with matching swivel castors for easy steering.
How tall is this castor?
The total castor height is 240mm.
