Our Clients
- Load per castor500 kg
- Wheel diameter200 mm
- Overall height240 mm
- WheelRubber on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 500 kg
- Tread Width
- 40 mm
- Temperature Range
- -20°C to +85°C
- Hardness of Tread
- 75 shore A
- Max Load Capacity of 4 Castors
- 1500 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 160 mm
- Total Castor Height
- 240 mm
- Wheel Colour
- Black
- Wheel Diameter
- 200 mm
- Wheel Material
- Rubber on Aluminium
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height240 mm
- Swivel radius160 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +85°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

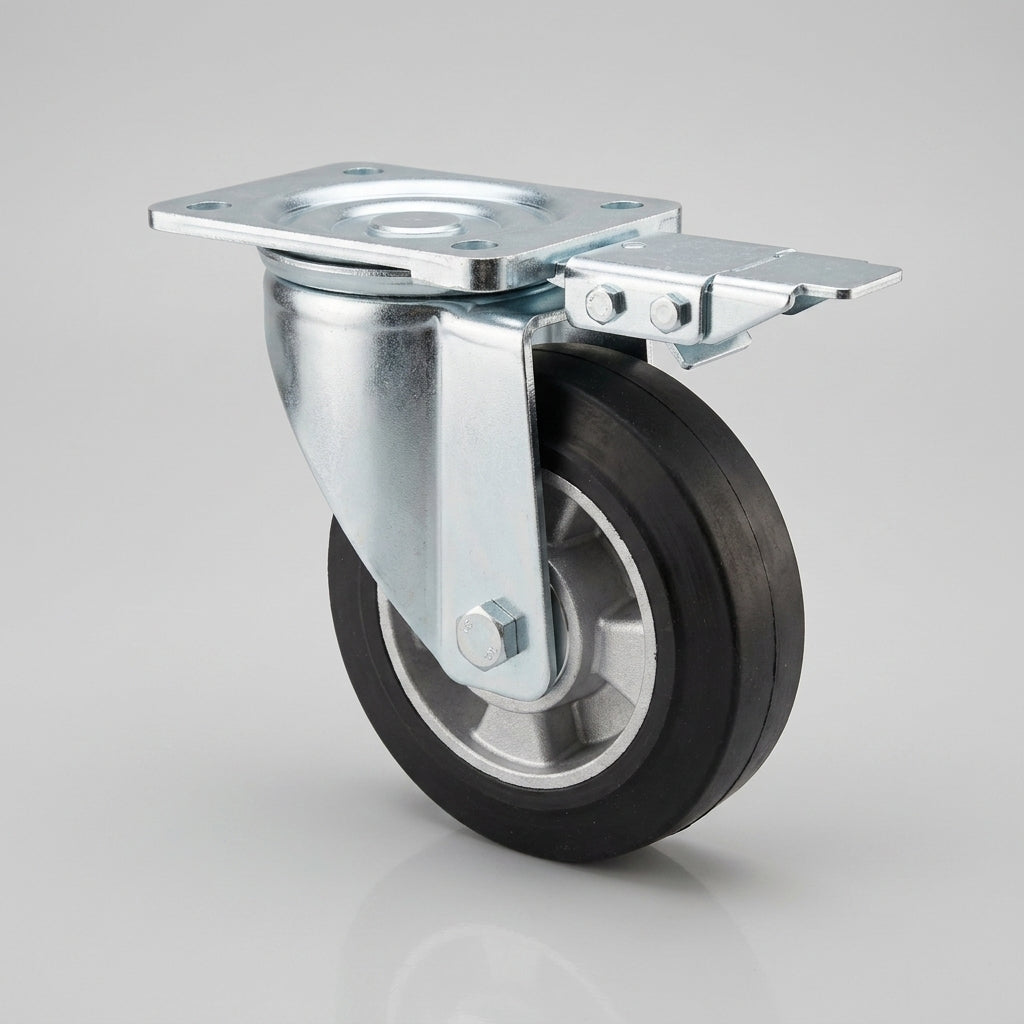

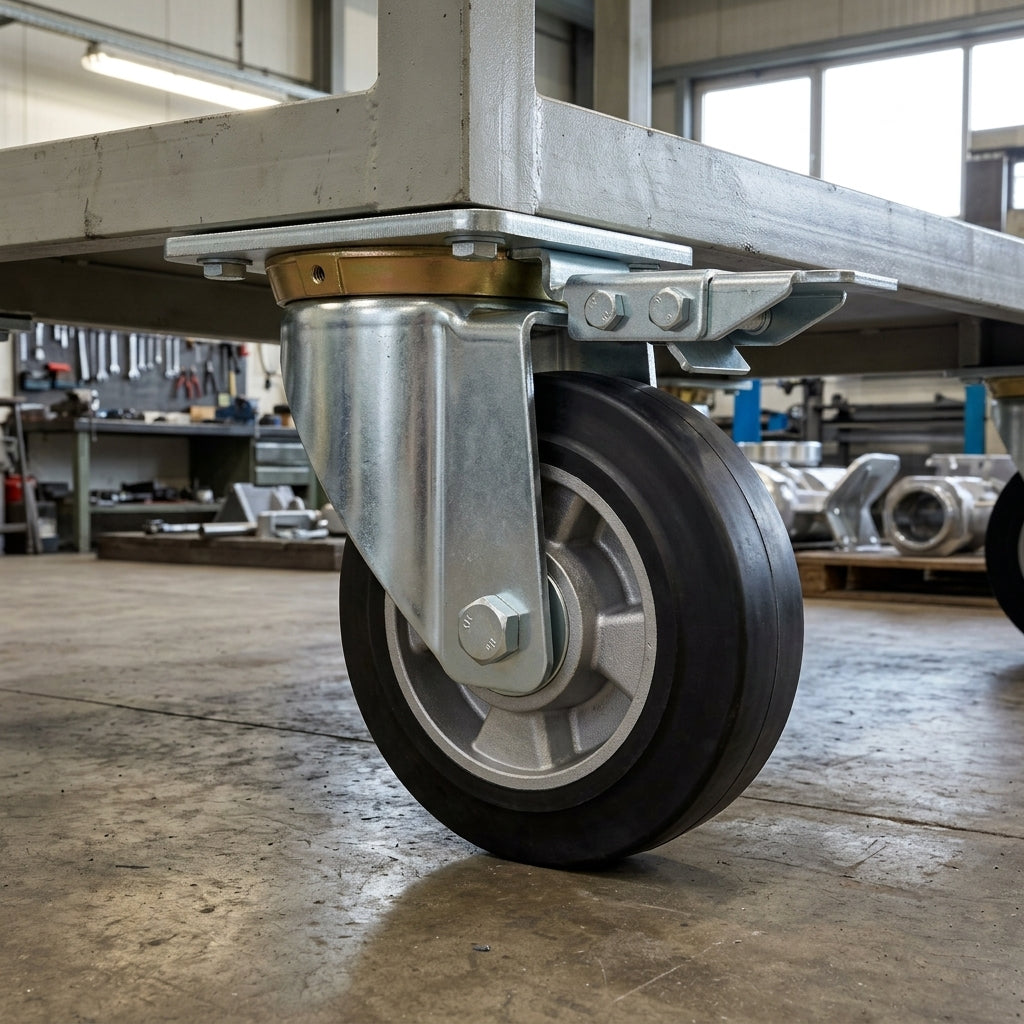

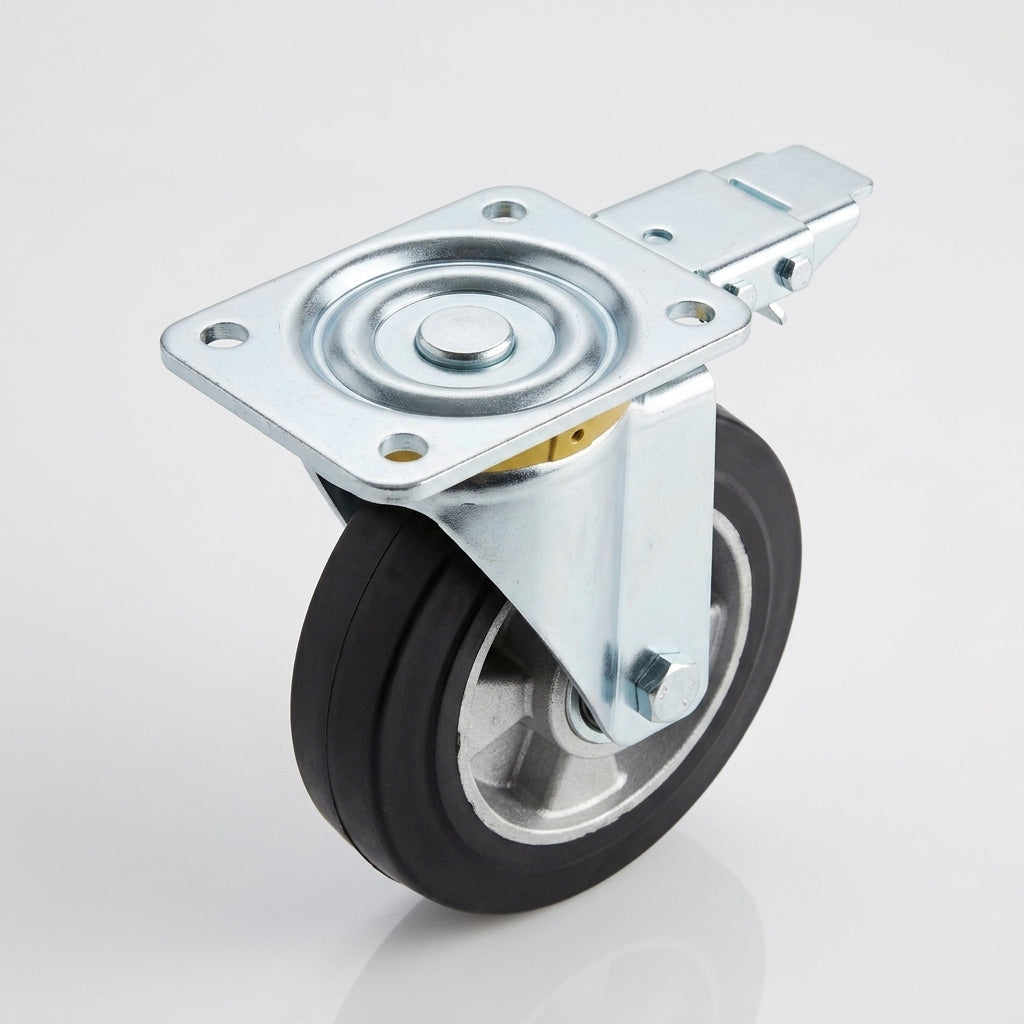

The 200mm Heavy Duty Directional Lock Castor with a robust rubber on aluminium wheel is designed for demanding applications that require reliable mobility and strength. This castor is perfect for moving heavy equipment and machinery in warehouses, manufacturing plants, and industrial facilities, ensuring smooth and controlled movement even in confined spaces.
Applications
This heavy-duty castor is perfect for:
- Industrial Facilities: Ideal for moving heavy equipment and machinery.
- Warehouses: Facilitates the transport of bulky goods and materials.
- Manufacturing Plants: Supports efficient workflow by enabling easy movement of components.
FAQs
The load capacity is 500 kg per castor, making it suitable for heavy-duty applications.
2. Can this castor be used outdoors?
Yes, it can operate in a temperature range of -20°C to +85°C, suitable for various environments.
3. How does the directional lock feature work?
The directional lock allows for enhanced control, enabling precise movement in confined spaces.
4. What materials are used in the construction of the wheel?
The wheel is made of rubber on an aluminium core, providing strength and shock absorption.
5. What is the swivel radius of this castor?
The swivel radius is 160 mm, allowing for easy maneuverability.
6. Is this castor suitable for heavy machinery?
Absolutely, its robust design and high load capacity make it perfect for heavy machinery transport.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
