- Load per castor800kg per castor
- Wheel diameter200mm
- Overall height240mm
- WheelCast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Braked Swivel Top Plate Castor
- Brake
- Locks the wheel and the swivel head independently
- Wheel Diameter
- 200mm
- Wheel Material
- Cast iron
- Wheel Colour
- Black
- Tread Width
- 45mm
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 160mm
- Total Castor Height
- 240mm
- Load Capacity
- 800kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel · working temperature -20°C to +60°C
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs

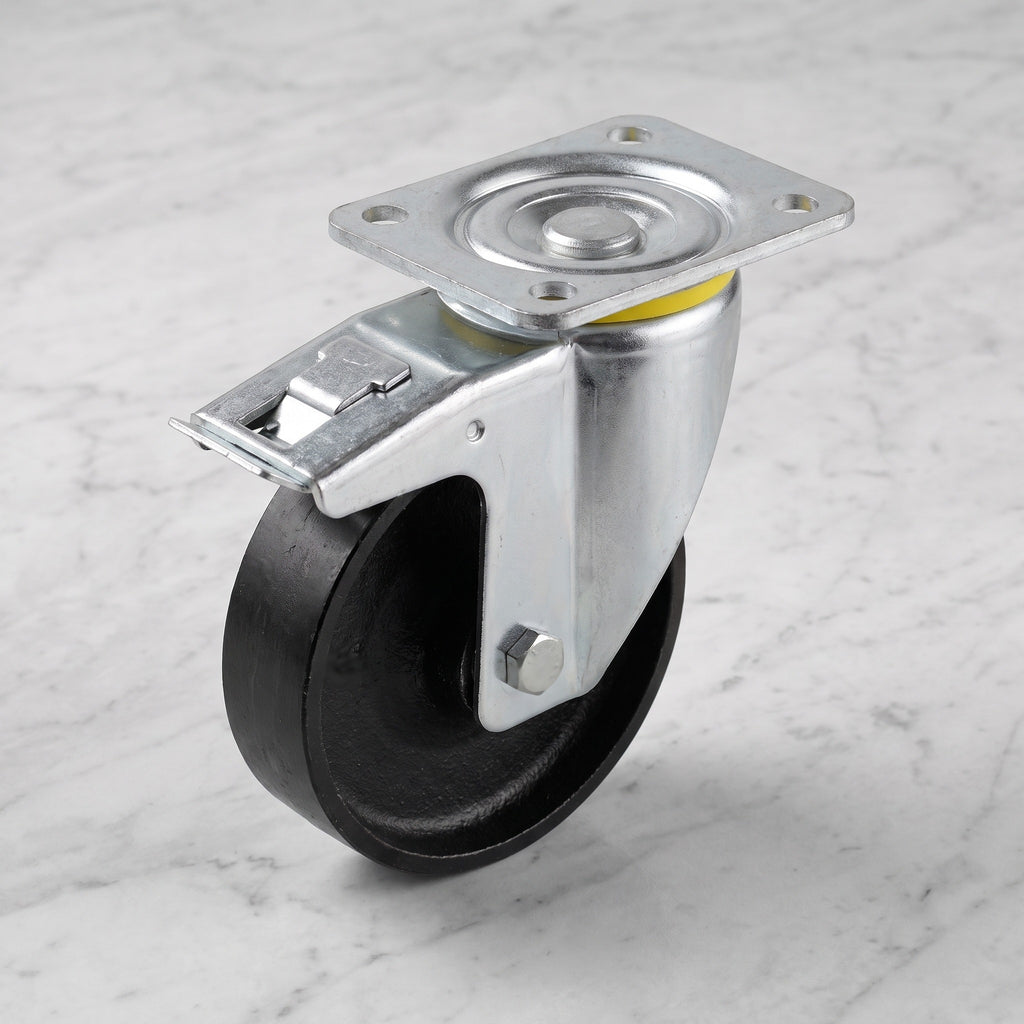

Heavy Duty Cast Iron Castors
This 200mm heavy duty braked swivel castor is built for industrial settings where substantial load capacity is required, with a solid cast iron wheel on a roller bearing for smooth rotation. The brake locks the wheel and the swivel head independently, giving stability when the equipment is stationary. Rated for 800kg per castor.
It fixes straightforwardly to flat surfaces with a 140 x 110mm top plate, has a 160mm swivel radius, stands 240mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ 800kg load capacity per castor for substantial loads.
- ✓ Cast iron wheel 200mm diameter with a 45mm tread for heavy industrial work.
- ✓ Roller bearing for smooth rotation.
- ✓ Brake locks the wheel and the swivel head independently for stability when stationary.
- ✓ Swivel head for easy manoeuvring, with a 160mm swivel radius.
- ✓ 140 x 110mm top plate with four 10mm holes, straightforward to attach to flat surfaces.
- ✓ Temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty braked cast iron castor suits:

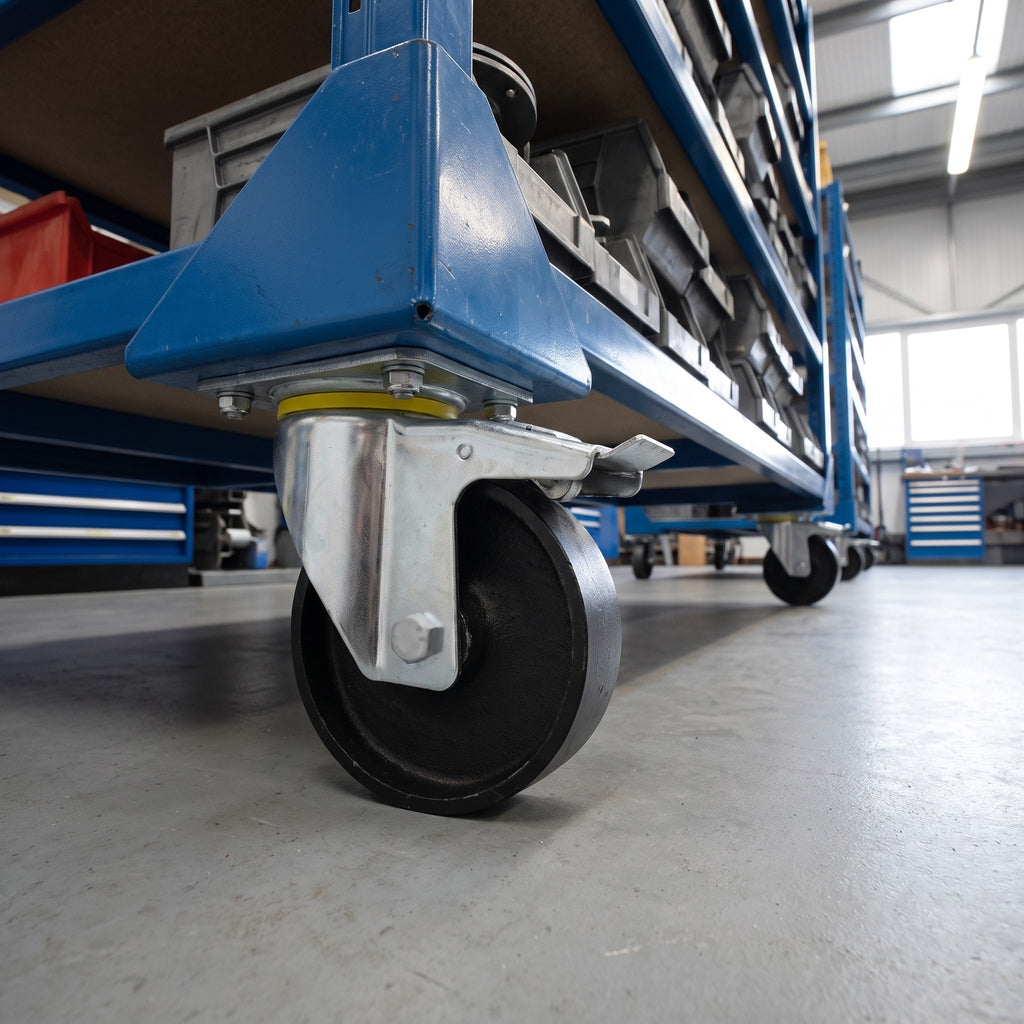

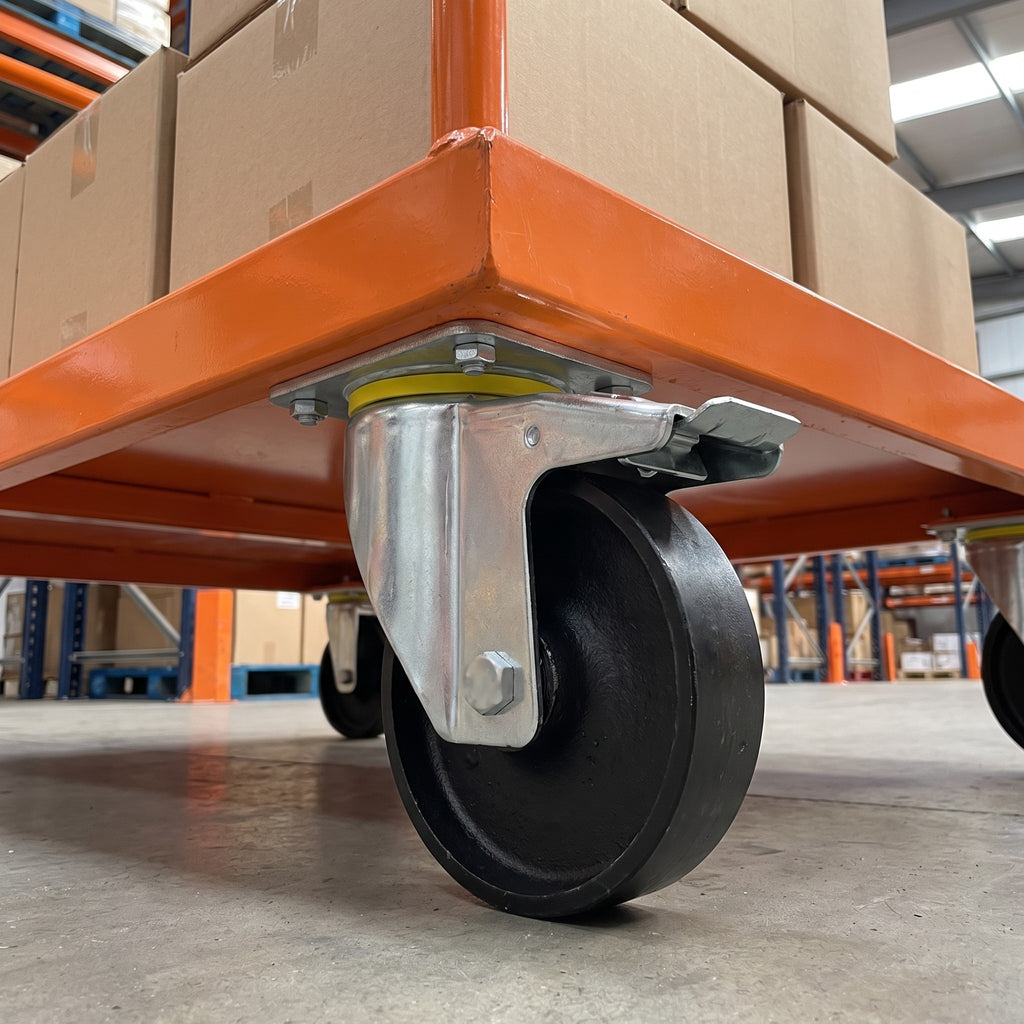

- ✓ Warehouse trolleys: transporting heavy loads efficiently.
- ✓ Industrial carts: carts that need high load capacity and stability.
- ✓ Manufacturing equipment: machinery that needs mobility and secure positioning.
- ✓ Heavy duty racks: mobility for storage units in industrial settings.
Frequently Asked Questions
What does the brake lock?
The brake locks the wheel and the swivel head independently, so the castor stays stable when your equipment is stationary. Release the pedal to move again.
How much weight can this castor carry?
Each castor is rated for 800kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 200mm solid cast iron wheel with a 45mm tread, running on a roller bearing.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. The swivel head makes it easy to manoeuvre and change direction, and the brake holds it still when needed. The swivel radius is 160mm and the total castor height is 240mm.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
