- Load per castor400 kg per castor
- Wheel diameter200 mm
- Overall height240 mm
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor type
- Swivel with directional lock, top plate fixing
- Lock
- Foot-operated directional lock (locks swivel head only; wheel still rolls)
- Brake
- None
- Wheel
- Blue non-marking elastic rubber tyre on black polypropylene centre
- Wheel diameter
- 200 mm
- Tread width
- 46 mm
- Tread hardness
- Shore A70
- Bearing type
- Roller bearing
- Top plate size
- 140 x 110 mm
- Plate hole centres
- 105 x 75/80 mm
- Plate hole diameter
- 10 mm (suits M10 bolts)
- Load capacity
- 400 kg per castor
- Load capacity, set of 4
- 1,200 kg (rated on three castors carrying the load)
- Total castor height
- 240 mm
- Swivel radius
- 157 mm
- Temperature range
- -20°C to +80°C
- Housing
- Zinc-plated pressed steel
- Weight
- 3.1 kg
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

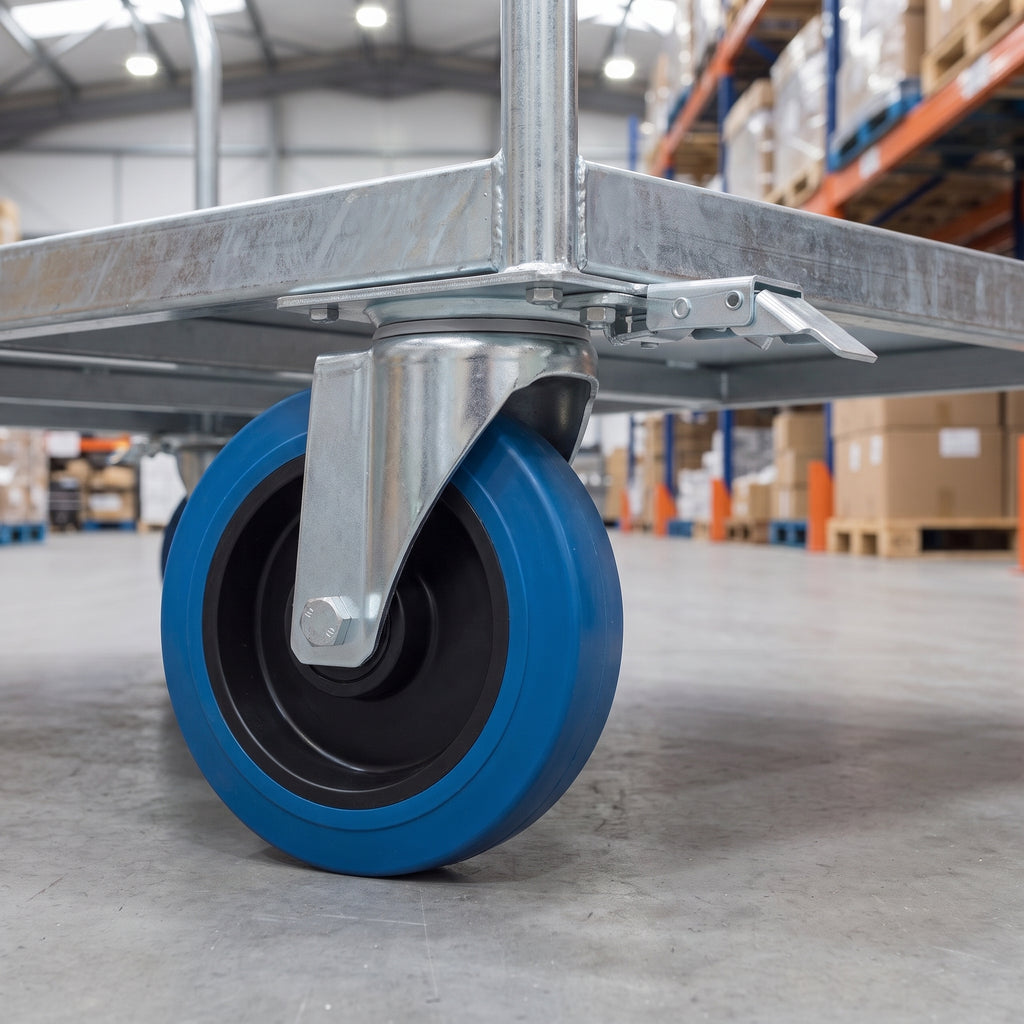

For trolleys that need to steer freely in tight spaces but also run dead straight down long corridors and aisles, this 200mm directional lock castor gives you both in one. It is a swivel top plate castor with a foot-operated catch that locks the swivel head in the straight-ahead position, turning it into a fixed castor until you release it. It has a blue non-marking elastic rubber tyre on a black polypropylene centre running on a roller bearing, a zinc-plated pressed steel housing and a 140 x 110mm top plate. Each castor is rated to 400kg and stands 240mm tall.
Why it works
Directional lock – swivel or straight at the flick of a foot
With the catch released the castor swivels a full 360 degrees like any swivel castor, so the trolley turns easily in lifts, doorways and bays. Engage the catch and the swivel head is held straight, so the trolley tracks true over long runs without the front wandering. The directional lock holds the swivel head only; the wheel still rolls. It is not a parking brake – choose a total lock castor where the trolley must be held still.
Blue non-marking elastic rubber tyre
The blue elastic rubber tyre is designed not to leave marks on floors, so it is widely used on hospital, laboratory, retail and food-area floors. The tread (hardness A70) absorbs bumps, grips well and runs quietly, and it copes with temperatures from -20°C to +80°C.
Roller bearing for easier rolling
The large wheel runs on a roller bearing rather than a plain bore, so a loaded trolley takes less effort to start and keep moving, and the wheel wears more evenly over time.
- Directional lock holds the swivel head straight ahead
- Blue non-marking elastic rubber tyre, quiet running
- Roller bearing, 400kg per castor, 1,200kg for a set of four
- 140 x 110mm top plate, M10 fixings
- 240mm total height, 157mm swivel radius
Where it's used
Long hospital and care home trolleys, linen and meal-delivery trolleys, laboratory and pharmaceutical carts, catering and food-service trolleys, and warehouse and distribution trolleys that travel long straight routes and then manoeuvre in tight spaces. Suited to vinyl, tiles, sealed concrete, resin and other hard indoor floors where marking is not acceptable.
Choosing the right option
A common layout is one or two directional lock castors at the front, fixed or swivel castors at the back, and total lock castors wherever the trolley must be parked. Fitting one directional lock castor on the front corner you steer from is often enough; engage it for straight runs and release it for cornering. This castor matches the 200mm blue non-marking swivel, total lock and fixed castors in height, so any mix sits level. Check you have a flat area at least 140 x 110mm under each corner and allow 157mm of swivel clearance. For the load, add up the weight of the item and everything on it and divide by three rather than four; if the answer is over 400kg, choose a heavy-duty castor.
Installation, use and care
Hold the plate flat against the base and fix it through all four holes with M10 bolts and nuts. Fixings are not included. Fit the castor so the lock catch faces outwards where your foot can reach it. To lock, push the trolley a short way so the wheel trails straight, then engage the catch. Check the fixings after the first few weeks, keep the wheel and catch clear of threads and debris, and wipe clean with a damp cloth. Keep the rubber tyre away from oils and solvents.
Frequently asked questions
Is a directional lock the same as a brake?
No. It stops the castor swivelling but the wheel still rolls, so the trolley runs straight. To stop a trolley rolling, use total lock or braked castors.
How many do I need on a trolley?
Usually one or two at the front. One on the front corner you steer from is enough for most trolleys.
Will the blue wheel mark my floor?
No. The blue elastic rubber tyre is a non-marking compound, chosen for hospital, laboratory and retail floors.
What size bolts do I need?
The plate holes are 10mm, so use M10 bolts and nuts. Fixings are not supplied.
Ordering and delivery
Sold individually, so order the number of castors you need. Delivery charges are shown at checkout.
