- Load per castor500kg per castor *
- Wheel diameter175mm
- Overall height236mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 175mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Blue
- Tread Width
- 40mm
- Tread Hardness
- 87 Shore A
- Bearing Type
- Ball Bearing
- Load Capacity
- 500kg per castor *
- Top Plate Size
- 135 x 110mm
- Bolt Hole Centres
- 105 x 80mm
- Bolt Hole Diameter
- 12mm
- Swivel Radius
- 148mm
- Total Castor Height
- 236mm
- Temperature Range
- -30°C to +80°C
Will it fit?
- Bolt hole105 x 80mm
- Overall height236mm
- Swivel radius148mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -30°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Stainless Steel Castor

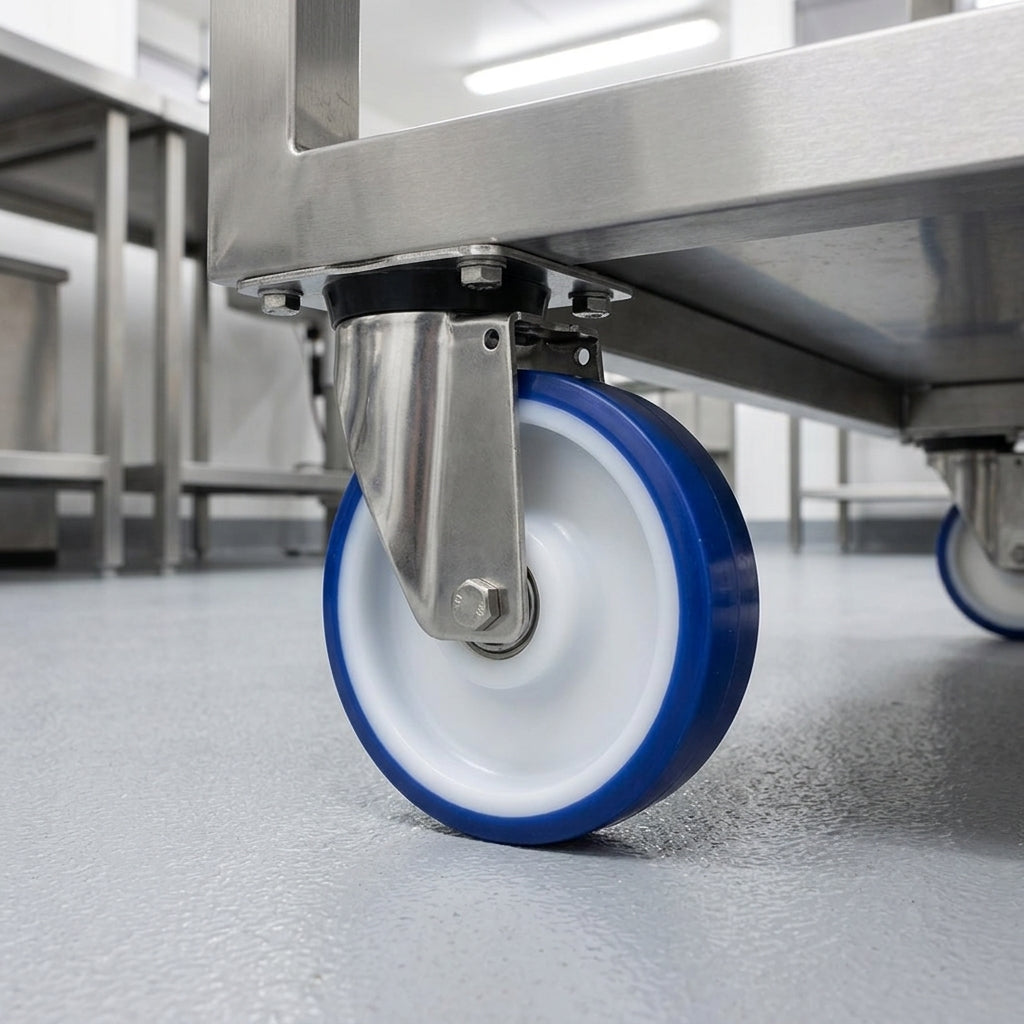

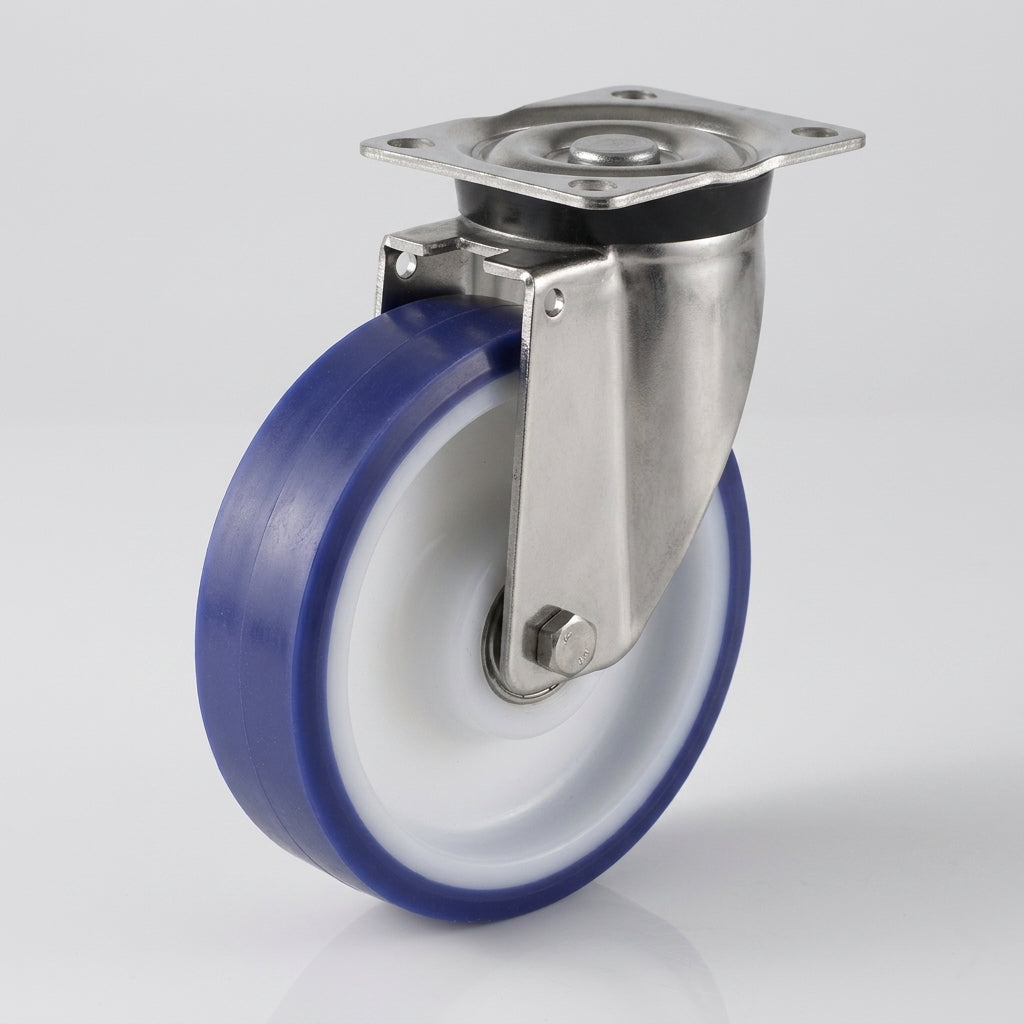

This 175mm stainless steel swivel castor runs on a soft blue polyurethane wheel with a nylon centre, carrying up to 500kg per castor. It is built for smooth, reliable movement of heavy equipment in industrial and commercial settings.
The swivel head makes it easy to manoeuvre in tight spaces, the ball bearing gives smooth rolling, and the wheel offers durability and resistance to wear. The 135 x 110mm top plate has four 12mm holes for fitting, and the castor works from -30°C to +80°C.
Why Choose This Castor
- ✓ Stainless steel housing built for substantial loads
- ✓ Soft blue polyurethane tread on a nylon centre
- ✓ 500kg load capacity per castor
- ✓ Ball bearing for smooth, efficient rolling
- ✓ Swivel head for easy manoeuvring in tight spaces
- ✓ -30°C to +80°C temperature range
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Industrial equipment, moving machinery and tools within factories
- ✓ Commercial trolleys in retail and warehouse settings
- ✓ Heavy-duty carts carrying large loads in logistics and distribution centres
Frequently Asked Questions
What is the wheel made of?
A soft blue polyurethane tread on a nylon centre, with an 87 Shore A hardness and a ball bearing.
How much weight can it carry?
Each castor is rated at 500kg. A set of four is best used for loads up to around 1500kg, allowing for uneven floors.
How is it fitted?
The 135 x 110mm top plate has four 12mm holes on 105 x 80mm centres. Bolt it flat to the underside of your trolley or equipment.
What temperatures can it be used in?
The castor is suited to temperatures from -30°C to +80°C.
How tall is the castor?
The total castor height is 236mm and it needs 148mm of clearance to swivel freely.
