- Load per castor135kg per castor
- Wheel diameter160mm
- Overall height200mm
- WheelElectrically conductive rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 160mm
- Wheel Type
- Anti-static rubber tyre
- Wheel Material
- Electrically conductive rubber
- Wheel Colour
- Black
- Tread Width
- 24mm
- Hardness of Tread
- A80
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 137 x 105mm
- Hole Centres
- 105 x 80mm
- Hole Diameter
- 10mm
- Swivel Radius
- 140mm
- Total Castor Height
- 200mm
- Load Capacity
- 135kg per castor
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

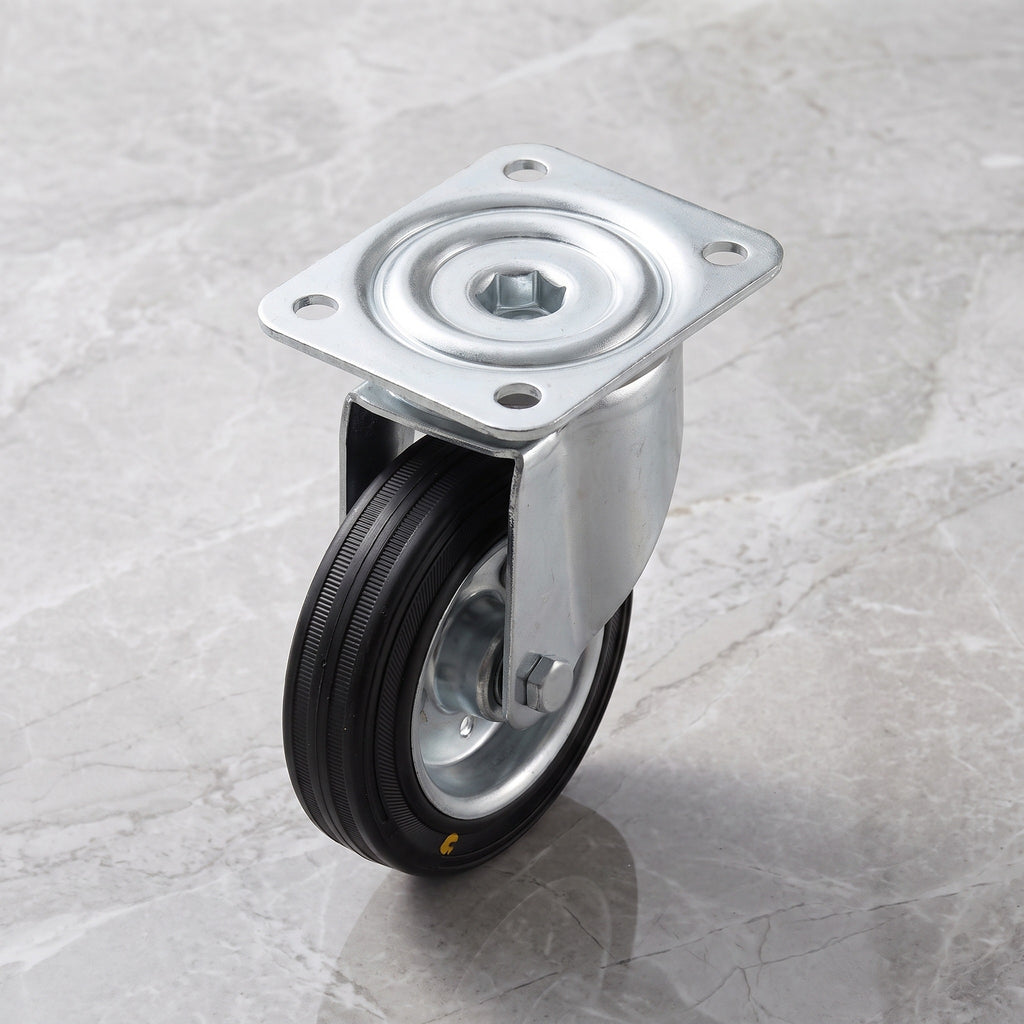

Anti-Static Swivel Castors

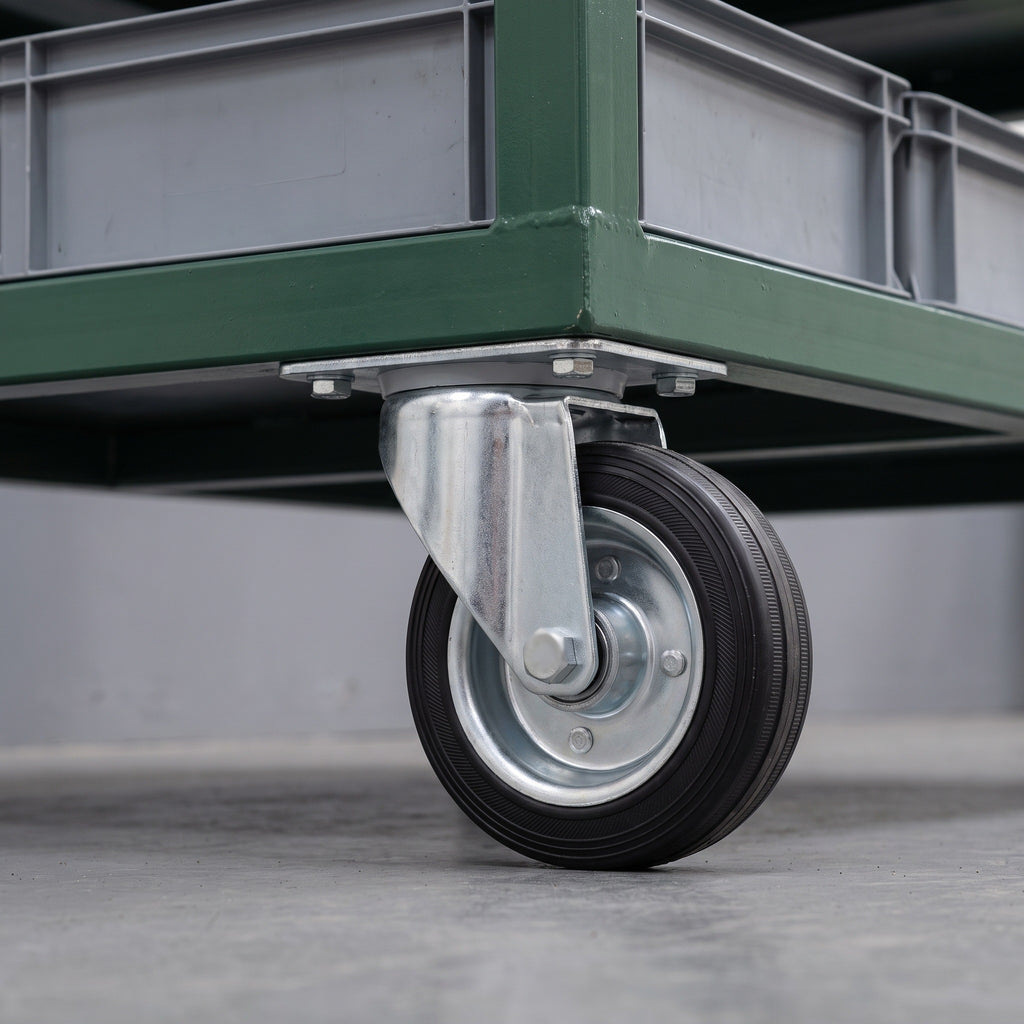

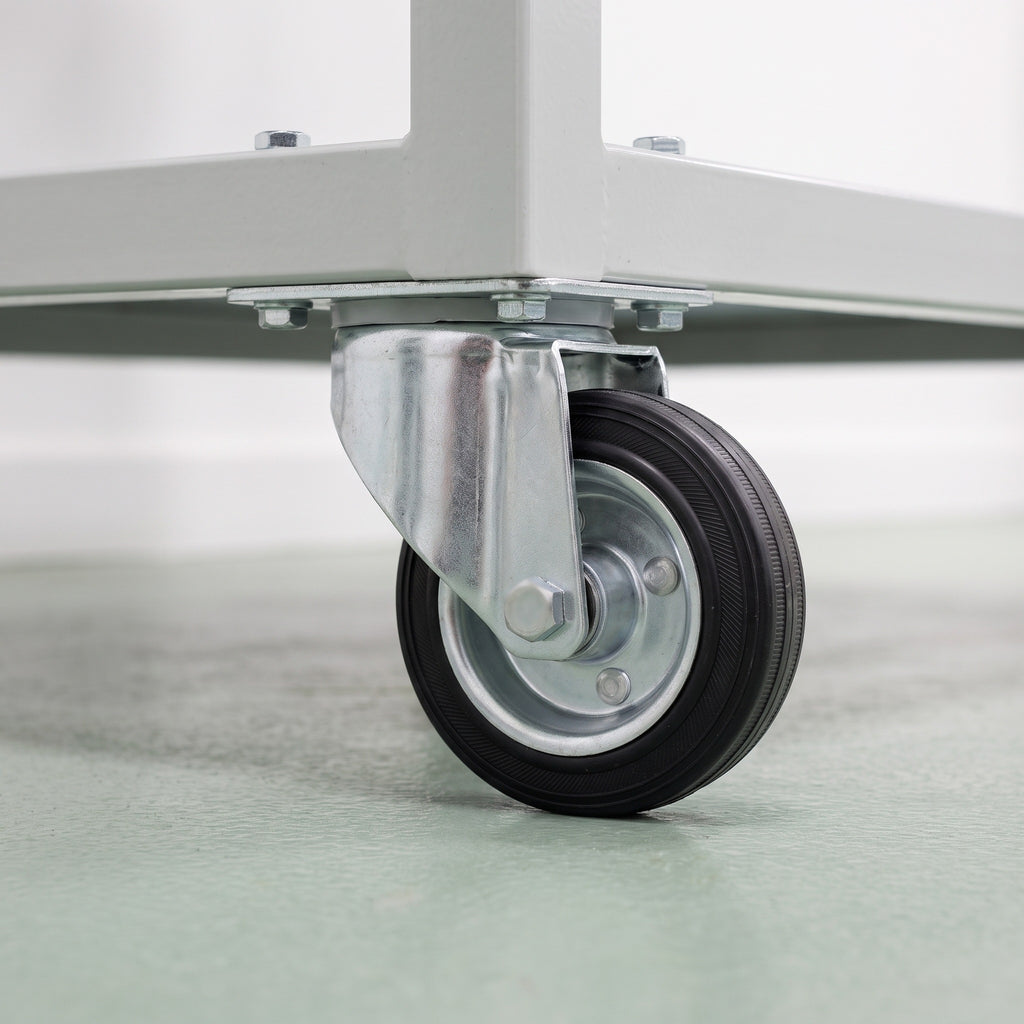

Fitted with a 160mm wheel made from electrically conductive rubber, this swivel castor helps carry static charge away from your trolley to the floor. It has a load capacity of 135kg per castor and turns freely for easy steering. It suits electronic assembly lines, laboratory equipment and manufacturing facilities.
The A80 rubber tread gives a good balance of grip and durability, and the roller bearing ensures smooth rotation. This top plate castor fixes with a 137 x 105mm plate, has a 140mm swivel radius, stands 200mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ Anti-static rubber wheel that helps dissipate static charge.
- ✓ Swivel head for easy turning in tight spaces.
- ✓ Black rubber tread with A80 hardness for grip and durability.
- ✓ 135kg load capacity per castor.
- ✓ Roller bearing for smooth rolling.
- ✓ 160mm wheel with 24mm tread for steady movement.
- ✓ 137 x 105mm top plate with four 10mm holes.
* Load capacity is per castor on a smooth, level floor. For static control to work, the floor should also be conductive. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This anti-static swivel castor suits areas where static needs to be controlled:
- ✓ Electronic assembly lines: used to prevent static build-up in sensitive areas.
- ✓ Laboratory equipment: fitted to trolleys and carts where static control is essential.
- ✓ Manufacturing facilities: used in areas that need anti-static properties for safety.
Frequently Asked Questions
What does anti-static mean?
The wheel is made from electrically conductive rubber, so static charge can pass through it to the floor instead of building up on your trolley or equipment.
Does this castor have a brake?
No. This is a plain swivel castor without a brake. For parking, pair it with matching braked castors.
How much weight can this castor carry?
Each castor is rated for 135kg.
How is the castor fitted?
It has a 137 x 105mm top plate with four 10mm holes on 105 x 80mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 140mm and the total castor height is 200mm.
What temperatures can this castor handle?
The castor is suitable for use from -20°C to +60°C.
