- Load per castor350kg per castor *
- Wheel diameter160mm
- Overall height196mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 160mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon
- Tread Width
- 40mm
- Tread Hardness
- D60
- Bearing Type
- Roller
- Load Capacity
- 350kg per castor *
- Top Plate Size
- 140 x 110mm
- Bolt Hole Centres
- 105 x 80/75mm
- Bolt Hole Diameter
- 10mm
- Swivel Radius
- 140mm
- Total Castor Height
- 196mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole105 x 80/75mm
- Overall height196mm
- Swivel radius140mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

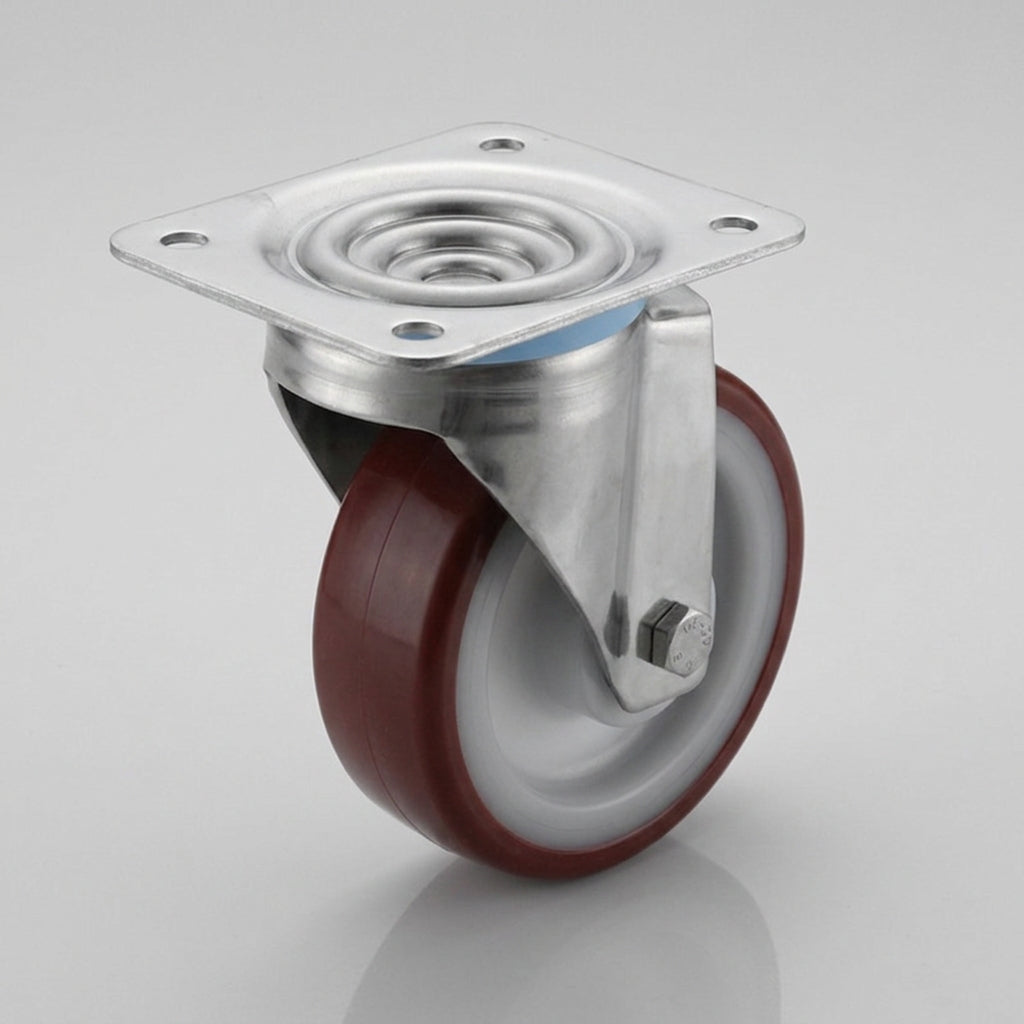

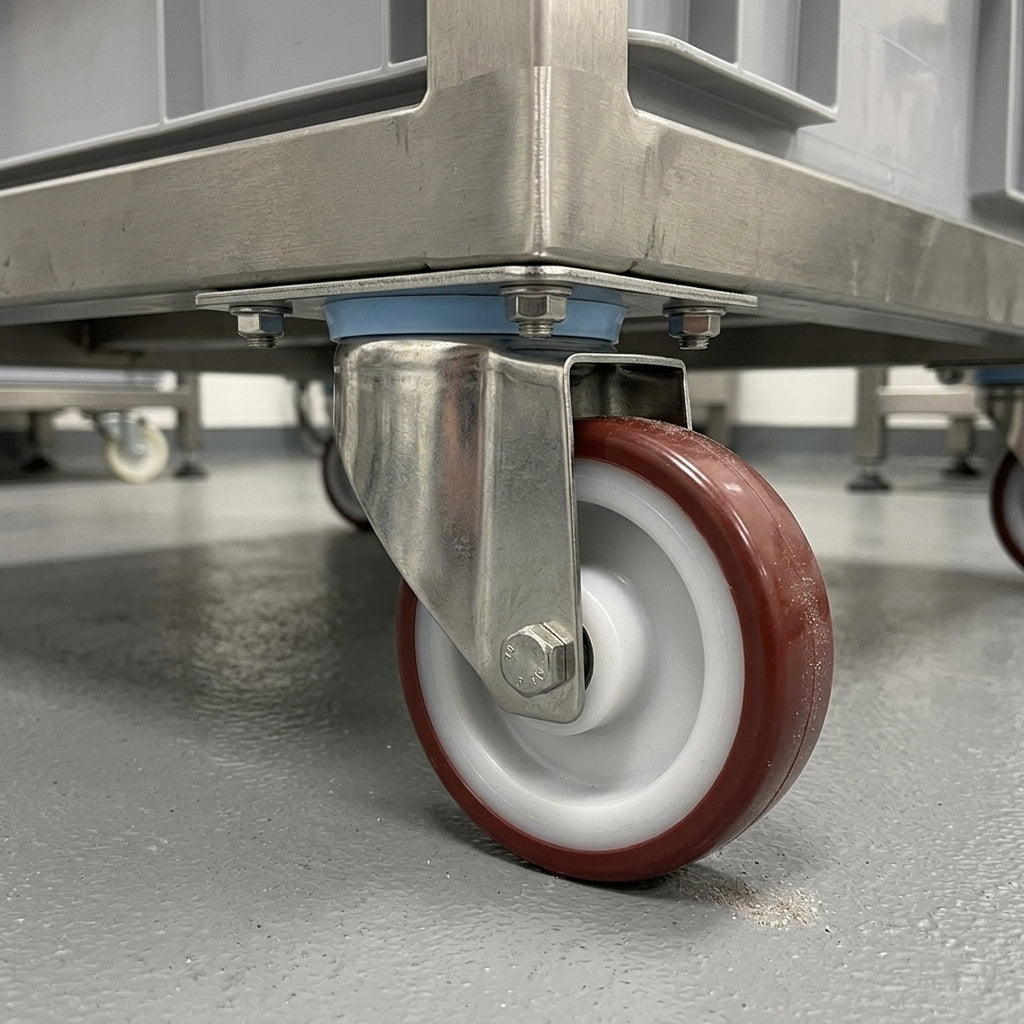

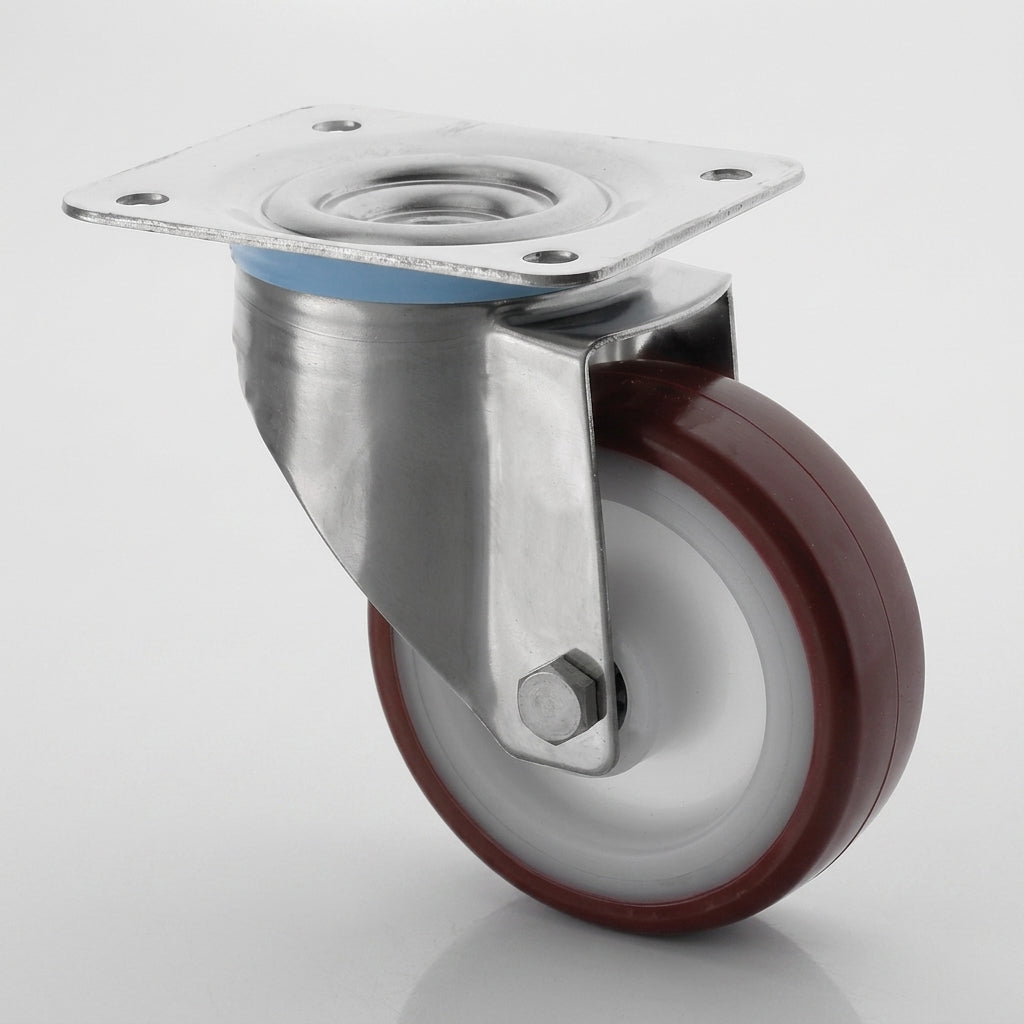

Stainless Steel Polyurethane Wheel Castor
This 160mm stainless steel swivel castor runs on a heavy-duty maroon polyurethane wheel with a nylon centre, carrying up to 350kg per castor. It is made for food manufacturing equipment, trolleys and processing machinery.
The roller bearing gives smooth rotation, the D60 tread balances load-bearing with surface interaction, and the 140 x 110mm top plate with four 10mm holes bolts securely to flat surfaces. It works from -40°C to +80°C.
Why Choose This Castor
- ✓ Stainless steel housing for food manufacturing areas
- ✓ Heavy-duty maroon polyurethane tread on a nylon centre
- ✓ 350kg load capacity per castor
- ✓ Roller bearing for smooth rotation
- ✓ Wide -40°C to +80°C temperature range
- ✓ 140 x 110mm top plate with four 10mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment where hygiene and material compatibility are essential
- ✓ Trolleys and carts that need smooth movement and easy steering
- ✓ Processing machinery that needs mobility within its temperature range
Frequently Asked Questions
What is the wheel made of?
A maroon polyurethane tread on a nylon centre, with a D60 tread hardness and a roller bearing.
How much weight can it carry?
Each castor is rated at 350kg. A set of four is best used for loads up to around 1050kg, allowing for uneven floors.
How is it fitted?
The 140 x 110mm top plate has four 10mm holes on 105 x 80/75mm centres. Bolt it flat to the underside of your trolley or equipment.
What temperatures can it be used in?
The castor is suited to temperatures from -40°C to +80°C.
How tall is the castor?
The total castor height is 196mm and it needs 140mm of clearance to swivel freely.
