- Load per castor350kg per castor
- Wheel diameter160mm
- Overall height200mm
- WheelElectrically Conductive Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 160mm
- Wheel Material
- Electrically Conductive Polyurethane
- Wheel Colour
- Grey
- Tread Width
- 40mm
- Tread Hardness
- 95 Shore A
- Bearing Type
- Ball Bearing
- Load Capacity
- 350kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 140 x 110mm
- Plate Hole Centres
- 105 x 80/75mm
- Plate Hole Diameter
- 10mm
- Swivel Radius
- 135mm
- Total Castor Height
- 200mm
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

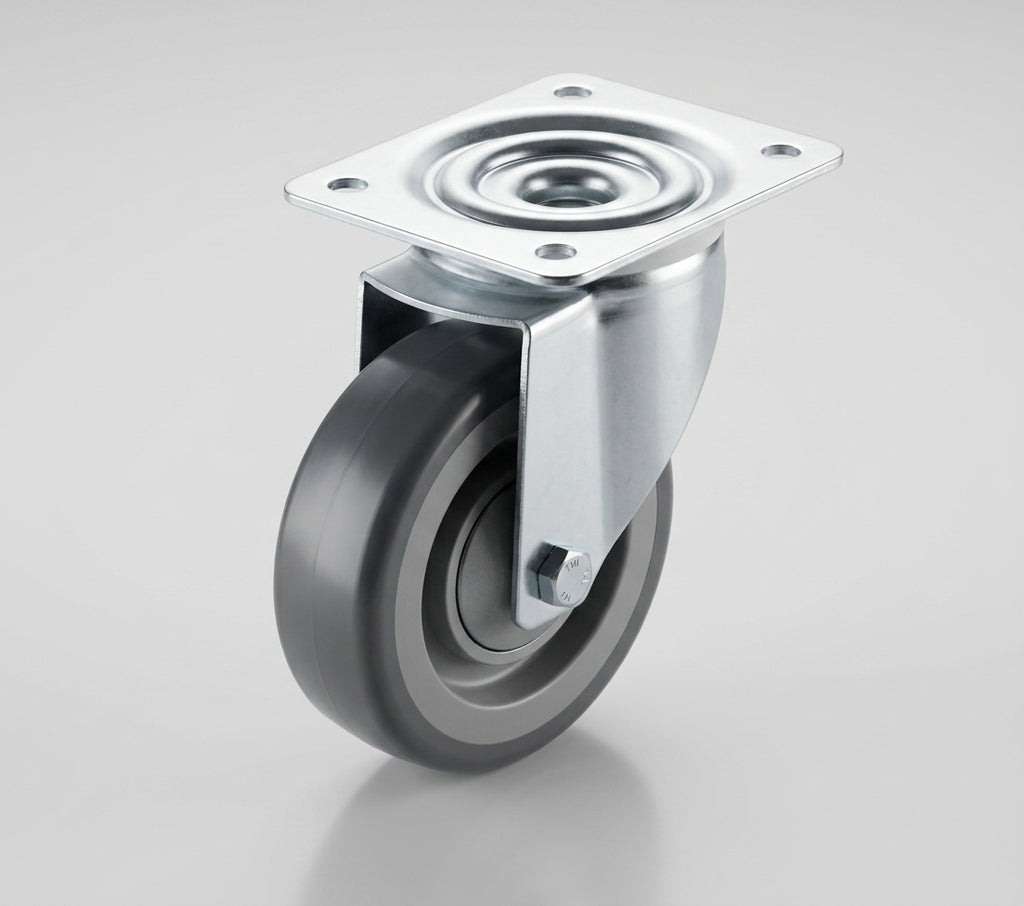

Stainless Steel Anti-Static Castor
This 160mm stainless steel swivel castor runs on a grey electrically conductive polyurethane wheel that carries static charge safely down to the floor, with a load capacity of up to 350kg per castor. It is made for electronics manufacturing, laboratory carts, medical equipment and heavy industrial trolleys where static build-up needs to be controlled.
The stainless steel housing stands up to regular cleaning, and the 140 x 110mm top plate bolts securely to the underside of your equipment. The hard 95 Shore A polyurethane tread rolls easily and wears well, while the ball bearing keeps the large 160mm wheel turning smoothly under heavy loads.
Why Choose This Castor
- ✓ Stainless steel housing for hygienic and clean areas
- ✓ 350kg load capacity per castor
- ✓ 160mm grey polyurethane wheel with a 40mm tread and ball bearing
- ✓ Electrically conductive wheel to help control static discharge
- ✓ 140 x 110mm top plate with four 10mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Electronics manufacturing: areas where static discharge is a concern.
- ✓ Laboratory equipment: trolleys and carts that need to prevent static build-up.
- ✓ Medical equipment: settings that need controlled static levels.
- ✓ Industrial trolleys: moving heavy loads safely and efficiently.
Frequently Asked Questions
What does electrically conductive mean?
The wheel lets static charge pass through it to the floor, which helps stop static building up on the equipment it is fitted to.
How much weight can it carry?
Each castor is rated at 350kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm centres, bolted to the underside of your equipment.
What temperatures is it suitable for?
The castor is rated for use from -40°C to +80°C, which suits laboratories, clean rooms and normal indoor areas.
Does it have a brake?
No, this is a plain swivel castor. Choose a braked version if you need to lock your equipment in place.
How tall is the castor?
The total castor height is 200mm and it needs 135mm of clearance to swivel freely.
