- Load per castor135kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Grey tyre, black centre
- Tread Width
- 25mm
- Hardness of Tread
- 80 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 135mm
- Total Castor Height
- 195mm
- Load Capacity
- 135kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius135mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

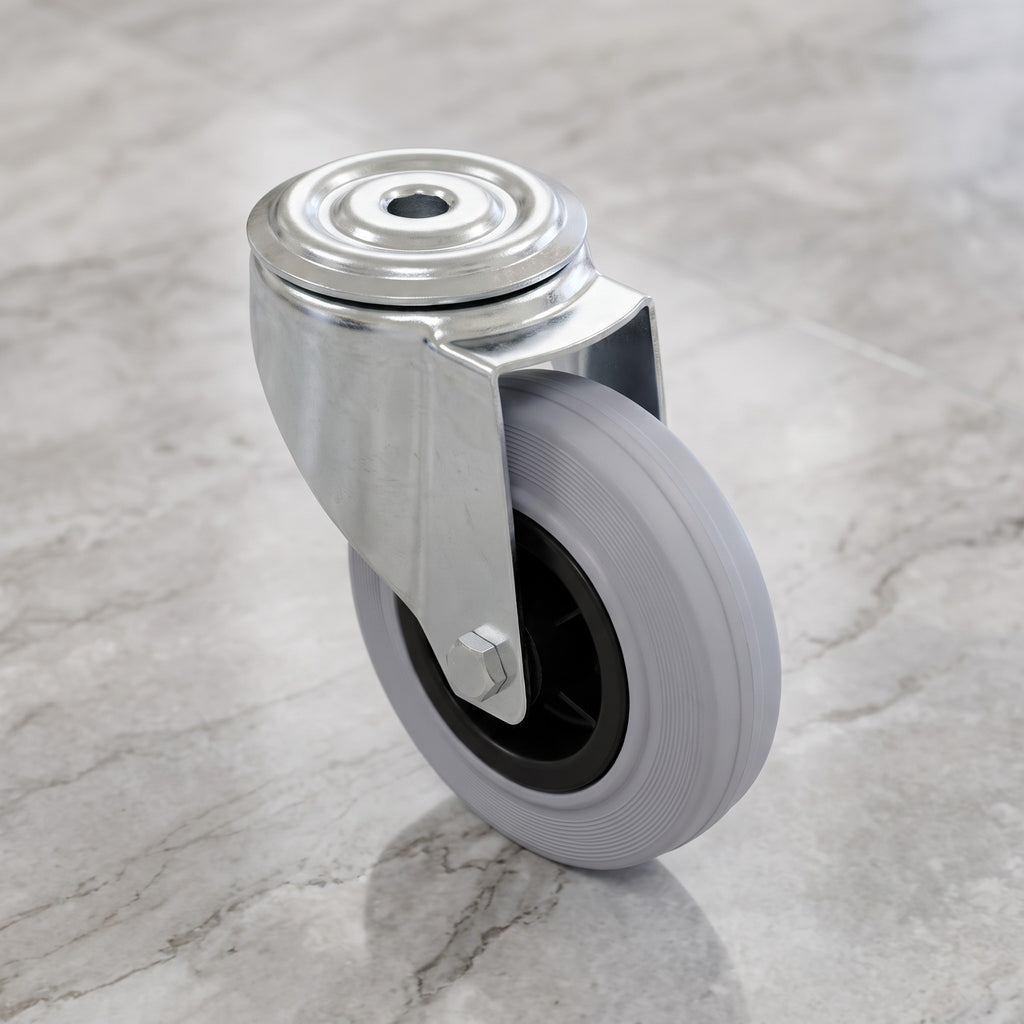

Grey Rubber Bolt Hole Castors

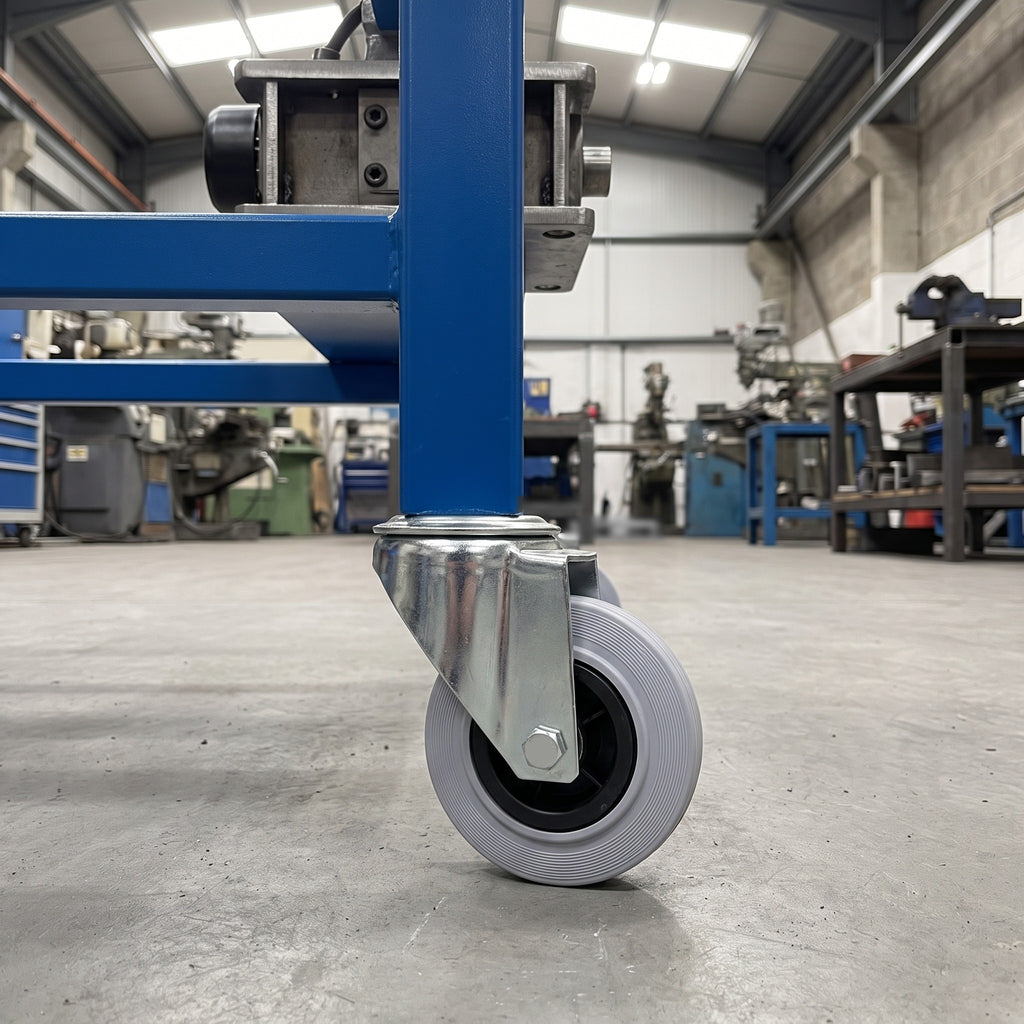

This 160mm swivel castor has a grey rubber tyre on a polypropylene centre, made for industrial equipment that needs smooth 360-degree movement and frequent changes of direction. The roller bearing reduces friction for smooth wheel rotation, and the A80 rubber tread balances grip and durability. It works from -20°C to +60°C and carries 135kg per castor.
It fixes through a single 12mm bolt hole, has a 135mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Grey rubber tread on a polypropylene centre, 80 Shore A.
- ✓ Roller bearing reduces friction for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 135kg load capacity per castor.
- ✓ Wide temperature range from -20°C to +60°C.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This grey rubber bolt hole castor suits:

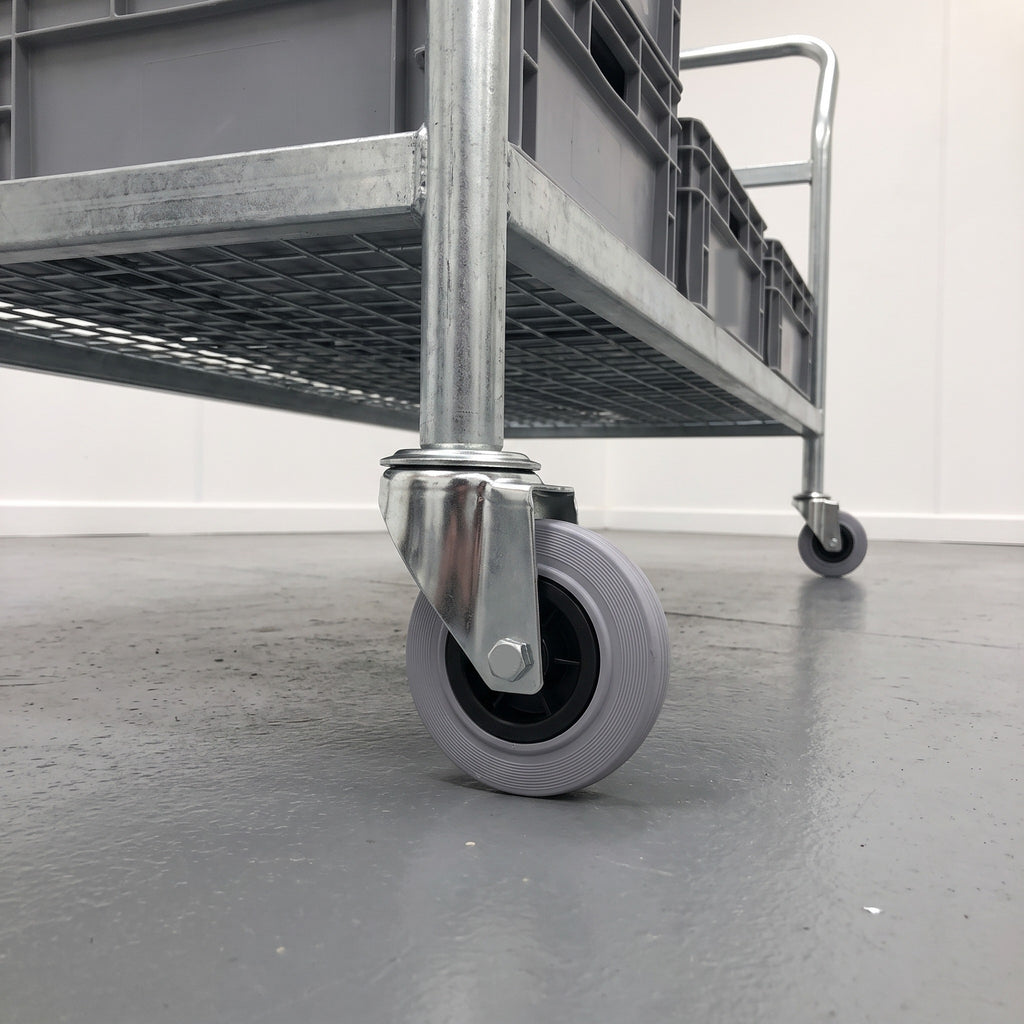

- ✓ Material handling equipment: trolleys and carts for easy movement and positioning.
- ✓ Industrial machinery: machines that need mobility within a workspace.
- ✓ Warehouse logistics: moving heavy loads efficiently in warehouses.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, made for free 360-degree movement and easy changes of direction.
What floors does the wheel suit?
The grey rubber tread is 80 Shore A, giving good grip and durability on a range of industrial floors. It works from -20°C to +60°C.
How much weight can this castor carry?
Each castor is rated for 135kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 135mm and the total castor height is 195mm.
Where can I use this castor?
It suits material handling trolleys and carts, industrial machinery that needs to move within a workspace, and warehouse equipment for moving heavy loads.
