- Load per castor135kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Black tyre, red centre
- Tread Width
- 25mm
- Hardness of Tread
- 85 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -10°C to +50°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 167mm
- Total Castor Height
- 195mm
- Load Capacity
- 135kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius167mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -10°C to +50°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Braked Black Rubber Bolt Hole Castors

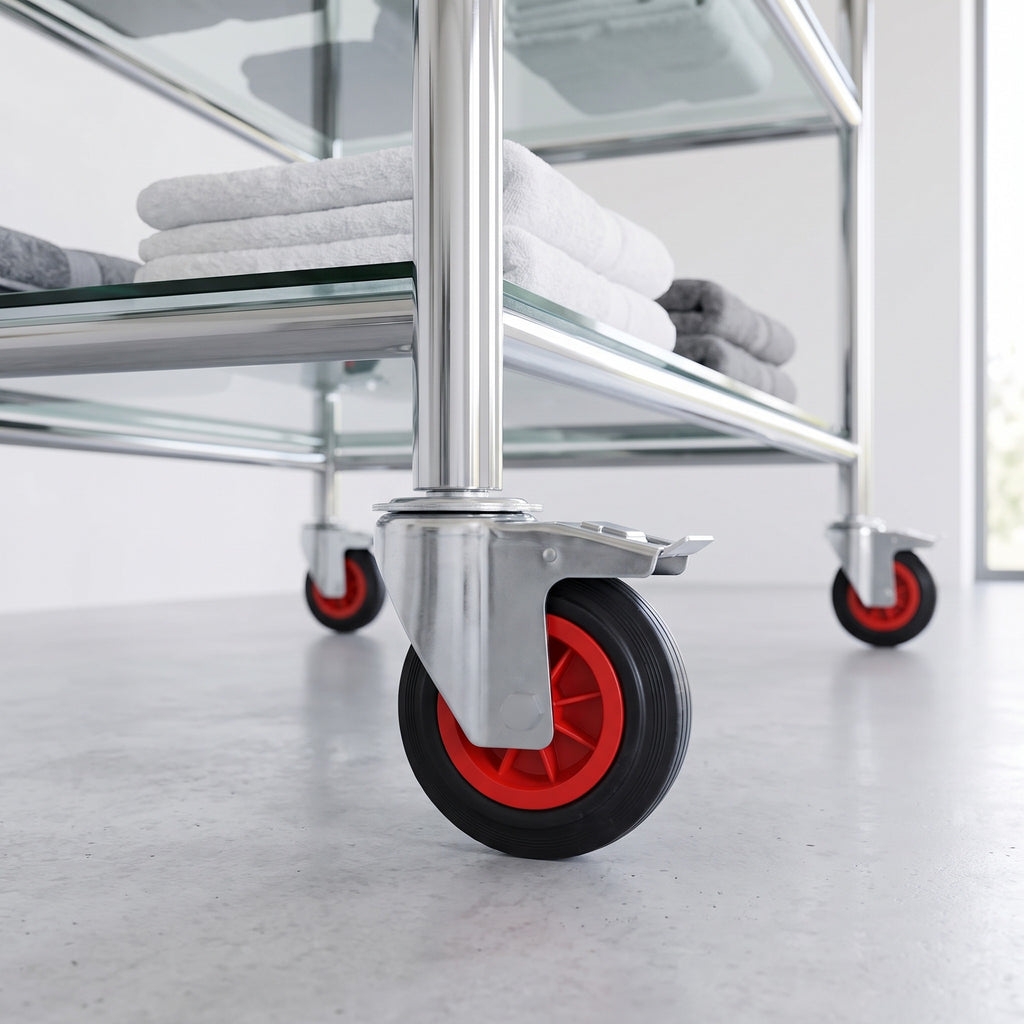

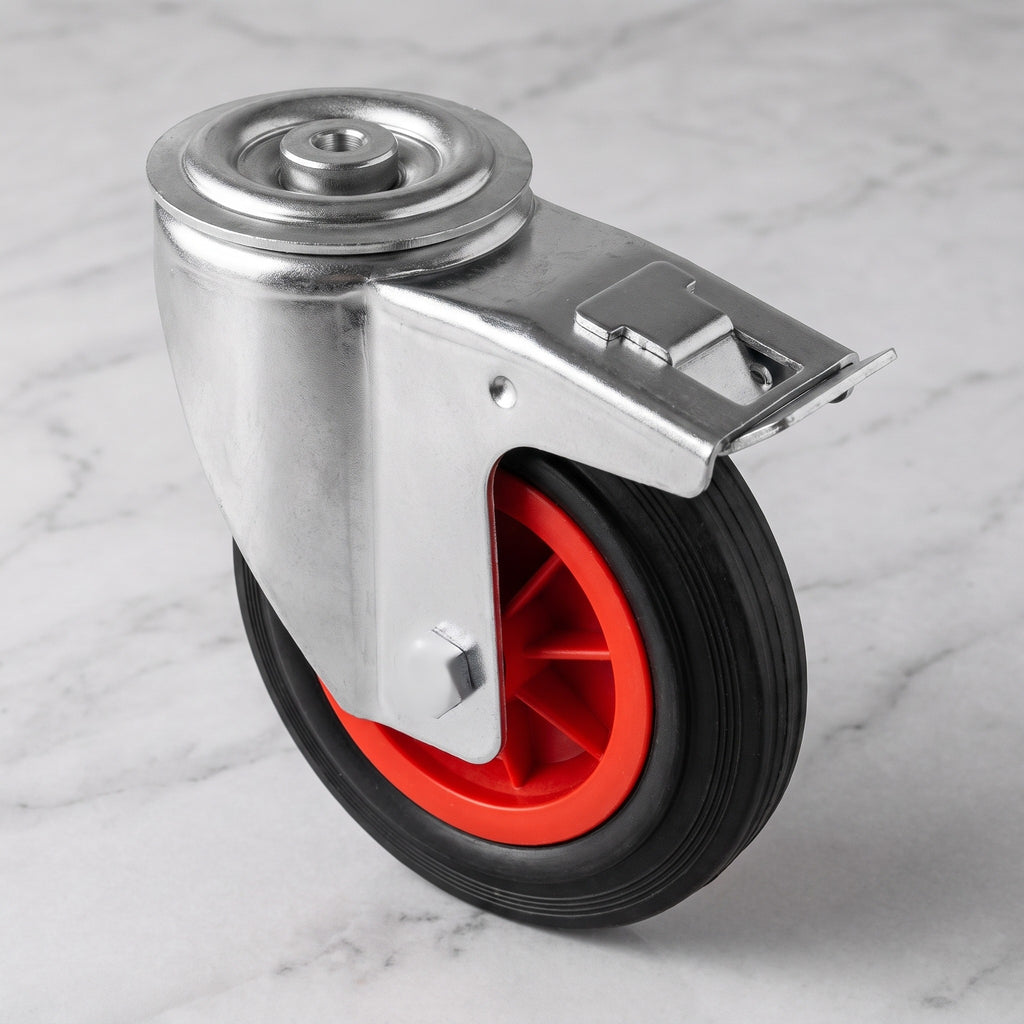

This 160mm braked swivel castor has a black rubber tyre on a red polypropylene centre, made for trolleys, carts and stands that need mobility and secure stopping. The swivel head turns a full 360 degrees, the foot brake locks the wheel to keep equipment in place, and the roller bearing gives smooth running under load. It carries 135kg per castor.
It fixes through a single 12mm bolt hole, has a 167mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Black rubber tread on a red polypropylene centre, 85 Shore A.
- ✓ Roller bearing for smooth rotation under load.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 135kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked black rubber bolt hole castor suits:

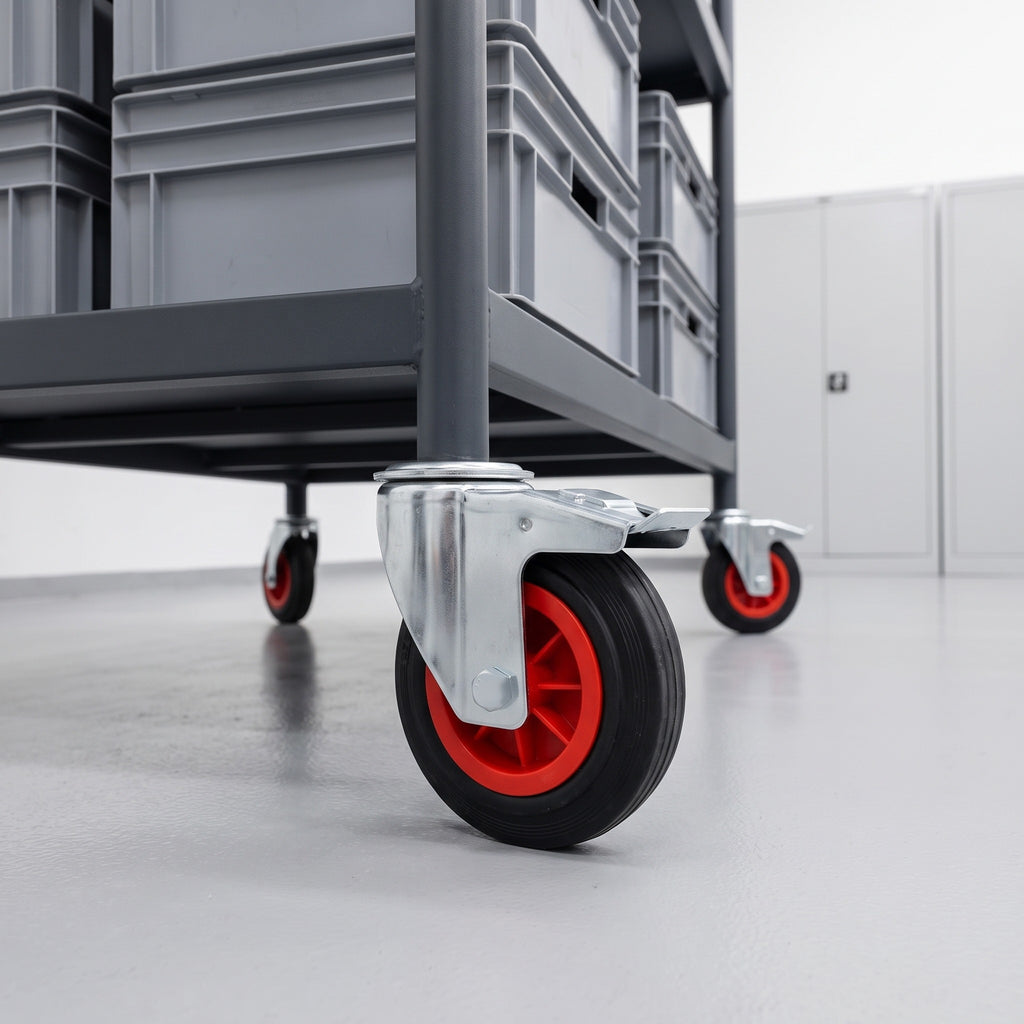

- ✓ Warehouse trolleys: mobility and braking for trolleys in storage facilities.
- ✓ Industrial carts: moving materials around manufacturing plants.
- ✓ Equipment stands: mobility and stability for workshop stands.
- ✓ Display units: movable retail display units.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
What floors does the wheel suit?
The black rubber tread is 85 Shore A, a mid-range hardness for smooth floors where some grip is needed. It works from -10°C to +50°C.
How much weight can this castor carry?
Each castor is rated for 135kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 167mm and the total castor height is 195mm.
Where can I use this castor?
It suits warehouse trolleys, industrial carts, workshop equipment stands and retail display units.
