- Load per castor200kg per castor
- Wheel diameter160mm
- Overall height405mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Jacking Castor
- Series
- JA4
- Wheel Diameter
- 160mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 40mm
- Bearing Type
- Roller
- Load Capacity
- 200kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 405mm
- Total Height to Plate Lower Bolt Hole
- 218mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 481mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height405mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Medium Duty Jacking Castors

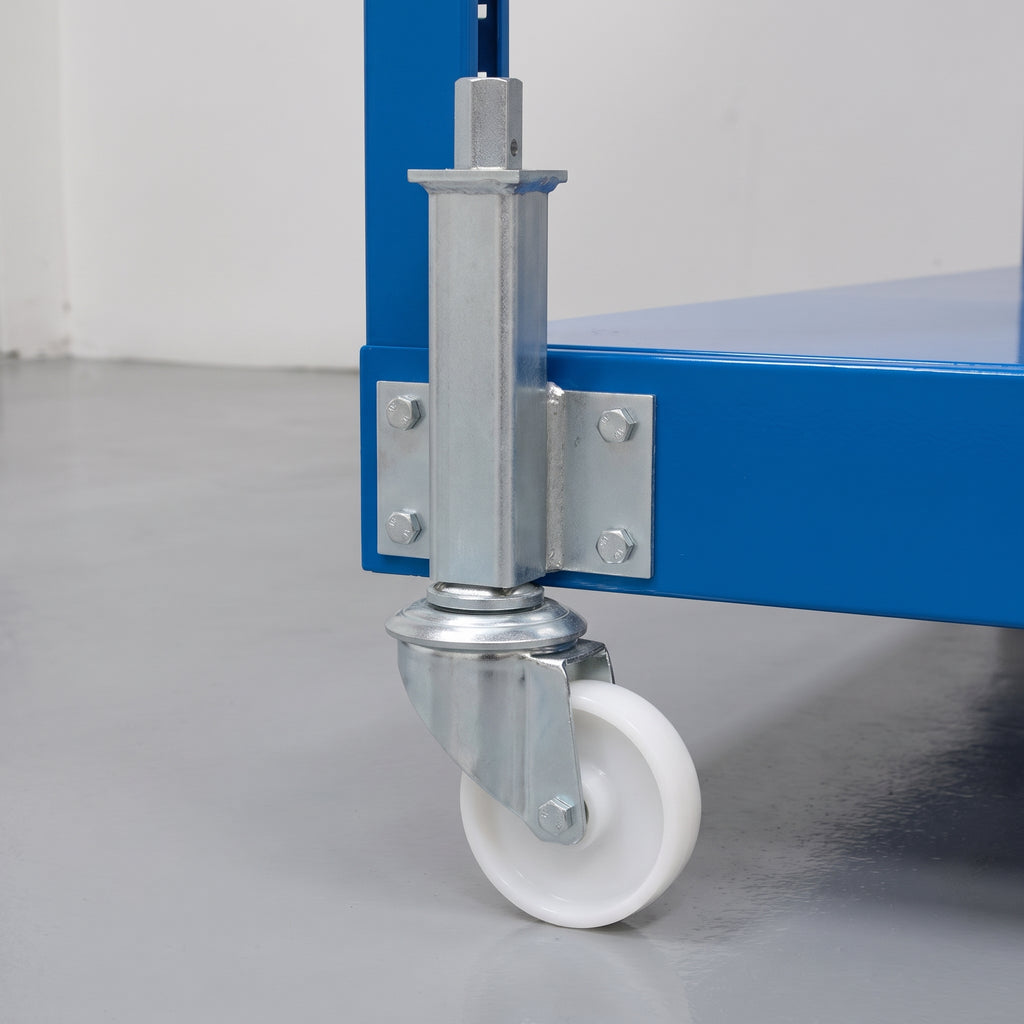

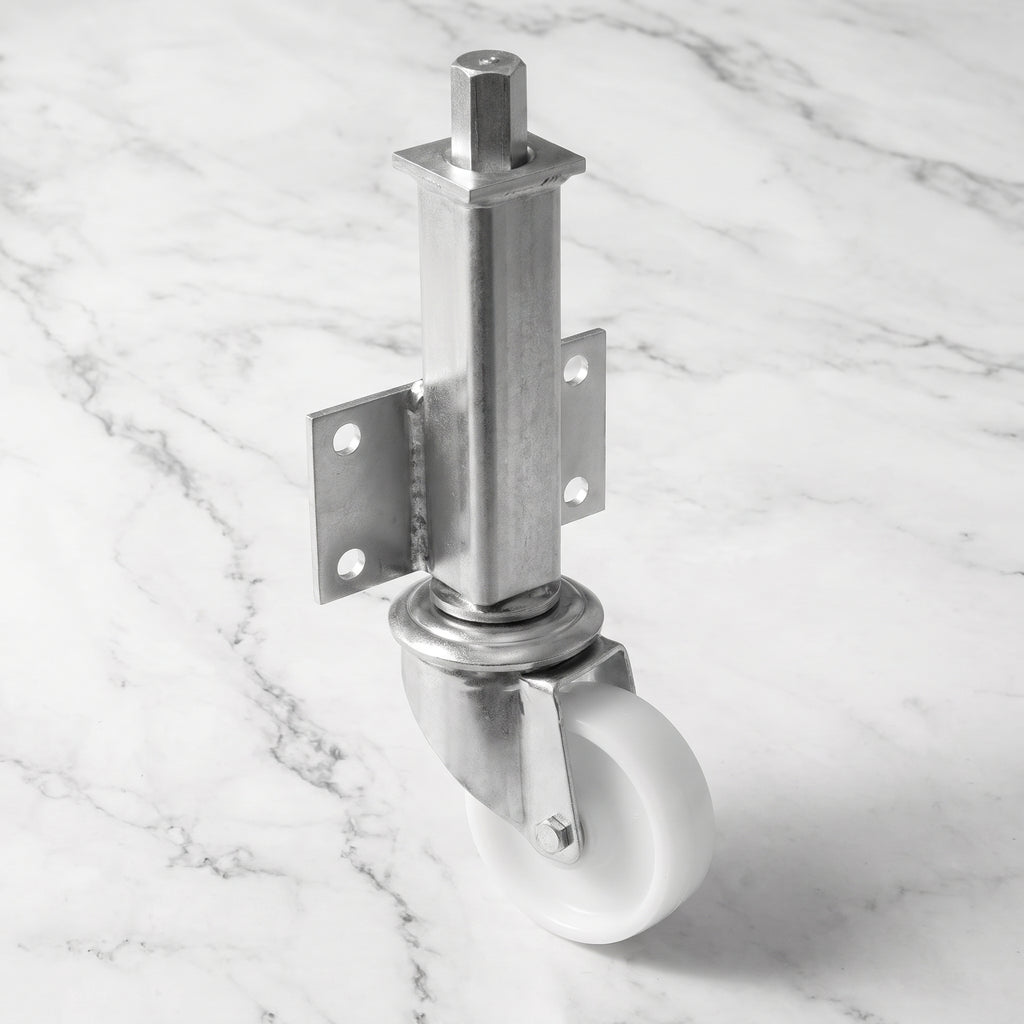

Move heavy equipment smoothly, even where space is limited, then lift it back onto its own feet. This medium duty jacking castor combines a 160mm white nylon swivel wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly in place. The swivel allows smooth direction changes for precise movement, the roller bearing gives smooth rotation, and each castor is rated for 200kg.
It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 405mm tall and the jacking unit reaches 481mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises and lowers your equipment so it can roll or stand firm.
- ✓ 24mm spanner operation easy, straightforward jacking adjustment.
- ✓ White nylon wheel 160mm nylon wheel with a 40mm tread, balancing strength and manoeuvrability.
- ✓ Roller bearing smooth rotation and reliable performance.
- ✓ Swivel castor smooth direction changes for precise movement in tight spaces.
- ✓ 200kg load capacity per castor for medium duty applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty swivel jacking castor suits:
- ✓ Industrial equipment: moving industrial machinery and equipment with ease.
- ✓ Storage systems: moving shelving units and storage racks.
- ✓ Workshop environments: equipment that needs frequent repositioning.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 160mm white nylon wheel with a 40mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels for smooth direction changes, so you can steer your equipment easily once it is lifted onto the castors.
