- Load per castor200kg per castor
- Wheel diameter160mm
- Overall height405mm
- WheelPolyurethane on nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Braked Swivel Jacking Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Polyurethane on nylon
- Wheel Colour
- Maroon
- Tread Width
- 40mm
- Bearing Type
- Roller
- Load Capacity
- 200kg per castor
- Function
- Swivel with brake
- Swivel Radius
- 80mm
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Fixing
- 4 bolt hole mounting plate
- Plate Length
- 130mm
- Plate Width
- 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 405mm
- Total Height to Plate Lower Bolt Hole
- 218mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 481mm
Will it fit?
- Top plate130mm × 75mm
- Fixing holeØ 11mm
- Overall height405mm
- Swivel radius80mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

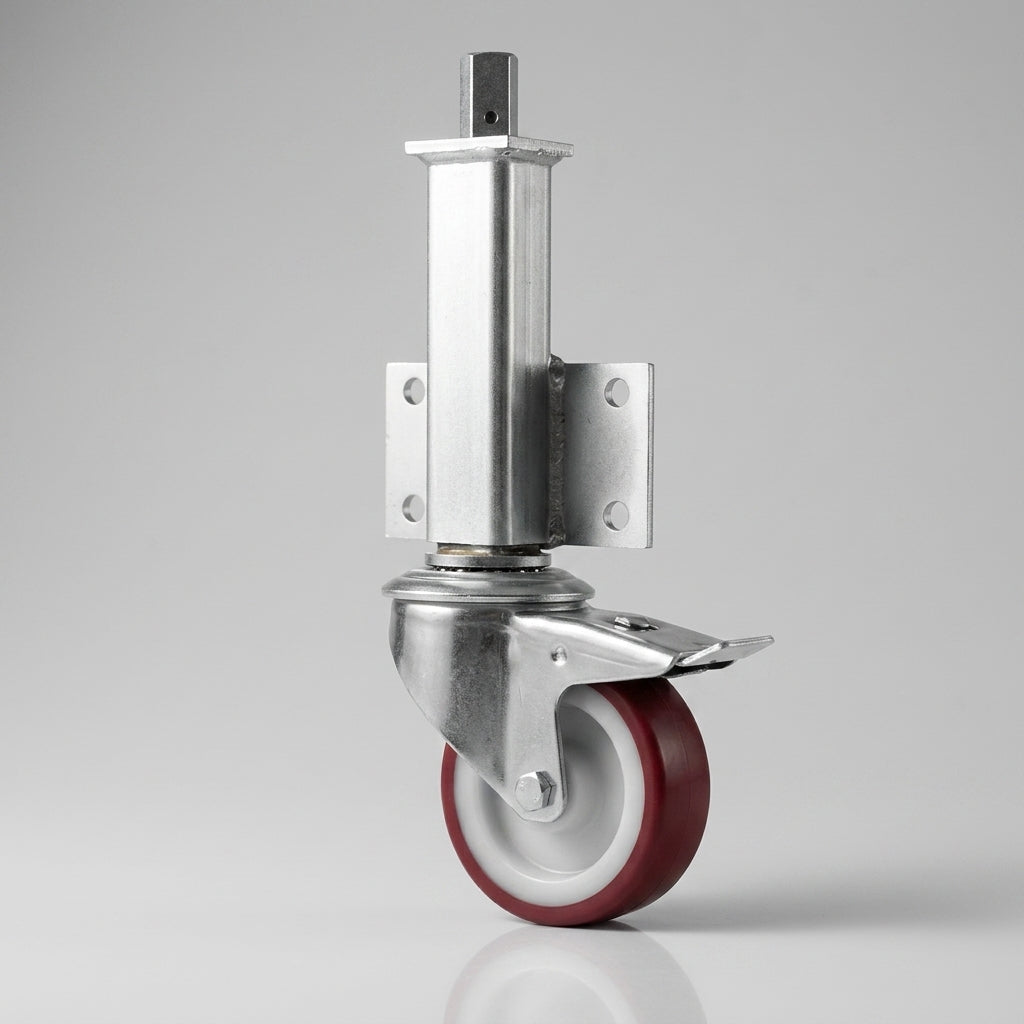

Medium Duty Polyurethane Wheel Jacking Castors

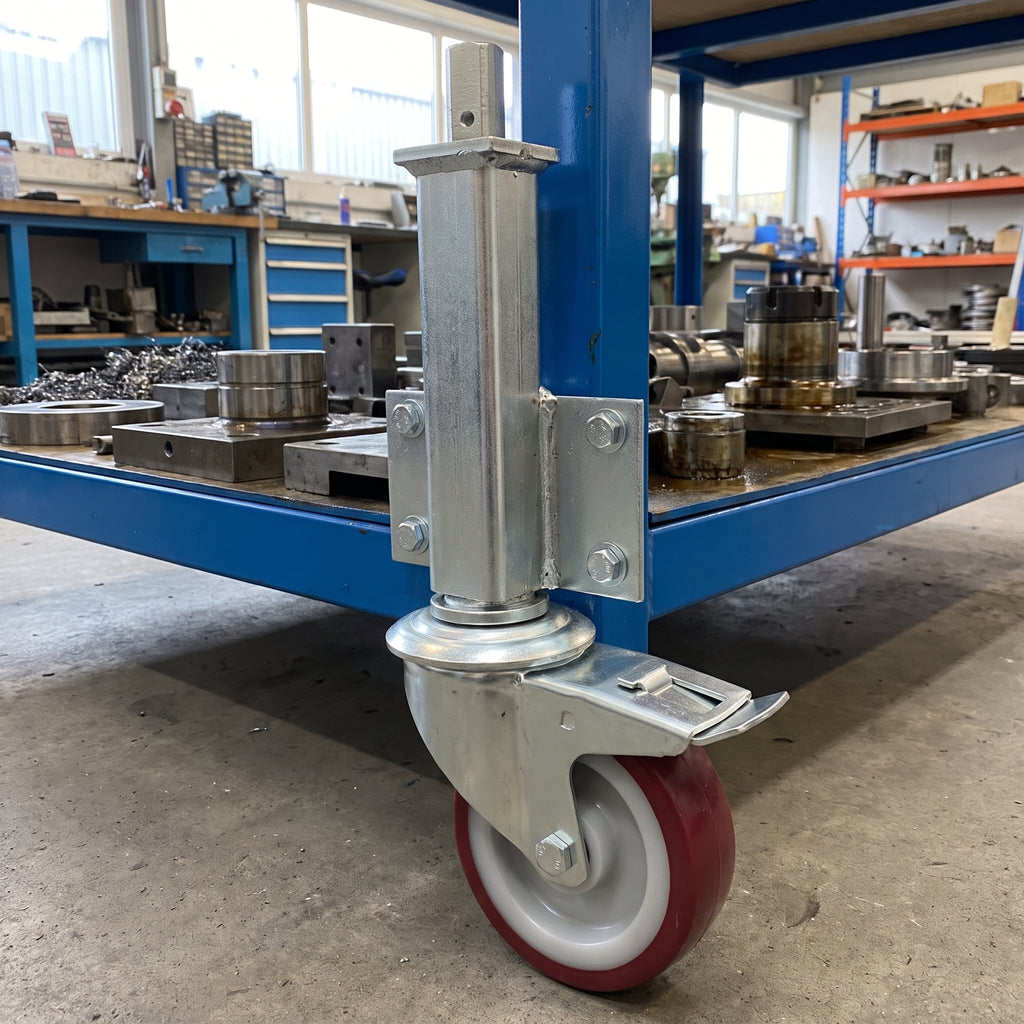

Roll your equipment into place, hold it there with the brake, then wind it down onto its own feet. This medium duty braked jacking castor pairs a 160mm maroon polyurethane on nylon swivel wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine, workbench or equipment stand for moving, then wind it back up so it stands firm and stable. The swivel and brake give you controlled mobility and stability, the roller bearing keeps the wheel turning smoothly, and each castor is rated for 200kg.
The polyurethane tread gives a smooth, quiet ride on workshop and warehouse floors. The castor fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. It is 405mm tall and the jacking unit reaches 481mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises your equipment onto its castors to move it, then lowers it back onto its own feet so it stands firm.
- ✓ Built-in brake holds the castor in place for added control and stability when the equipment is resting on its wheels.
- ✓ Swivel castor turns freely so you can steer and position equipment with ease.
- ✓ 24mm spanner operation simple, controlled height adjustment with a standard spanner.
- ✓ Maroon polyurethane wheel 160mm polyurethane on nylon wheel with a 40mm tread for a smooth, quiet ride.
- ✓ Roller bearing smooth, efficient rolling with less effort.
- ✓ 200kg load capacity per castor for medium duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial use: mobility for machinery and equipment.
- ✓ Handling solutions: transportation and material handling tasks.
- ✓ Load management: moving and holding medium duty loads efficiently.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake lock?
The brake is applied with the lever above the wheel and holds the castor in position, giving controlled mobility and extra stability while your equipment is resting on its wheels.
How much weight can this castor carry?
Each castor is rated for 200kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 160mm maroon polyurethane tyre on a nylon centre with a 40mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels with an 80mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors, then apply the brake to hold it.
