- Load per castor600kg *
- Wheel diameter160mm
- Overall height200 + 200mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Jacking Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 45mm
- Bearing Type
- Roller
- Load Capacity
- 600kg *
- Bolt Hole Size
- 10 mm
- Plate Length
- 150mm
- Plate Width
- 100mm
- Plate Hole Centres (Length)
- 110mm
- Plate Hole Centres (Width)
- 60mm
- Plate Hole Diameter
- 11mm
- Total Height to Plate Lower Bolt Hole
- 271mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Lift (Max)
- 200mm
- Jacking Unit Height at Max Extension (200mm)
- 810mm
- Total Castor Height
- 200 + 200mm
- Swivel Radius
- 125mm
- Operating Method
- Handle
Will it fit?
- Top plate150mm × 100mm
- Fixing holeØ 11mm
- Overall height200 + 200mm
- Swivel radius125mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Jacking Castors

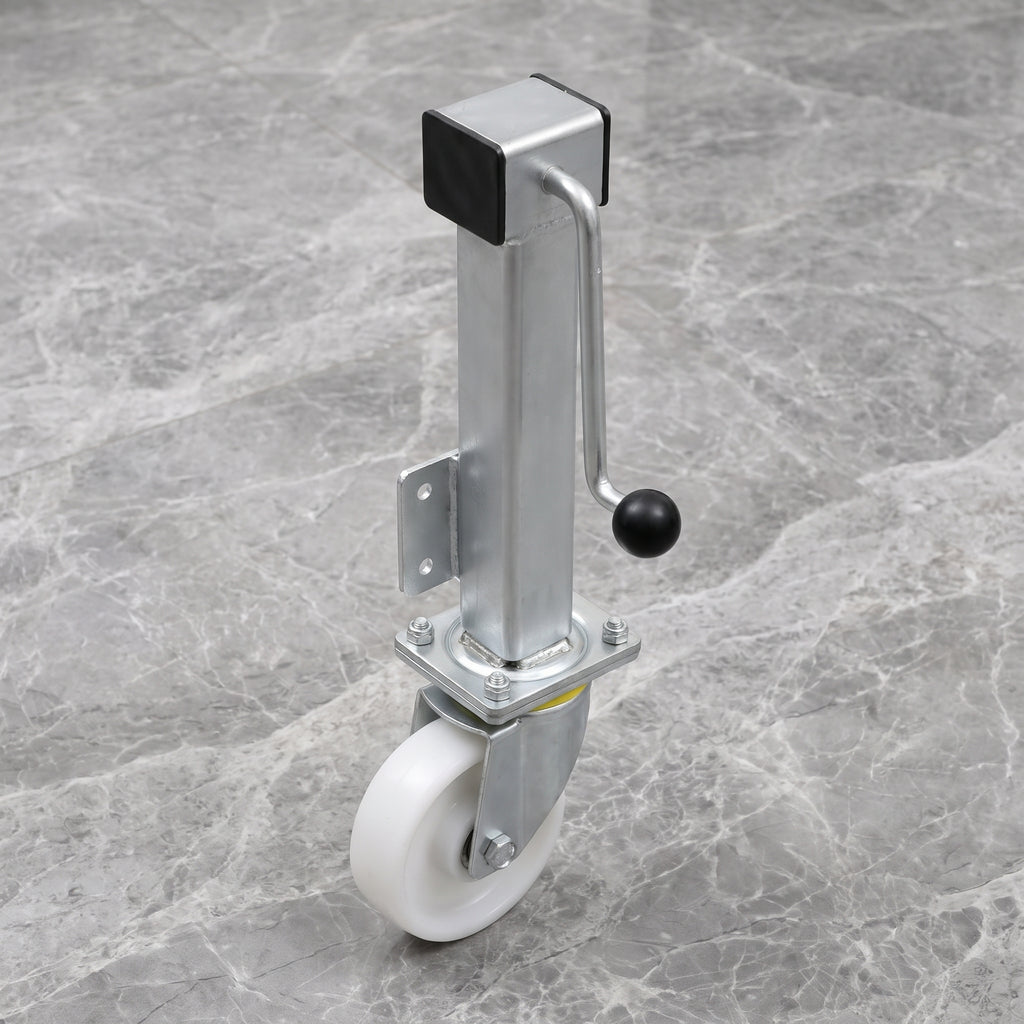

This 160mm heavy duty swivel jacking castor pairs a hard-wearing white nylon wheel with a tall, handle-operated jacking unit offering up to 200mm of lift. Bolt it to your machine, frame or platform with the 4 bolt hole mounting plate, wind the wheel down with the built-in crank handle to move heavy equipment, then raise it so the load stands firmly on its own feet. Each castor carries up to 600kg.
The white nylon wheel is durable in demanding environments and rolls easily under heavy loads, while the roller bearing keeps movement smooth and efficient. With a 150 x 100mm mounting plate, a 45mm tread, a 125mm swivel radius and an extended jacking height of 810mm, it is a strong heavy duty jacking castor for industrial machinery, material handling equipment and adjustable platforms that need precise positioning.
Why Choose This Castor
- ✓ Up to 200mm of lift for adjustable height to meet specific needs
- ✓ Built-in crank handle for quick, tool-free operation
- ✓ 160mm white nylon wheel for durability in demanding environments
- ✓ Roller bearing for smooth and efficient movement
- ✓ 600kg load capacity per castor for heavy duty loads
- ✓ Strong 150 x 100mm mounting plate with 4 bolt holes for a secure fixing
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best

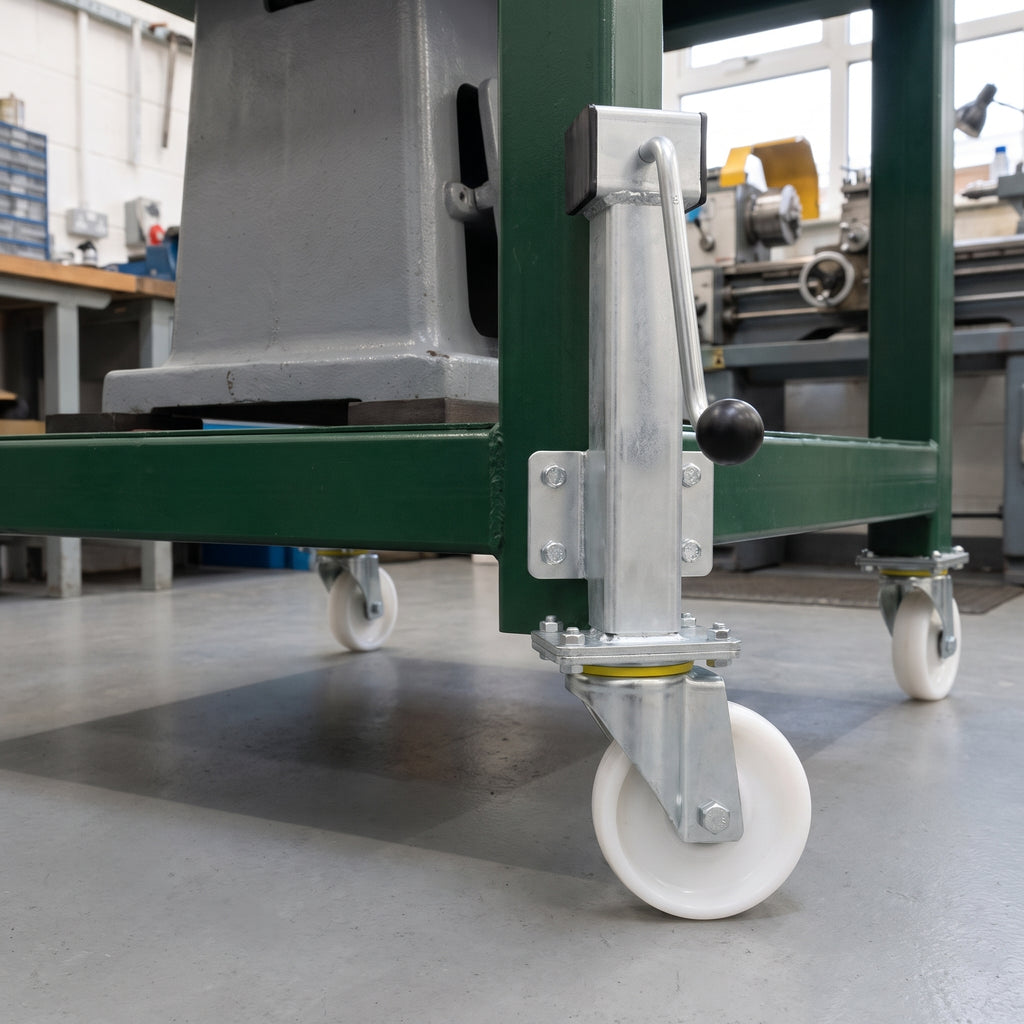

- ✓ Industrial equipment: moving and positioning heavy machinery
- ✓ Material handling: applications needing reliable load-bearing and mobility
- ✓ Adjustable platforms: support and height adjustment where needed
Frequently Asked Questions
What is a jacking castor?
A jacking castor is a castor with a built-in jack. You lower the wheel to roll your equipment into place, then raise it so the equipment sits on its own legs or feet and cannot roll away.
How much lift does this jacking castor give?
It gives up to 200mm of lift. The jacking unit height is 339mm from the plate lower bolt hole and 810mm at maximum extension.
How do I raise and lower the wheel?
The jacking unit is operated with its own built-in crank handle, so no separate tool is needed.
How much weight can it carry?
Each castor is rated at 600kg. Add up the rating of all the castors on your equipment to find the total capacity.
How is the castor fitted?
It has a 150 x 100mm mounting plate with 4 bolt holes of 11mm diameter on 110 x 60mm hole centres, which you bolt securely to your machine, frame or platform.
Does the castor swivel?
Yes. It is a swivel castor with a 125mm swivel radius for smooth, flexible movement.
