- Load per castor600kg *
- Wheel diameter160mm
- Overall height190 + 200mm
- WheelCast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Jacking Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Cast Iron
- Tread Width
- 50mm
- Bearing Type
- Roller
- Load Capacity
- 600kg *
- Bolt Hole Size
- 10 mm
- Plate Length
- 150mm
- Plate Width
- 100mm
- Plate Hole Centres (Length)
- 110mm
- Plate Hole Centres (Width)
- 60mm
- Plate Hole Diameter
- 11mm
- Total Height to Plate Lower Bolt Hole
- 261mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Lift (Max)
- 200mm
- Jacking Unit Height at Max Extension (200mm)
- 800mm
- Total Castor Height
- 190 + 200mm
- Swivel Radius
- 125mm
- Operating Method
- Handle
Will it fit?
- Top plate150mm × 100mm
- Fixing holeØ 11mm
- Overall height190 + 200mm
- Swivel radius125mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs
Heavy Duty Jacking Castors

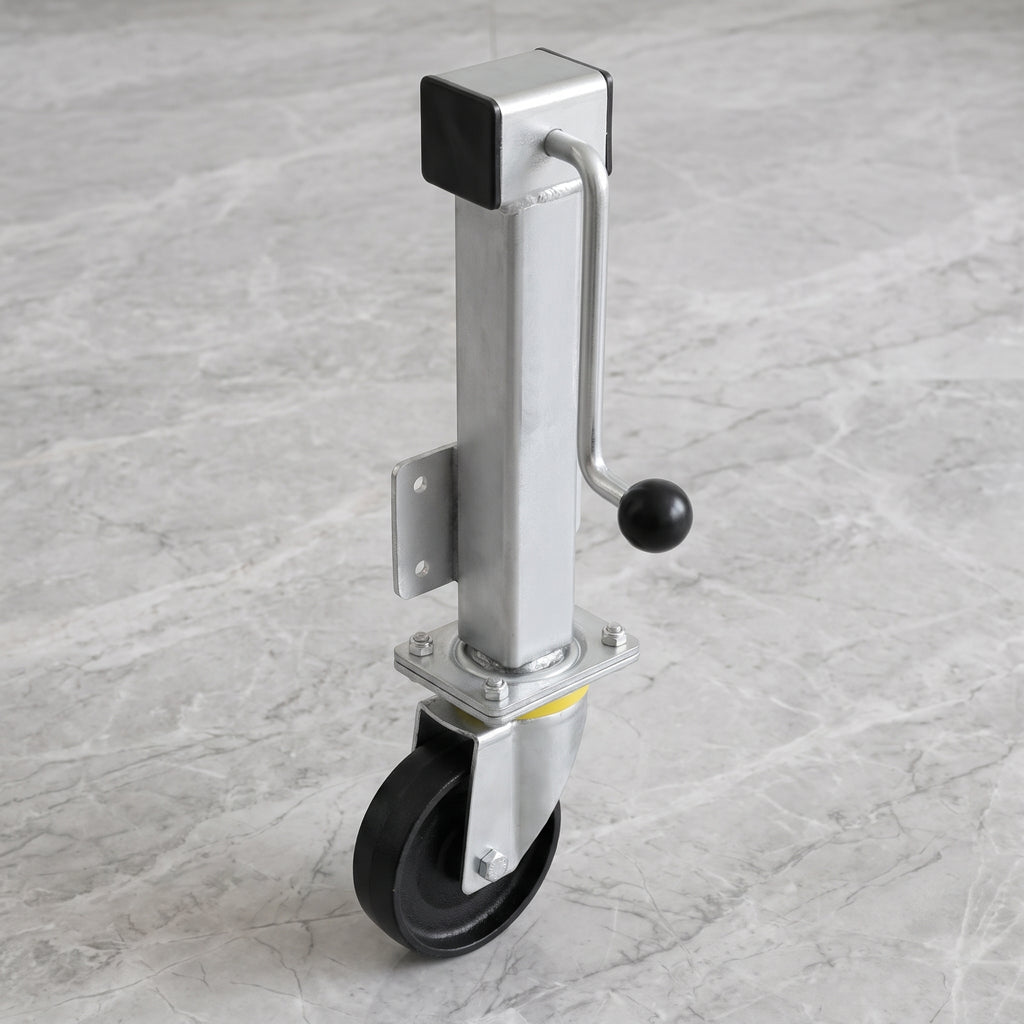

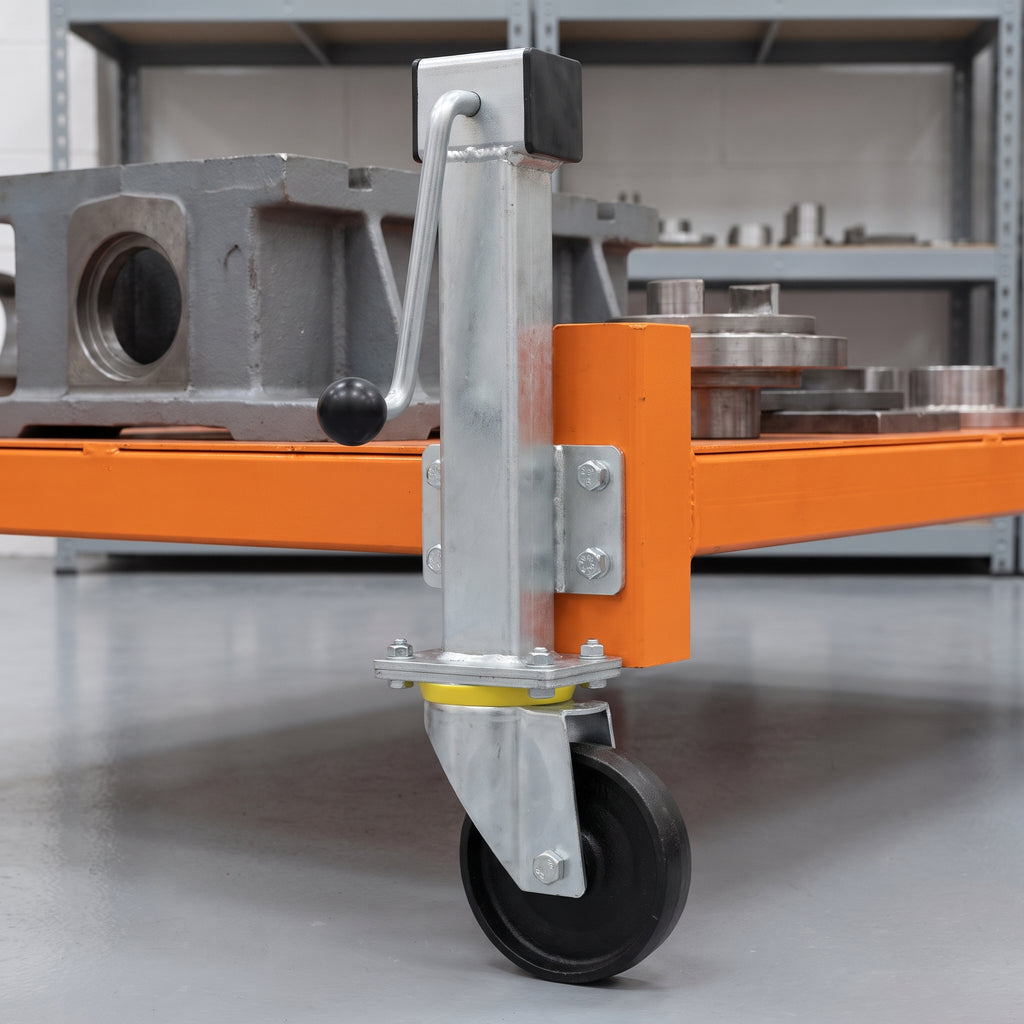

This 160mm heavy duty swivel jacking castor pairs a solid cast iron wheel with a tall, handle-operated jacking unit offering up to 200mm of lift. Bolt it to your machine, frame or platform with the 4 bolt hole mounting plate, wind the wheel down with the built-in crank handle to move heavy equipment, then raise it so the load stands firmly on its own feet. Each castor carries up to 600kg.
The cast iron wheel offers durability and resilience in demanding environments, while the roller bearing ensures smooth and efficient rotation under load. With a 150 x 100mm mounting plate, a 50mm tread, a 125mm swivel radius for precise positioning and an extended jacking height of 800mm, it is a robust heavy duty jacking castor for industrial equipment, material handling and machinery transport.
Why Choose This Castor
- ✓ Up to 200mm of lift for flexible working height
- ✓ Built-in crank handle for quick, tool-free operation
- ✓ 160mm cast iron wheel for durability in demanding environments
- ✓ Roller bearing for smooth and efficient wheel rotation
- ✓ 125mm swivel radius for manoeuvrability and precise positioning
- ✓ 600kg load capacity per castor for heavy industrial loads
- ✓ Strong 150 x 100mm mounting plate with 4 bolt holes for a secure fixing
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Industrial equipment: moving heavy machinery and equipment
- ✓ Material handling: environments where loads need moving and positioning
- ✓ Machinery transport: relocating machinery within industrial spaces
Frequently Asked Questions
What is a jacking castor?
A jacking castor is a castor with a built-in jack. You lower the wheel to roll your equipment into place, then raise it so the equipment sits on its own legs or feet and cannot roll away.
How much lift does this jacking castor give?
It gives up to 200mm of lift. The jacking unit height is 339mm from the plate lower bolt hole and 800mm at maximum extension.
How do I raise and lower the wheel?
The jacking unit is operated with its own built-in crank handle, so no separate tool is needed.
How much weight can it carry?
Each castor is rated at 600kg. Add up the rating of all the castors on your equipment to find the total capacity.
How is the castor fitted?
It has a 150 x 100mm mounting plate with 4 bolt holes of 11mm diameter on 110 x 60mm hole centres, which you bolt securely to your machine, frame or platform.
Does the castor swivel?
Yes. It is a swivel castor with a 125mm swivel radius for easy manoeuvring and precise positioning.
