- Load per castor600kg *
- Wheel diameter160mm
- Overall height200 + 200mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Jacking Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Yellow
- Tread Width
- 50mm
- Bearing Type
- Roller
- Load Capacity
- 600kg *
- Bolt Hole Size
- 10 mm
- Plate Length
- 150mm
- Plate Width
- 100mm
- Plate Hole Centres (Length)
- 110mm
- Plate Hole Centres (Width)
- 60mm
- Plate Hole Diameter
- 11mm
- Total Height to Plate Lower Bolt Hole
- 271mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Lift (Max)
- 200mm
- Jacking Unit Height at Max Extension (200mm)
- 810mm
- Total Castor Height
- 200 + 200mm
- Swivel Radius
- 125mm
- Operating Method
- Handle
Will it fit?
- Top plate150mm × 100mm
- Fixing holeØ 11mm
- Overall height200 + 200mm
- Swivel radius125mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Jacking Castors

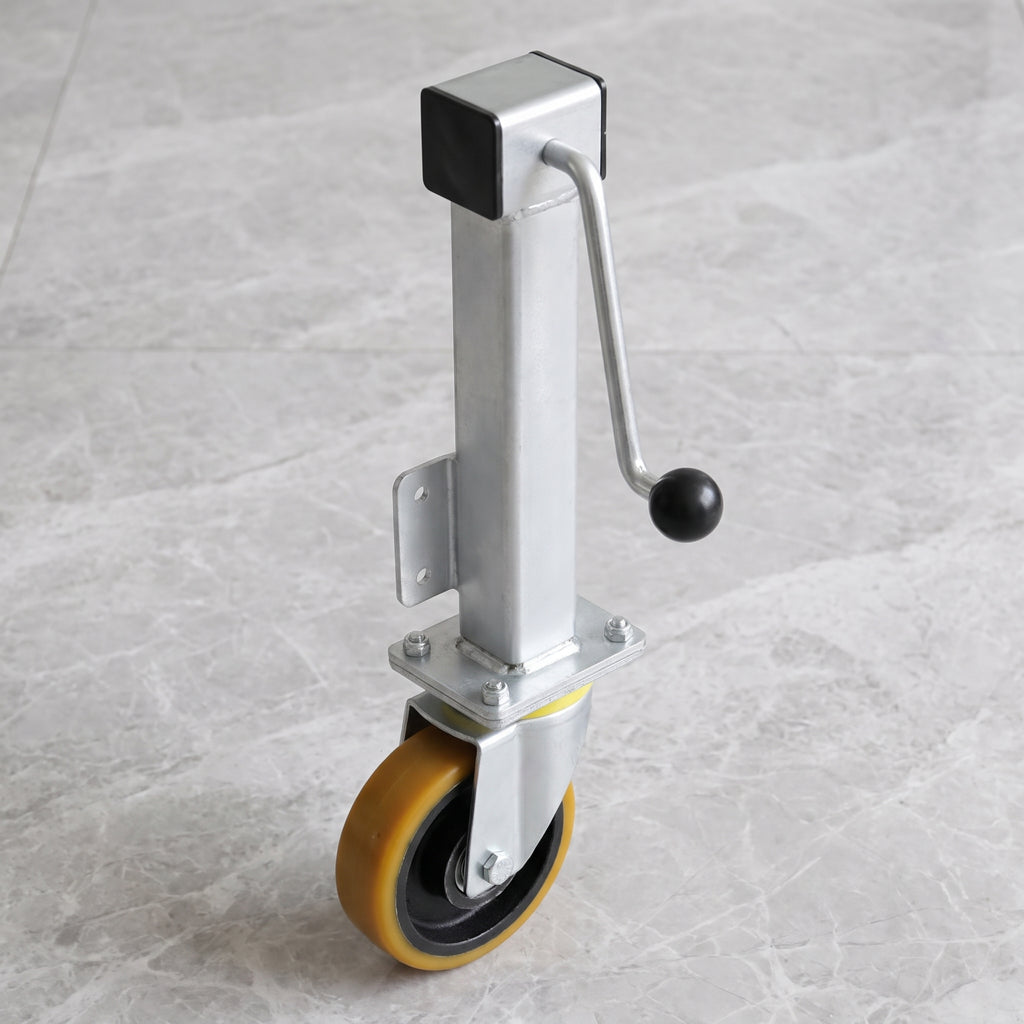

This 160mm heavy duty swivel jacking castor pairs a tough yellow polyurethane tyre on a cast iron centre with a tall, handle-operated jacking unit offering up to 200mm of lift. Bolt it to your machine, frame or platform with the 4 bolt hole mounting plate, wind the wheel down with the built-in crank handle to move heavy equipment, then raise it so the load stands firmly on its own feet. Each castor carries up to 600kg.
The polyurethane on cast iron wheel combines durability with smooth, stable rolling under heavy loads, while the roller bearing keeps movement consistent. With a 150 x 100mm mounting plate, a 50mm tread, a 125mm swivel radius for tight spaces and an extended jacking height of 810mm, it is a dependable heavy duty jacking castor for machinery, warehouse and factory material handling, and adjustable platforms.
Why Choose This Castor
- ✓ Up to 200mm of lift for flexible working height
- ✓ Built-in crank handle for quick, tool-free operation
- ✓ 160mm polyurethane on cast iron wheel for durability and reliable performance
- ✓ Roller bearing for smooth and consistent movement
- ✓ 125mm swivel radius for easy manoeuvring in tight spaces
- ✓ 600kg load capacity per castor for heavy industrial loads
- ✓ Strong 150 x 100mm mounting plate with 4 bolt holes for a secure fixing
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best

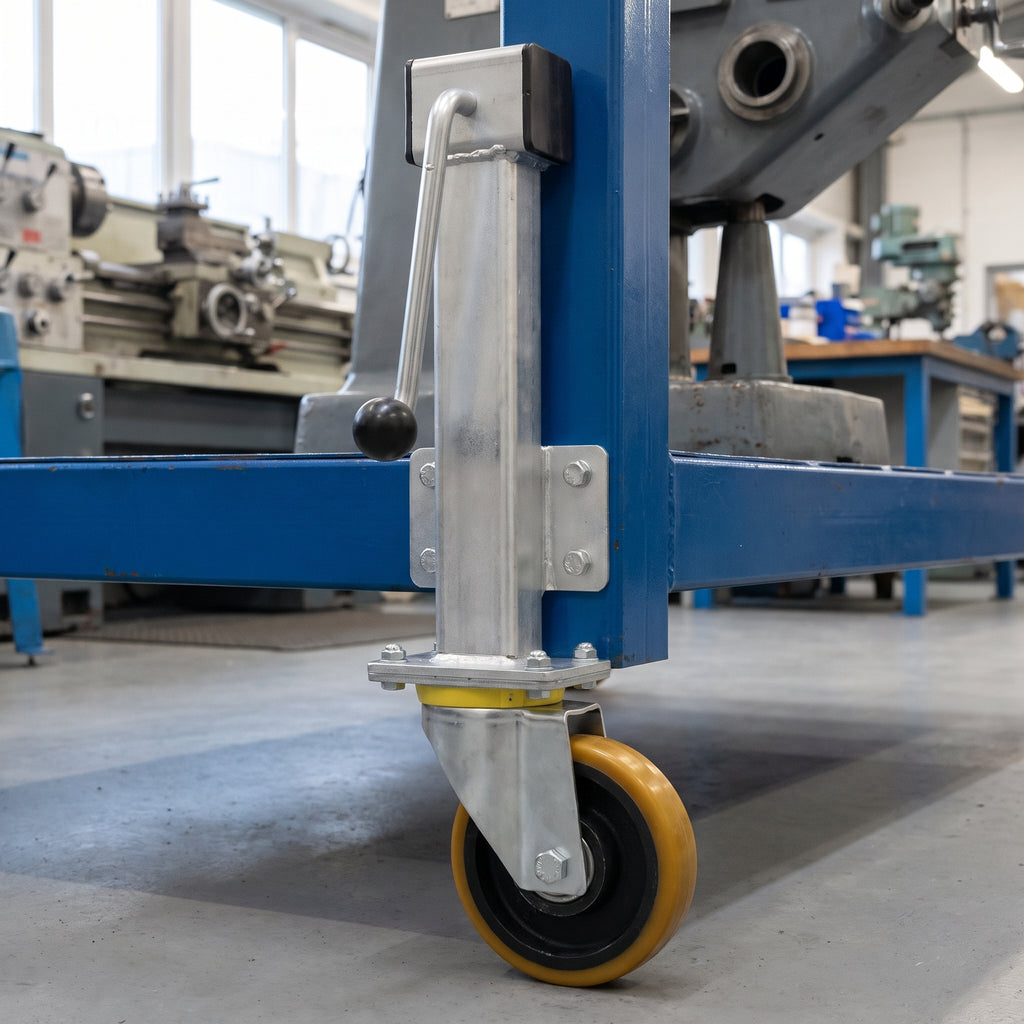

- ✓ Industrial equipment: moving heavy machinery and equipment

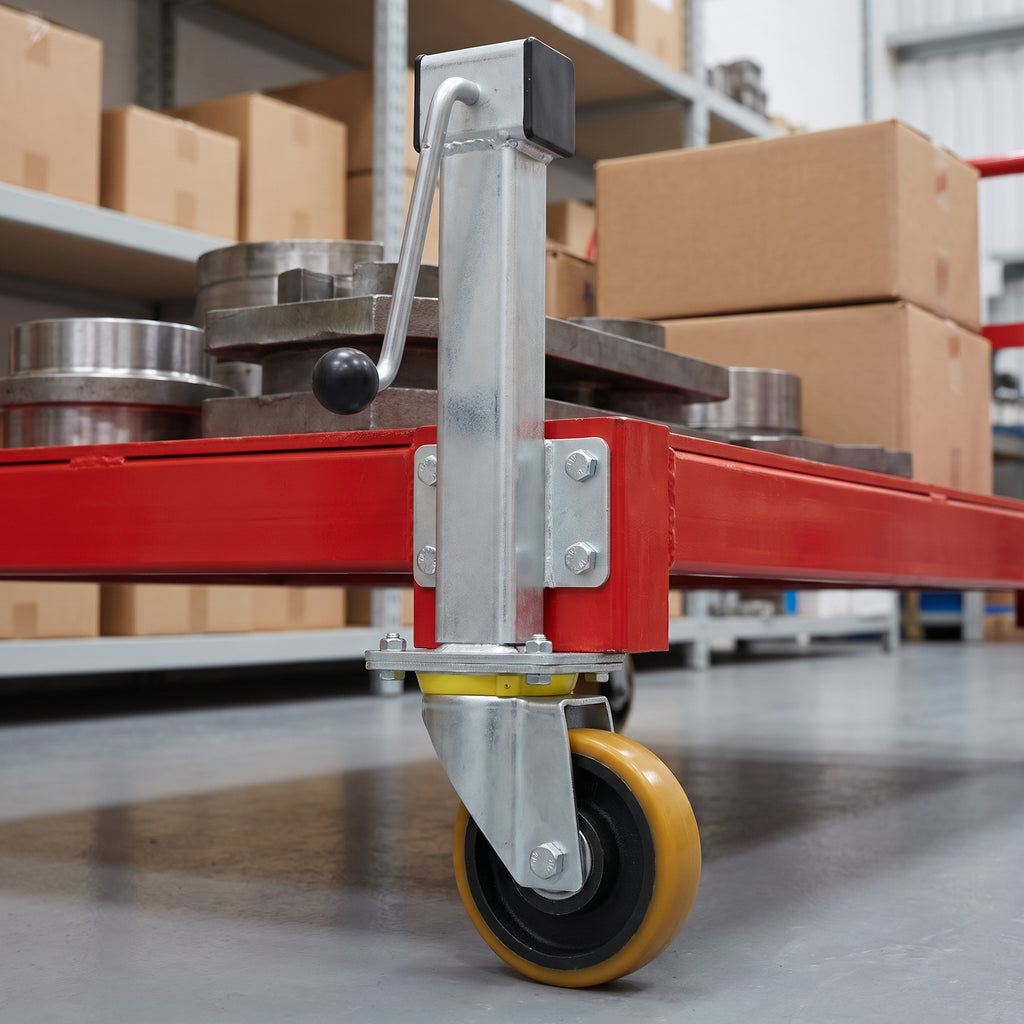

- ✓ Material handling: transporting goods in warehouses and factories
- ✓ Adjustable platforms: applications that need adjustable height
Frequently Asked Questions
What is a jacking castor?
A jacking castor is a castor with a built-in jack. You lower the wheel to roll your equipment into place, then raise it so the equipment sits on its own legs or feet and cannot roll away.
How much lift does this jacking castor give?
It gives up to 200mm of lift. The jacking unit height is 339mm from the plate lower bolt hole and 810mm at maximum extension.
How do I raise and lower the wheel?
The jacking unit is operated with its own built-in crank handle, so no separate tool is needed.
How much weight can it carry?
Each castor is rated at 600kg. Add up the rating of all the castors on your equipment to find the total capacity.
How is the castor fitted?
It has a 150 x 100mm mounting plate with 4 bolt holes of 11mm diameter on 110 x 60mm hole centres, which you bolt securely to your machine, frame or platform.
Does the castor swivel?
Yes. It is a swivel castor with a 125mm swivel radius for easy manoeuvring in tight spaces.
