- Load per castor150kg per castor
- Wheel diameter160mm
- Overall height196mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 25mm
- Tread Hardness
- Shore A80
- Bearing Type
- Roller Bearing
- Load Capacity
- 150kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 140 x 110mm
- Plate Hole Centres
- 105 x 80/75mm
- Plate Hole Diameter
- 10mm
- Total Castor Height
- 196mm
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

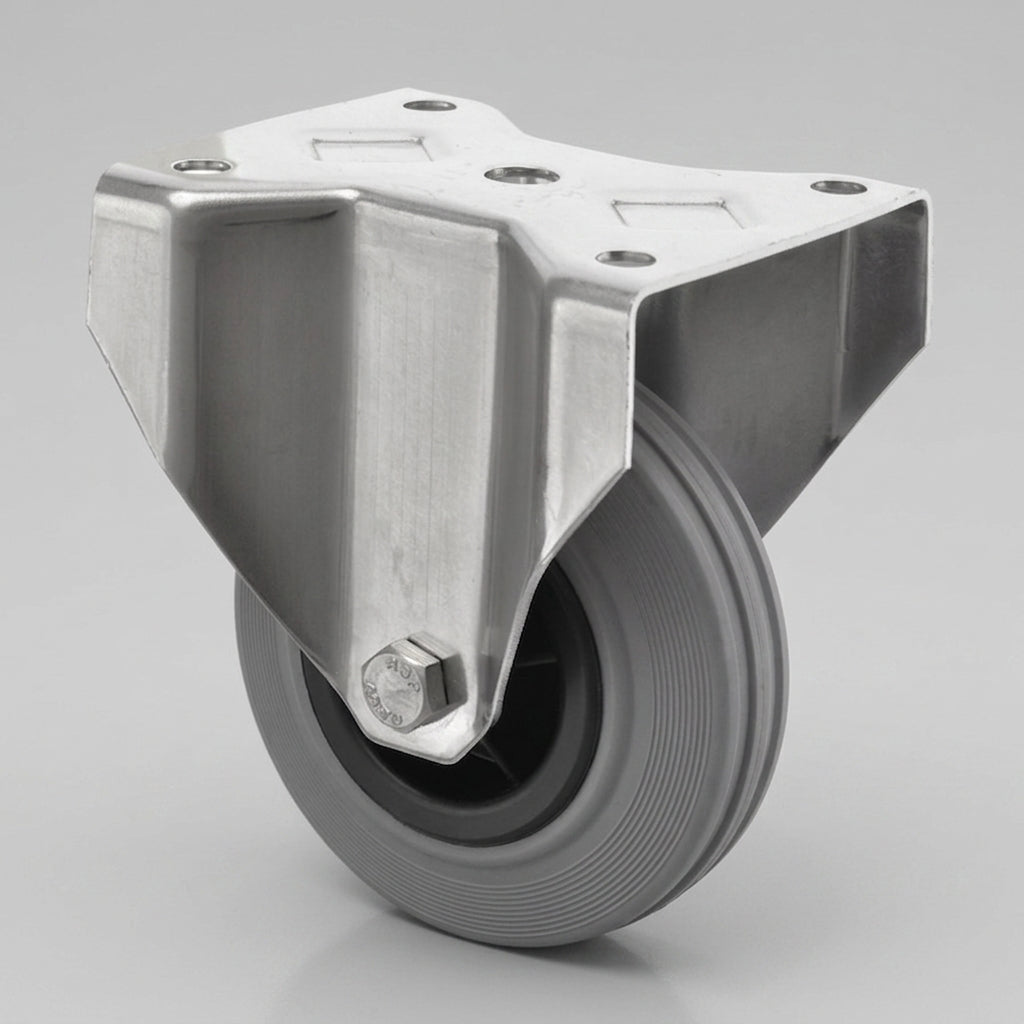

Stainless Steel Fixed Castor

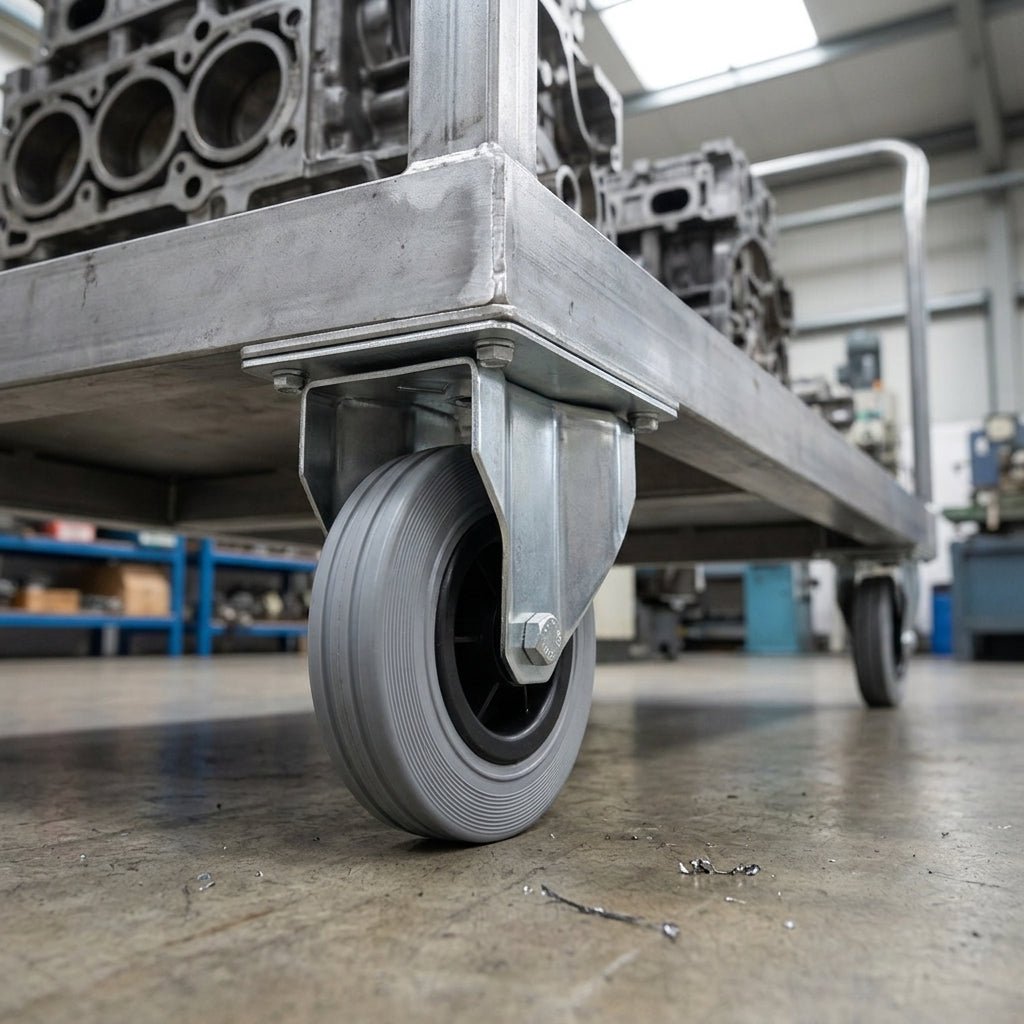

This 160mm stainless steel fixed castor runs on a quiet grey rubber wheel and carries up to 150kg per castor. It is made for food manufacturing equipment, warehouse trolleys and industrial carts that move heavier loads across the floor.
The stainless steel housing stands up to regular cleaning, and the large 140 x 110mm top plate bolts securely to the underside of your equipment. The one-piece fixed bracket keeps the wheel tracking straight, the A80 rubber tread is gentle on floors, and the roller bearing keeps it rolling smoothly. Pair it with matching swivel castors for steering.
Why Choose This Castor
- ✓ Quiet grey rubber tread that is gentle on floors
- ✓ Stainless steel housing for hygienic and clean areas
- ✓ 150kg load capacity per castor
- ✓ Large 160mm wheel with a 25mm tread
- ✓ Fixed bracket for straight, stable tracking
- ✓ 140 x 110mm top plate with four 10mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Food manufacturing: moving equipment within food processing areas.
- ✓ Warehousing: transporting goods across warehouse floors.
- ✓ Industrial settings: trolleys and carts carrying heavier equipment.
Frequently Asked Questions
What is the wheel made of?
A grey rubber tread (Shore A80) on a polypropylene centre, running on a roller bearing. It is quiet and gentle on floors.
How much weight can it carry?
Each castor is rated at 150kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm centres, bolted to the underside of your equipment.
Does this castor swivel?
No. This is a fixed castor, so it keeps a straight line of travel. Fit it with matching swivel castors when you need to steer.
What temperatures is it suitable for?
The castor is rated for use from -20°C to +60°C, which suits food areas, warehouses and normal indoor spaces.
How tall is the castor?
The total castor height is 196mm, from the floor to the top of the plate.
