- Load per castor300kg per castor
- Wheel diameter160mm
- Overall height200mm
- WheelRubber on Polypropylene (non-marking)
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Directional Lock
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on Polypropylene (non-marking)
- Wheel Colour
- Blue
- Tread Width
- 40mm
- Hardness of Tread
- A70
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate
- Plate Size
- 137 x 105mm
- Plate Hole Centres
- 105 x 80/75mm
- Plate Hole Diameter
- 10mm
- Swivel Radius
- 135mm
- Total Castor Height
- 200mm
- Load Capacity
- 300kg per castor
- Temperature Range
- -20°C to +80°C
- Lock
- Directional lock
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +80°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Blue Non-Marking Rubber Castors

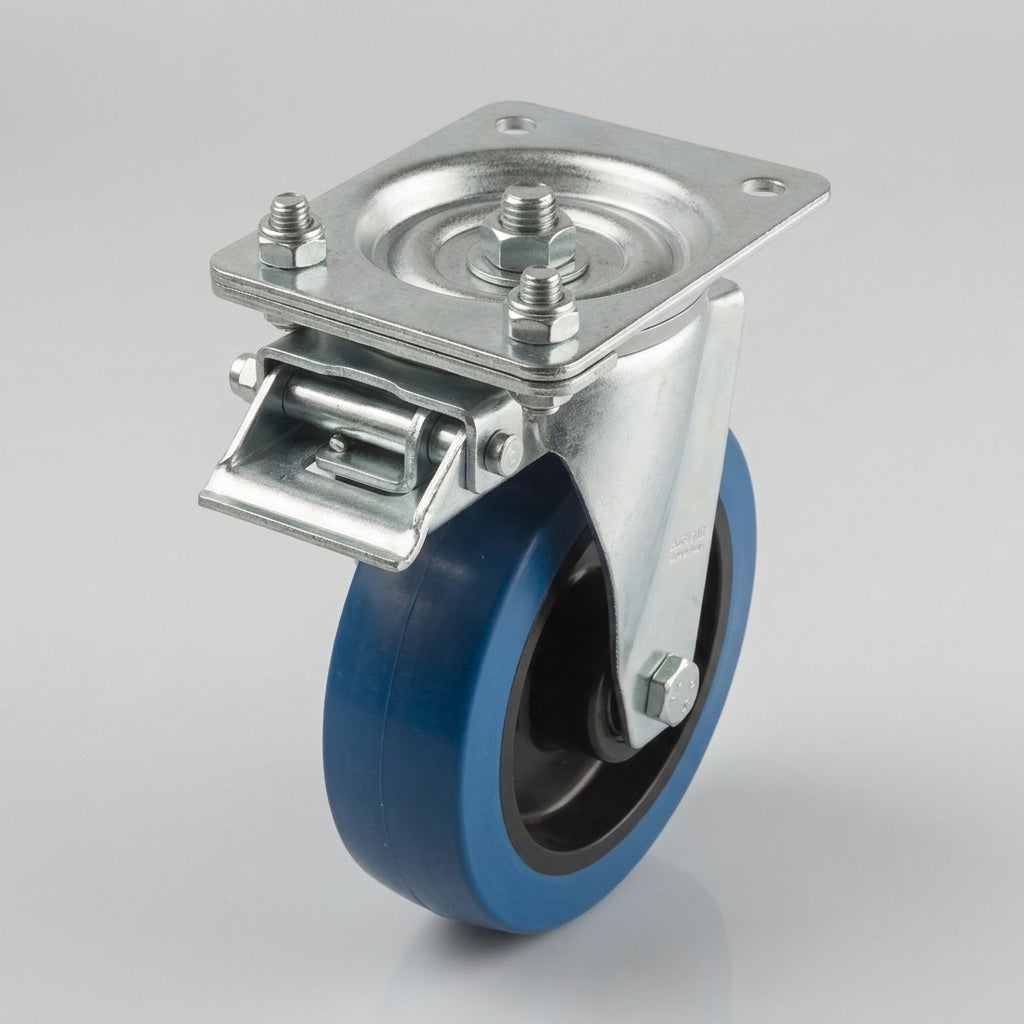

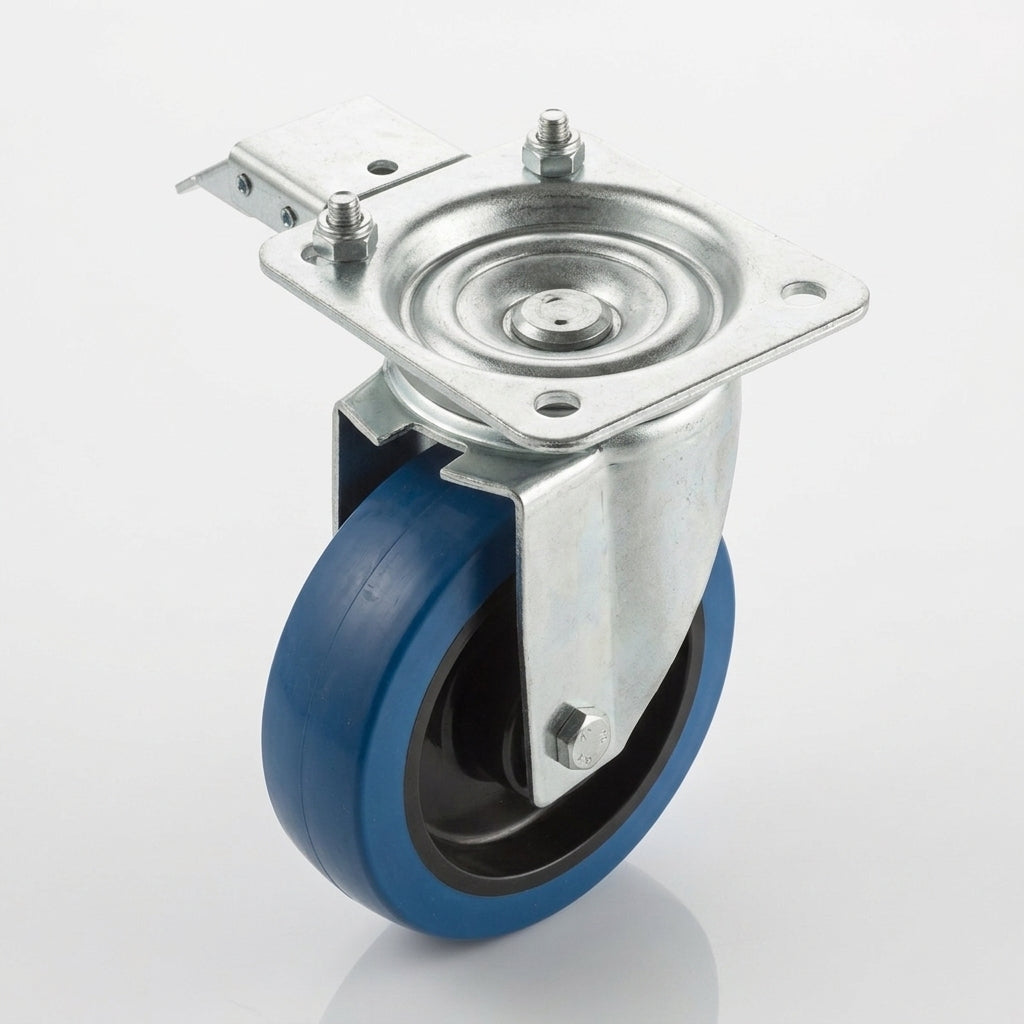

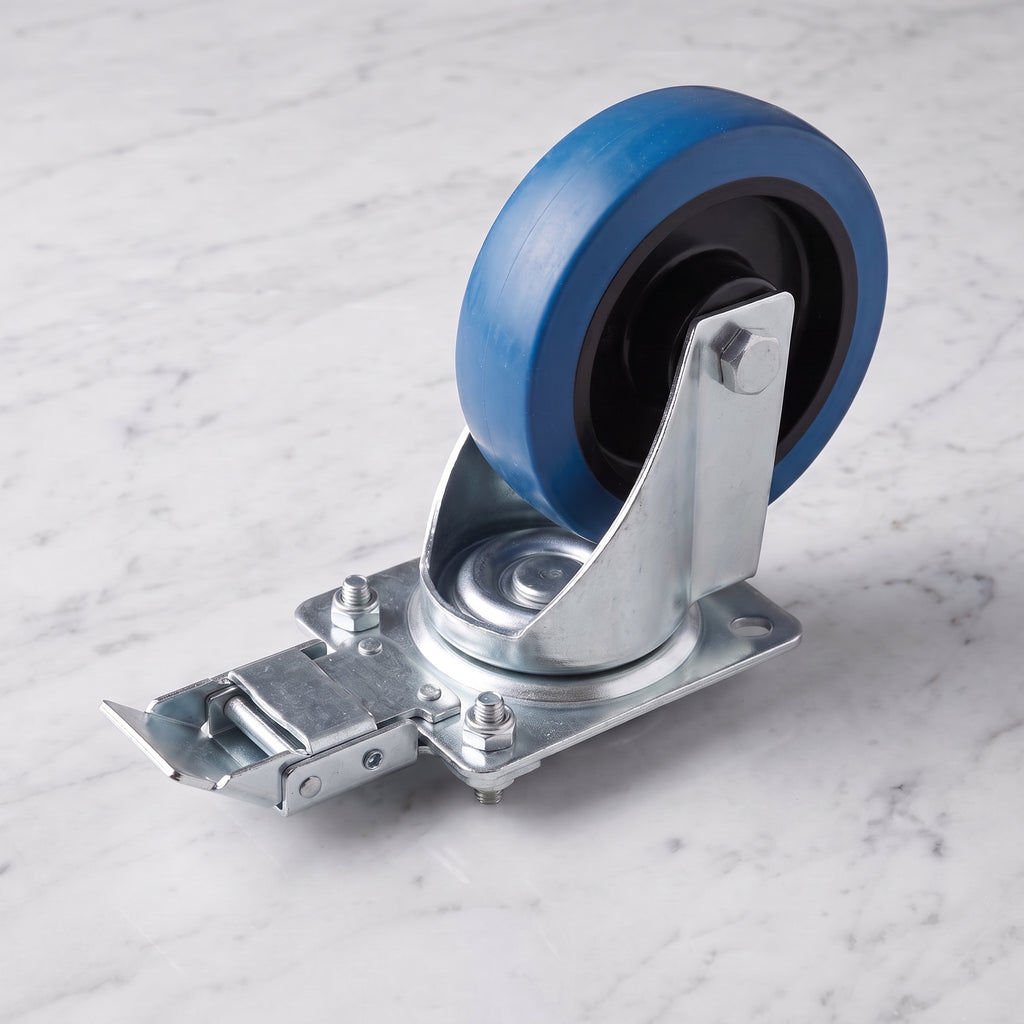

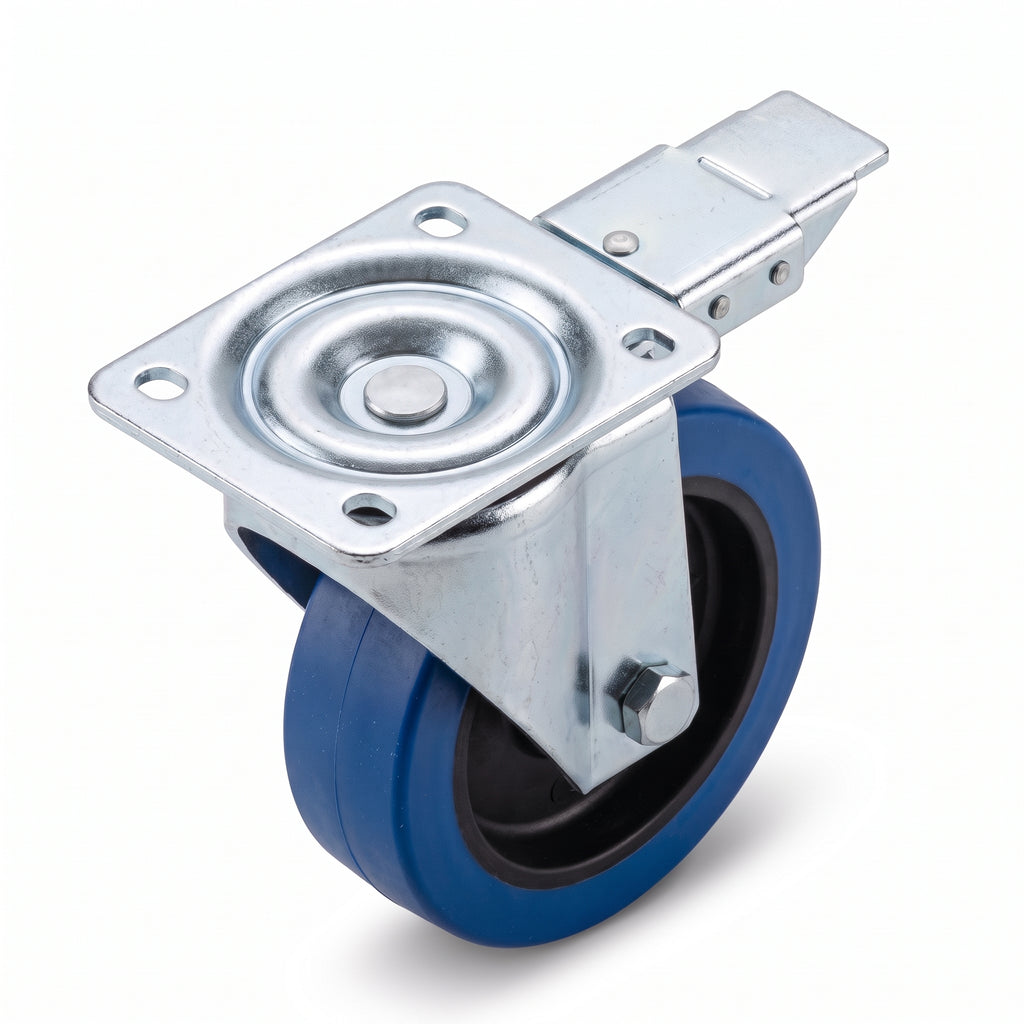

Fitted with a directional lock mechanism, this 160mm swivel castor is designed to maintain a straight path when required, enhancing control during movement. It has a blue non-marking rubber wheel, carries up to 300kg per castor and mounts with a 137 x 105mm top plate, making it ideal for trolleys, hospital equipment, retail displays and industrial carts.
The rubber tread, rated at Shore A70, provides a balance between grip and resilience on a lightweight polypropylene core, and the roller bearing gives smooth operation. With a 200mm total height, a 135mm swivel radius and a 40mm tread, this blue rubber directional lock castor works from -20°C to +80°C.
Why Choose This Castor
- ✓ Directional lock mechanism maintains a straight path when required, enhancing control during movement.
- ✓ Blue non-marking rubber wheel with a Shore A hardness of 70 for a balance between grip and resilience.
- ✓ 300kg load capacity per castor for heavy loads.
- ✓ Roller bearing for smooth operation.
- ✓ Lightweight polypropylene core with a rubber tread on a 160mm wheel.
- ✓ 137 x 105mm top plate with four 10mm holes, versatile for various equipment.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres match your mounting area before fitting.
Where It Works Best
This directional lock top plate castor suits equipment that must move easily and protect floors:

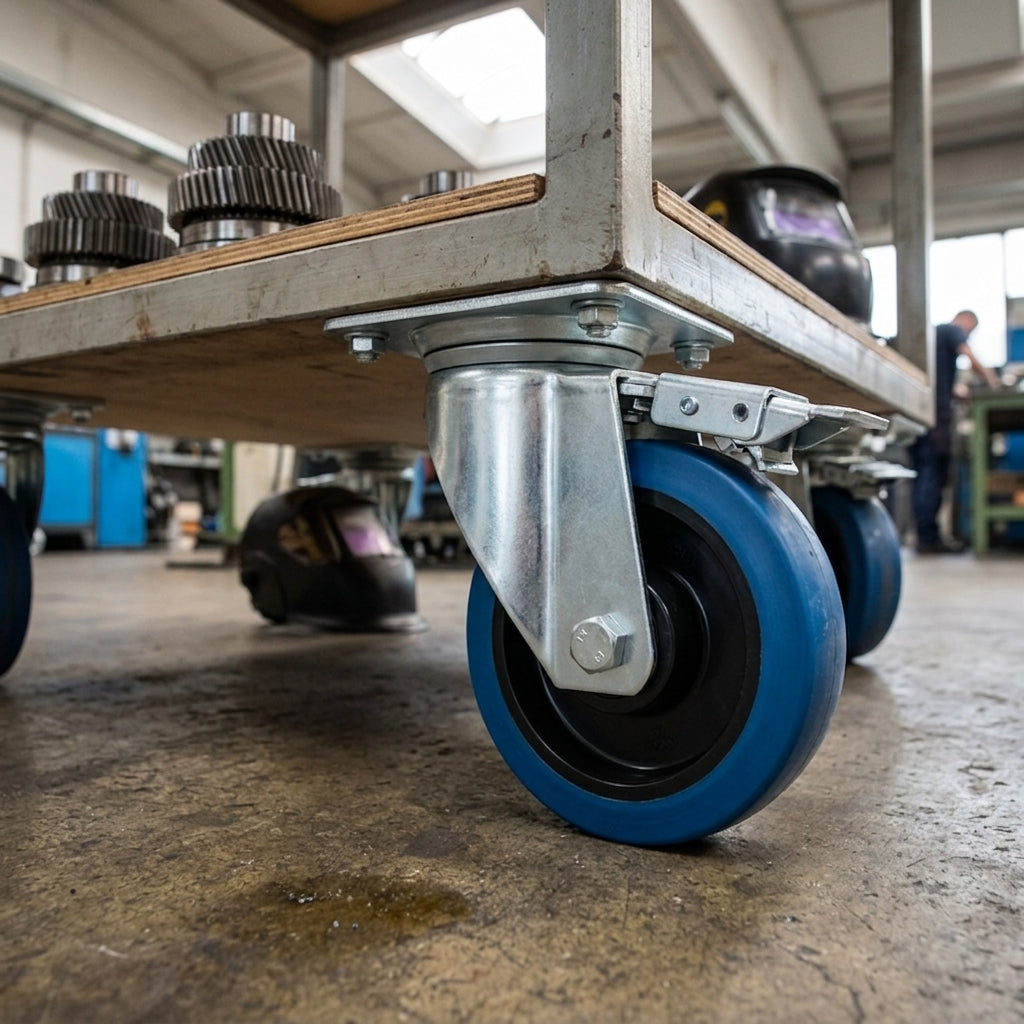

- ✓ Trolleys: controlled movement in warehouses and workshops.

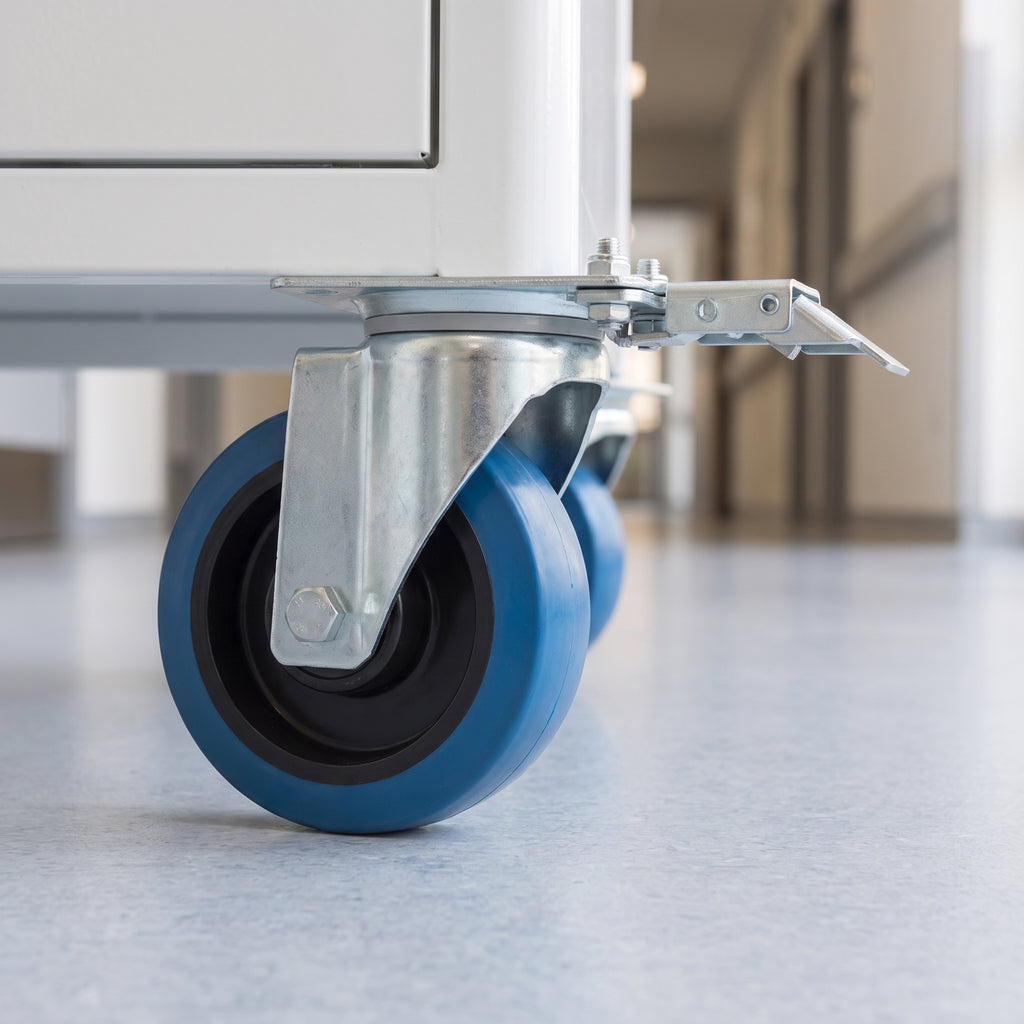

- ✓ Hospital equipment: smooth and precise navigation of medical carts.
- ✓ Retail displays: easy repositioning of movable fixtures.
- ✓ Industrial carts: supporting heavy loads while maintaining directional stability.
Frequently Asked Questions
What does the directional lock do?
It holds the castor in a straight line when required, so the trolley keeps a straight path. Release it and the castor swivels freely again.
Will the blue wheel mark my floor?
No. The blue rubber wheel is non-marking, so it suits warehouses, hospitals and retail floors.
How much weight can this castor carry?
Each castor is rated for 300kg.
What size bolts do I need?
The top plate has four 10mm holes, so it suits M10 bolts. The hole centres are 105 x 80/75mm on a 137 x 105mm plate.
How tall is the castor?
The total castor height is 200mm and the swivel radius is 135mm.
What temperatures can it work in?
The castor is suitable for use from -20°C to +80°C.
