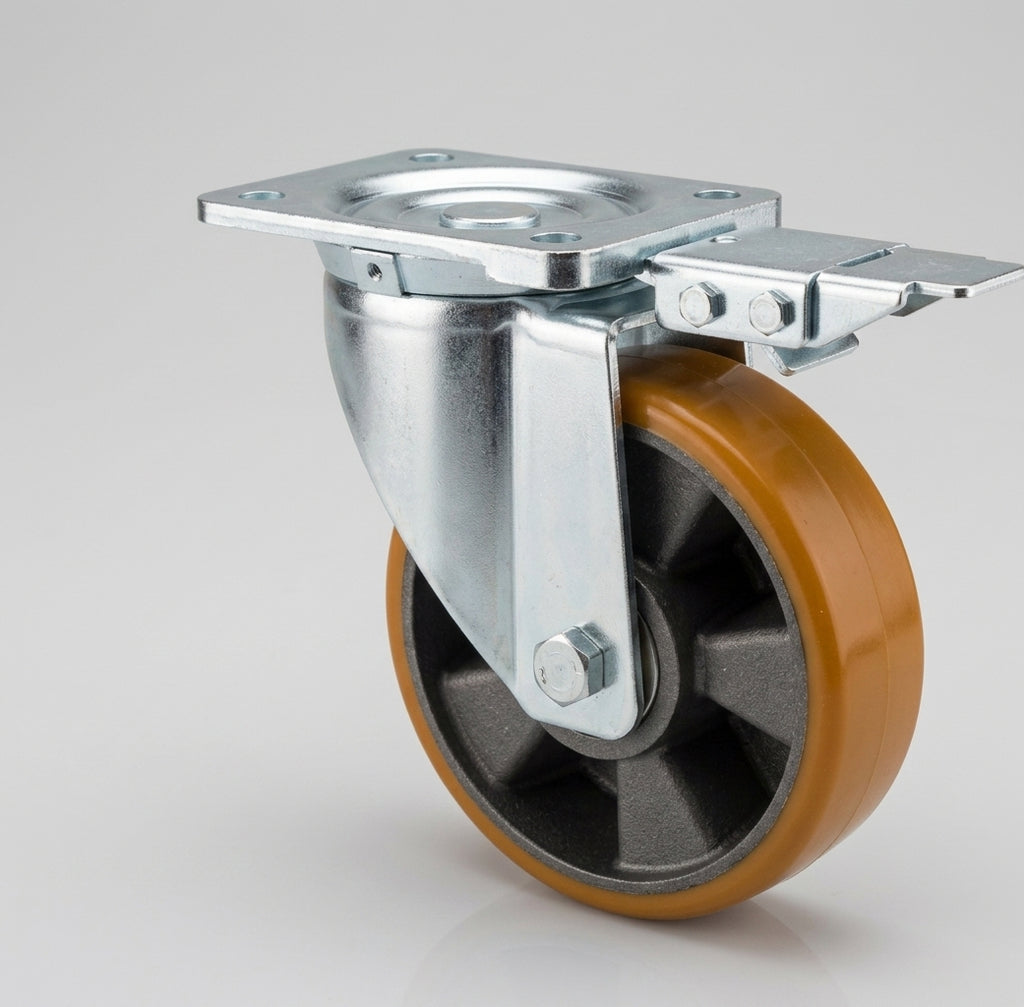

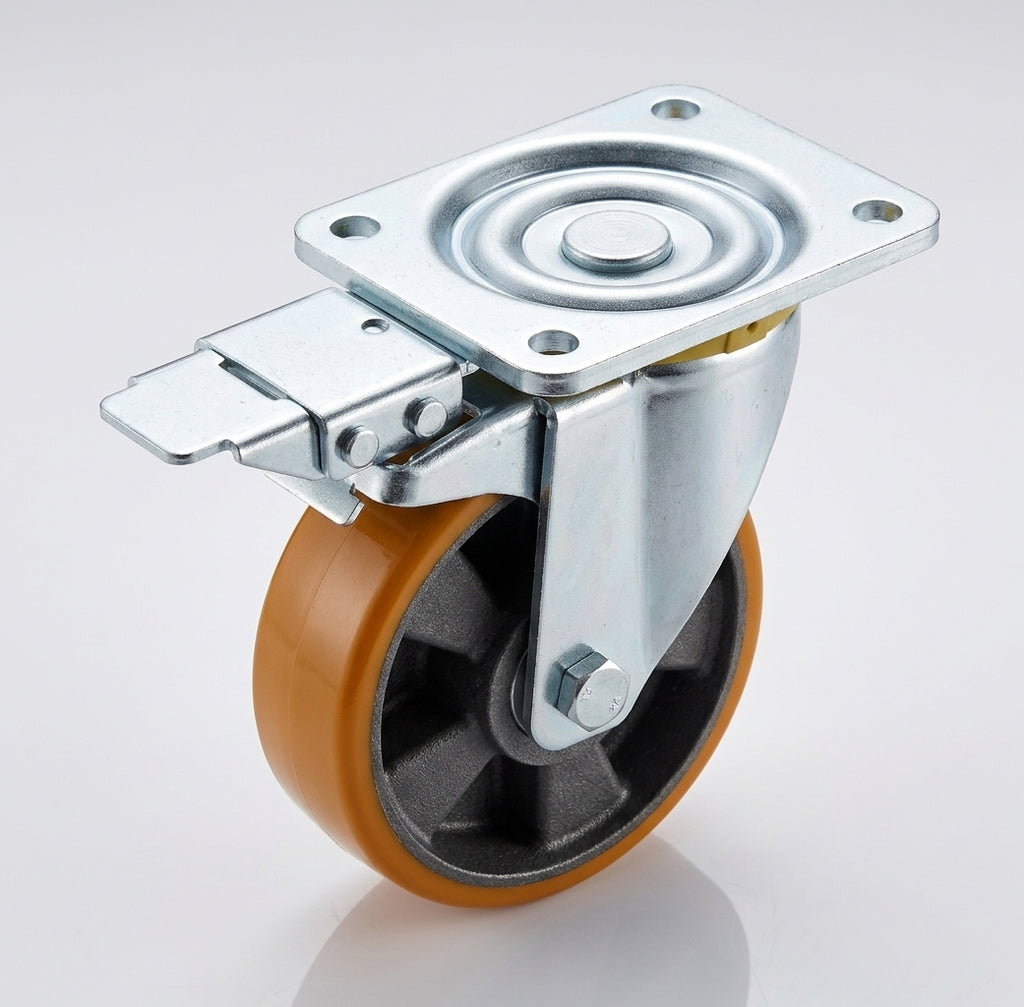

160mm Heavy Duty Directional Lock Castors
Introducing our 160mm Heavy Duty Directional Lock Castors, expertly designed to provide exceptional stability and control for your heavy-duty applications. These castors feature a robust polyurethane wheel that balances grip and wear resistance, making them ideal for smooth, hard surfaces. With a load capacity of up to 700kg, these castors are perfect for warehouse trolleys, industrial carts, and material handling equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Load Capacity | 700 kg |
| Tread Width (mm) | 50 |
| Temperature Range | -20 min to +60 max |
| Hardness of Tread | 92 shore A |
| Max Load Capacity of 4 Castors | 2100 kg |
| Plate Length (mm) | 140 |
| Plate Width (mm) | 110 |
| Plate Hole Centres Length (mm) | 105 |
| Plate Hole Centres Width (mm) | 80/75 |
| Plate Hole Diameter | 10 |
| Swivel Radius | 150 |
| Total Castor Height | 200 |
| Wheel Colour | Yellow |
| Wheel Diameter (mm) | 160 |
| Wheel Material | Polyurethane on Aluminium |
Applications
These castors are perfect for a variety of applications, including:
- Warehouse Trolleys: Offering stable movement and directional control.
- Industrial Carts: Supporting heavy loads with ease.
- Material Handling Equipment: Enhancing manoeuvrability and load capacity.
- Factory Machinery: Ensuring smooth transportation of heavy components.
Frequently Asked Questions
- What is the load capacity of these castors?
- These castors can support a load capacity of up to 700kg.
- What surfaces are these polyurethane wheels suitable for?
- They are designed for smooth, hard surfaces, providing excellent grip and wear resistance.
- How are these castors mounted?
- They are fitted using a top plate for secure attachment to your equipment.
- What is the swivel radius of these castors?
- The swivel radius is 150mm, allowing for easy manoeuvrability.
- Can these castors be used in warehouses?
- Yes, they are ideal for warehouse trolleys and other material handling applications.
- What is the hardness of the tread?
- The tread hardness is rated at 92 shore A, indicating strong resistance to deformation.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
