- Load per castor135kg per castor
- Wheel diameter160mm
- Overall height195mm
- WheelRubber on polypropylene centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Brake
- Foot brake
- Wheel Diameter
- 160mm
- Wheel Material
- Rubber on polypropylene centre
- Wheel Colour
- Grey tyre, black centre
- Tread Width
- 25mm
- Hardness of Tread
- 80 Shore A
- Bearing Type
- Roller bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Single bolt hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 167mm
- Total Castor Height
- 195mm
- Load Capacity
- 135kg per castor
Will it fit?
- Bolt hole12mm
- Overall height195mm
- Swivel radius167mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

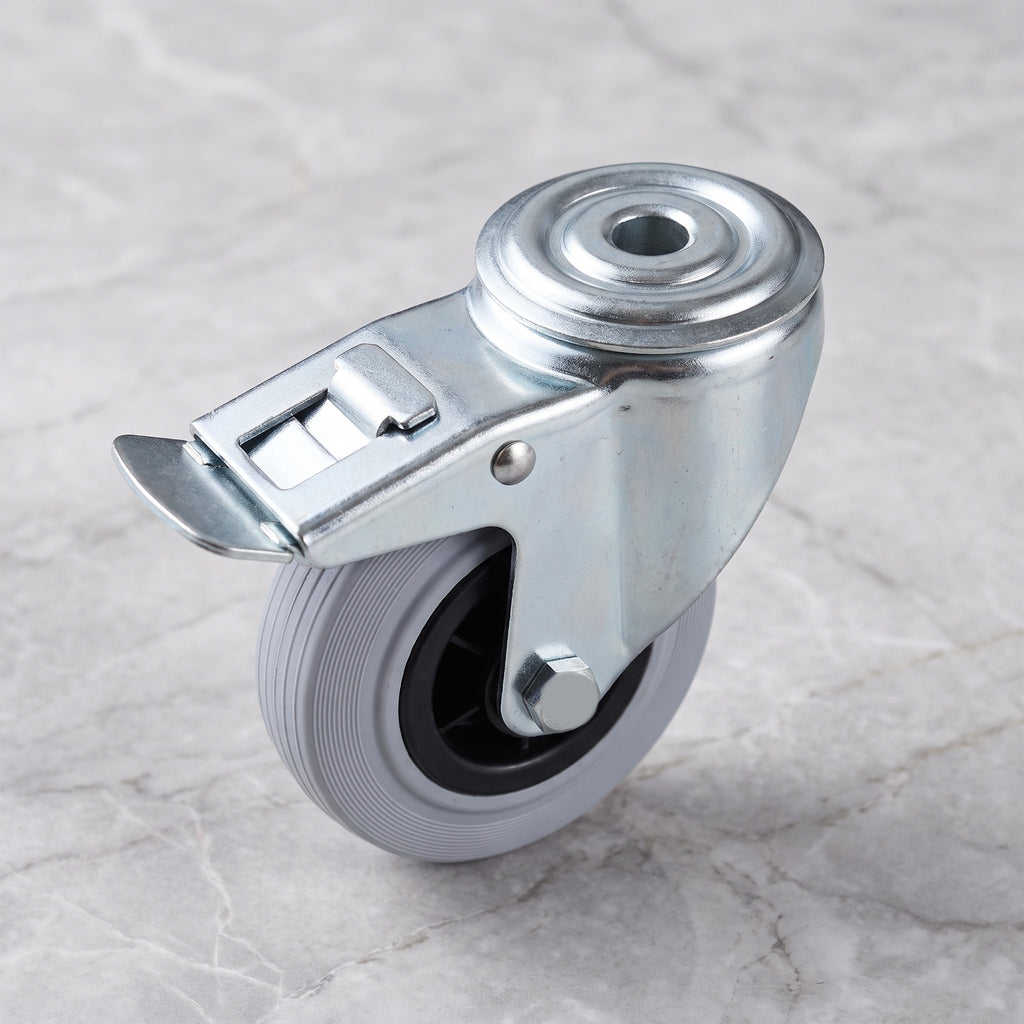

Braked Grey Rubber Bolt Hole Castors
This 160mm braked swivel castor has a grey rubber wheel on a polypropylene centre, made for industrial jobs where mobility and stability both matter. The swivel head turns a full 360 degrees, the foot brake locks the wheel to keep equipment in place, and the roller bearing reduces friction for smooth wheel rotation. It works from -20°C to +60°C and carries 135kg per castor.
It fixes through a single 12mm bolt hole, has a 167mm swivel radius and stands 195mm tall.
Why Choose This Castor
- ✓ Foot brake locks the wheel for secure positioning.
- ✓ Grey rubber tread on a polypropylene centre, 80 Shore A.
- ✓ Roller bearing reduces friction for smooth wheel rotation.
- ✓ 360-degree swivel head for easy turning in tight spaces.
- ✓ 135kg load capacity per castor.
- ✓ Single 12mm bolt hole for quick fitting to legs and frames.
* Load capacity is per castor on a smooth, level floor. Check that the bolt hole size and swivel clearance suit your equipment before fitting.
Where It Works Best
This braked grey rubber bolt hole castor suits:
- ✓ Warehousing: moving equipment and carts in storage facilities.
- ✓ Manufacturing: mobile machinery and equipment in production areas.
- ✓ Assembly lines: moving components along the line for an efficient workflow.
Frequently Asked Questions
What does the brake lock?
The foot brake locks the wheel in place, so your equipment stays put when it is parked. Lift the pedal to release it and move again.
What floors does the wheel suit?
The grey rubber tread is 80 Shore A, giving good grip and durability on a range of industrial floors. It works from -20°C to +60°C.
How much weight can this castor carry?
Each castor is rated for 135kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head, into the tube leg or frame of your equipment.
How much space does it need to swivel?
The swivel radius is 167mm and the total castor height is 195mm.
Where can I use this castor?
It suits warehouse equipment and carts, mobile machinery in manufacturing, and moving components along assembly lines.
