- Load per castor370kg per castor *
- Wheel diameter150mm
- Overall height192mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 150mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Blue
- Tread Width
- 40mm
- Tread Hardness
- 87 Shore A
- Bearing Type
- Ball Bearing
- Load Capacity
- 370kg per castor *
- Top Plate Size
- 135 x 110mm
- Bolt Hole Centres
- 105 x 80mm
- Bolt Hole Diameter
- 10mm
- Swivel Radius
- 140mm
- Total Castor Height
- 192mm
- Temperature Range
- -30°C to +80°C
Will it fit?
- Bolt hole105 x 80mm
- Overall height192mm
- Swivel radius140mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -30°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

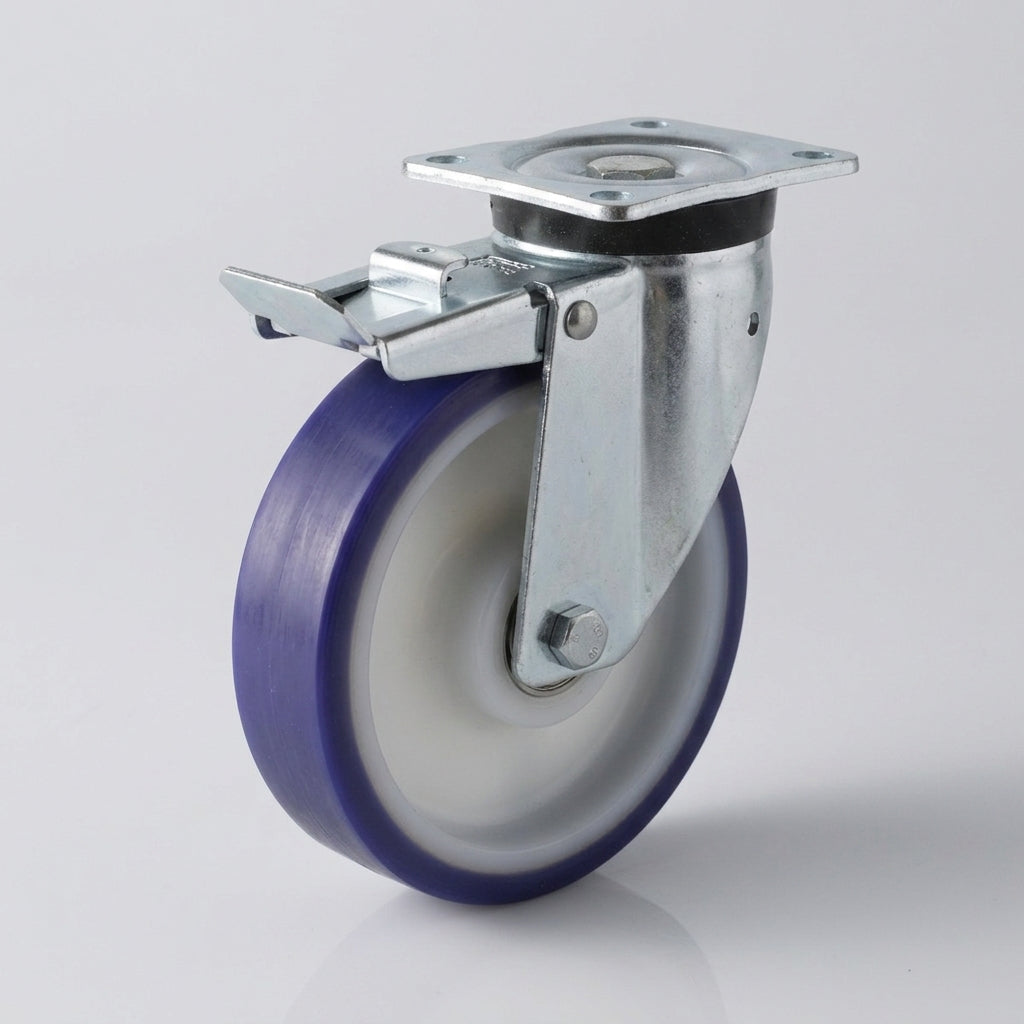

Stainless Steel Braked Castor
This 150mm stainless steel braked swivel castor runs on a blue polyurethane wheel, carrying up to 370kg per castor. Its brake locks both the wheel and the swivel head, giving stability on handling carts, industrial trolleys, warehouse equipment and medical equipment.
The polyurethane tread on a nylon core has a firm 87 Shore A hardness that suits smooth floors, with a 40mm tread width. A ball bearing gives smooth rotation with reduced friction, and the 135 x 110mm top plate has four 10mm holes for secure fitting to flat surfaces. It works from -30°C to +80°C.
Why Choose This Castor
- ✓ Brake locks both the wheel and the swivel head
- ✓ Stainless steel construction
- ✓ Blue polyurethane wheel on a nylon core
- ✓ 370kg load capacity per castor
- ✓ 87 Shore A tread, firm and suited to smooth floors
- ✓ Ball bearing for smooth rotation and reduced friction
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

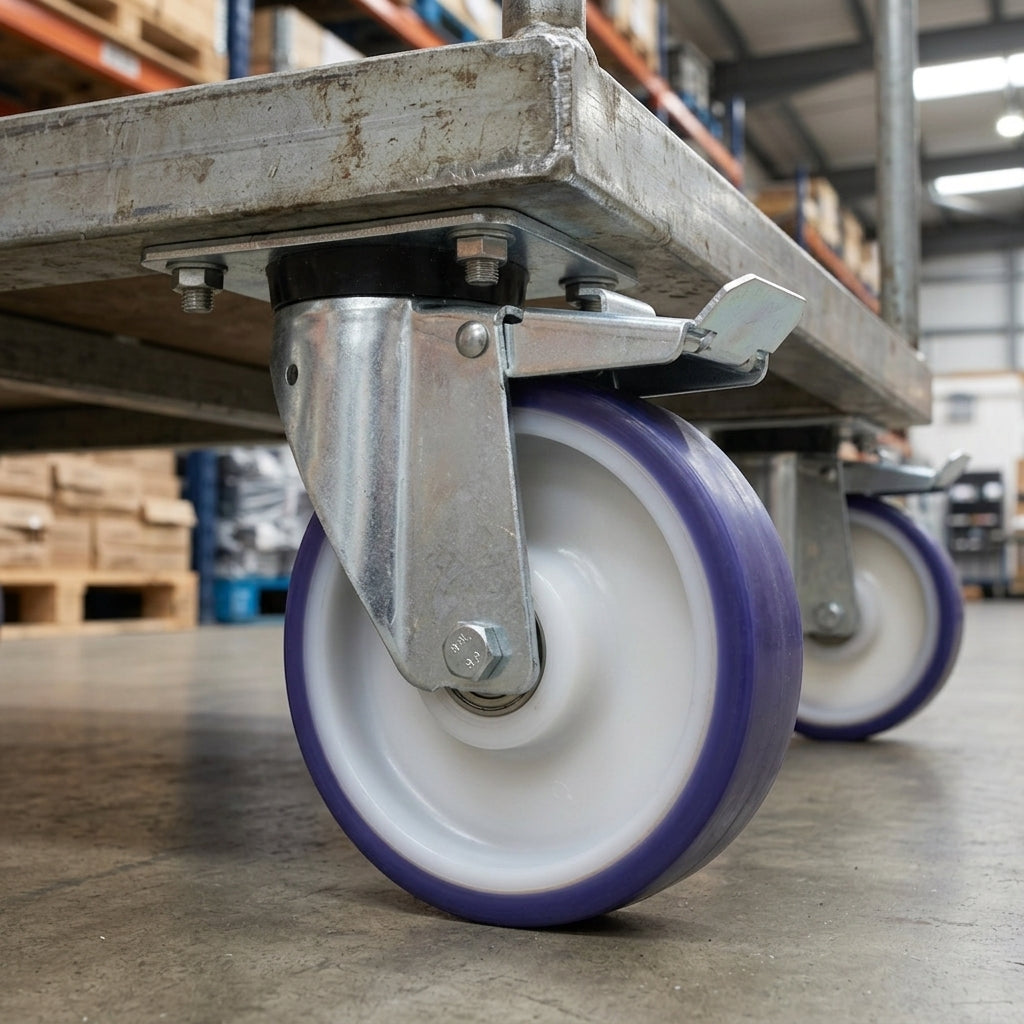

- ✓ Handling carts carrying heavy loads
- ✓ Industrial trolleys transporting materials
- ✓ Warehouse equipment that is often repositioned
- ✓ Medical equipment that needs secure, stable positioning
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
What does the brake lock?
It locks both the wheel and the swivel head, so the castor neither rolls nor turns when the brake is on.
How much weight can it carry?
Each castor is rated at 370kg.
How is it fitted?
The 135 x 110mm top plate has four 10mm holes on 105 x 80mm centres. Bolt it flat to the underside of your trolley or equipment.
What temperatures can it handle?
It is rated from -30°C to +80°C.
How tall is the castor?
The total castor height is 192mm and it needs 140mm of clearance to swivel freely.
