- Load per castor454kg per castor
- Wheel diameter150mm
- Overall height200mm
- WheelErgonomic polyurethane on aluminium centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed Top Plate Castor
- Brake
- None
- Wheel Diameter
- 150mm
- Wheel Material
- Ergonomic polyurethane on aluminium centre
- Wheel Colour
- Orange
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A
- Bearing Type
- Ball journal bearing
- Temperature Range
- -20°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 200mm
- Load Capacity
- 454kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

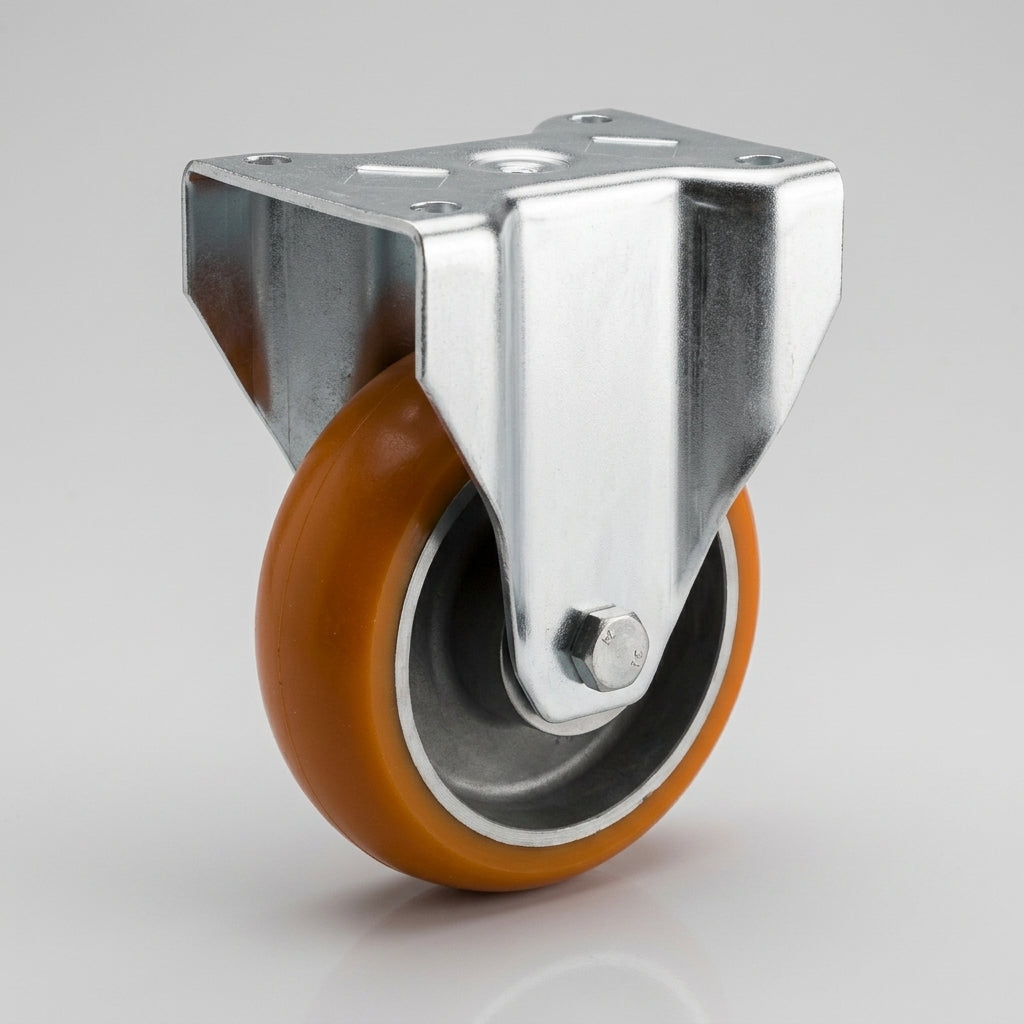

Heavy Duty Top Plate Castors
This 150mm Apex heavy duty fixed castor has an orange ergonomic polyurethane wheel with a 92 Shore A (A92) tread, which deforms slightly under load to spread the contact patch, ideal for smooth, hard surfaces. The aluminium centre and ball journal bearing give smooth rolling, and the fixed design keeps a steady straight-line direction. Rated for 454kg per castor.
It fixes securely to flat surfaces with a 140 x 110mm top plate, stands 200mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ 454kg load capacity per castor for demanding tasks.
- ✓ Ergonomic polyurethane wheel with a 50mm tread and 92 Shore A hardness.
- ✓ Aluminium centre for strength with reduced weight.
- ✓ Ball journal bearing for smooth rotation.
- ✓ Fixed design for straight-line movement and steady tracking.
- ✓ 140 x 110mm top plate with four 10mm holes for a secure, stable fixing.
- ✓ Temperature range from -20°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and castor height suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed top plate castor suits:

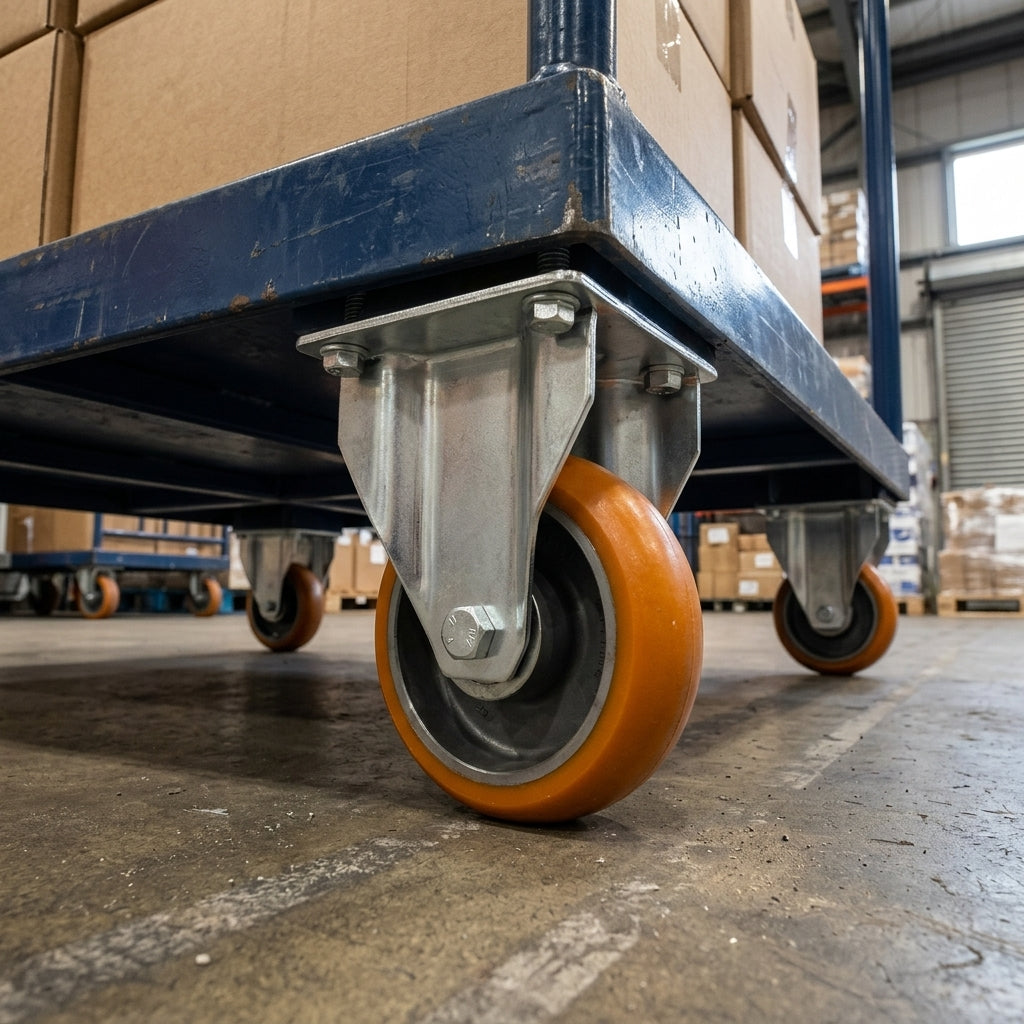

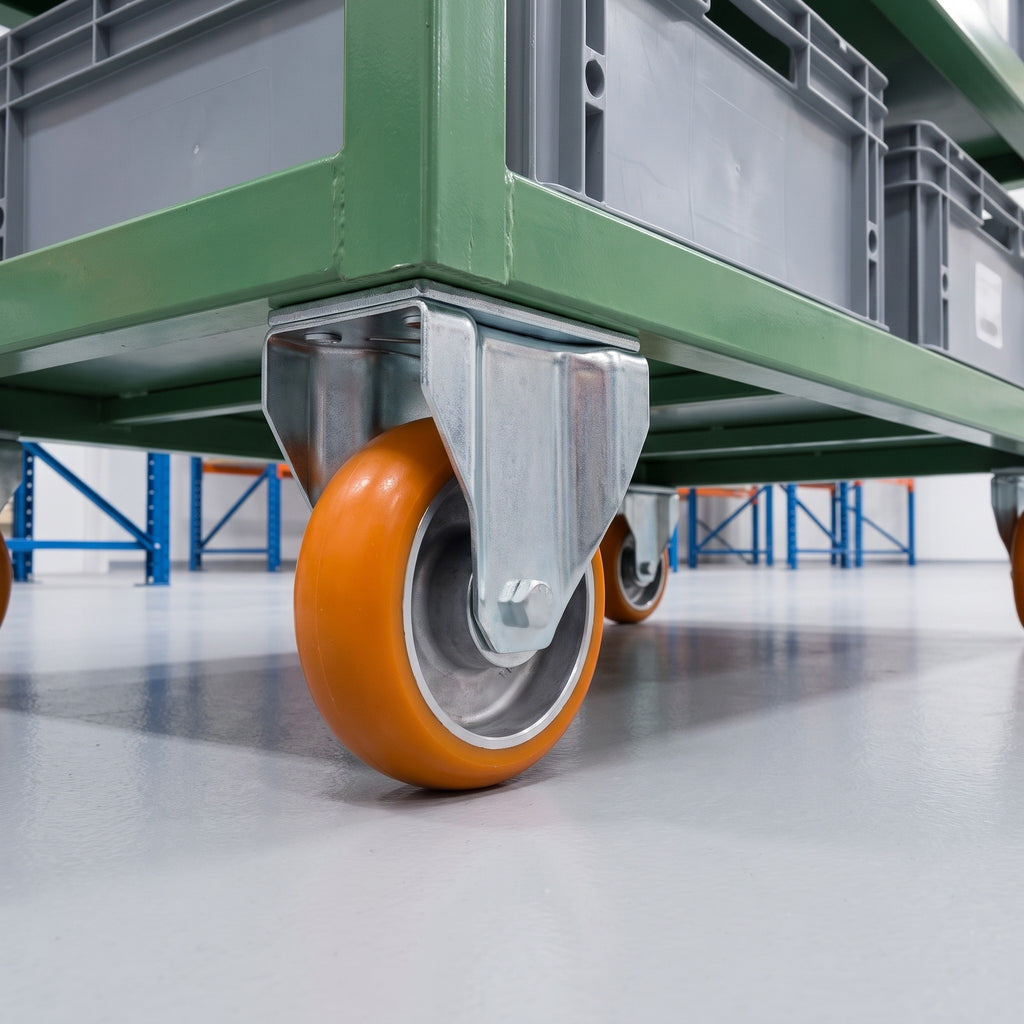

- ✓ Warehouse trolleys: moving heavy loads smoothly on flat surfaces.
- ✓ Industrial carts: stable, fixed movement for heavy duty tasks.

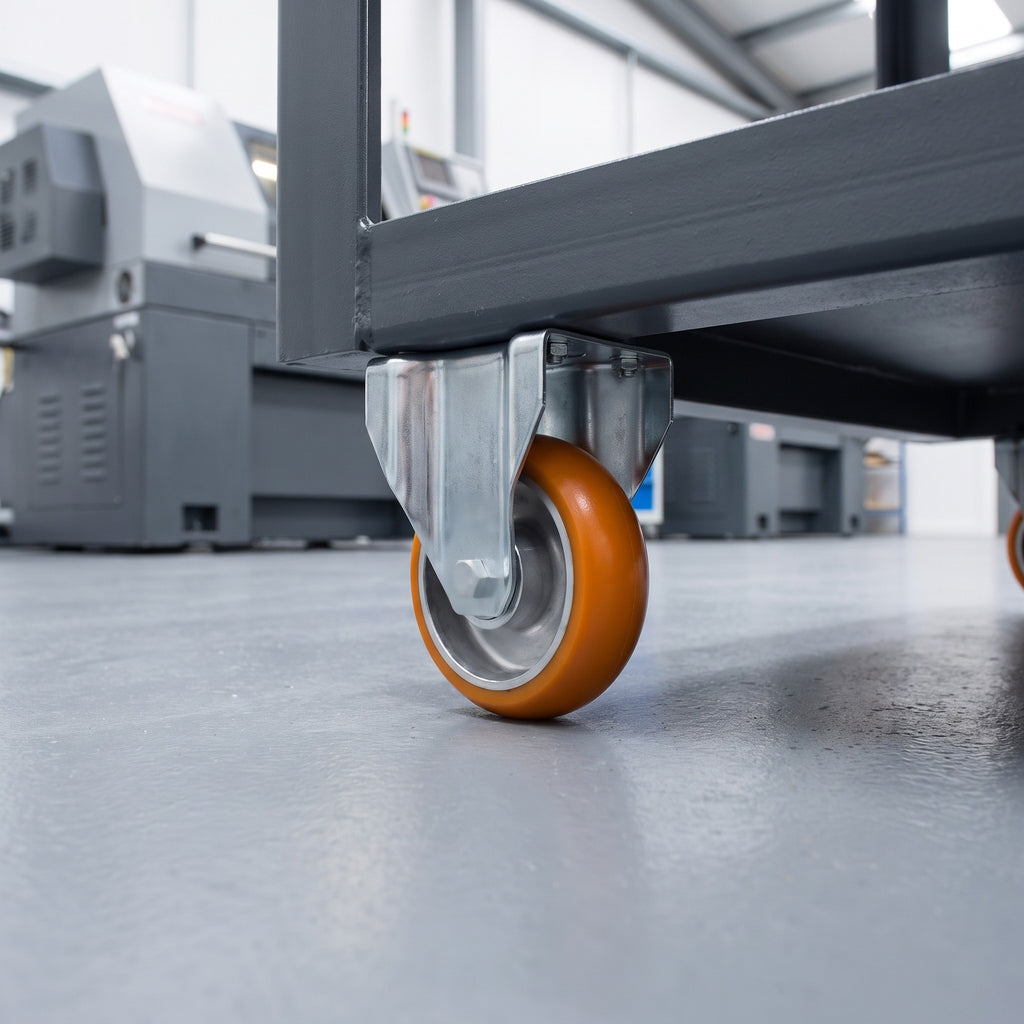

- ✓ Manufacturing equipment: machinery that needs fixed directional movement.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that rolls in a straight line only. Pair it with swivel castors on the same trolley for easy steering.
How much weight can this castor carry?
Each castor is rated for 454kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 200mm from the floor to the top of the plate.
What is the wheel made of?
A 150mm orange ergonomic polyurethane tread on an aluminium centre, 50mm wide with 92 Shore A hardness, running on a ball journal bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
