- Load per castor900kg per castor
- Wheel diameter150mm
- Overall height202mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Extra Heavy Duty Fixed Top Plate Castor
- Wheel Diameter
- 150mm
- Wheel Material
- Nylon
- Tread Width
- 48mm
- Bearing Type
- Ball bearing
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80mm
- Hole Diameter
- 12mm
- Total Castor Height
- 202mm
- Load Capacity
- 900kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Extra Heavy Duty Castors

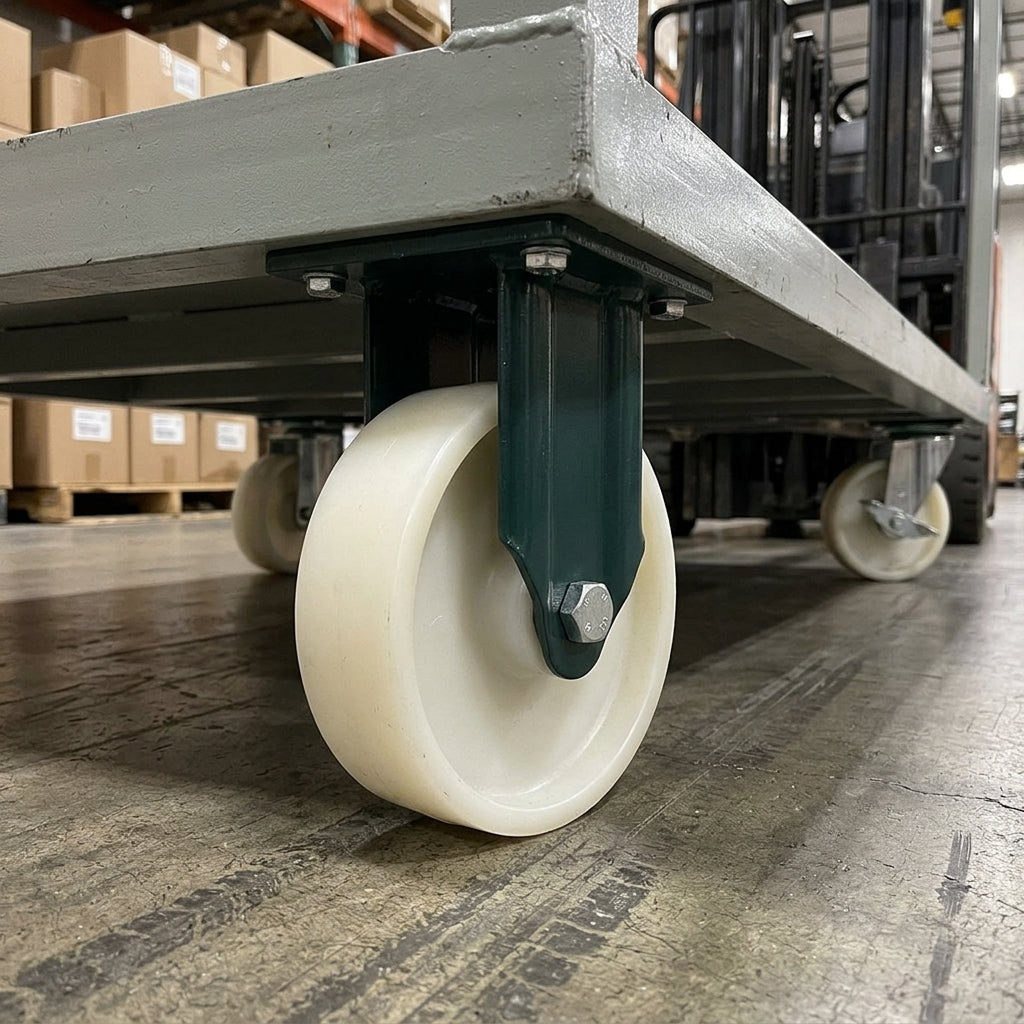

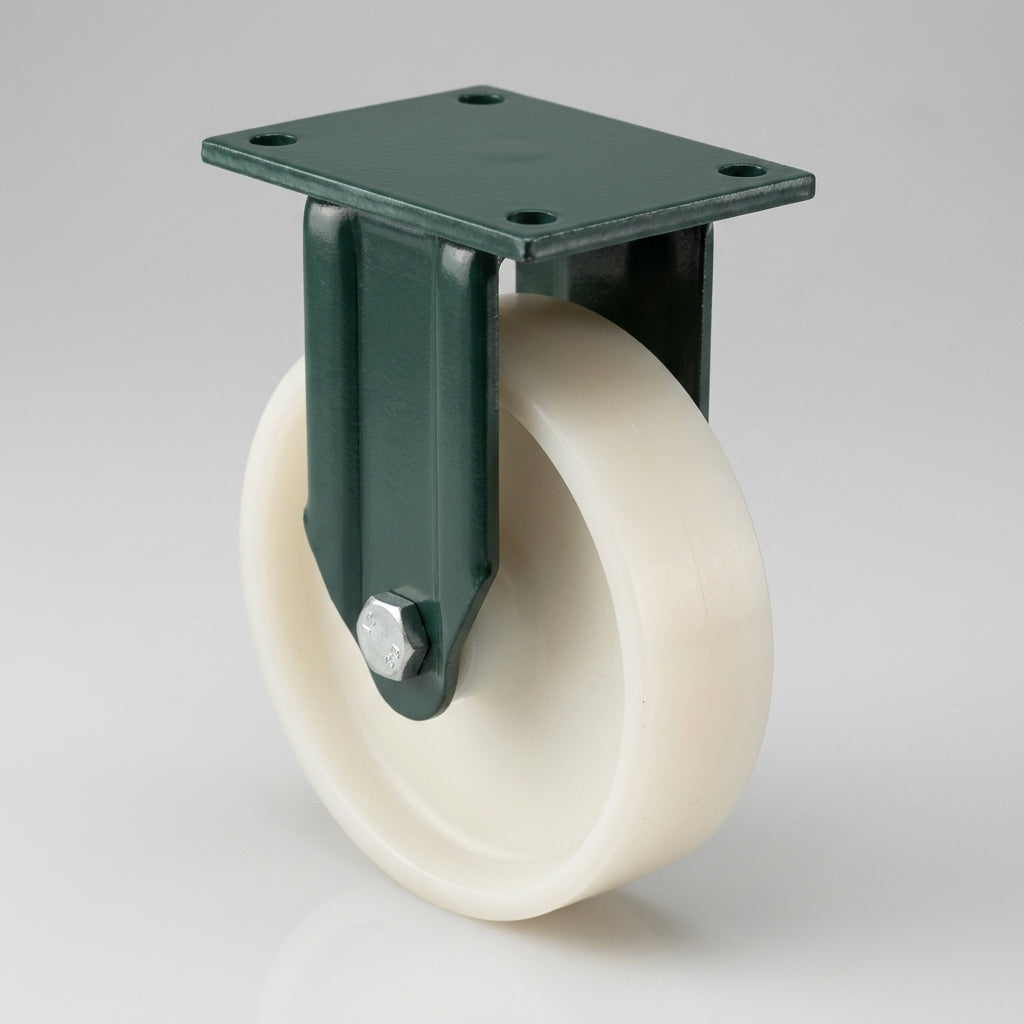

Built for heavy industrial work, this extra heavy duty fixed castor has a 150mm nylon wheel with a 48mm tread and a ball bearing for easy rolling under load. The rigid fork keeps equipment tracking in a straight line. The nylon wheel resists wear and rolls smoothly on hard floors, and each castor is rated for 900kg.
It fixes to your equipment with a 135 x 110mm top plate and stands 202mm tall. Check that the plate size and hole centres match your existing setup before ordering.
Why Choose This Castor
- ✓ 900kg load capacity per castor for heavy machinery and pallets.
- ✓ Nylon wheel 150mm diameter with a 48mm tread, resilient against wear and light in weight.
- ✓ Ball bearing for efficient rotation with less effort.
- ✓ Fixed rigid fork for straight-line tracking and steady direction control.
- ✓ 135 x 110mm top plate with four 12mm holes on 105 x 80mm centres.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and wheel clearance suit your mounting area before fitting.
Where It Works Best
This extra heavy duty nylon fixed castor suits:
- ✓ Warehouse equipment: trolleys and carts for moving goods efficiently.
- ✓ Manufacturing: heavy machinery and components on production lines.
- ✓ Logistics: moving bulk items in distribution centres.
- ✓ Industrial settings: carrying heavy loads across flat factory floors.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 900kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 150mm nylon wheel with a 48mm tread, running on a ball bearing.
How is the castor fitted?
It has a 135 x 110mm top plate with four 12mm holes on 105 x 80mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
No. This is a fixed castor that rolls in a straight line. Pair it with swivel castors on the other end of your trolley for steering. The total castor height is 202mm.
What floors does it suit?
The nylon wheel rolls easily on smooth, hard floors and resists wear in industrial use.
