In stock SKU CUK-CASTOR-150-EPU-TP-S-MF

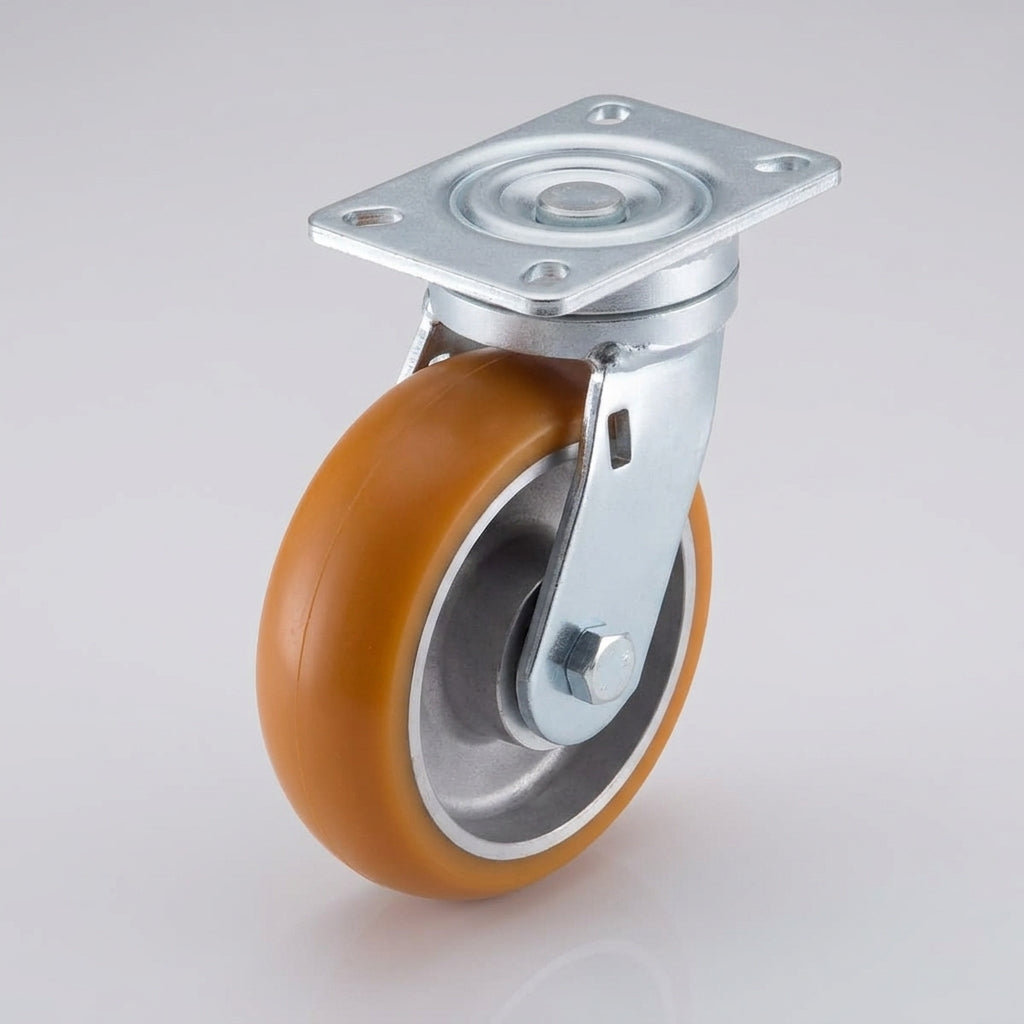

150mm Maintenance-Free Swivel Castor Orange Ergonomic Polyurethane Wheel 114 x 102mm Top Plate 454kg Load Capacity

  • Load per castor454kg per castor *
  • Wheel diameter152mm
  • Overall height191mm
  • WheelErgonomic Polyurethane
Castor type
SwivelThis item Fixed£102.27Braked£239.57
Sale price£216.99
inc VAT
£180.83 ex VAT · each
Estimated UK delivery in 4–10 working days Orders placed before 5pm (Mon–Fri) start processing the same day. Flat £9.99 delivery per order, however many you buy.
  • Secure checkout
  • 14-day returns on unused items
  • UK-based castor advice
American Express Apple Pay Diners ClubDiscoverGoogle Pay MaestroMastercard Shop Pay Union PayVisa

Specifications

Castor Type
Maintenance-Free Swivel Castor, Top Plate Fitting
Wheel Diameter
152mm
Wheel Material
Ergonomic Polyurethane
Wheel Colour
Orange
Tread Hardness
87A
Tread Width
50mm
Bearing Type
Ball Bearing
Load Capacity
454kg per castor *
Plate Size
114 x 102mm
Plate Hole Centres
92/75 x 75/67mm
Plate Hole Diameter
10mm
Swivel Radius
116mm
Total Castor Height
191mm
Temperature Range
-20°C to +80°C

Load check

Enter the weight of the item plus its heaviest load. This castor is rated 454kg per castor * each.

How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.

Floors & use

Polyurethane tread · working temperature -20°C to +80°C

  • Rolls quietly and smoothly
  • Kind to most finished floors
  • Hard-wearing, carries a high load for its size
  • Ideal on concrete, epoxy, vinyl and tiles
  • Not intended for very hot areas
  • Less cushioning than rubber over rough ground

Details & FAQs

Ergonomic Heavy Duty Castors

Move heavy loads with less effort using this 150mm maintenance-free swivel castor. An orange ergonomic polyurethane tyre keeps rolling resistance down, while each castor is rated to 454kg, making it a strong fit for handling trolleys, hospital beds and carts, display units and catering carts.

The swivel head turns on a ball journal bearing for easy steering. Fixing is through a 114 x 102mm top plate with 10mm holes on two patterns, 92 x 75mm and 75 x 67mm. The tyre is 50mm wide with an 87A hardness, the castor stands 191mm tall, and it is rated for -20°C up to +80°C.

Why Choose This Castor

  • ✓ Maintenance-free swivel castor design.
  • ✓ Ergonomic polyurethane tyre in orange, 50mm wide, 87A hardness, for lower rolling resistance on hard floors.
  • ✓ Rated to 454kg per castor.
  • ✓ Ball journal bearing in the swivel for easy turning.
  • ✓ Two hole patterns on a 114 x 102mm plate with 10mm holes.
  • ✓ Works from -20°C to +80°C.

* The load rating applies to each castor.

Where It Works Best

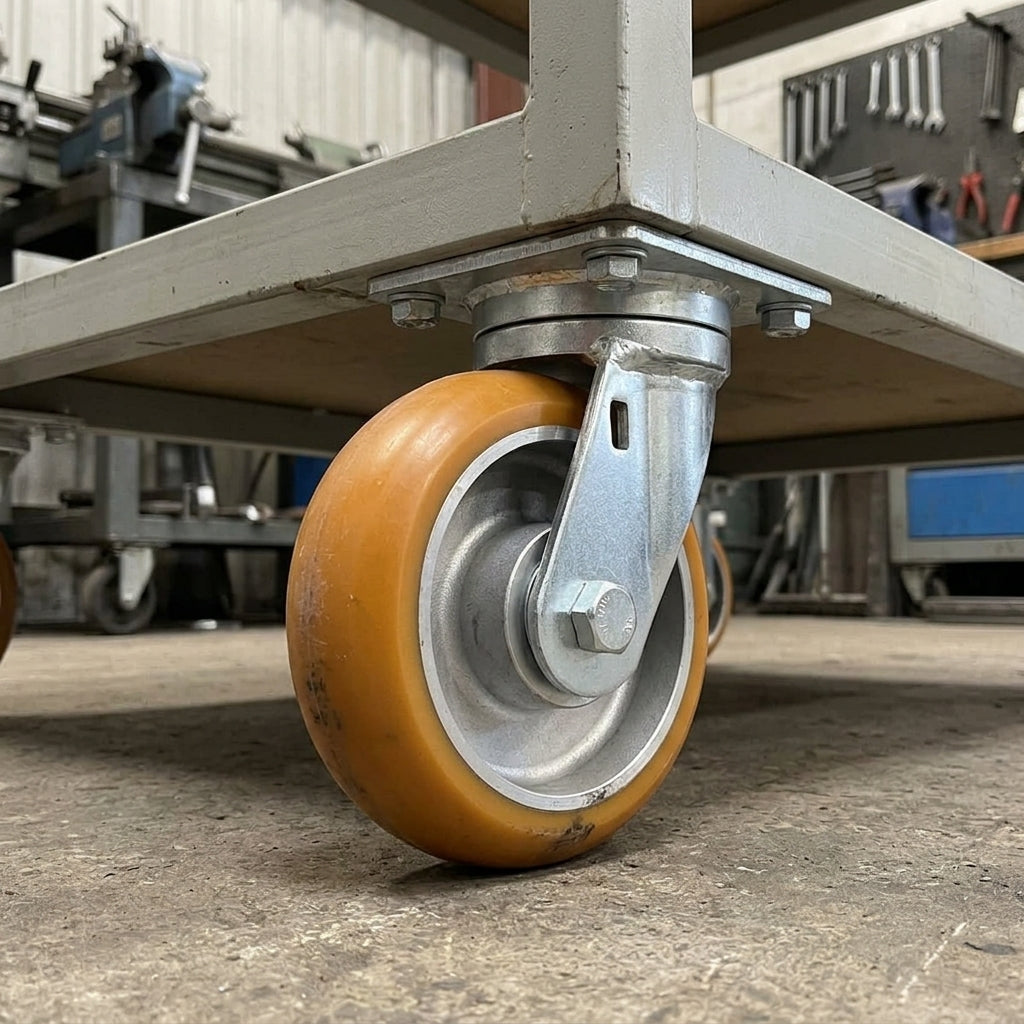

  • ✓ Warehouse and factory trolleys: heavy material handling trolleys that need to steer easily.
  • ✓ Hospital beds and carts: moving medical equipment around wards and corridors.
  • ✓ Retail display units: repositioning heavy shop display stands.
  • ✓ Catering and food service carts: moving loaded service carts in kitchens and dining areas.
  • ✓ Workshop equipment: making tool chests and workbenches mobile.

Frequently Asked Questions

Does this castor swivel?

Yes. It is a swivel castor with a ball journal bearing in the head, and it needs a 116mm swivel radius of clear space.

How much weight can it carry?

Each castor is rated to 454kg.

What size is the top plate?

114 x 102mm with 10mm holes. It has two hole patterns, 92 x 75mm and 75 x 67mm, so check one of them lines up with your existing holes.

How tall is the castor?

It measures 191mm from the floor to the top of the plate.

What is the tyre like?

An orange ergonomic polyurethane tyre, 50mm wide with an 87A hardness. It is on the softer side, which helps it grip and roll easily on hard surfaces.

What temperatures can it handle?

It is rated for use from -20°C up to +80°C.
