In stock SKU CUK-CASTOR-125-EPU-TP-F-P114

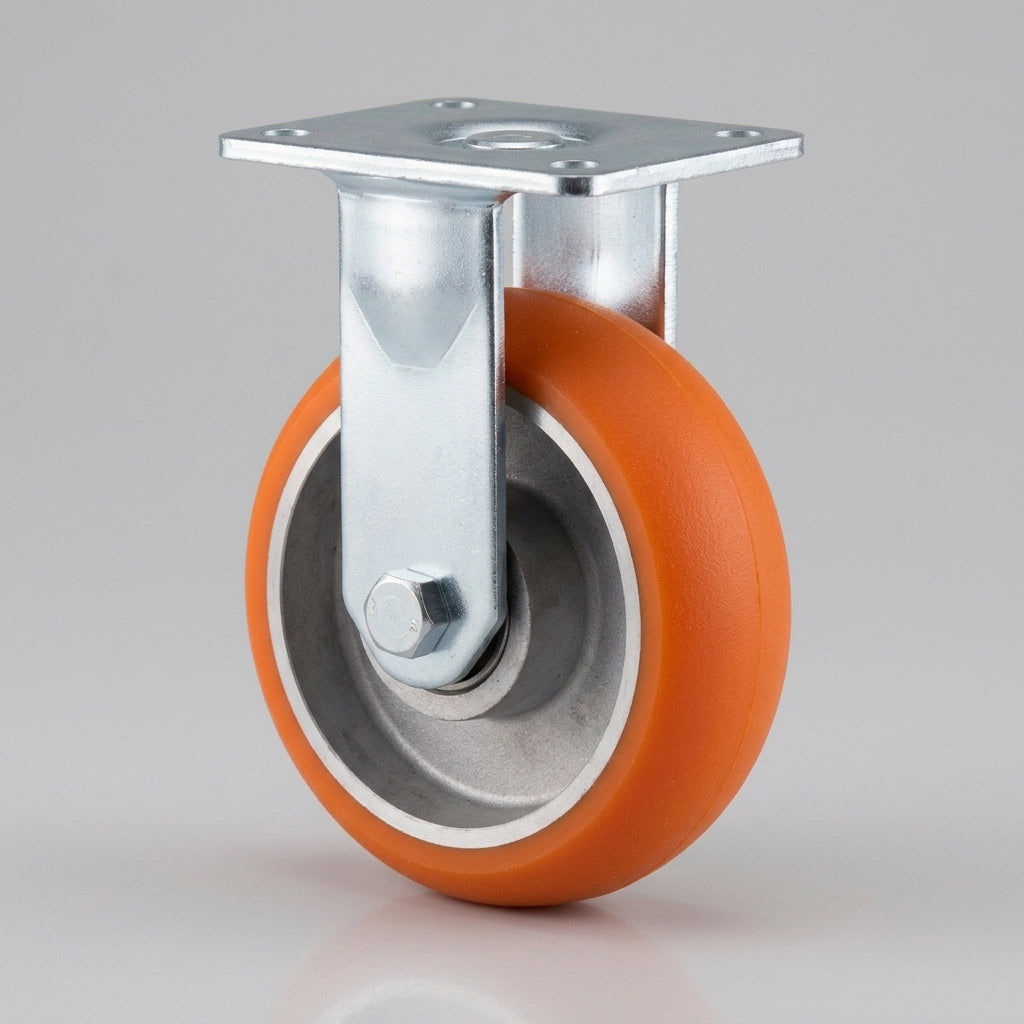

125mm Fixed Castor Orange Ergonomic Polyurethane Wheel Top Plate 362kg Load Capacity

  • Load per castor362kg per castor *
  • Wheel diameter127mm (5")
  • Overall height165mm
  • WheelErgonomic Polyurethane
Castor type
Sale price£95.99
inc VAT
£79.99 ex VAT · each
Estimated UK delivery in 4–10 working days Orders placed before 5pm (Mon–Fri) start processing the same day. Flat £9.99 delivery per order, however many you buy.
  • Secure checkout
  • 14-day returns on unused items
  • UK-based castor advice
American Express Apple Pay Diners ClubDiscoverGoogle Pay MaestroMastercard Shop Pay Union PayVisa

Specifications

Castor Type
Fixed Castor
Fixing
Top Plate
Wheel Diameter
127mm (5")
Wheel Material
Ergonomic Polyurethane
Wheel Colour
Orange
Tread Hardness
87 Shore A
Tread Width
50mm
Bearing Type
Ball Bearing
Load Capacity
362kg per castor *
Plate Size
114 x 102mm
Plate Hole Centres
92 x 75mm and 75 x 67mm
Plate Hole Diameter
10mm
Total Castor Height
165mm
Temperature Range
-20°C to +80°C

Load check

Enter the weight of the item plus its heaviest load. This castor is rated 362kg per castor * each.

How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.

Floors & use

Polyurethane tread · working temperature -20°C to +80°C

  • Rolls quietly and smoothly
  • Kind to most finished floors
  • Hard-wearing, carries a high load for its size
  • Ideal on concrete, epoxy, vinyl and tiles
  • Not intended for very hot areas
  • Less cushioning than rubber over rough ground

Details & FAQs

Ergonomic Castors

This 125mm fixed castor pairs an orange ergonomic polyurethane wheel with a rigid top plate bracket, carrying 362kg per castor. It keeps trolleys, carts and equipment running straight and stable, and is often paired with matching swivel castors.

The 87 Shore A tread gives a softer contact patch than a standard wheel for smoother, quieter running on hard surfaces, and the ball journal bearing reduces friction. It works from -20°C to +80°C and bolts to flat surfaces through the four 10mm holes in its 114 x 102mm top plate.

Why Choose This Castor

  • ✓ Ergonomic polyurethane wheel with a softer 87A tread for smoother running on hard floors.
  • ✓ Fixed bracket for straight, stable directional movement.
  • ✓ 362kg per castor for heavy trolleys and equipment.
  • ✓ Ball journal bearing that reduces friction.
  • ✓ Wide 50mm tread on a 125mm wheel.
  • ✓ Dual hole pattern top plate (92 x 75mm or 75 x 67mm) for easy replacement.

* Load capacity is per castor. For a set of four, plan on three castors carrying the load on uneven floors, so about 1,086kg.

Where It Works Best

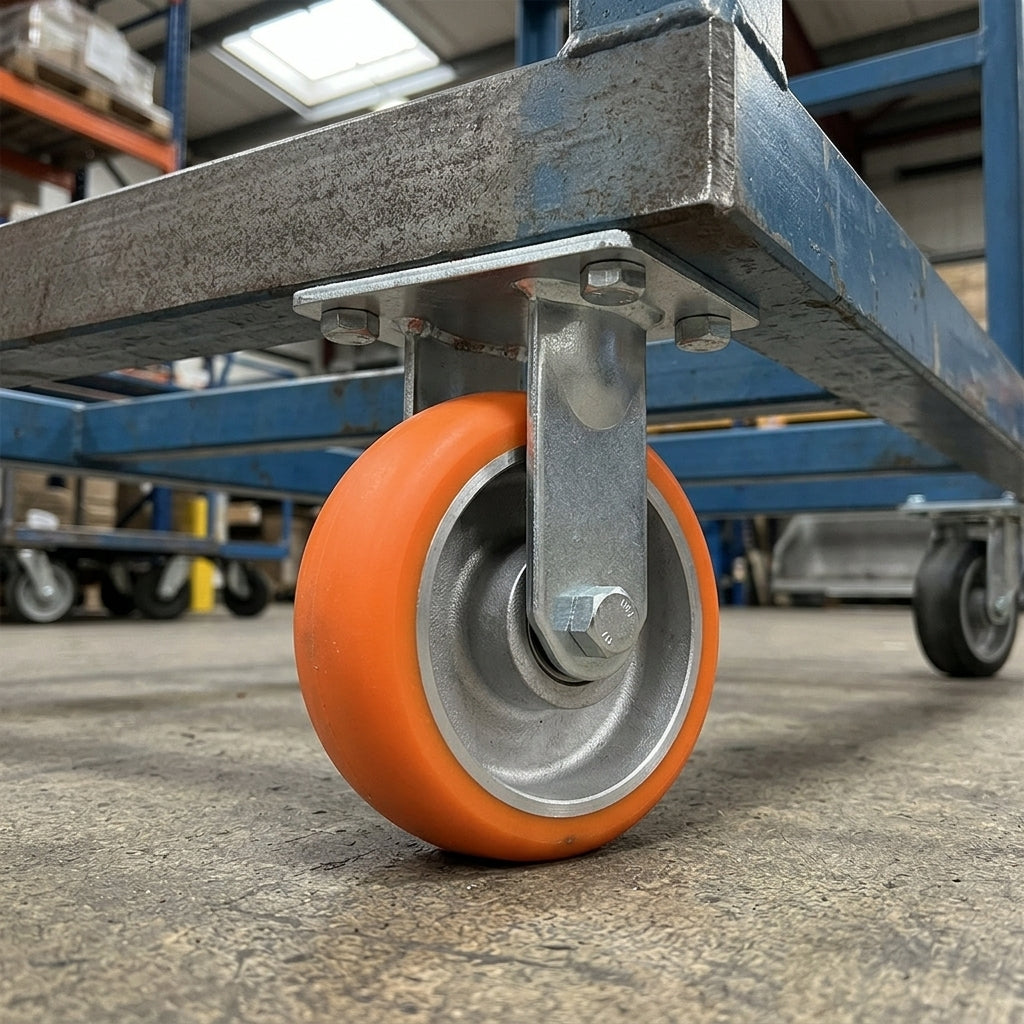

  • ✓ Material handling trolleys: stable, straight-line movement.
  • ✓ Warehouse carts: reliable fixed-direction travel.
  • ✓ Industrial equipment: machinery that needs fixed castors.
  • ✓ Tow lines: tow train carts that need to track straight behind the tug.

Frequently Asked Questions

Does this castor swivel?

No. This is a fixed castor, so the wheel only rolls forwards and backwards. Pair it with matching swivel castors if you need to steer.

What makes this castor ergonomic?

The soft 87 Shore A polyurethane tread gives a softer contact patch, and the ball journal bearing reduces friction. Together they help equipment roll more smoothly with less effort.

How do I fit this castor?

Bolt the 114 x 102mm top plate to a flat, solid surface through its four 10mm holes. The plate suits either a 92 x 75mm or a 75 x 67mm hole pattern, so it can often replace an existing castor without drilling new holes.

How much weight can it carry?

Each castor is rated at 362kg. For a set of four, plan on three castors carrying the load on uneven floors, so about 1,086kg.

Which floors is it suitable for?

The soft polyurethane tread suits smooth concrete, resin, vinyl and tiled floors. It runs quieter than nylon or cast iron and does not mark most floors.

How tall is the castor?

The total castor height is 165mm, from the floor to the top of the plate.

Delivery & returns

£9.99 flat rateOne charge per order to any UK address.
Secure checkoutYour payment is processed safely through our encrypted checkout.
14-day returnsUnused items in original packaging, agreed with us first. Refund policy
Need it sooner?Call 01282 270214 before ordering and we will check what is possible.
