- Load per castor150kg per castor *
- Wheel diameter125mm
- Overall height155mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 125mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Red
- Tread Width
- 30mm
- Hardness of Tread
- D60
- Bearing Type
- Roller Bearing
- Load Capacity
- 150kg per castor *
- Fixing
- Single Bolt Hole
- Bolt Hole Size
- 12mm
- Swivel Radius
- 103mm
- Total Castor Height
- 155mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height155mm
- Swivel radius103mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

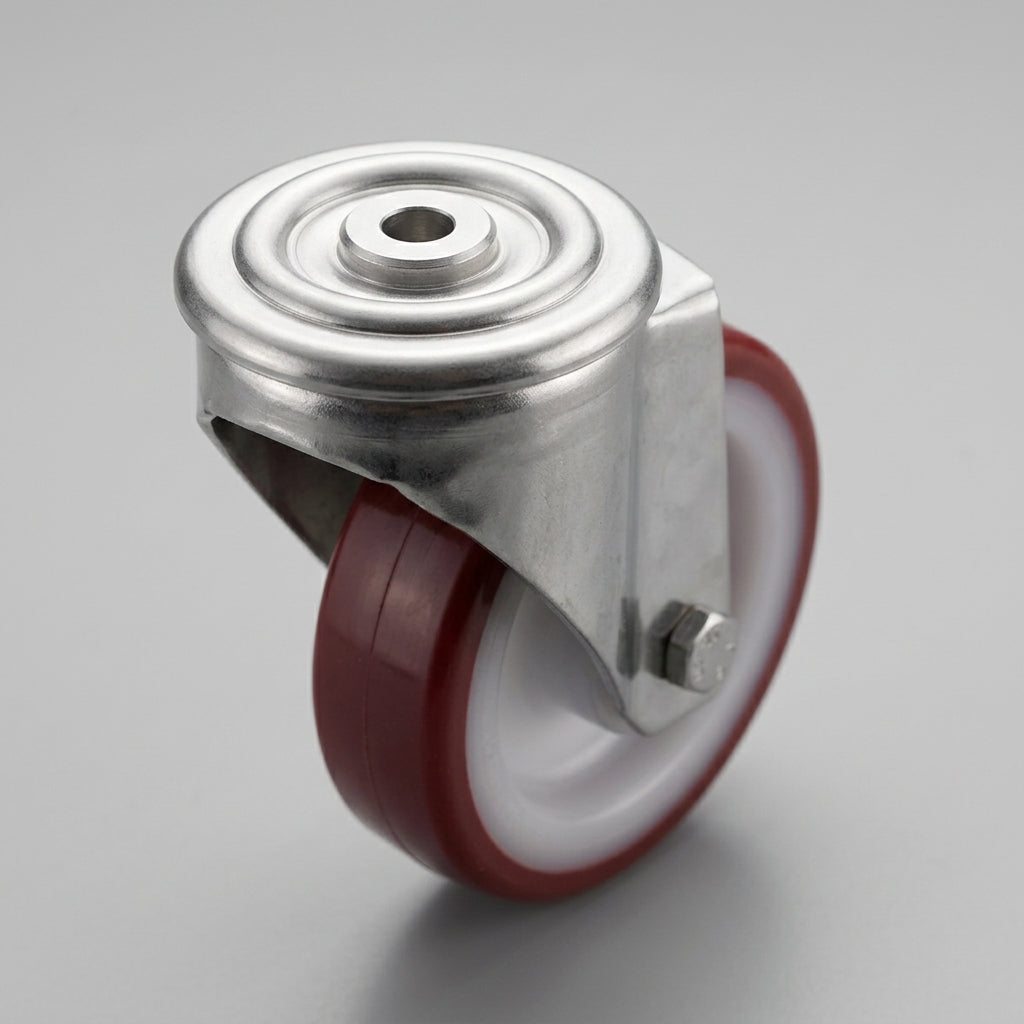

Stainless Steel Bolt Hole Castor

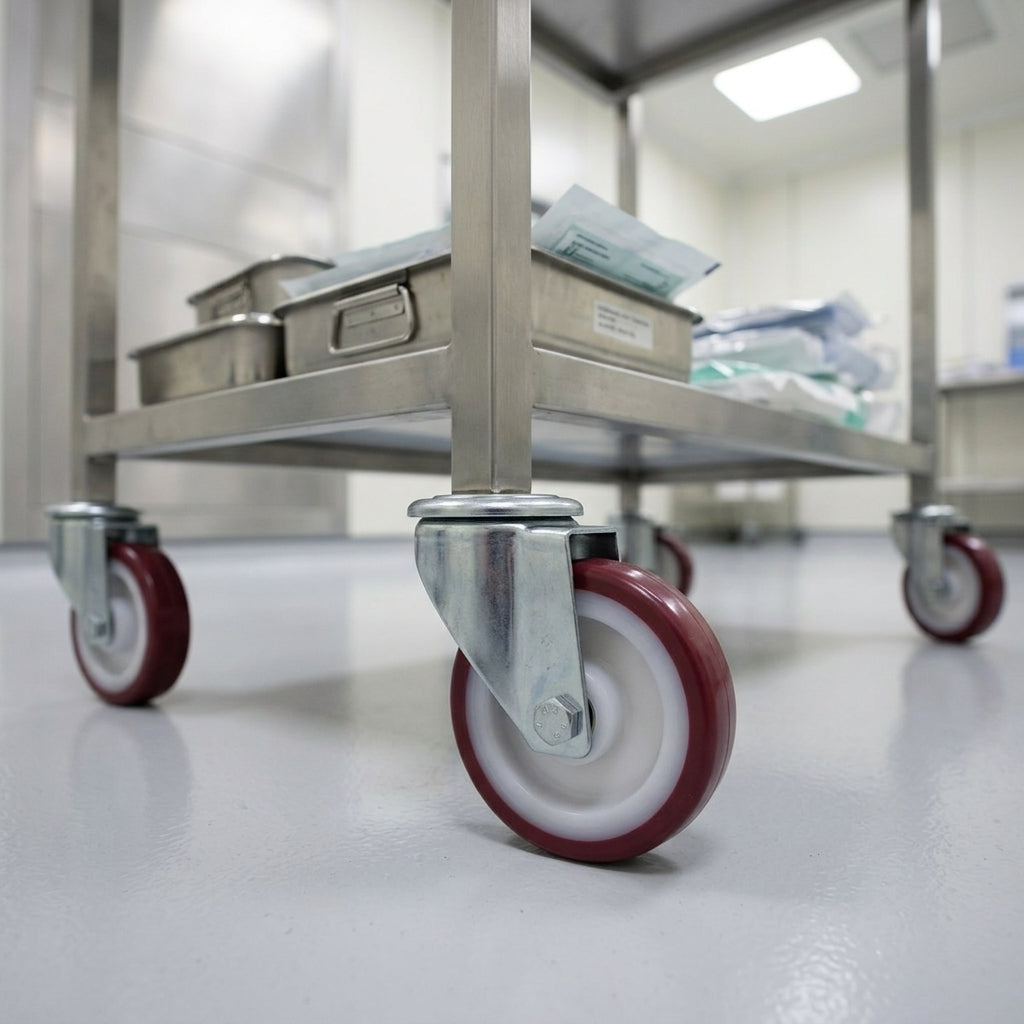

This 125mm stainless steel swivel castor runs on a heavy-duty red polyurethane wheel with a nylon centre and carries up to 150kg per castor. It suits food manufacturing, food processing trolleys and commercial kitchen equipment, where hygiene and resilience matter.
The polyurethane on nylon wheel balances strength with resilience, and the roller bearing keeps rotation smooth. A single 12mm bolt hole fits into the end of a tube leg or onto a threaded fixing, and the castor works from -40°C to +80°C.
Why Choose This Castor
- ✓ Heavy-duty red polyurethane tread on a nylon centre
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ Roller bearing for smooth rotation
- ✓ 150kg load capacity per castor
- ✓ Works from -40°C to +80°C
- ✓ Single 12mm bolt hole for tube legs and threaded fixings
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing where hygiene and resilience are critical
- ✓ Food processing trolleys and carts for ingredients and products
- ✓ Moveable commercial kitchen units and equipment
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
Frequently Asked Questions
How much weight can it carry?
Each castor is rated at 150kg. A set of four is best used for loads up to around 450kg, allowing for uneven floors.
How is it fitted?
It has a single 12mm bolt hole. Fit it with a matching 12mm bolt or threaded stem, or use a matching tube adaptor to fit it into a round or square tube leg.
What is the wheel made of?
The wheel has a red polyurethane tread with a D60 hardness, bonded to a nylon centre.
What temperatures can it work in?
The castor works from -40°C to +80°C.
How tall is the castor?
The total castor height is 155mm and it needs 103mm of clearance to swivel freely.
