- Load per castor100kg per castor
- Wheel diameter125mm
- Overall height365mm
- WheelRubber on polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Jacking Castor
- Series
- JA4
- Wheel Diameter
- 125mm
- Wheel Material
- Rubber on polypropylene
- Wheel Colour
- Grey
- Tread Width
- 23mm
- Bearing Type
- Roller
- Load Capacity
- 100kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 365mm
- Total Height to Plate Lower Bolt Hole
- 178mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 441mm
- Swivel Radius
- 98mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height365mm
- Swivel radius98mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Medium Duty Jacking Castors

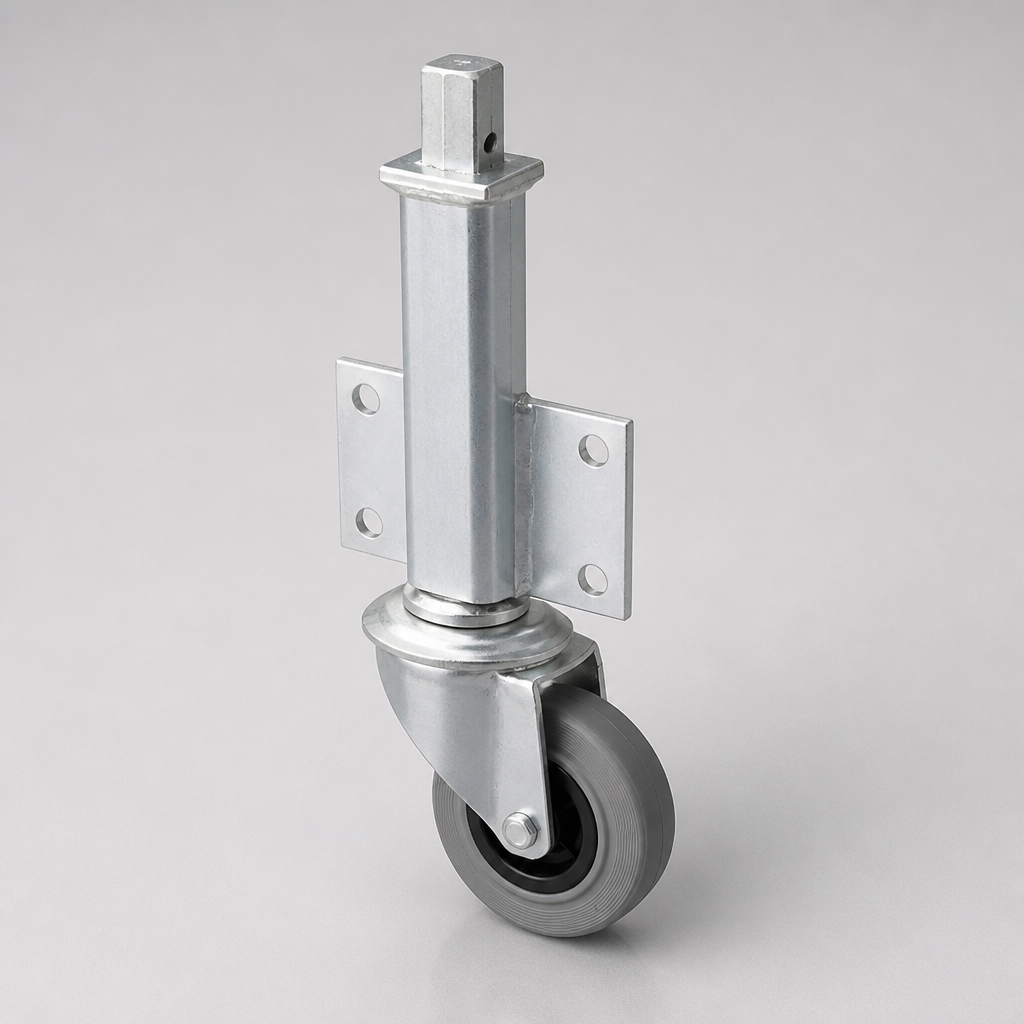

Move your equipment when you need to, then lift it back onto its own feet. This medium duty jacking castor combines a 125mm grey rubber on polypropylene swivel wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly in place. The roller bearing keeps the wheel turning smoothly, and each castor is rated for 100kg.
It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 365mm tall and the jacking unit reaches 441mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises and lowers your equipment so it can roll or stand firm.
- ✓ 24mm spanner operation simple, controlled height adjustment with a standard spanner.
- ✓ Grey rubber wheel 125mm rubber on polypropylene wheel with a 23mm tread for a smooth ride.
- ✓ Swivel castor 98mm swivel radius for easy steering in tight spaces.
- ✓ Roller bearing for smooth rolling with less effort.
- ✓ 100kg load capacity per castor for medium duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty swivel jacking castor suits:
- ✓ Industrial use: tasks that need mobility and load support.
- ✓ Adjustable height tasks: applications where height adjustment is necessary.
- ✓ Swivel movement: where frequent changes of direction are needed.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
How much weight can this castor carry?
Each castor is rated for 100kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 125mm grey rubber tyre on a polypropylene centre with a 23mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels with a 98mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
