- Load per castor150kg *
- Wheel diameter125mm
- Overall height365mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Jacking Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon
- Tread Width
- 30mm
- Bearing Type
- Roller
- Load Capacity
- 150kg *
- Bolt Hole Size
- 10 mm
- Plate Length
- 130mm
- Plate Width
- 75mm
- Plate Hole Centres (Length)
- 102mm
- Plate Hole Centres (Width)
- 51mm
- Plate Hole Diameter
- 11mm
- Total Height to Plate Lower Bolt Hole
- 178mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Lift
- 76mm
- Jacking Unit Height When Extended (76mm)
- 441mm
- Total Castor Height
- 365mm
- Swivel Radius
- 120mm
- Operating Method
- 24mm Spanner
Will it fit?
- Top plate130mm × 75mm
- Fixing holeØ 11mm
- Overall height365mm
- Swivel radius120mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Medium Duty Jacking Castors

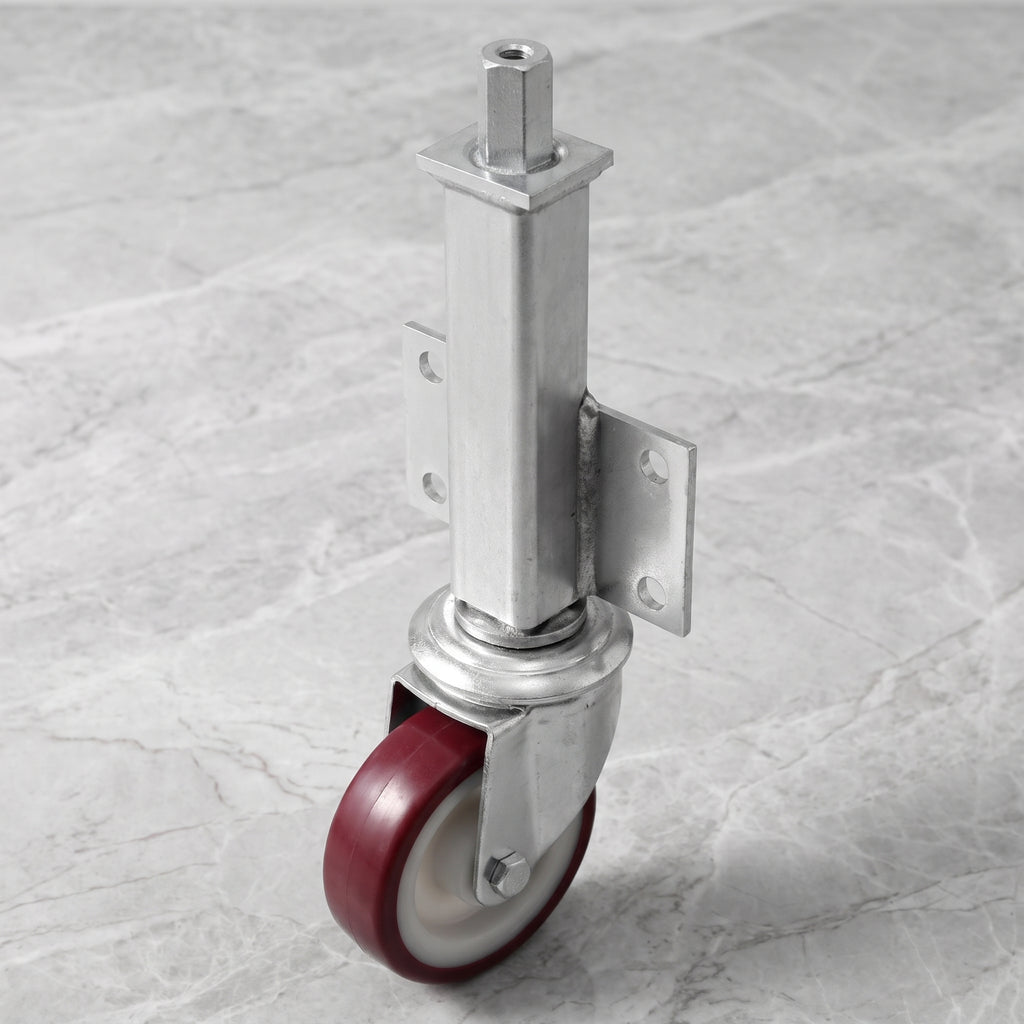

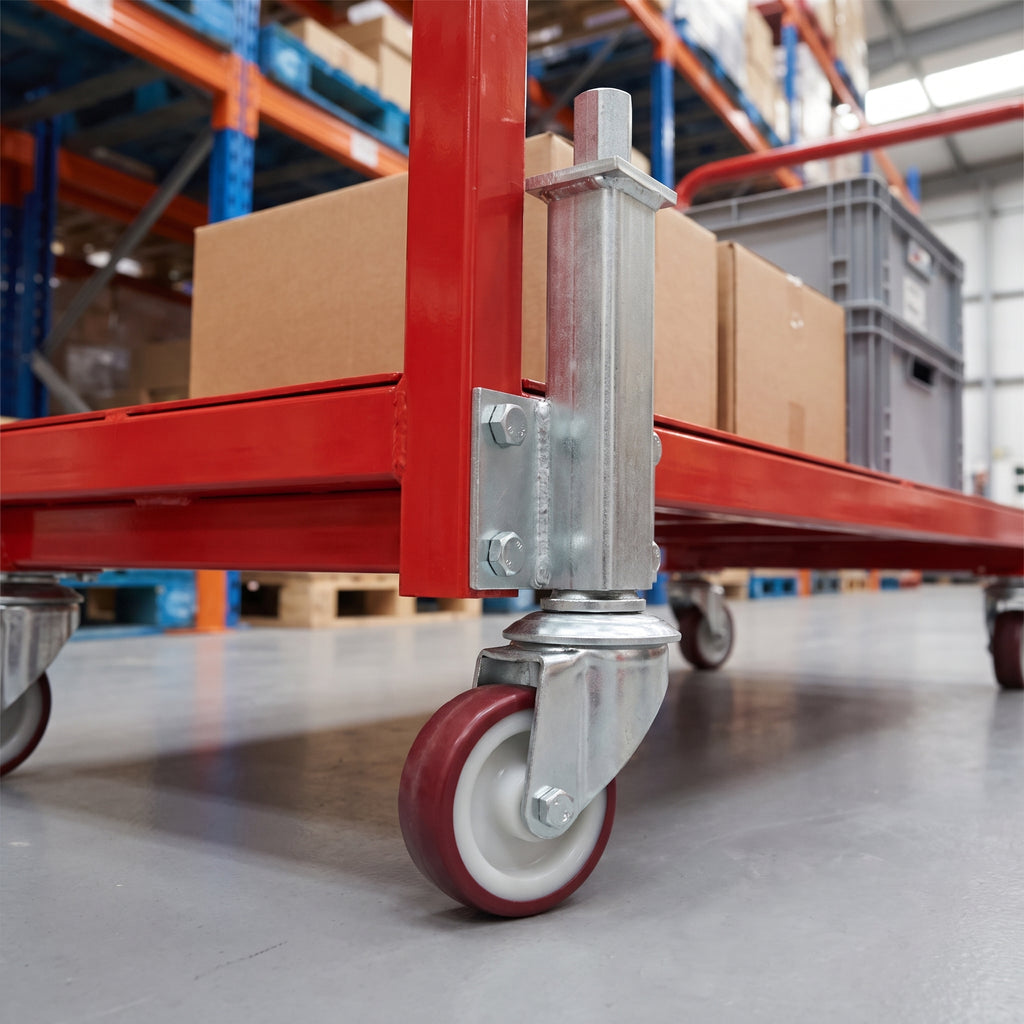

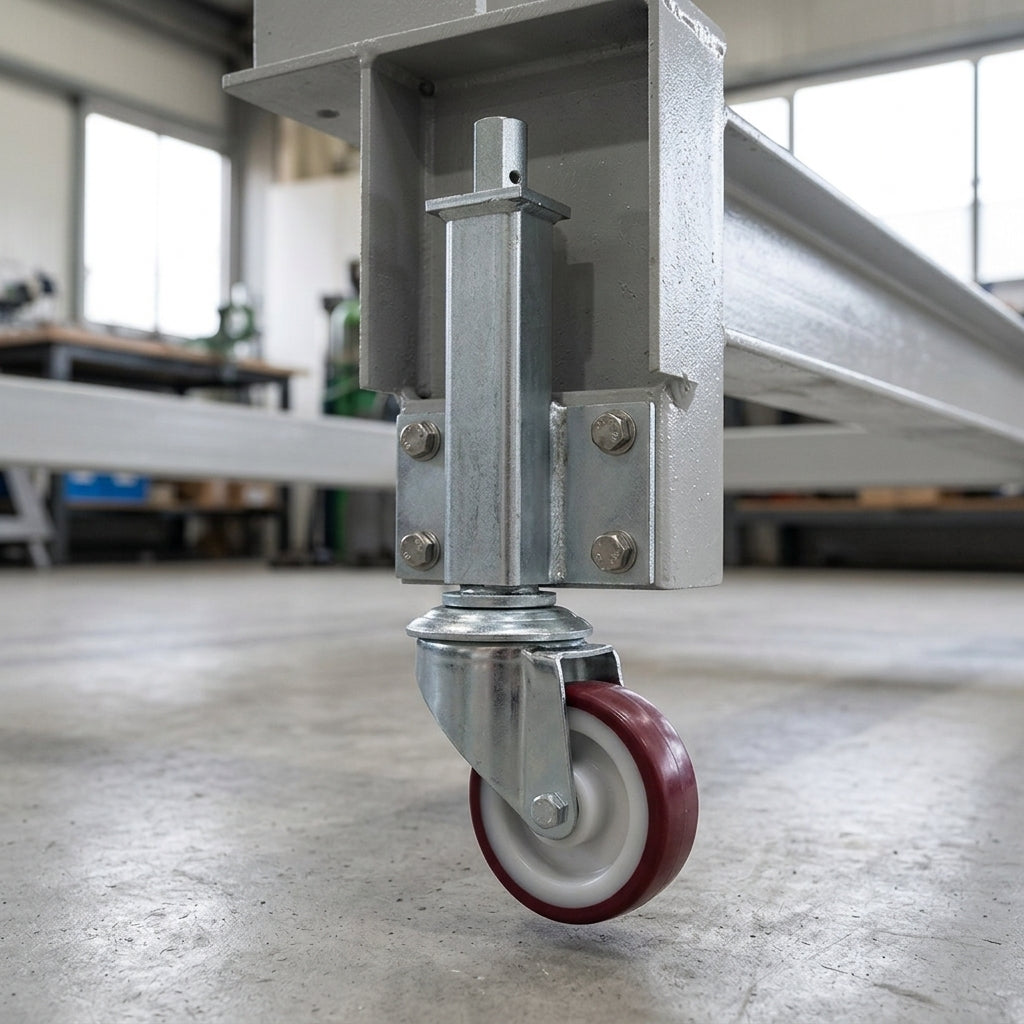

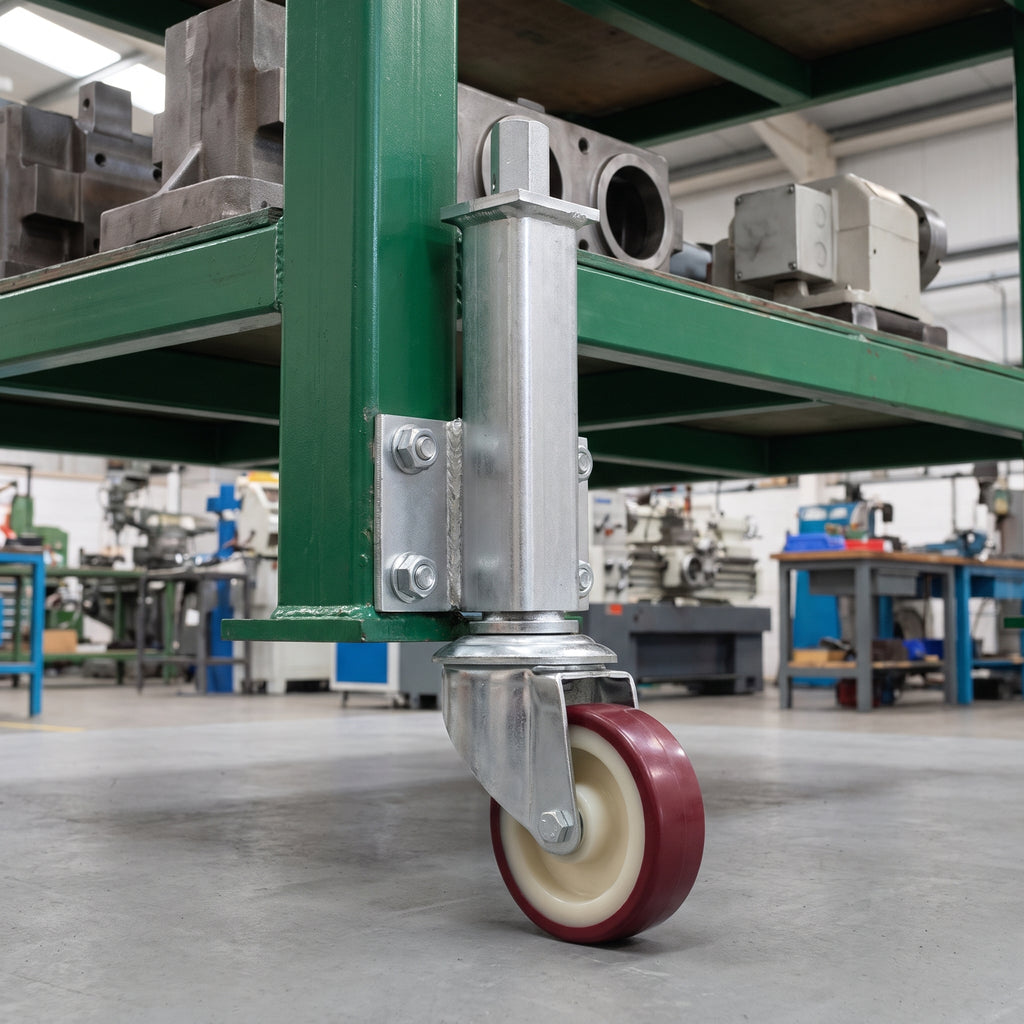

This 125mm medium duty swivel jacking castor combines a smooth-rolling castor with a built-in height adjustable jacking unit. Bolt it to the side of your machine, platform or frame with the 4 bolt hole mounting plate, wind the wheel down with a 24mm spanner to move the equipment, then raise it again so the equipment rests firmly on its own feet. Each castor carries up to 150kg.
The larger 125mm maroon polyurethane tyre on a nylon centre rolls smoothly and quietly over factory and warehouse floors, while the roller bearing wheel and swivel head make positioning easy. With 76mm of lift, an extended jacking height of 441mm and a total castor height of 365mm, it is a dependable retractable castor for industrial machinery, material handling equipment and adjustable platforms.
Why Choose This Castor
- ✓ Built-in jacking unit with 76mm of lift: raise or lower the wheel whenever you need to move or park equipment
- ✓ Simple operation with a standard 24mm spanner
- ✓ 125mm maroon polyurethane on nylon wheel for smooth, durable rolling
- ✓ Roller bearing for efficient and reliable wheel rotation
- ✓ Swivel head with a compact 120mm swivel radius for easy manoeuvring
- ✓ 150kg load capacity per castor for medium duty loads
- ✓ Strong 130 x 75mm mounting plate with 4 bolt holes for a secure fixing
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Industrial equipment: machinery that needs both mobility and height adjustment
- ✓ Material handling: moving medium duty loads around the workplace
- ✓ Adjustable platforms: providing adjustable height support where it is needed
Frequently Asked Questions
What is a jacking castor?
A jacking castor is a castor with a built-in screw jack. You lower the wheel to roll your equipment into place, then raise it so the equipment sits on its own legs or feet and cannot roll away.
How much lift does this jacking castor give?
It gives 76mm of lift. The jacking unit height is 187mm from the plate lower bolt hole and 441mm when extended.
How do I raise and lower the wheel?
The jacking unit is operated with a 24mm spanner on the hexagon at the top of the unit.
How much weight can it carry?
Each castor is rated at 150kg. Add up the rating of all the castors on your equipment to find the total capacity.
How is the castor fitted?
It has a 130 x 75mm mounting plate with 4 bolt holes of 11mm diameter on 102 x 51mm hole centres, which you bolt securely to your machine, platform or frame.
Does the castor swivel?
Yes. It is a swivel castor with a 120mm swivel radius, so the equipment is easy to steer and position.
