- Load per castor150kg per castor
- Wheel diameter125mm
- Overall height365mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Jacking Castor
- Series
- JA4
- Wheel Diameter
- 125mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 36mm
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 365mm
- Total Height to Plate Lower Bolt Hole
- 178mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 441mm
- Swivel Radius
- 207mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height365mm
- Swivel radius207mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Medium Duty Jacking Castors

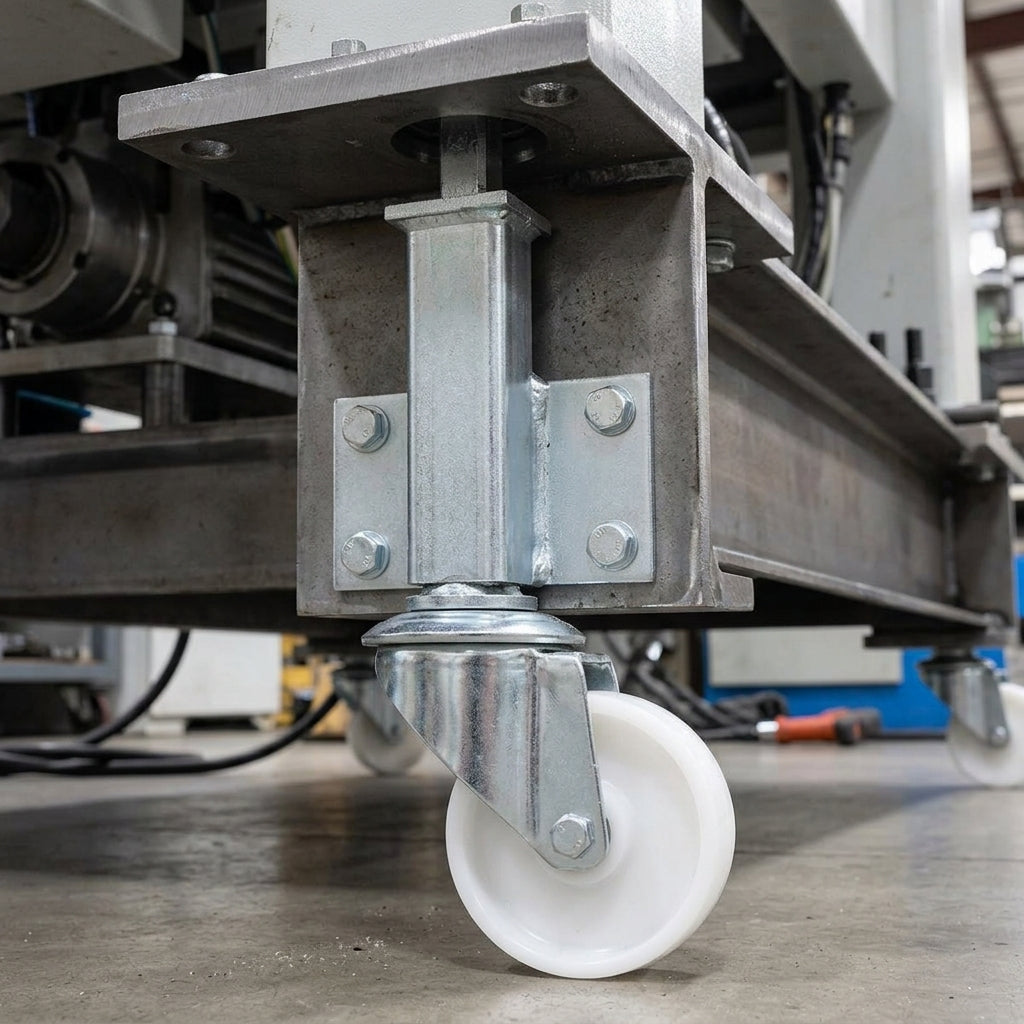

Get reliable movement and support for your equipment, then lift it back onto its own feet. This medium duty jacking castor combines a 125mm white nylon swivel wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly in place. The durable, wear-resistant nylon wheel and roller bearing give smooth rotation and easy directional changes, and each castor is rated for 150kg.
It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 365mm tall and the jacking unit reaches 441mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift height adjustment for stability and alignment, up to 441mm extended.
- ✓ 24mm spanner operation simple, controlled height adjustment.
- ✓ White nylon wheel 125mm durable, wear-resistant nylon wheel with a 36mm tread.
- ✓ Roller bearing smooth and reliable movement.
- ✓ Swivel castor 207mm swivel radius for easy directional changes.
- ✓ 150kg load capacity per castor for moderate weight applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty swivel jacking castor suits:
- ✓ Industrial use: equipment and machinery needing mobility and moderate weight support.
- ✓ Adjustable height requirements: where height adjustment is needed for stability or alignment.
- ✓ Dynamic environments: applications needing frequent directional changes.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 125mm white nylon wheel with a 36mm tread, running on a roller bearing. Nylon is durable and resistant to wear.
Does this castor swivel?
Yes. The wheel swivels with a 207mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
