- Load per castor150kg per castor
- Wheel diameter125mm
- Overall height365mm
- WheelPolyurethane on nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Braked Swivel Jacking Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Polyurethane on nylon
- Wheel Colour
- Maroon
- Tread Width
- 30mm
- Bearing Type
- Roller
- Function
- Swivel and braked
- Load Capacity
- 150kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Fixing
- 4 bolt hole mounting plate
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 365mm
- Total Height to Plate Lower Bolt Hole
- 178mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 441mm
- Swivel Radius
- 160mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height365mm
- Swivel radius160mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

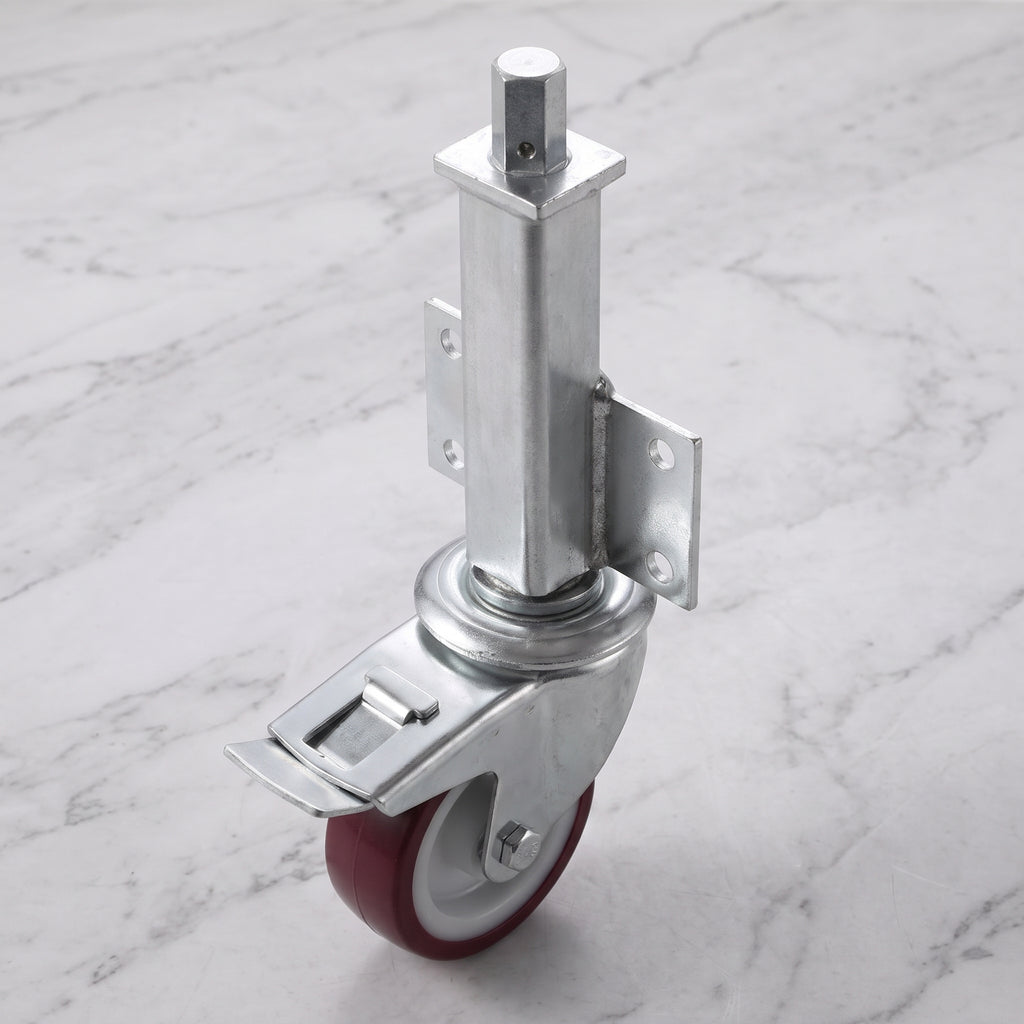

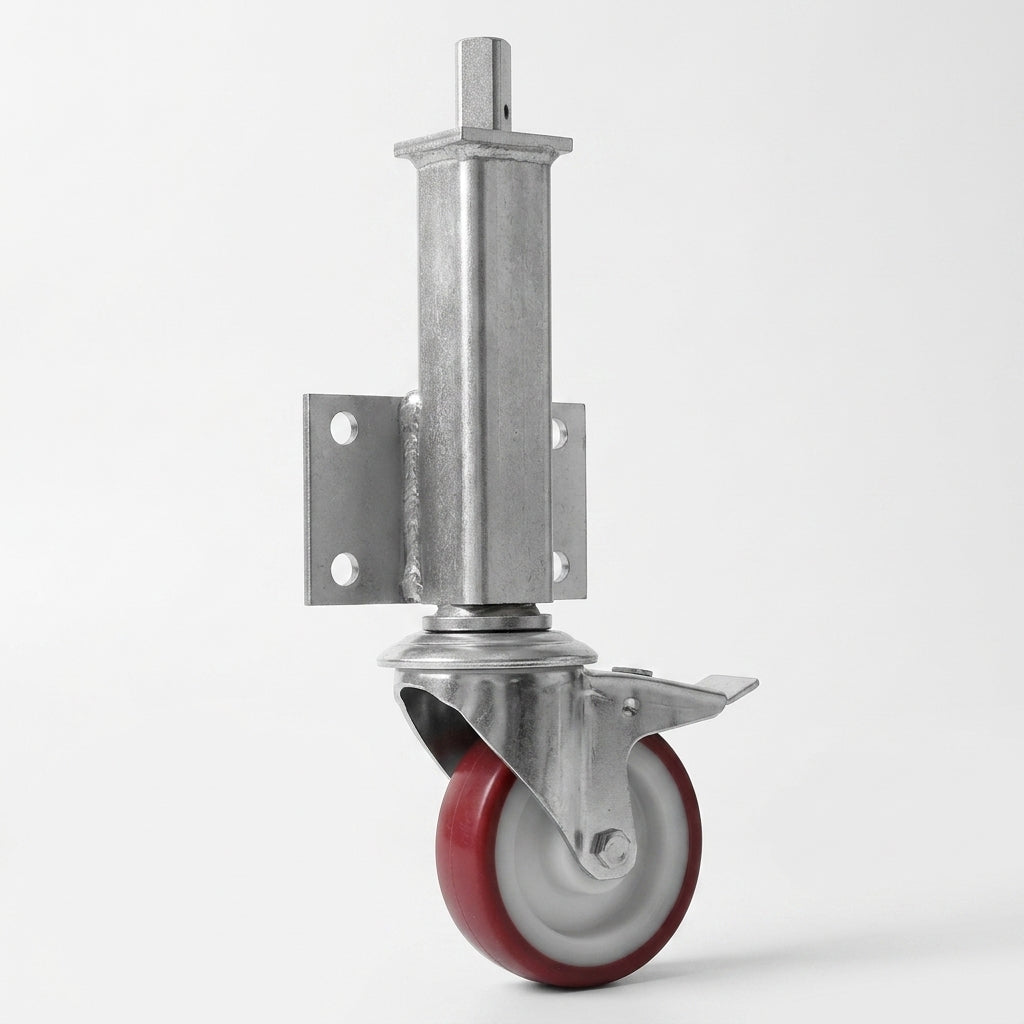

Medium Duty Polyurethane Wheel Jacking Castors

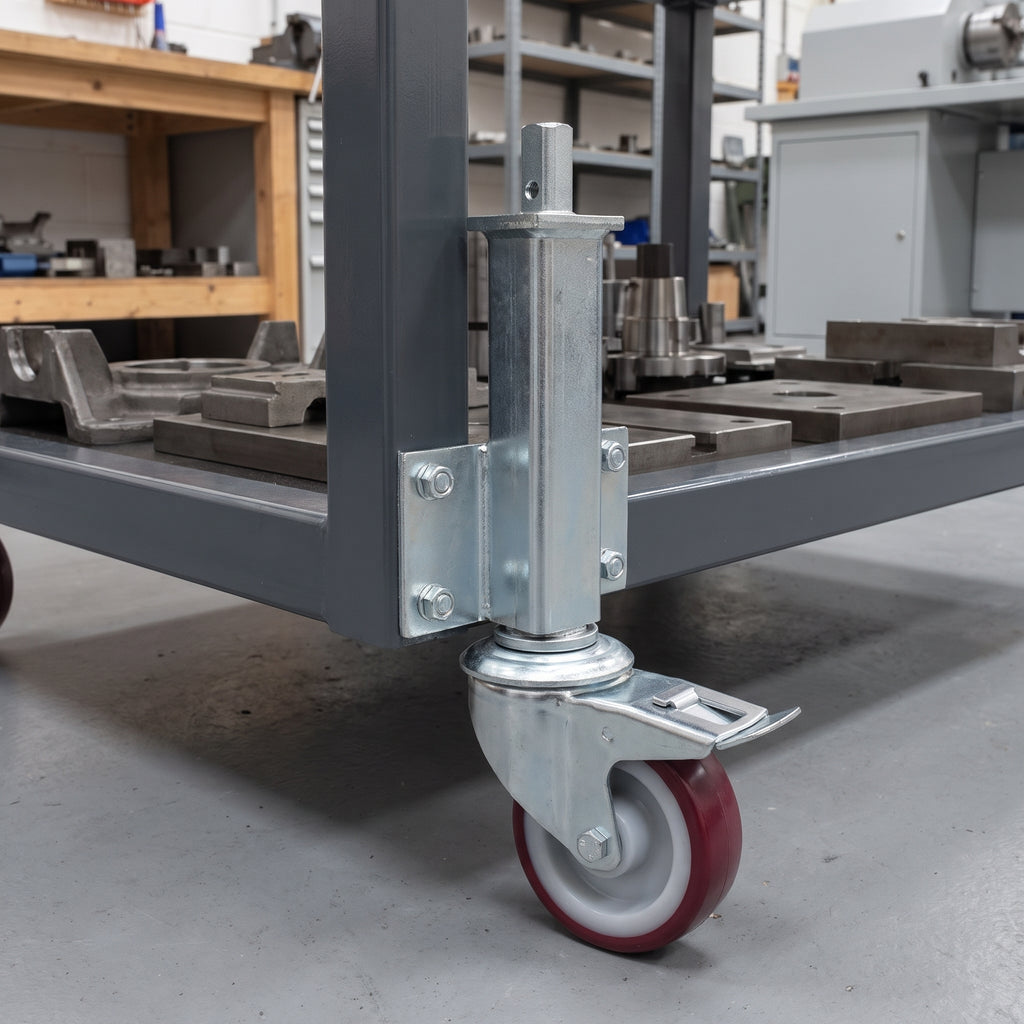

Move your equipment, hold it still with the brake, then wind it down onto its own feet. This medium duty braked swivel jacking castor pairs a 125mm maroon polyurethane on nylon wheel with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine, workbench or equipment stand for moving, then wind it back up so it stands firm. The brake keeps the wheel from rolling while you position your equipment, the roller bearing keeps it turning smoothly, and each castor is rated for 150kg.
The polyurethane tread gives a smooth, quiet ride on workshop and warehouse floors. The castor fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. It is 365mm tall and the jacking unit reaches 441mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift raises and lowers your equipment so it can roll or stand firm.
- ✓ Brake holds the wheel still while you position or work on your equipment.
- ✓ 24mm spanner operation simple, controlled height adjustment with a standard spanner.
- ✓ Maroon polyurethane wheel 125mm polyurethane on nylon wheel with a 30mm tread for a smooth, quiet ride.
- ✓ Swivel castor turns freely so you can steer and position equipment with ease.
- ✓ Roller bearing for smooth rolling with less effort.
- ✓ 150kg load capacity per castor for medium duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial use: equipment mobility in industrial settings.
- ✓ Load support: stability for moderate weight loads.
- ✓ Equipment movement: moving machinery and heavy items with ease.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake lock?
The brake stops the wheel from rolling, so your equipment stays where you put it while it is on its castors.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 125mm maroon polyurethane tyre on a nylon centre with a 30mm tread, running on a roller bearing.
How tall is the castor?
The castor is 365mm tall overall, 178mm from the floor to the lower plate bolt hole, and the jacking unit reaches 441mm when fully extended.
