- Load per castor150kg per castor
- Wheel diameter125mm
- Overall height365mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Medium Duty Swivel Braked Jacking Castor
- Series
- JA4
- Wheel Diameter
- 125mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 36mm
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor
- Jacking Lift
- 76mm
- Operating Method
- 24mm spanner
- Plate Size
- 130 x 75mm
- Plate Hole Centres
- 102 x 51mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 365mm
- Total Height to Plate Lower Bolt Hole
- 178mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 187mm
- Jacking Unit Height When Extended
- 441mm
- Swivel Radius
- 247mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height365mm
- Swivel radius247mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Medium Duty Jacking Castors

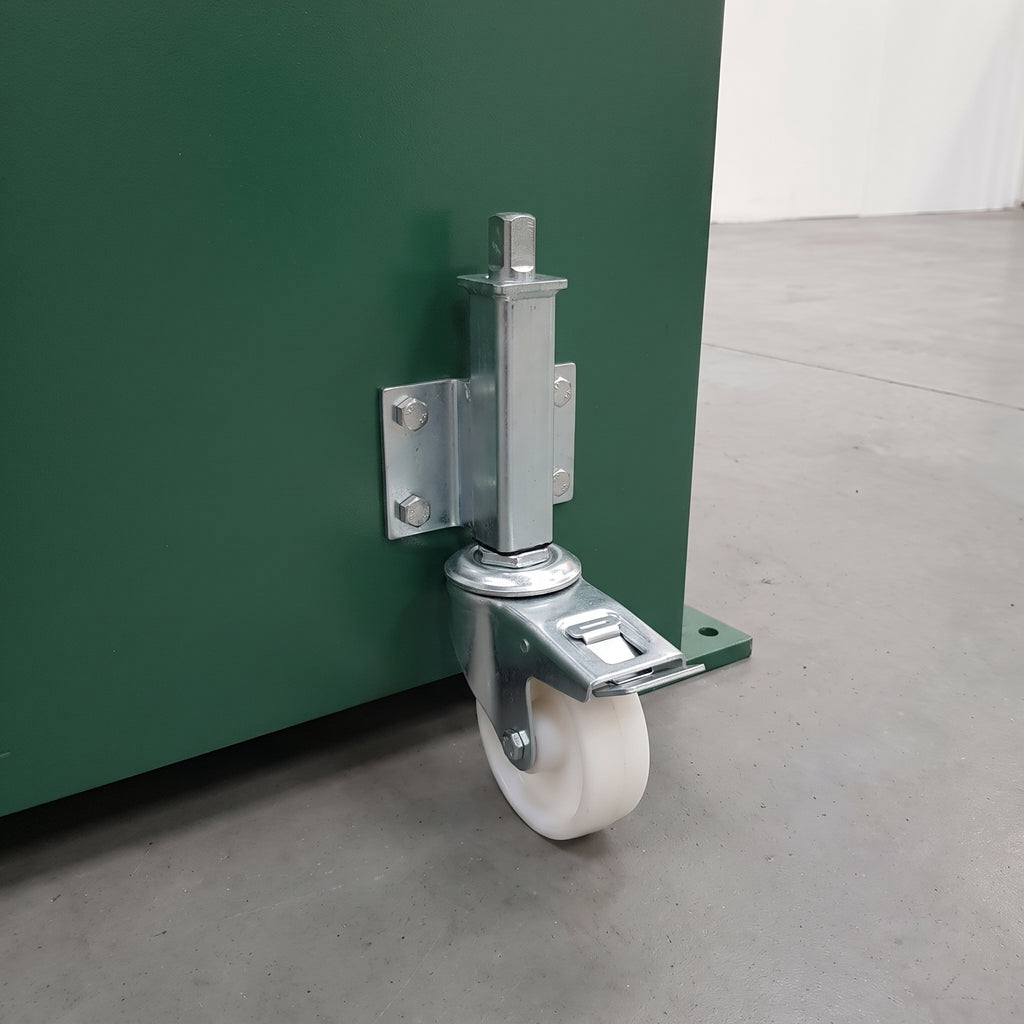

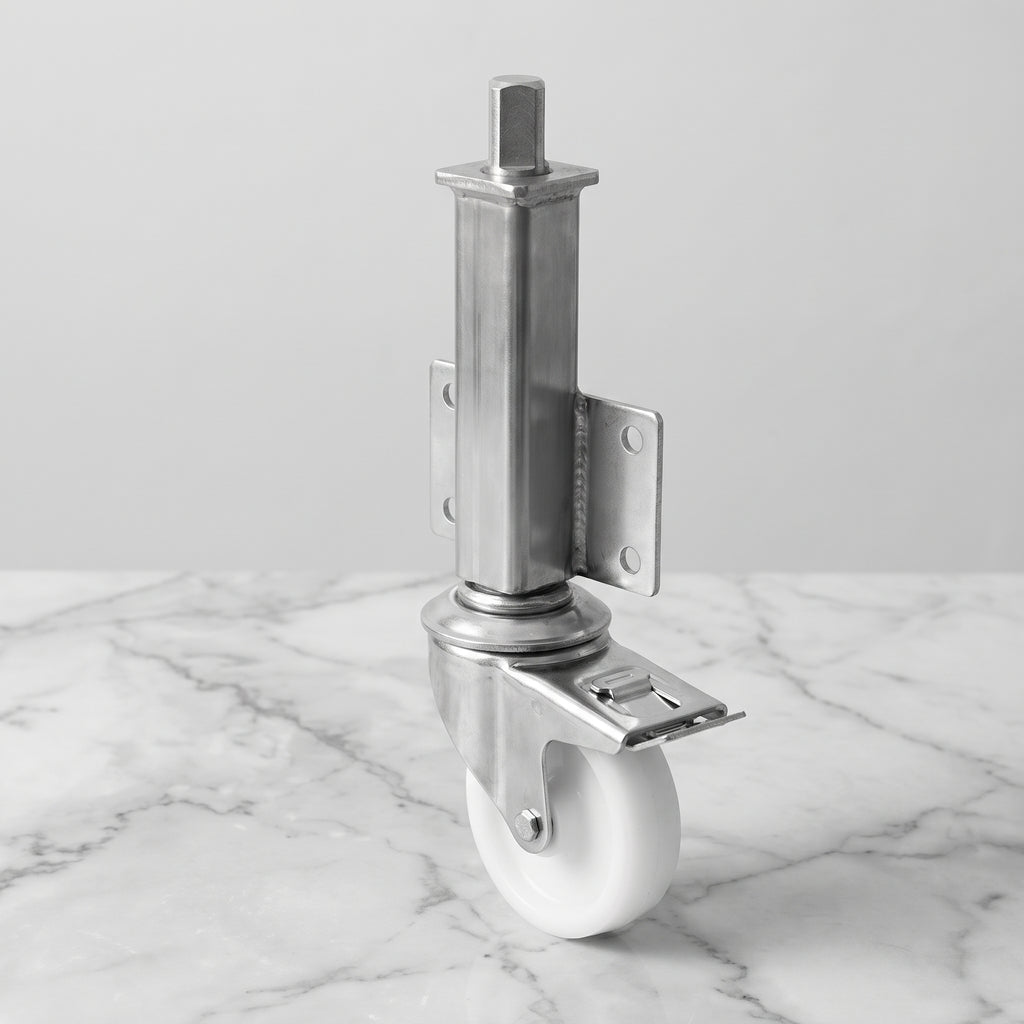

Position your equipment precisely, then lock it securely in place. This medium duty braked jacking castor combines a 125mm white nylon swivel wheel and a brake with a built-in screw jack that gives 76mm of lift. Turn the jack with a 24mm spanner to lower the wheel and raise your machine for moving, then wind it back up so the equipment rests firmly on its own feet. The braked swivel allows controlled movement and secure locking, the durable nylon wheel rolls smoothly on a roller bearing, and each castor is rated for 150kg.
It fixes to your equipment with a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres. The castor is 365mm tall and the jacking unit reaches 441mm when fully extended. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 76mm jacking lift easy height adjustment for variable support.
- ✓ Brake controlled movement and secure locking when needed.
- ✓ 24mm spanner operation simple, controlled height adjustment.
- ✓ White nylon wheel 125mm durable nylon wheel with a 36mm tread, smooth on various surfaces.
- ✓ Roller bearing reliable performance under load.
- ✓ 150kg load capacity per castor for medium duty applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This medium duty braked swivel jacking castor suits:
- ✓ Industrial use: environments requiring precise movement and stability.
- ✓ Adjustable support: applications where variable height is needed.
- ✓ Secure positioning: situations where locking in place is necessary.
Frequently Asked Questions
How does the jacking castor work?
Turn the jack with a 24mm spanner to wind the wheel down by up to 76mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
What does the brake do?
The brake allows controlled movement and secure locking, helping to hold your equipment in place while it is on its castors.
How much weight can this castor carry?
Each castor is rated for 150kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 130 x 75mm mounting plate with four 11mm holes on 102 x 51mm centres, bolted to your equipment frame.
What is the wheel made of?
A 125mm white nylon wheel with a 36mm tread, running on a roller bearing.
Does this castor swivel?
Yes. The wheel swivels with a 247mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
