- Load per castor550kg per castor
- Wheel diameter125mm
- Overall height164mm + 200mm
- WheelCast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Swivel Jacking Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Cast iron
- Tread Width
- 50mm
- Bearing Type
- Roller
- Load Capacity
- 550kg per castor
- Jacking Lift
- Up to 200mm
- Operating Method
- Handle
- Fixing
- 4 bolt hole mounting plate
- Plate Size
- 150 x 100mm
- Plate Hole Centres
- 110 x 60mm
- Plate Hole Diameter
- 11mm
- Bolt Hole Size
- 10mm
- Total Castor Height
- 164mm + 200mm
- Total Height to Plate Lower Bolt Hole
- 235mm
- Jacking Unit Height From Plate Lower Bolt Hole
- 339mm
- Jacking Unit Extension Height (Max 200mm)
- 774mm
- Swivel Radius
- 108mm
Will it fit?
- Fixing holeØ 11mm
- Bolt hole10mm
- Overall height164mm + 200mm
- Swivel radius108mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Cast iron / steel wheel
- Carries very heavy loads
- Tolerates heat and sharp debris
- Suits concrete, steel and foundry floors
- Noisy
- Will mark or damage finished floors
Details & FAQs
Heavy Duty Cast Iron Wheel Jacking Castors

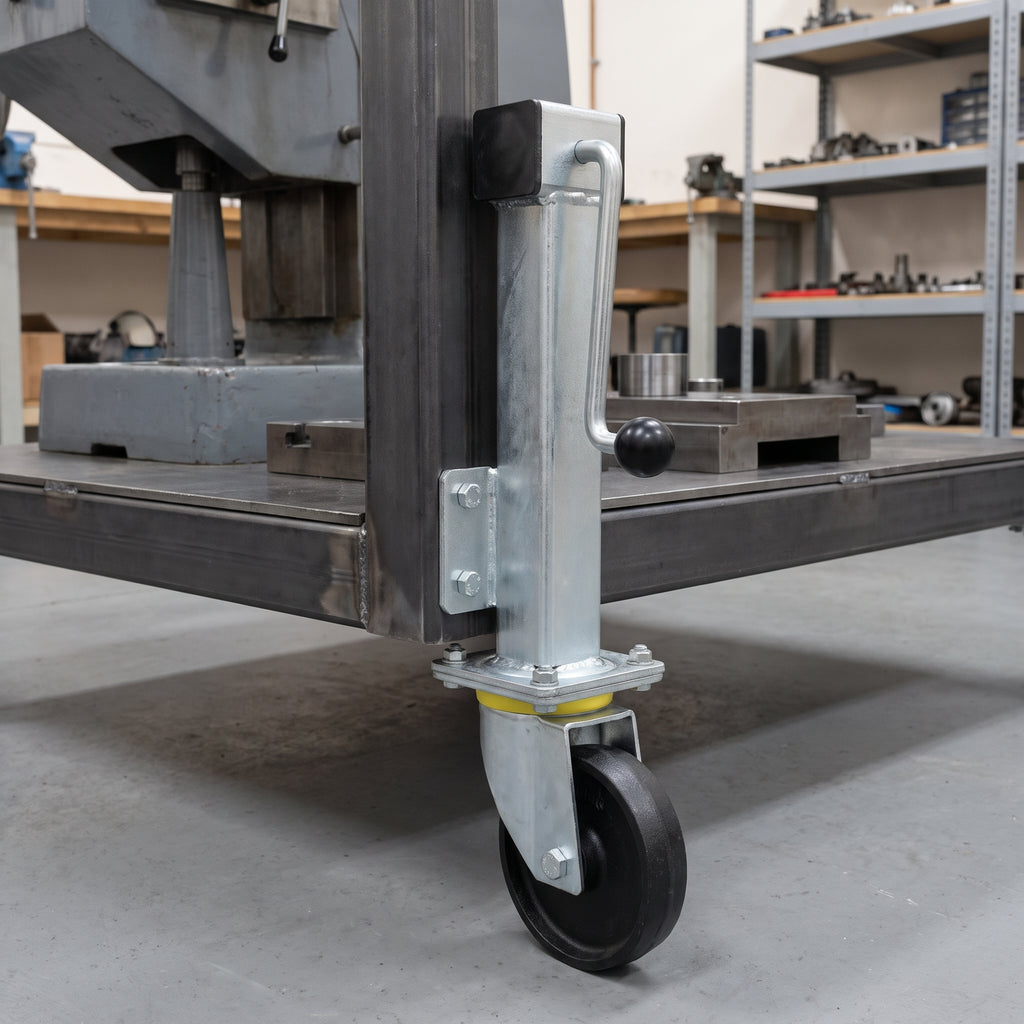

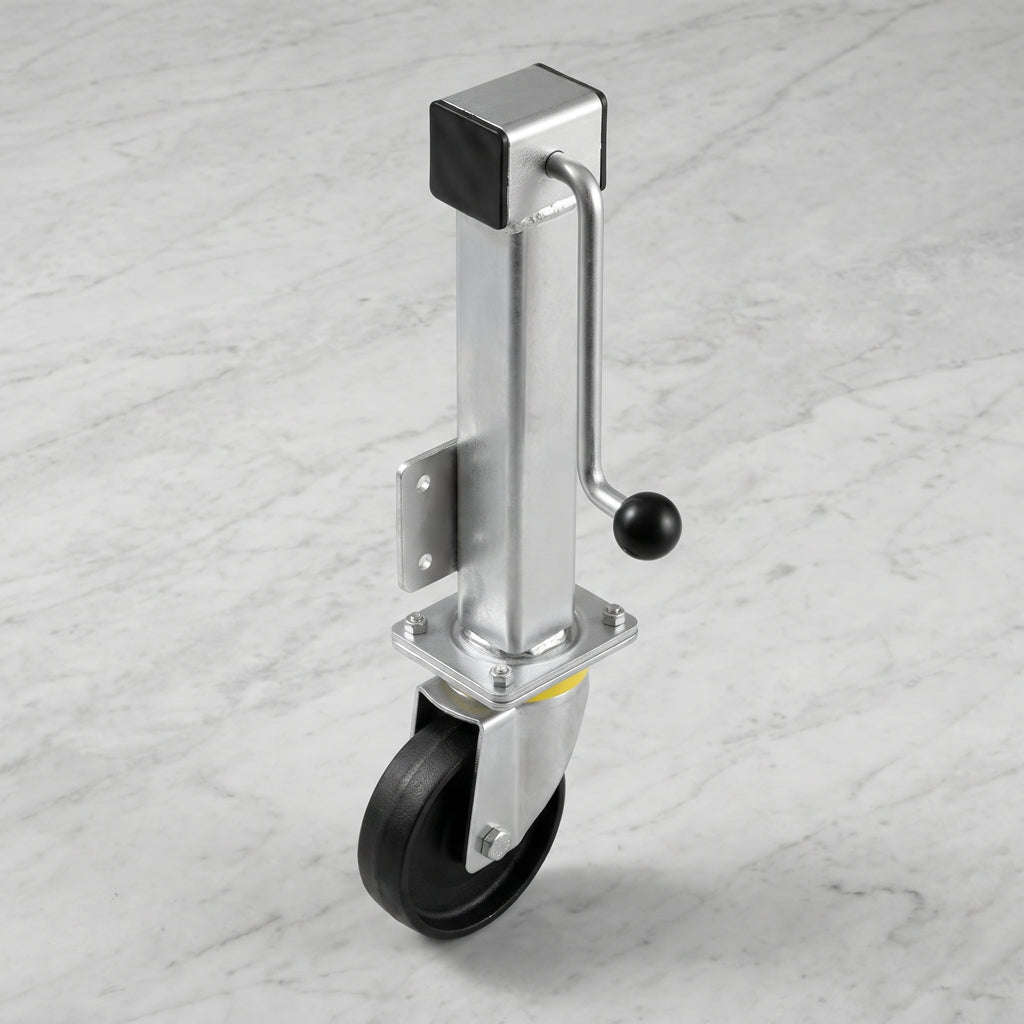

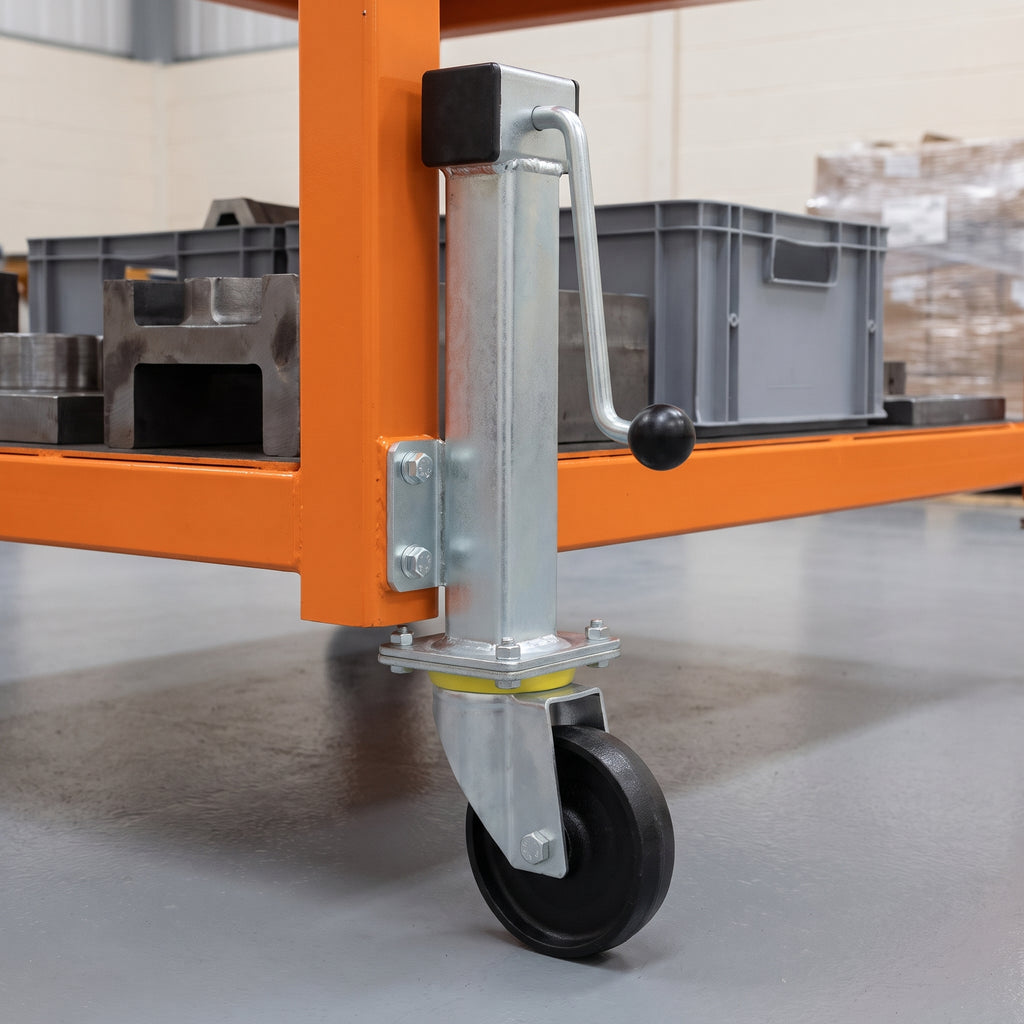

Move heavy machinery where you need it, then set it down firmly in place. This heavy duty swivel jacking castor pairs a solid 125mm cast iron wheel with a handle-operated jacking unit that extends up to 200mm. Turn the handle to lower the wheel and raise your machine, tool or equipment base for moving, then wind it back up so it stands firm and secure. Roller bearings keep it performing under load, and each castor is rated for 550kg.
The robust cast iron wheel suits industrial, manufacturing and workshop floors where heavy equipment needs regular repositioning. The castor fixes to your equipment with a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres. Check the plate size, hole centres and jacking height against your equipment before ordering.
Why Choose This Castor
- ✓ 550kg load capacity per castor for heavy duty equipment.
- ✓ 200mm jacking lift for easy height adjustment and secure positioning.
- ✓ Handle operation precise adjustment by hand, with no tools needed.
- ✓ Cast iron wheel 125mm solid cast iron wheel with a 50mm tread.
- ✓ Swivel castor 108mm swivel radius for easy steering.
- ✓ Roller bearing for reliable performance under load.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and jacking height suit your equipment before fitting.
Where It Works Best
This heavy duty swivel jacking castor suits:
- ✓ Industrial equipment: moving and positioning heavy machinery.
- ✓ Manufacturing environments: efficient mobility of equipment.
- ✓ Workshops: handling and adjusting large tools and machines.
Frequently Asked Questions
How does the jacking castor work?
Turn the handle to wind the wheel down by up to 200mm and lift your equipment onto its castors. Wind it back up to lower the equipment onto its own feet so it stays firmly in place.
Do I need a tool to operate it?
No. The jacking unit is operated by its own handle, so height adjustment is done by hand.
How much weight can this castor carry?
Each castor is rated for 550kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 150 x 100mm mounting plate with four 11mm holes on 110 x 60mm centres, bolted to your equipment frame.
What is the wheel made of?
A solid 125mm cast iron wheel with a 50mm tread, running on a roller bearing.
Does this castor swivel?
Yes. It has a 108mm swivel radius, so you can steer your equipment easily once it is lifted onto the castors.
